TPC-1501 Industrial Touch Screen Panel PC
TPC-1501 is a 15 inch fanless industrial touch screen panel PC designed for HMI systems, machine control, industrial automation and embedded applications. It features Intel Celeron J1900 / Core i5 / i7 processor options, 1024 × 768 TFT-LCD, 350 cd/m² brightness, front IP65 protection, resistive or capacitive touch options, dual LAN, multiple COM ports, HDMI, optional GPIO, 9–36V DC input and Windows / Linux support.
"*" indicates required fields

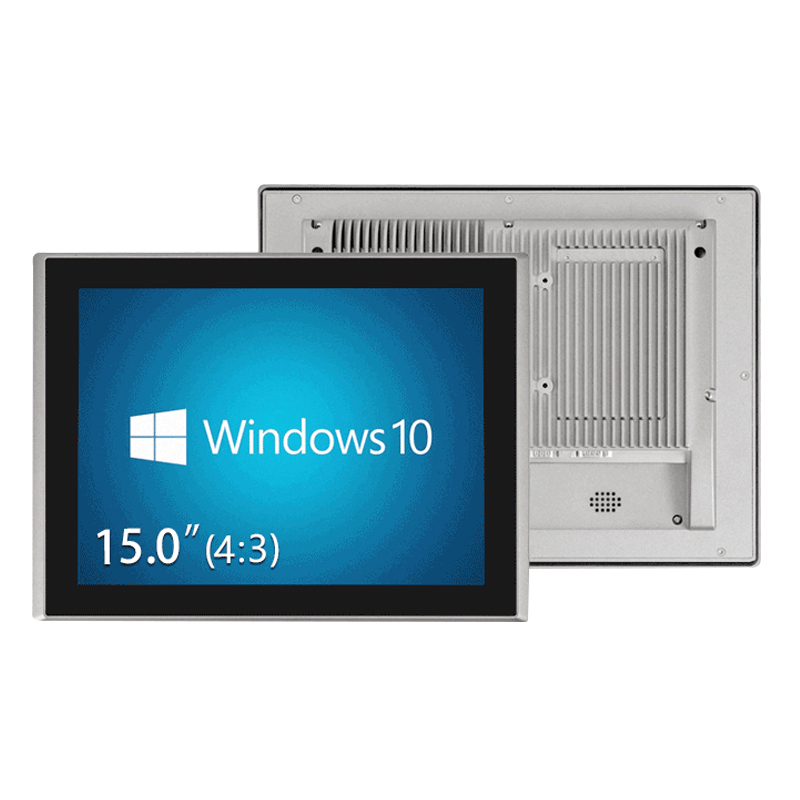

15 Inch Fanless Industrial Panel PC with Intel Celeron / Core i5 / i7 Processor
The TPC-1501 industrial touch screen panel PC is a 15 inch fanless industrial computer designed for HMI control, factory automation, equipment operation, production monitoring, warehouse systems and embedded industrial applications.
Built with a 15 inch TFT-LCD display, aluminium alloy structure, Intel Celeron / Core i5 / Core i7 processor options, front IP65 protection, wide-voltage 9–36V input and multiple industrial I/O interfaces, TPC-1501 provides a reliable touch computing platform for industrial environments that require long-term stable operation.
It supports LCD + HDMI dual display output, synchronous / asynchronous display mode, resistive or capacitive touch options, dual LAN, multiple COM ports, Mini PCIe expansion and Windows / Linux operating systems.
Key Features
- 15 inch industrial touch screen panel PC

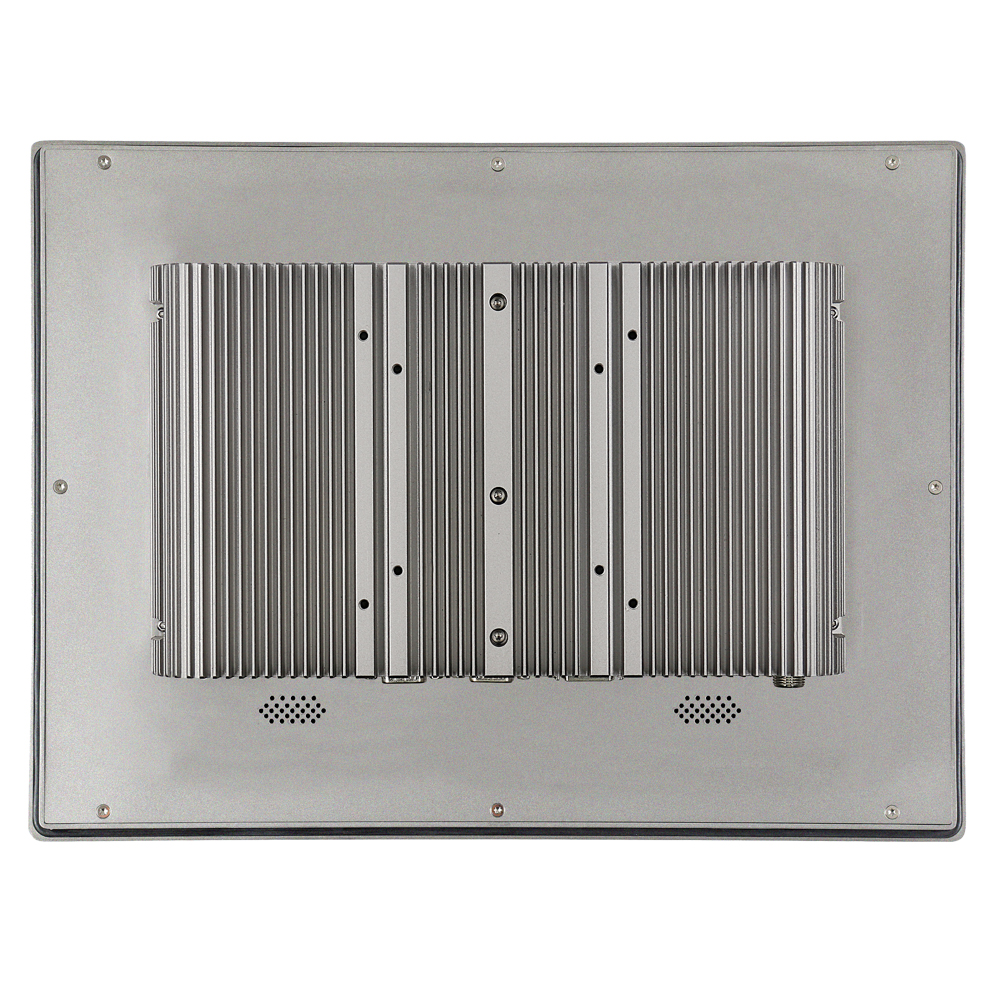

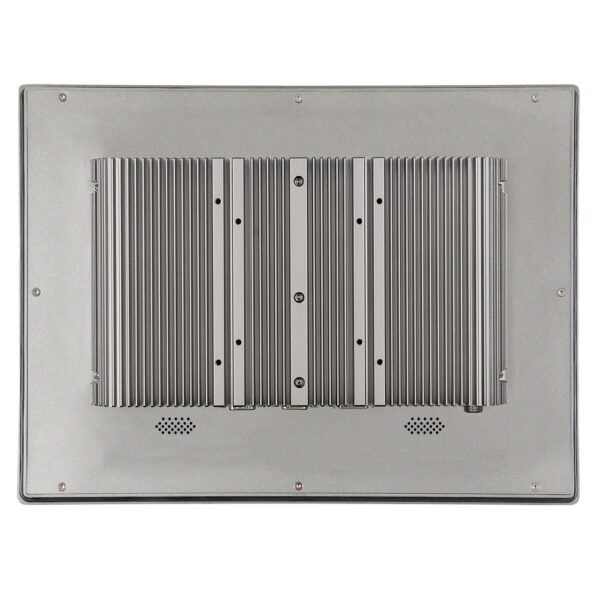

- Fanless aluminium alloy design
- Intel Celeron J1900 / Core i5 / Core i7 processor options
- 1024 × 768 TFT-LCD display
- Brightness: 350 cd/m²
- Front panel with IP65 protection

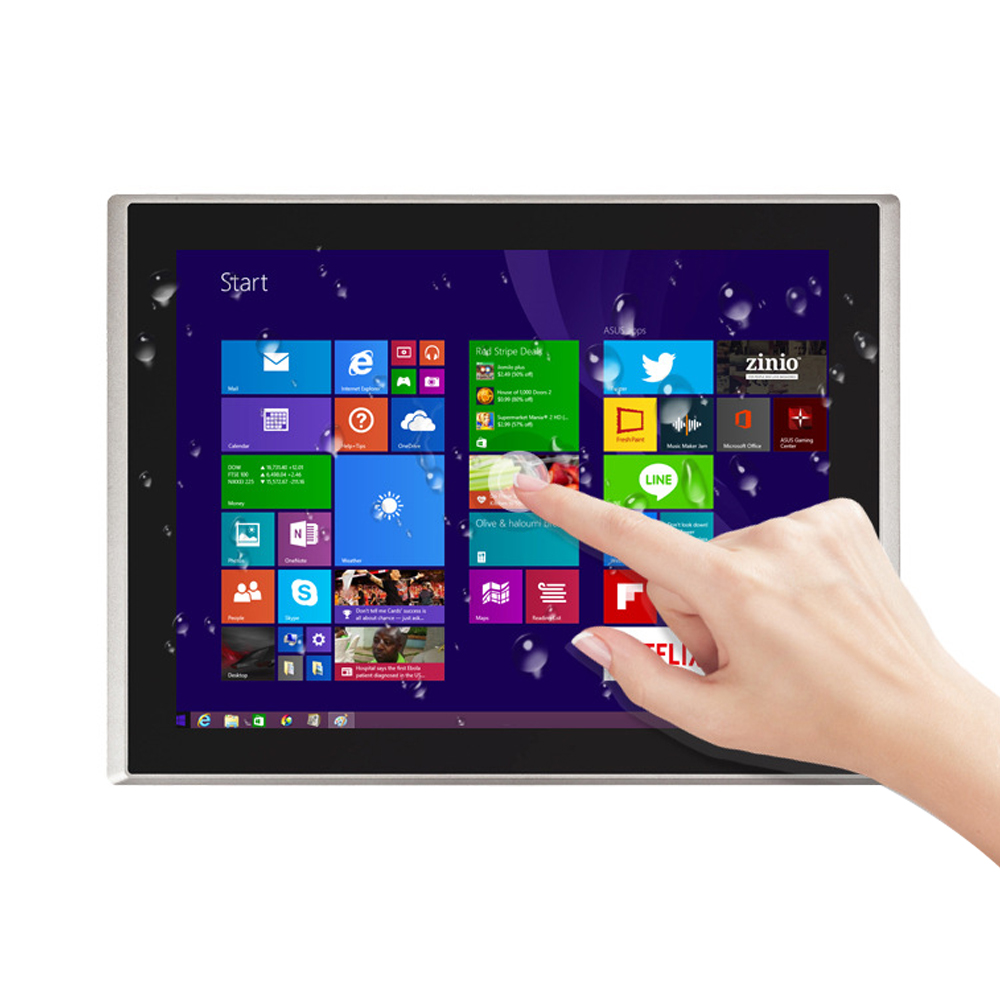

- 5-wire analog resistive touch screen
- Capacitive touch optional
- LCD + HDMI dual display support
- Synchronous / asynchronous display mode
- Wide-voltage 9–36V DC input
- Dual Intel i211-AT Gigabit LAN ports
- Multiple COM ports with RS232 / RS422 / RS485 support
- mSATA, SATA HDD / SSD and M.2 SSD storage support
- Full-height Mini PCIe with SIM slot for 3G / 4G
- Half-height Mini PCIe for WiFi / Bluetooth
- Watchdog timer: 1–255 seconds programmable
- VESA 75 / panel mount installation
- Operating temperature: -20℃ to 60℃
Applications
- Industrial automation
- HMI control systems
- Machine control panels
- Equipment operation terminals
- Factory production line monitoring
- Warehouse control terminals
- Logistics automation
- Industrial data acquisition
- Medical equipment terminals
- Self-service kiosks
- Access control terminals
- Parking system control panels
- Energy management systems
- Embedded industrial display computers
- Production monitoring terminals
Technical Specifications
System
| Item | Specification |
|---|---|
| Model | TPC-1501 |
| Product Type | Industrial Touch Screen Panel PC |
| Processor | Intel Celeron J1900 / Intel Core i5 / i7 options |
| CPU Options | i5-4278U / i7-4578U / i5-7360U / i7-7560U / i5-8250U / i7-8550U |
| Memory | Onboard DDR3L 4GB |
| Optional Memory | 1 × SODIMM slot, max 8GB |
| LAN | 2 × GbE RJ45 Intel i211-AT |
| Operating System | Windows 7 / 8 / 10, Linux |
| Watchdog Timer | 1–255 seconds programmable |
Display
| Item | Specification |
|---|---|
| Panel Size | 15 inch TFT-LCD |
| Resolution | 1024 × 768 |
| Max Colors | 16.7M |
| Brightness | 350 cd/m² |
| Viewing Angle | -85° to 85° horizontal, -85° to 85° vertical |
| Backlight | LED |
| Backlight MTBF | 50,000 hours |
| Display Output | LCD + HDMI |
| Display Mode | Synchronous / asynchronous dual display |
Touch Screen
| Item | Specification |
|---|---|
| Touch Type | 5-wire analog resistive |
| Optional Touch | Capacitive touch |
| Light Transmission | >78% |
| Lifetime | >10 million activations |
| Front Panel Protection | IP65 |

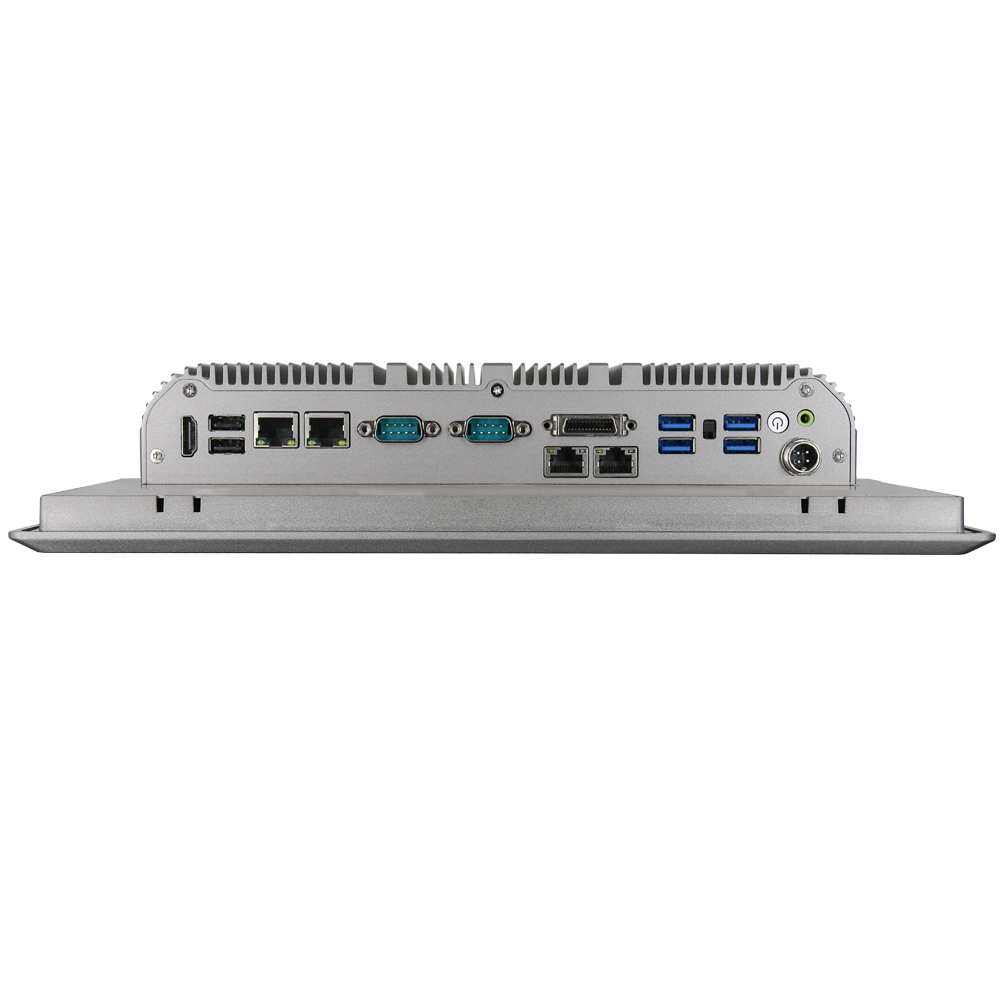

I/O Interfaces
| Interface | Specification |
|---|---|
| USB | 3 × USB 2.0, 1 × USB 3.0 |
| Internal USB | 1 × internal USB 2.0 dongle interface |
| COM1 & COM2 | 2 × DB9 COM, RS232 / RS422 / RS485 |
| COM3 & COM4 | 2 × 3-wire COM, RS232 / RS485 Phoenix terminal |
| COM5 & COM6 | 2 × 3-wire COM, RS232 Phoenix terminal |
| Audio | 1 × audio line-out |
| Speaker Output | 2 × 8Ω 1W power amplifier output, optional |
| AT / ATX | 1 × AT / ATX DIP switch |
| Power Input | 1 × Phoenix terminal, DC 9–36V input |
| HDMI | 1 × HDMI |
| GPIO | 1 × 14-bit GPIO, optional |
Storage and Wireless
| Item | Specification |
|---|---|
| mSATA SSD | 1 × mSATA SSD supported |
| SATA HDD / SSD | 1 × SATA HDD / SSD supported |
| M.2 SSD | 1 × M.2 SSD, Core series only |
| 3G / 4G Expansion | 1 × full-height Mini PCIe with onboard SIM slot |
| WiFi / Bluetooth | 1 × half-height Mini PCIe |
Mechanical and Environmental Specifications
| Item | Specification |
|---|---|
| Material | Aluminium alloy |
| Installation | VESA 75 / Panel mount |
| Dimensions | 376.1 × 285.3 × 58.7mm |
| Net Weight | 4.5kg |
| Gross Weight | 6.5kg |
| Operating Temperature | -20℃ to 60℃ |
| Storage Temperature | -30℃ to 70℃ |
| Storage Humidity | 10%–90% @ 30℃, non-condensing |
| Power Supply | DC12V, 3-pin Phoenix terminal |
| Wide Voltage Support | 9–36V |
Why Choose TPC-1501?
TPC-1501 is suitable for industrial applications that require a medium-size touch display, fanless operation and reliable embedded computing.
Compared with standard commercial touch computers, TPC-1501 provides aluminium alloy construction, front IP65 protection, wide-voltage input, multiple COM ports, dual LAN, panel-mount installation and industrial temperature support. These features make it practical for HMI systems, machine control, factory automation, production monitoring, warehouse terminals and self-service equipment.
For projects that require a 15 inch integrated touch computer with industrial I/O and long-term stable operation, TPC-1501 provides a practical industrial panel PC solution.
Related Models
TPC-8001 – 8 inch industrial touch screen panel PC with Intel Celeron J1900 processor
TPC-1001 – 10.1 inch industrial tablet PC with 1280 × 800 display
TPC-1201 – 12.1 inch industrial tablet PC with 1024 × 768 display
TPC-1901 – 19 inch industrial touch screen panel PC with 1280 × 1024 display
TPC-2105 – 21.5 inch industrial touch screen panel PC with 1920 × 1080 display
FAQ
What is TPC-1501 used for?
TPC-1501 is used as an industrial touch screen panel PC for HMI systems, machine control, factory automation, production monitoring, warehouse systems, self-service terminals and embedded industrial applications.
What screen size does TPC-1501 use?
TPC-1501 uses a 15 inch TFT-LCD display with 1024 × 768 resolution.
Is TPC-1501 fanless?
Yes. TPC-1501 supports fanless operation, making it suitable for industrial environments where dust resistance, low noise and long-term reliability are important.
Does TPC-1501 support front IP65 protection?
Yes. The front panel supports IP65 protection.
What touch screen options are available?
TPC-1501 supports 5-wire analog resistive touch screen, with capacitive touch available as an option.
What processors are available?
TPC-1501 supports Intel Celeron J1900 and Intel Core i5 / i7 processor options, including i5-4278U, i7-4578U, i5-7360U, i7-7560U, i5-8250U and i7-8550U.
Does TPC-1501 support dual display?
Yes. It supports LCD + HDMI dual display with synchronous / asynchronous display mode.
What operating systems are supported?
TPC-1501 supports Windows 7 / 8 / 10 and Linux.
What is the input voltage range?
TPC-1501 supports wide-voltage 9–36V DC input.
What installation methods are supported?
TPC-1501 supports VESA 75 and panel mount installation.
| Weight | 6 kg |
|---|---|
| Configuration | J1900 + 4G RAM +256G SSD, i5-4278U + 4G RAM + 256G SSD, i7-4578U + 4G RAM + 256G SSD, i5-8250U+ 8G RAM + 256G SSD, i7-8550U+ 8G RAM + 256G SSD, i5-7360U+ 8G RAM + 256G SSD, i7-7560U+ 8G RAM + 256G SSD |
