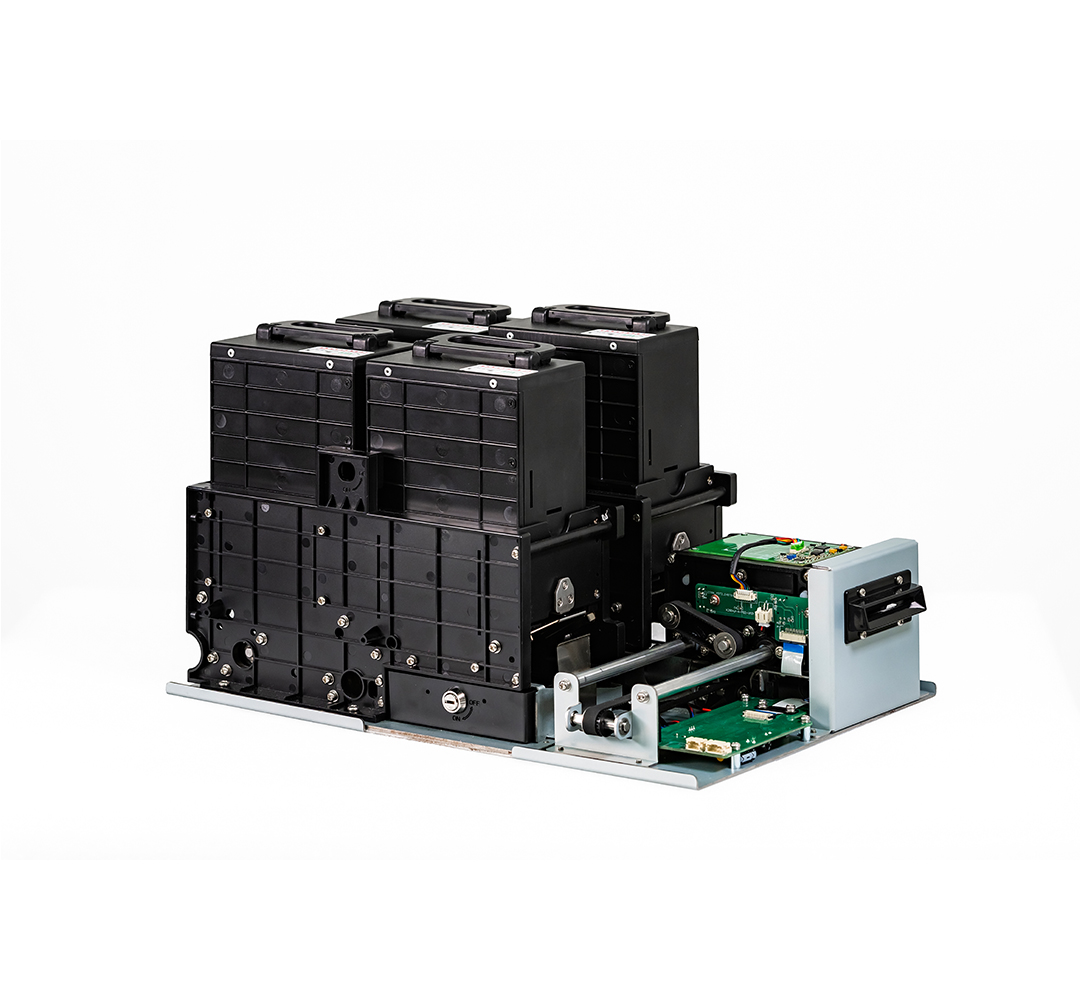

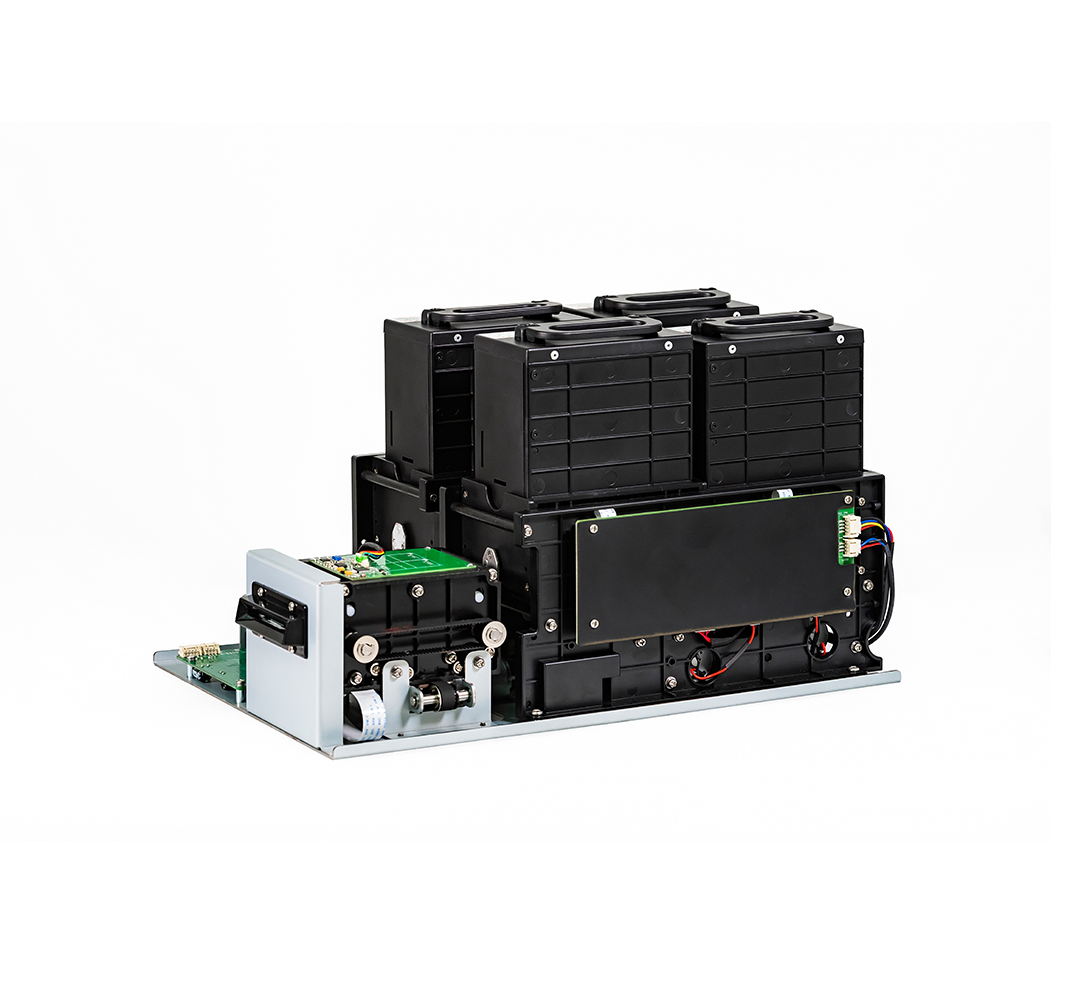

CD-K2604J-4 Quad-Card Box Single-Channel Card Dispenser Machine
Features:
- Enable issue & retract IC/RFID/magnetic card
- Gate Design: Electrically controlled gate, supports magnetic card triggering and switch triggering for opening.
- Card Insertion Methods: Command-triggered insertion and magnetic sensor-triggered insertion.
- Card Support: Magnetic card read/write, contact IC card read/write, and contactless IC card read/write.
- Power Failure Protection: Moves cards to the card slot holding position or recycle bin during power loss.
- Certifications: Compliant with EMV 4.3d Level 1 and PBOC 2018 Level 1 standards.
- Quad-card box design: Allows selection of card issuance box via command for multi-purpose use, rapid dispensing, and large capacity.
- Alert Functions: Low card warning, empty card warning, card box misalignment warning, recycle bin misalignment warning, and recycle bin empty/full warnings.
- Sensors: Photoelectric detection using infrared sensors, featuring long service life and low failure rate.
Specifications:
| Card Type | IC card: ISO7816-1、2、3、4 standard Support T=0, T=1 CPU card Support T=0, T=1 PSAM card Contactless card：ISO/IEC 14443 type A & type B Support mifare 1 S50, S70, UL card, mifare plus, mifare desfire Magnetic card: ISO7810, ISO7811-(1-6), ISO7812, ISO7813 and ISO15457 |
| Card Specification | Material: paper card and PC card Width: 54 ± 0.5 mm(W) Length: 85 ± 0.5 mm Thickness: 0.5 ～1.2mm |
| Power Supply | DC24V |
| Working Current | Idle: <200mA Peak: <3000mA |
| Interface | RS232/USB |
| Card Hopper Capacity | 4 card boxes, 100 pcs flat card/box, 0.76mm thickness (150 pcs flat card/box optional) |
| Alert Lamp | Card entry alert Few card alert Power on alert IC card power on alert |
| Environmental Conditions | Operation temp: 0 ℃ to 45℃ Operation humi: 30～90% (relative humidity) |
| Life Time | Drive parts: 500,000cycles Magnetic head: 800,000cycles IC card contact: 300,000cycles |
| Certified | EMV/PBOC |
| Weight | Approx.10 kg |
