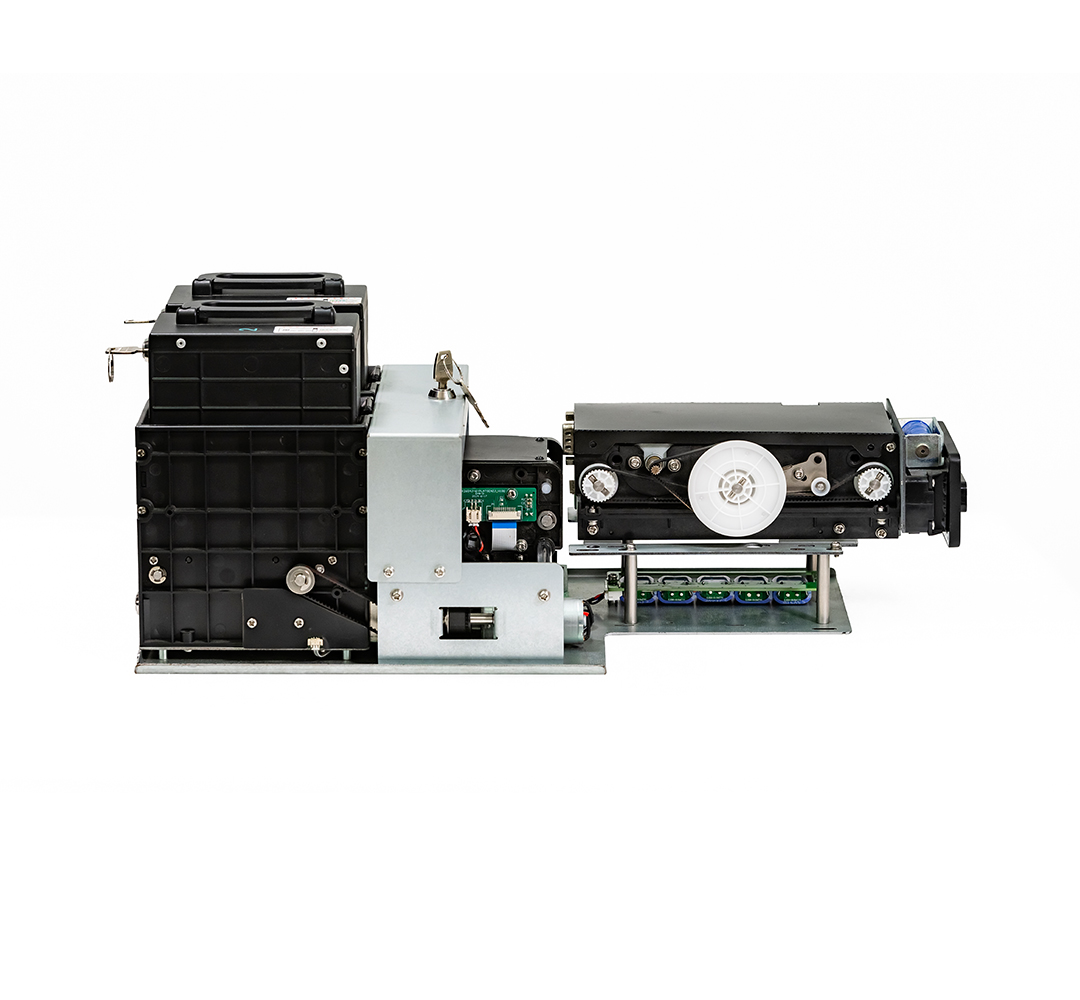

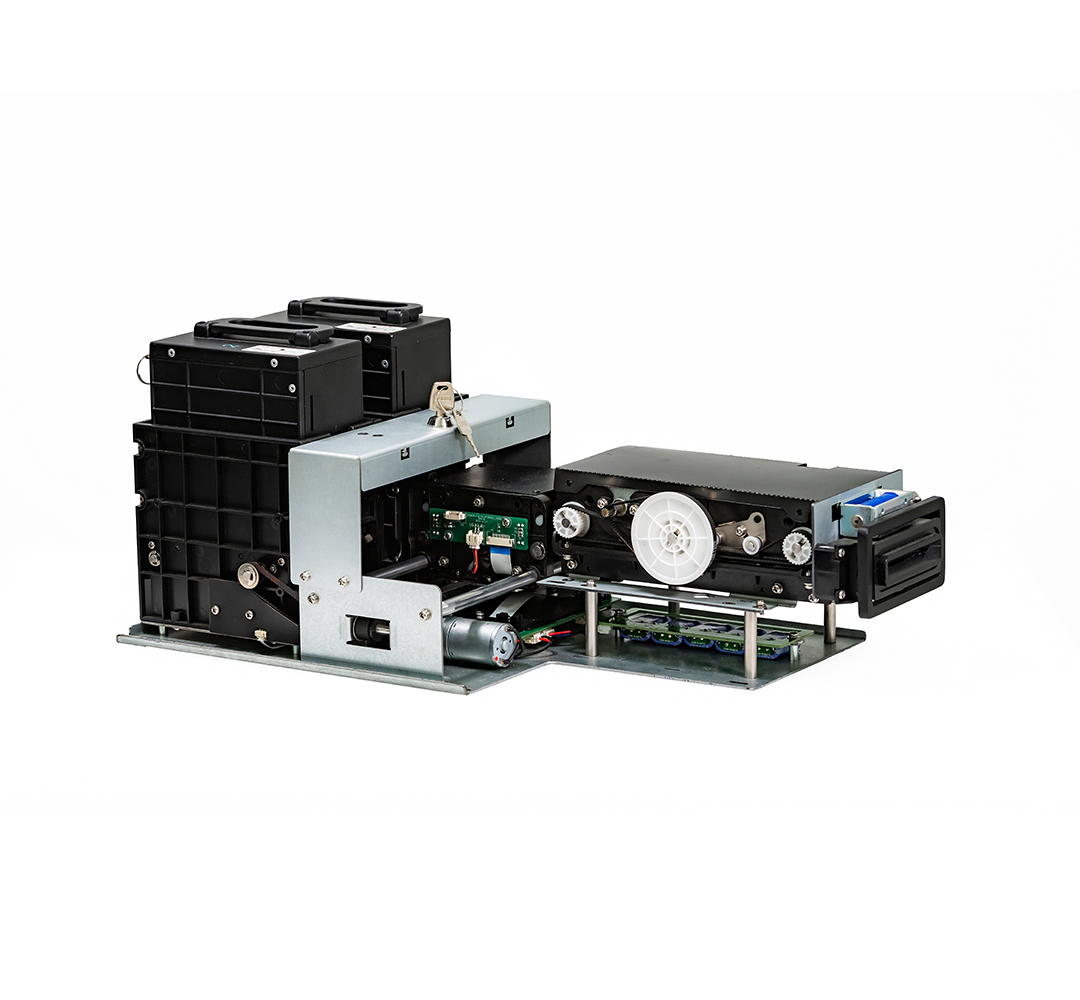

CD-K2616-M8 Dual-Card Hopper Read/Write Card Dispenser
Features:
- Enable issue & retract IC/RFID/magnetic card
- Multi functions in one device: provide IC/RF card reading/writing, issuing/collecting functions and effectively saves space for the complete machine
- Unique dispensing wheel design: is capable of issuing various embossing cards accurately
- Simple collection channel design: satisfies user requirement for large collection amount
- Card stacker & error card bin are available to lock for security management purpose
- Card empty,pre-empty,error card bin status detected with alarm
Specifications:
| Card Type | IC card: ISO7816-1、2、3、4 standard Support T=0, T=1 CPU card Support T=0, T=1 PSAM card Contactless card: ISO/IEC 14443 type A & type B Support Mifare 1 S50, S70, UL card, mifare plus, mifare desfire Magnetic card: ISO7810，ISO7811 －(1-6)，ISO7812，ISO7813 And ISO15457 |
| Card Specification | Material: paper card and PC card Width: 54 ± 0.5 mm(W) Length: 85 ± 0.5 mm Thickness: 0.7 ～1.0mm |
| Power Supply | DC24V |
| Working Current | Idle:<100mA Peak:<3000mA |
| Interface | RS232/USB |
| Card hopper Capacity | 2 card boxes, 110 pcs flat card/box, 0.76mm thickness (150 pcs flat card/box optional) |
| Alert Lamp | Card entry alert Few card alert Power on alert IC card power on alert |
| Environmental Conditions | Operation Temp: 0℃ to 45℃ Operation Humi: 30～90% (Relative Humidity) |
| Life time | Drive parts: 500,000cycles Magnetic head: 800,000cycles IC card contact: 300,000cycles |
| Certified | EMV/PBOC |
| Weight | Approx. 4.5kg |
