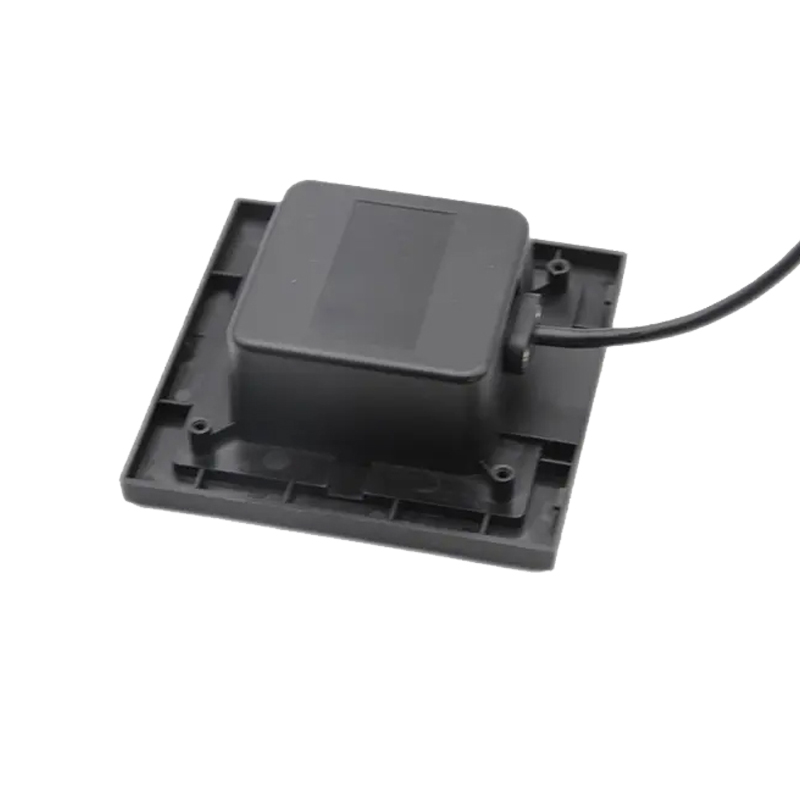

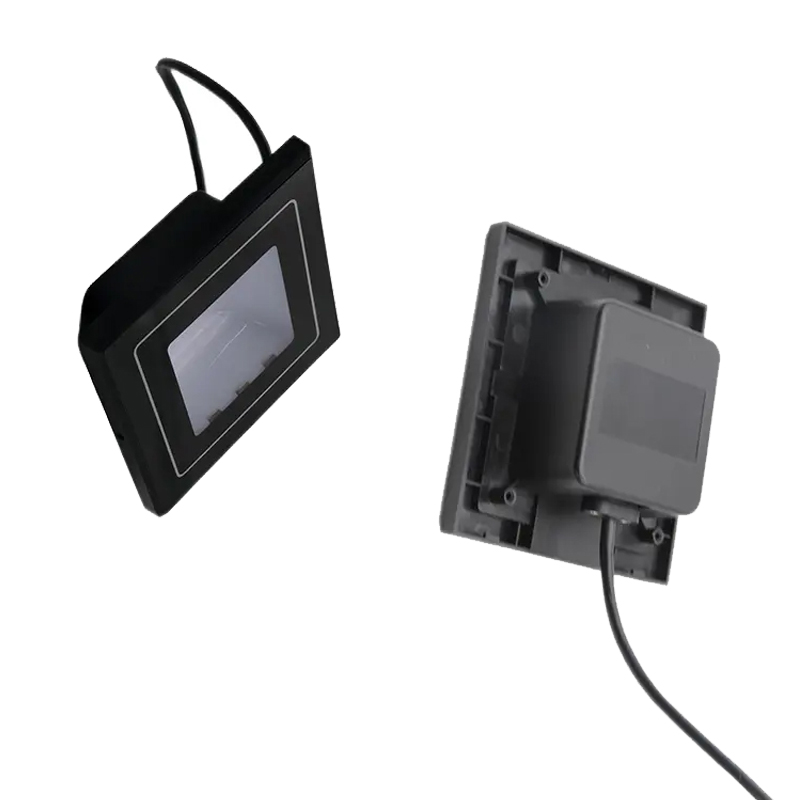

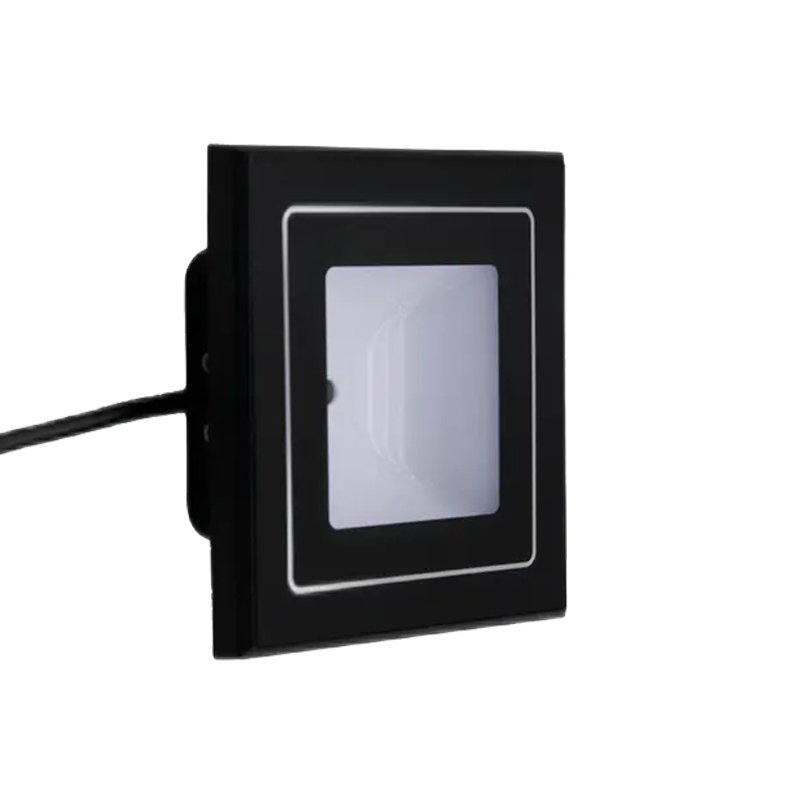

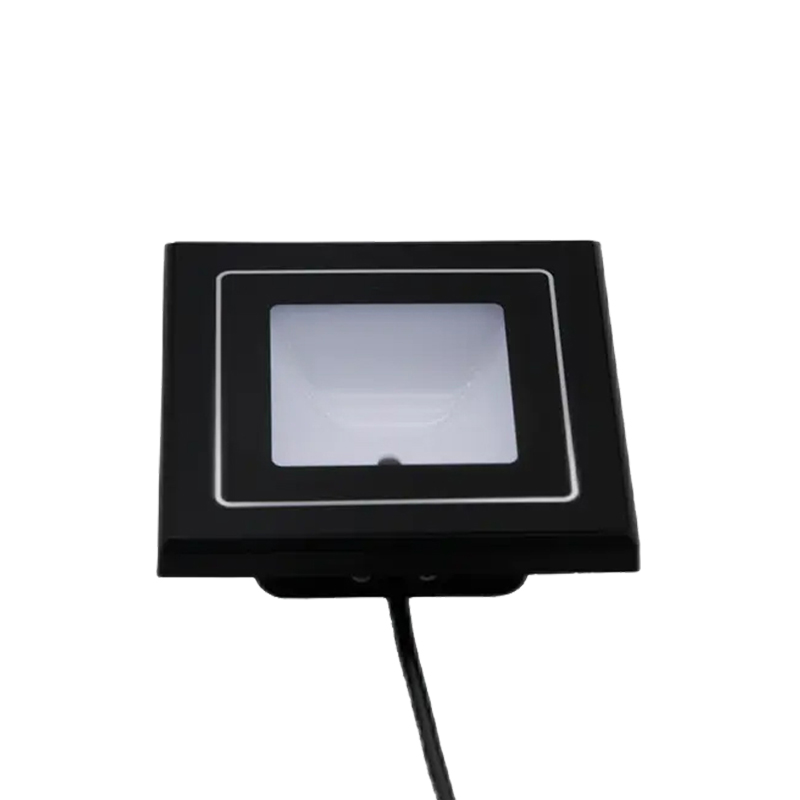

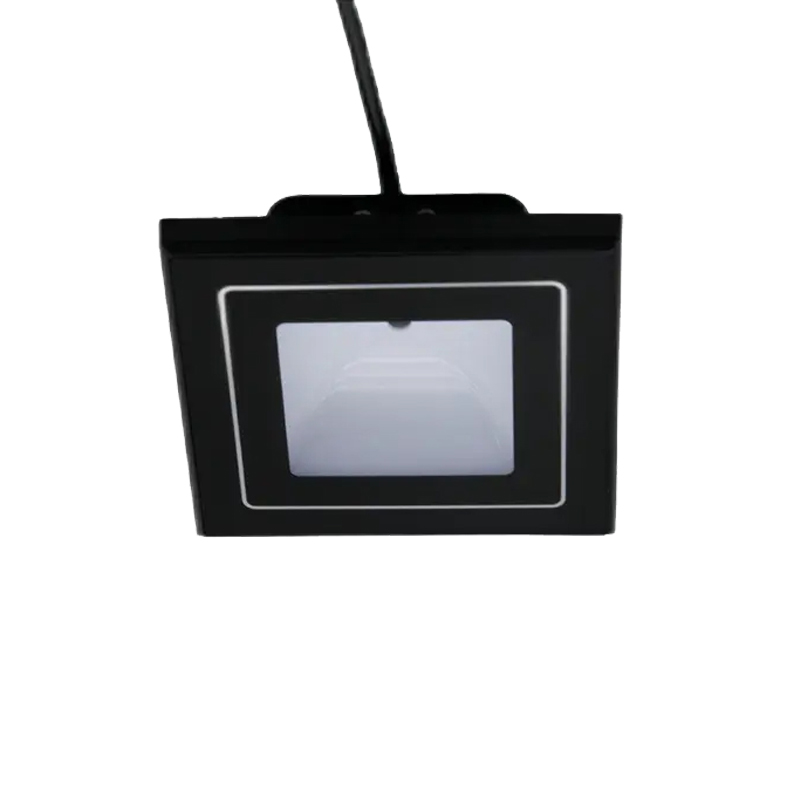

Embedded Barcode Scanner Features:
- Fixed mount scanner for Access Switch Box Library Subway
- USB/Serial port/TD/Wiegand multiple interface for option
- Free SDK/driver for integration
- 13.56Mhz NFC card reader is optional
Embedded Barcode Scanner Specification:
|
Basic parameters
|
||
|
Reading mode
|
CMOS
|
|
|
Resolution
|
640×480
|
|
|
Interface type
|
USB/Serial port/TD/Wiegand
|
|
|
Read code system |
2D
|
QR Code，Micro QR，PDF417，Micro PDF 417，
Data Matrix(ECC 200)，HANXIN，Grid Matrix，Aztec |
|
1D
|
Code11，Code39，Code93，Code 128，EAN-13，EAN-8，UPC-A，UPC-E，Codebar，Standard 2of 5，Matrix 2 of 5，Interleaved 2 of
5，MSI，GS1，Plessey，Telepen |
|
|
Reading accuracy
|
≥ 7mil
|
|
|
Read depth of field
|
10mm~100mm
|
|
|
Printing contrast
|
≥ 30%
|
|
|
Barcode rotation sensitivity
|
360°@ 0°Pitch and 0°Skew
|
|
|
Barcode tilt sensitivity
|
60° @ 0°Roll and 0°Pitch
|
|
|
Barcode deflection sensitivity
|
40° @ 0°Roll and 0°Skew
|
|
|
Ambient illumination
|
0 ~ 100,000 LUX
|
|
|
Electrical characteristics
|
||
|
Maximum power consumption
|
1.2W
|
|
|
Voltage
|
5~24V
|
|
|
Current
|
Maximum Current
|
240 mA
|
|
Working Current
|
200 mA
|
|
|
Standby current
|
30 mA
|
|
|
Weight
|
260 g
|
|
|
Working Environment
|
||
|
Operating temperature
|
-20℃～+60℃
|
|
|
Storage temperature
|
-40℃～+80℃
|
|
|
Working humidity
|
5% – 95%（no condensation）
|
|
