Overview

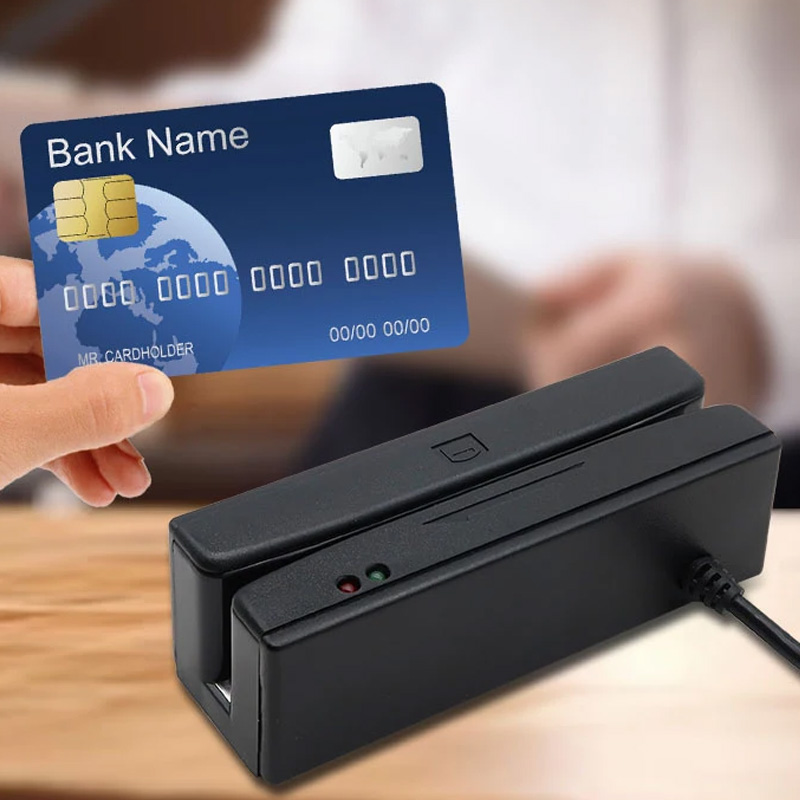

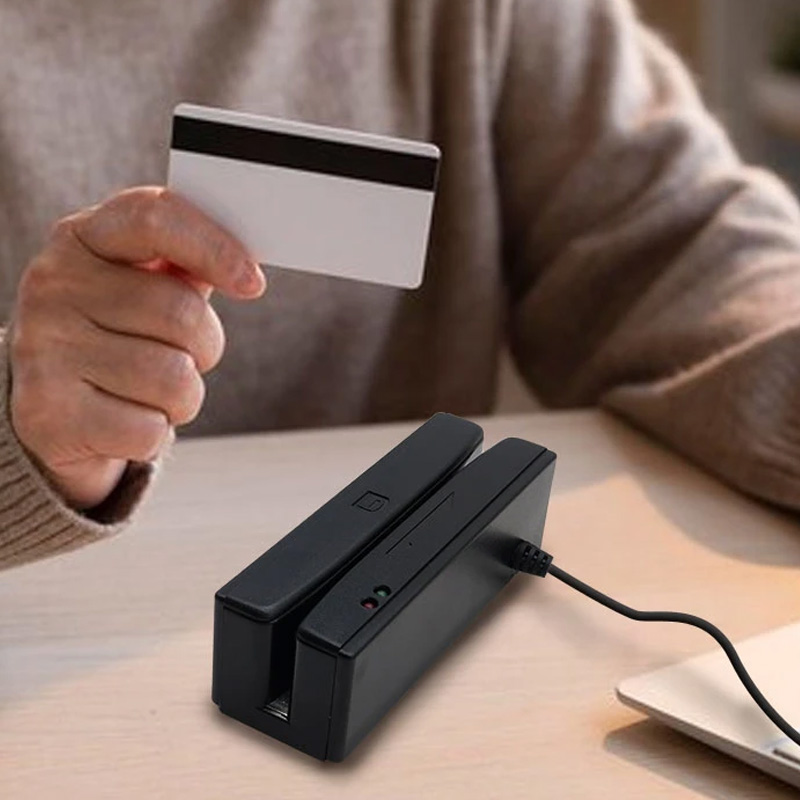

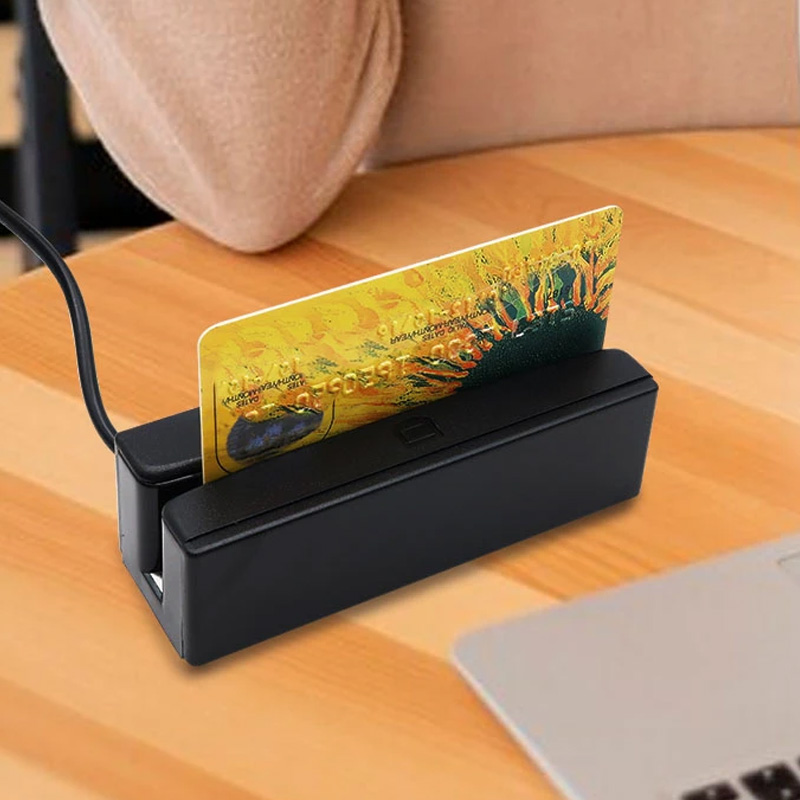

The SNR-MR100 magnetic card reader is a compact, high-precision swipe card reader designed for seamless magnetic stripe card reading and data transmission. Built with F2F decoding technology, this device integrates card data decoding and transmission into a single unit, ensuring accurate and efficient card reading.
With bidirectional swipe capability, the MR100 can read 1, 2, and 3-track magnetic card data, fully complying with ISO 7811, ANSI, AAMVA, and CA DMV standards. It offers multiple interface options, including USB HID, USB keyboard emulation, USB OTG, and RS232 serial port (customizable), making it suitable for various retail,banking,hospitality, healthcare,transit applications. It also supports JPOS and OPOS interface compatibility for seamless system integration.
Key Features
Wide Compatibility – Works with Windows & Android for flexible deployment across multiple platforms.
Adjustable Reading Tracks – Supports all three tracks (1, 2, 3) with configurable 75/210 BPI settings.
Multiple Connectivity Options – Choose from USB, serial interface, USB OTG, or RS232, customized to your needs.
Long-Lasting Durability – Designed for 500,000 card swipes, ensuring long-term reliability.
Universal Card Support – Reads all ISO 7811/7812 magnetic cards, including ANSI, AAMVA, and CA DMV formats.
Plug & Play Functionality – No driver installation required; simply connect and start using immediately.
Compact & Lightweight Design – Easy to install in POS terminals, kiosks, banking systems, and membership management solutions.
Technical Specifications
✔ Reference Standards
- ISO 7811, AAMVA, CA DMV, and other industry formats
✔ Swipe Speed
- 3 ~ 60 inches per second
✔ Interface Options
- USB 2.0 (Plug & Play)
- Customizable: USB OTG or RS232 Serial Port
✔ Magnetic Head & Track Readability
- Single-head (MSR100U) or Double-head (MSR100D)
- Supports Track 1, 2, 3 (Optional Configuration)
✔ Environmental Conditions
- Operating Temperature: -20℃ to 60℃
- Storage Temperature: -20℃ to 60℃
- Relative Humidity: 90% (non-condensing)
✔ Durability & Performance
- Operating Life: Approx. 500,000 swipes
- Read Error Rate: <0.5%
✔ Physical Dimensions
- Device Size: 100mm (L) × 34mm (W) × 30mm (H)
- Device Weight: 85g (MSR100U), 90g (MSR100D)
- Package Size: 121mm (L) × 81mm (W) × 41mm (H)
- Package Weight: 130g
- Color: Black
✔ Warranty & Support
- 1-Year Warranty for hardware defects and manufacturing issues
