Description:
Industrial automation demands more than just processing power. It requires reliable connectivity, legacy device support, and uninterrupted operation in harsh environments.
Most standard computers fail here. They lack serial ports. They can’t handle voltage fluctuations. They overheat in dusty factory floors.

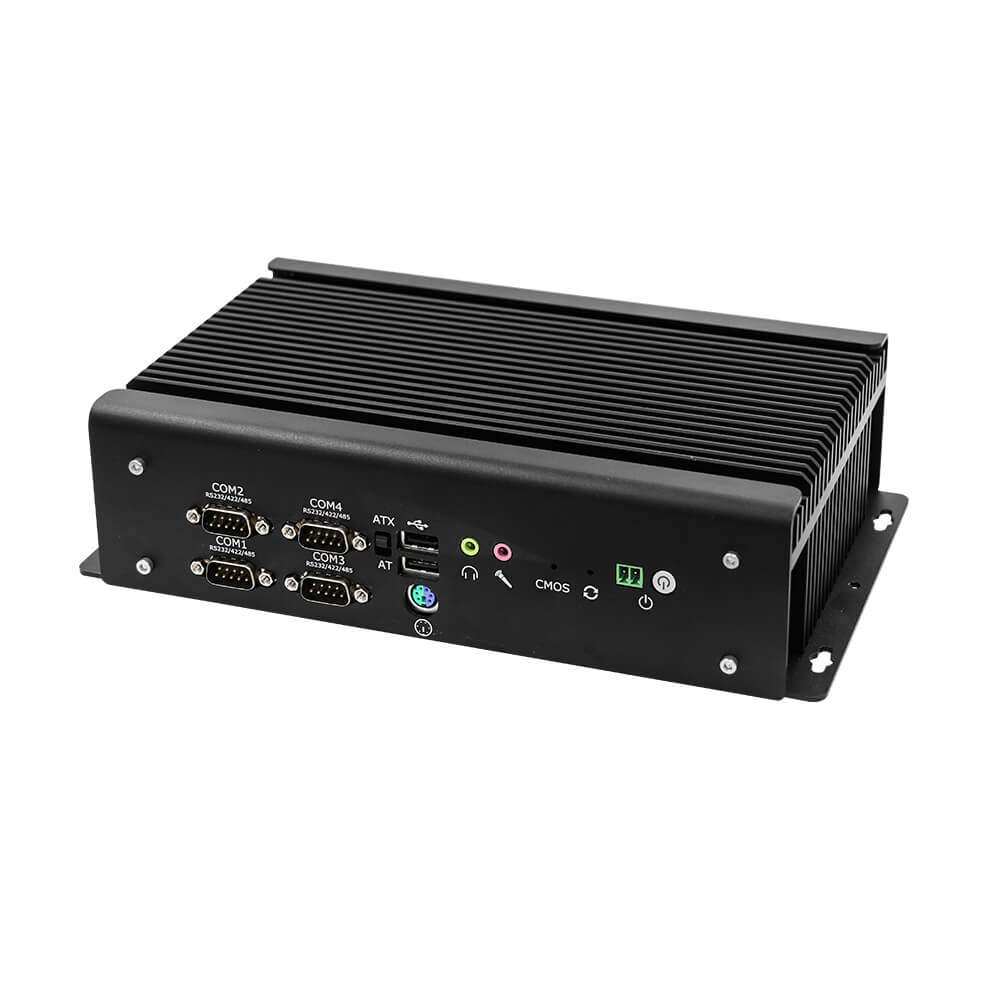

The SNR-N6 series solves these problems. Designed specifically for industrial automation, machine control, and multi-device communication, this fanless industrial mini PC packs 6x RS-232 serial ports (4 of which support RS485/RS422) , dual Intel Gigabit LAN, and a wide 9-36V power input – all in a rugged, fanless chassis.
“This is not a PC. This is an industrial control center in a compact box.”
Why Choose the SNR-N6 Industrial Mini PC？
Key Advantages at a Glance
| Feature | Benefit |
|---|---|
| 6x RS-232 serial ports | Connect multiple legacy devices (scales, PLCs, card dispensers, printers) |
| 4x ports support RS485/RS422 | Long-distance communication (up to 1200 meters) for industrial networks |
| Dual Intel GbE LAN | Industrial-grade reliability, teaming, or network isolation |
| Wide voltage 9-36V DC | Stable operation in unstable power environments |
| Fanless design | Zero dust, silent operation, longer lifespan |
| 14x GPIO | Direct control of sensors, relays, and external devices |
| -20°C to 60°C operation | Factory, outdoor, and warehouse ready |
| One-click restore | Easy system recovery – minimal downtime |
| Watchdog & diskless boot | Unattended operation with auto-recovery |
*”With 6 serial ports and industrial-grade networking, the IBC6 is built for control rooms, factory floors, and automated kiosks.”*
Complete Technical Specifications
System
| Parameter | Specification |
|---|---|
| Processor | Intel 4th/5th/6th/7th/8th/10th Gen Core i3/i5/i7 (optional) |
| System Memory | 4th/5th Gen: DDR3L SODIMM x1 (max 8GB) 6th/7th/8th/10th Gen: DDR4 SODIMM x2 (max 32GB) |
| Network | 2x GbE RJ45 – Intel i210 / i211 (industrial-grade) |

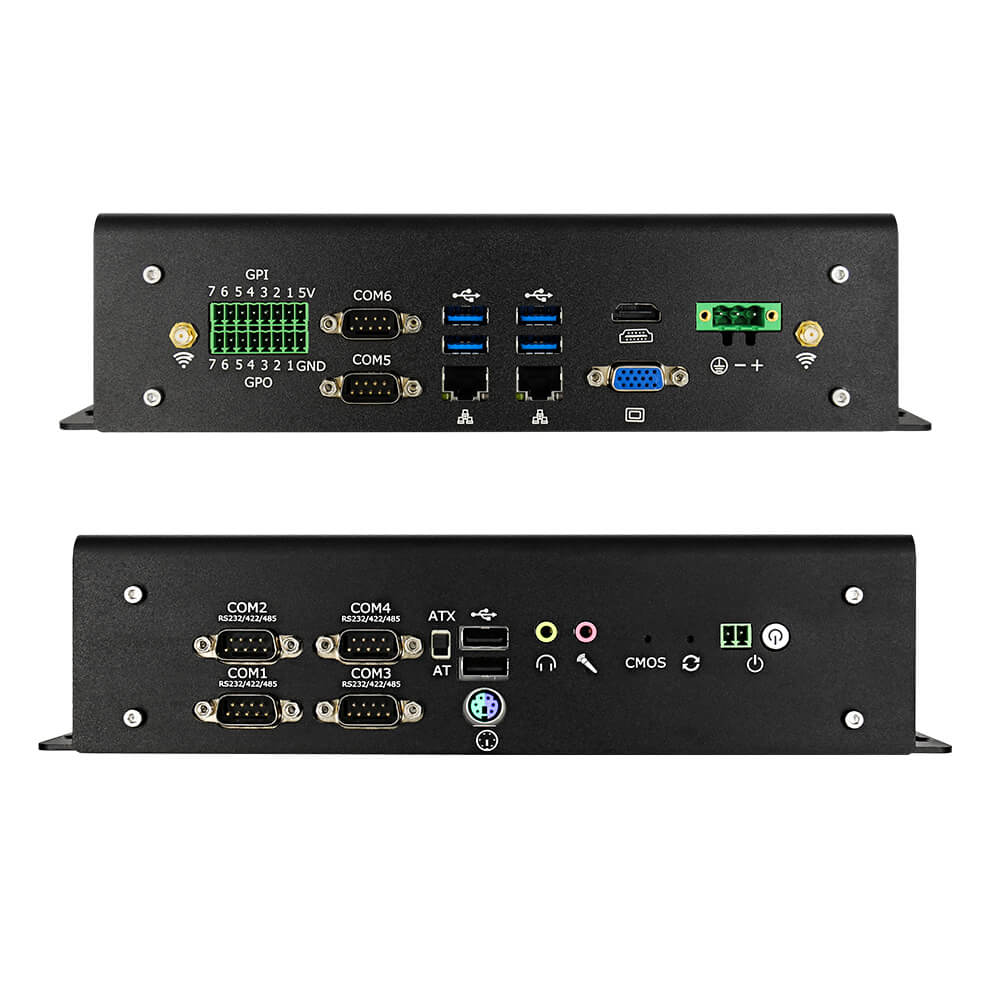

I/O Interfaces
| Interface | Quantity | Purpose |
|---|---|---|
| RS-232 COM ports | 6 | Legacy device connectivity (scales, PLCs, printers, card readers) |
| RS485/RS422 support | 4 of 6 ports | Long-distance industrial communication (up to 1200m) |
| USB 3.0 | 4 | High-speed peripherals |
| USB 2.0 | 2 | Legacy devices |
| HDMI | 1 | Display output |
| VGA | 1 | Legacy display support |
| PS2 | 1 | Keyboard & mouse (one port, Y-cable ready) |
| GPIO | 14 (7 input, 7 output) | Direct sensor/actuator control |
| Audio | 1x headphone, 1x microphone | Multimedia / alert systems |
| Antenna | 2 | WiFi / 3G / 4G connectivity |
Control & Maintenance Features
| Feature | Function |
|---|---|
| Power button | Front access |
| Reset button | Manual system reset |
| Clear CMOS button | Easy BIOS recovery |
| DIP switch | ATX / AT power-on mode selection |
| Watchdog timer | Auto-reset on system freeze |
| One-click restore | Quick OS recovery |
| Diskless boot | Network boot support |
Power
| Parameter | Specification |
|---|---|
| Power input | 9V – 36V DC (wide voltage range) |
| Connector | 3-pin Phoenix terminal (industrial standard) |
Storage & Expansion
| Slot | Support |
|---|---|
| mSATA | 1x (primary OS / application storage) |
| M.2 NVMe 2280 | 1x (high-speed SSD – 6th/7th/8th/10th Gen) |
| 2.5-inch HDD/SSD bay | 1x (additional storage) |
| Mini-PCIe (half-card) | WiFi, Bluetooth |
| Mini-PCIe (full-card) | 3G/4G module with SIM slot |
| Extended I/O | 1x (LPC, USB, PCIe) |
Software Support
| OS | Support |
|---|---|
| Windows® 7 / 8 / 10/11 | ✅ |
| WES 7 / 10 | ✅ |
| LINUX | ✅ |
Special features: Watchdog timer, one-click restore, diskless startup
Environment & Physical
| Parameter | Specification |
|---|---|
| Material | Aluminum (passive cooling) |

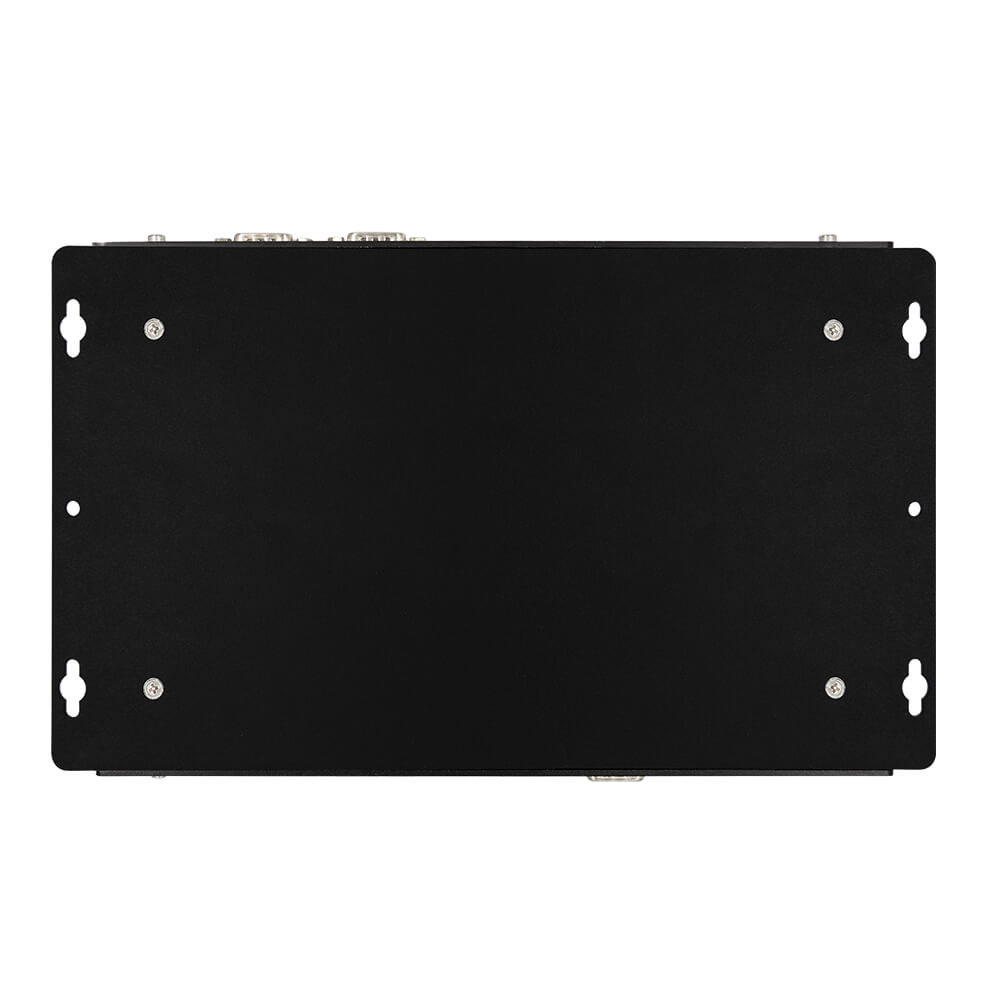

| Mounting | Desktop or wall-mount |
| Dimensions | 240 × 150 × 65 mm |
| Weight | 2.0 kg |
| Operating temperature | -20°C to +60°C |
| Storage temperature | -30°C to +70°C |
| Storage humidity | 10% – 90% at 30°C (non-condensing) |
Key Applications for the SNR-N6
1. Industrial Automation & Machine Control
| Application | Why IBC6 |
|---|---|
| PLC communication | 6x COM ports for multiple device connections |
| RS485 networks | 4 ports support Modbus RTU over long distances |
| Factory data collection | Wide temp, fanless, vibration resistant |
| HMI (Human-Machine Interface) | HDMI + VGA dual displays |
“Replace multiple serial adapters with one SNR-N6. Connect scales, barcode scanners, PLCs, and printers – all from one computer.”
2. Self-Service Kiosk Controller
| Kiosk Type | Why SNR-N6 |
|---|---|
| Card dispenser kiosk | COM ports control dispenser + RFID reader |
| Ticketing kiosk | RS485 for remote ticket printer |
| Parking kiosk | Wide voltage for outdoor power fluctuations |
| Vending machine | GPIO for direct sensor/actuator control |
“The SNR-N6 is the brain of complex kiosks – managing multiple serial devices while running the user interface.”
3. Building Automation & Access Control
| Application | Why SNR-N6 |
|---|---|
| Access control systems | 6x COM ports for multiple card readers |
| Elevator control | GPIO for floor buttons and indicators |
| Parking gate control | RS485 for long-distance barrier communication |
| Environmental monitoring | Wide temp for outdoor enclosures |
4. Medical Equipment
| Application | Why SNR-N6 |
|---|---|
| Patient monitoring | COM ports connect to vital sign devices |
| Laboratory automation | RS485 for instrument networks |
| Diagnostic equipment | Fanless – no dust emission, cleanroom safe |
5. Transportation & Fleet
| Application | Why SNR-N6 |
|---|---|
| Vehicle-mounted computer | 9-36V wide voltage handles vehicle power spikes |
| Fleet management | 4G module support with SIM slot |
| Railway control | Wide temperature, industrial-grade components |
SNR-N6 vs SNR-N8P – Which One Do You Need？
| Feature | SNR-N6 (This Model) | SNR-N8P (Previous Model) |
|---|---|---|
| COM ports | 6x (4x RS485/422 capable) | 2x RS232 |
| GPIO | 14x | None |
| Power input | 9-36V (Phoenix terminal) | 12-19V (DC jack) |
| Network | 2x Intel i210/i211 | 2x Realtek 8111H |
| Dimensions | 240 × 150 × 65 mm | 193.9 × 127 × 57.2 mm |
| Weight | 2.0 kg | 1.0 kg |
| Best for | Industrial automation, machine control | Kiosk, digital signage, general embedded |
“Choose SNR-N6 if you need multiple serial devices, RS485 networks, or wide voltage input. Choose SNR-N8P for compact kiosk deployments.”
Why SNR for Your Industrial Mini PC Needs？
| Advantage | Description |
|---|---|
| Factory-direct pricing | No middlemen – better value for volume buyers |
| OEM/ODM ready | Custom logo, preloaded software, modified BIOS |
| Global certifications | CE, FCC, RoHS compliant |
| 1-year warranty | Standard, with extended options available |
| Technical support | English documentation, remote assistance |
| Bulk ordering | Volume discounts for system integrators |
Frequently Asked Questions
1. What makes the SNR-N6 different from a standard mini PC？
The SNR-N6 is built for industrial environments: wide voltage (9-36V), fanless cooling, 6x COM ports, RS485 support, GPIO, and wide temperature operation (-20°C to 60°C).
2. Which serial ports support RS485/RS422？
Four of the six RS-232 ports can be configured for RS485 or RS422 – ideal for long-distance industrial communication networks.
3. Can I use this in a vehicle？
Yes. The 9-36V wide voltage input handles vehicle power fluctuations (12V/24V systems). The wide temperature range also supports outdoor operation.
4. What is the Phoenix terminal power connector？
It’s an industrial-standard locking connector that prevents accidental disconnection – critical for factory and transportation applications.
5. Does it support dual displays？
Yes. One HDMI port + one VGA port support dual independent displays.
6. Can I add 4G or WiFi？
Yes. The full-size Mini-PCIe slot includes a SIM card holder for 3G/4G modules. The half-size Mini-PCIe slot supports WiFi and Bluetooth.
7. What is the one-click restore feature？
A hardware-level recovery function. If the OS becomes corrupted, you can restore the system to factory state with a single button – minimal downtime.
8. What operating systems does it support？
Windows 7/8/10, WES 7/10, and Linux. Drivers available for all major OS platforms.
9. Do you offer OEM customization？
Yes. We offer custom logo printing, BIOS modifications, preloaded software, and custom packaging for volume orders.
10. What is the lead time for bulk orders？
Standard lead time is 15-25 working days for volume orders. Sample orders ship within 3-5 working days.
Technical Specifications Summary Table
| Category | Specification |
|---|---|
| CPU | Intel 4th/5th/6th/7th/8th/10th Gen Core i3/i5/i7 |
| Memory | Up to 32GB DDR4 (6th-10th Gen) / 8GB DDR3L (4th-5th Gen) |
| Storage | mSATA + M.2 NVMe + 2.5″ HDD/SSD |
| COM Ports | 6x RS232 (4x RS485/RS422 capable) |
| USB | 4x USB 3.0 + 2x USB 2.0 |
| Network | 2x Intel i210/i211 GbE LAN |
| GPIO | 14x (7 in, 7 out) |
| Display | HDMI + VGA |
| Power | 9-36V DC (Phoenix terminal) |
| Cooling | Fanless (aluminum passive) |
| Temperature | -20°C to 60°C operating |
| Dimensions | 240 × 150 × 65 mm |
| Weight | 2.0 kg |
| Mounting | Desktop or wall-mount |
Conclusion
The SNR-N6 industrial mini PC is purpose-built for applications that demand reliable serial communication, industrial networking, and unattended operation.
Choose IBC6 when you need to:
-
Connect 6+ serial devices (scales, PLCs, card readers, printers)
-
Deploy RS485/RS422 networks over long distances
-
Run on unstable power (9-36V wide input)
-
Operate in harsh environments (dust, temperature swings, vibration)
-
Control sensors and actuators directly via GPIO
For self-service kiosks and digital signage, our SNR-N8P series offers a more compact, cost-effective solution. But for industrial automation, machine control, and multi-device communication – the SNR-N6 is your answer.
