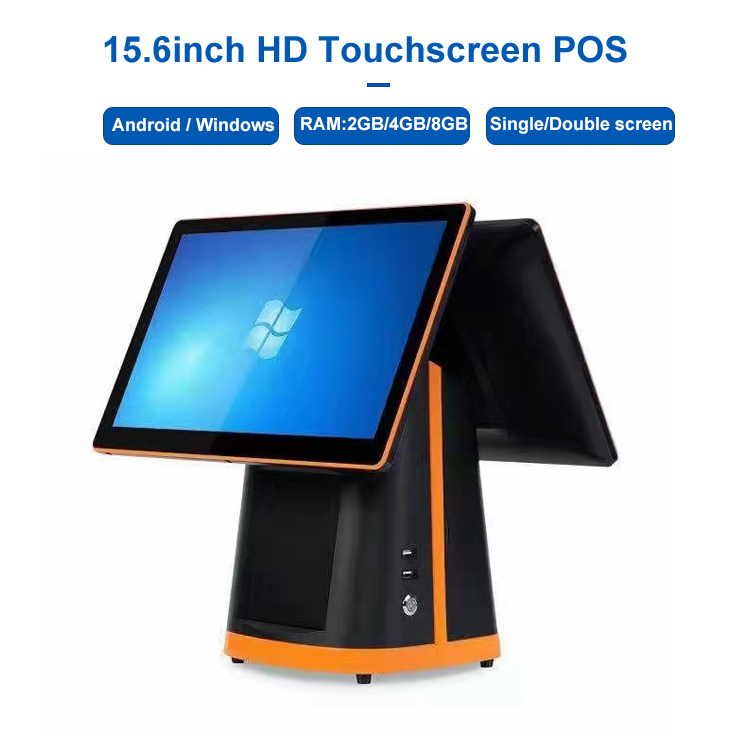

SNR-DPA8 15.6 Inch Dual Screen All-in-One POS Register
SNR-DPA8 is a 15.6 inch dual screen all-in-one POS register designed for restaurants, retail stores, supermarkets, cafés, bakeries and convenience stores. It supports Android or Windows, optional built-in 58mm / 80mm thermal printer, QR code scanner, NFC reader, side MSR, VFD customer display, WiFi, Bluetooth, 4G and OEM customization.
"*" indicates required fields
Android / Windows POS Register with Built-In Thermal Printer, QR Scanner and Optional NFC Reader
The SNR-DPA8 15.6 inch dual screen all-in-one POS register is a flexible touch screen POS terminal designed for restaurants, retail stores, supermarkets, convenience stores, cafés, bakeries, boutiques and commercial checkout environments.
With Android or Windows operating system options, optional built-in 58mm or 80mm thermal printer, optional QR code scanner, optional NFC card reader, dual-screen configuration, capacitive touch panel and wireless communication options, SNR-DPA8 provides a practical integrated POS solution for modern retail and hospitality applications.
Key Features
- 15.6 inch all-in-one touch screen POS register
- Android 7.1 / Android 11 or Windows OS optional
- Windows 7 / Windows 10 support
- RK3288 / RK3566 / RK3568 Android CPU options
- Intel Celeron series, Intel Core i3 / i5 CPU options
- 2GB / 4GB / 8GB RAM options
- 16GB / 32GB / 64GB / 128GB / 256GB storage options
- Optional built-in 58mm or 80mm thermal printer
- Optional built-in 1D / 2D QR code scanner
- Optional built-in NFC card reader
- Multi-point projected capacitive touch panel
- Optional side MSR card reader
- Optional VFD220 customer display mounted on back cover
- True-flat, waterproof and scratch-resistant display surface
- 4G, WiFi and Bluetooth optional
- OEM service available
- Black or white color options
Applications
- Restaurant POS checkout
- Bar and coffee shop billing
- Milk tea store order management
- Bakery cashier systems
- Convenience store checkout
- Supermarket POS systems
- Shopping mall retail counters
- Boutique and clothing store POS
- Library service counters
- Retail membership systems
- QR code payment and scanning
- Customer-facing dual-screen checkout systems
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-DPA8 |
| Product Type | 15.6 Inch Dual Screen All-in-One POS Register |
| Housing | Plastic with metal combined |
| Color | Black / White |
| Main Screen | 15.6 inch touch screen monitor |
| Main Screen Resolution | 1366 × 768 |
| Brightness | 250cd/m² |
| View Angle | Horizontal: 160°; Vertical: 150° |
| Touch Screen | Multi-point projected G+G capacitive touch |
| Display Surface | True-flat, waterproof and scratch-resistant |

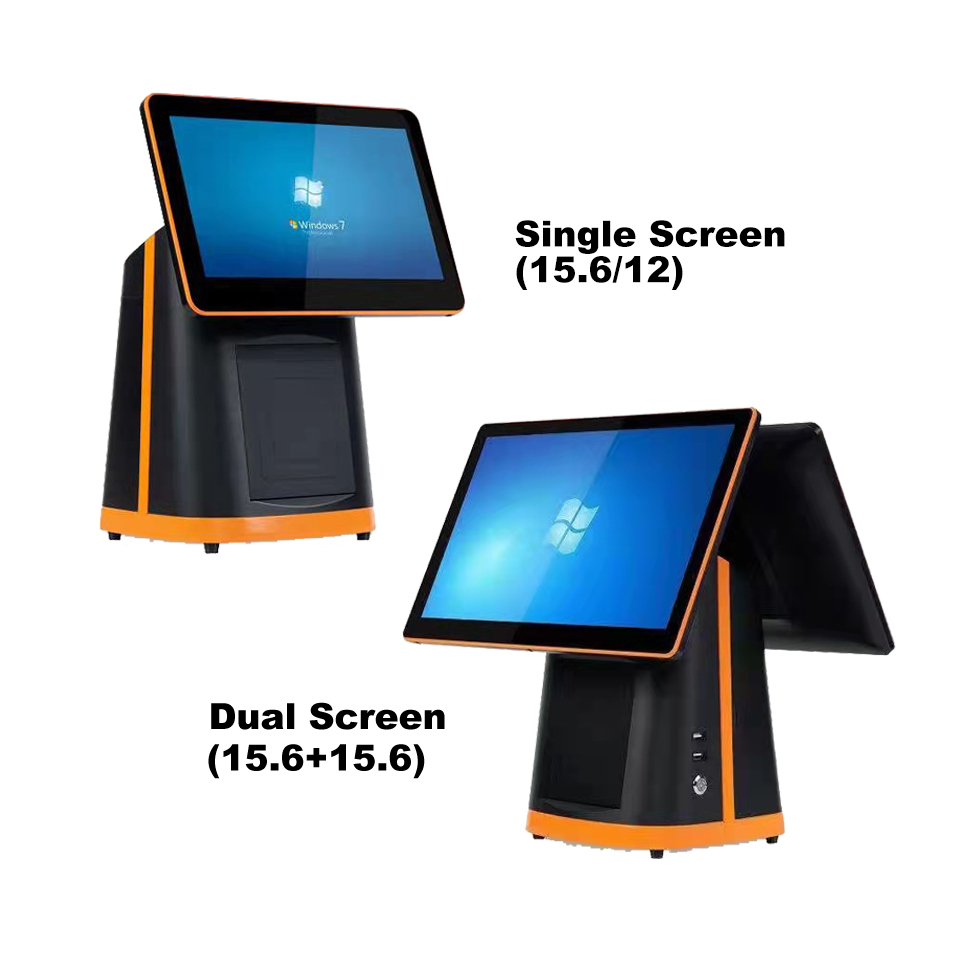

| Sub-Display | 15.6 inch display with or without touch function optional |
| Sub-Display Resolution | 1366 × 768 |
| Customer Display | 2 × 20 VFD mounted to back cover optional |
| Built-In Printer | 58mm or 80mm thermal printer optional |

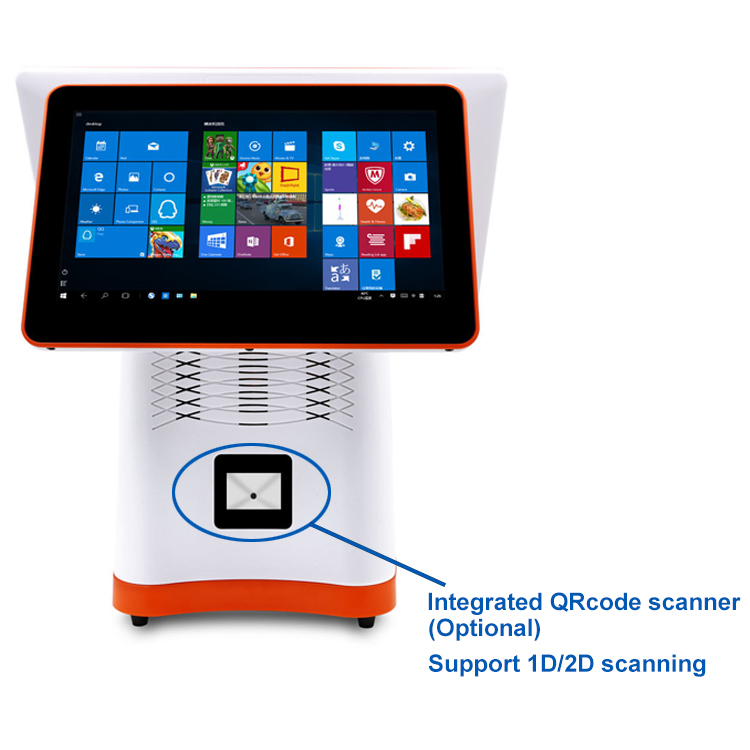

| QR Code Scanner | 1D / 2D code scanner optional |
| NFC Card Reader | Built-in NFC reader optional |
| MSR | Optional side MSR |
| Web Camera | Optional top-mounted camera |
| Speaker | Optional built-in 4Ω / 5W speaker |
| Wireless Options | 4G / WiFi / Bluetooth optional |
| OEM Service | Available |
Windows Version
| Item | Specification |
|---|---|
| CPU | J1900 / J4125 / Intel Celeron series / Intel Core i3 / Intel Core i5 optional |
| Memory | 1 × SO-DIMM DDRIII slot; 4GB DDR3L / 1333MHz default; 8GB optional |
| Storage | mSATA SSD 64GB or higher, up to 256GB |
| Interfaces | USB × 6, RS232 × 1, RJ45 × 1, RJ11 cash drawer × 1, VGA × 1, power button × 1, line out × 1, MIC in × 1, DC 12V input jack × 1 |
| Operating System | Windows 7 / 8 / 10, Embedded, WEPOS, Linux |
Android Version
| Item | Specification |
|---|---|
| CPU | RK3288 / RK3566 / RK3568 |
| Memory | 2GB / 4GB / 8GB |
| Storage | 16GB / 32GB / 64GB |
| Interfaces | USB × 4, COM × 1 optional, LAN × 1, RJ11 cash drawer port × 1, HDMI × 1, TF card |
| Operating System | Android 7.1 / Android 11 |
| Google Play Store | Supported |

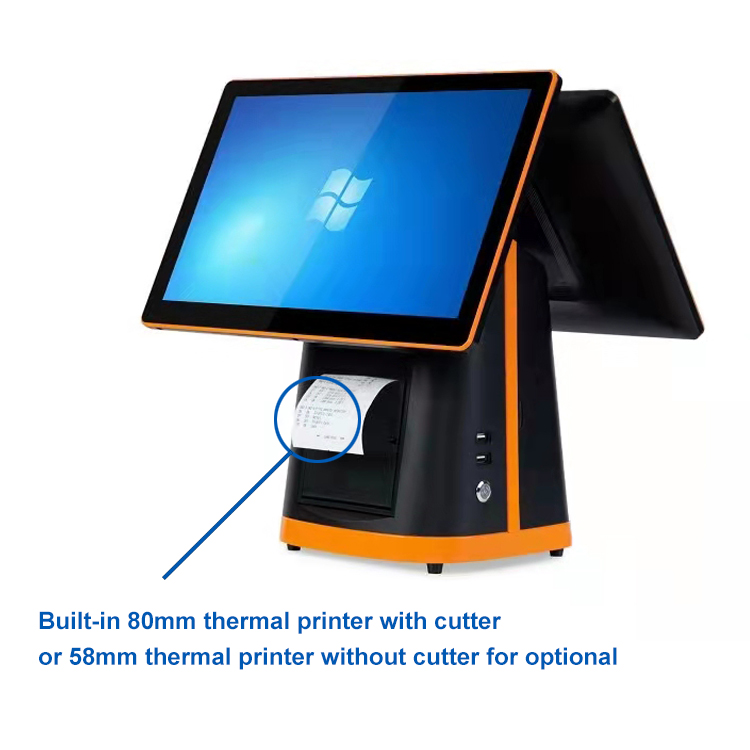

Built-In Printer Options
| Item | 80mm Thermal Printer | 58mm Thermal Printer |
|---|---|---|
| Print Method | Direct thermal printing | Direct thermal printing |
| Printing Speed | 150mm/s | 85mm/s |
| Paper Width | 79.5 ± 0.5mm | 57.5 ± 0.5mm |
| Printable Width | 72mm | 48mm |
| Auto Cutter | Supported | Not specified |
| Thermal Head Life | 50km | 50km |
Package Information
| Item | Specification |
|---|---|
| Net Weight | 6.5kg |
| Gross Weight | 8.0kg |
| Weight Reference | 15.6 inch POS with 15.6 inch dual screen and built-in printer |
| Package Size | 490 × 310 × 485mm |
| Package Protection | Foam inside |
Power Adapter Options
| Configuration | Power Adapter |
|---|---|
| POS without printer / with 58mm printer | AC input: 200–240V / 50–60Hz default, 110–240V / 50–60Hz optional; DC output: 12V / 5A |
| POS with 80mm printer | AC input: 200–240V / 50–60Hz default, 110–240V / 50–60Hz optional; DC output: 12V / 8A |
| Power Cable | USA / EU / UK plug compatible; customized plug available |
Why Choose SNR-DPA8?
SNR-DPA8 is suitable for retail and restaurant POS projects that require an integrated all-in-one checkout terminal with flexible hardware configuration.
Compared with standard POS terminals, SNR-DPA8 can integrate a dual display, thermal printer, QR code scanner, NFC card reader, MSR, customer display, speaker and wireless communication options into one compact POS system. With Android and Windows platform options, 58mm / 80mm printer configurations, optional QR scanning and OEM service support, it is a practical choice for restaurants, supermarkets, convenience stores, cafés, bakeries, boutiques and shopping mall retail counters.
Related Models
SNR-DPA9 – 15.6 inch all-in-one POS system with optional built-in printer and QR scanner
SNR-DPC200 – 15 inch POS terminal with optional 15 inch secondary customer display
SNR-DP81 – 15 inch smart POS terminal with optional 11.6 inch secondary display
SNR-POS8370 – 80mm high-speed thermal receipt printer for POS checkout systems
FAQ
What is SNR-DPA8 used for?
SNR-DPA8 is used as a dual-screen all-in-one POS register for restaurants, retail stores, supermarkets, convenience stores, cafés, bakeries, boutiques and other checkout environments.
Does SNR-DPA8 support Android and Windows?
Yes. SNR-DPA8 supports Android 7.1 / Android 11 and Windows 7 / Windows 10 configurations.
Can SNR-DPA8 include a built-in printer?
Yes. It can be configured with either a built-in 58mm thermal printer or a built-in 80mm thermal printer.
Does SNR-DPA8 support dual screen?
Yes. It supports a 15.6 inch secondary display with or without touch function as an optional configuration.
Does SNR-DPA8 support QR code scanning?
Yes. A built-in 1D / 2D QR code scanner is available as an optional configuration.
Does SNR-DPA8 support NFC?
Yes. A built-in NFC card reader is available as an optional configuration.
What CPU options are available?
Android configurations support RK3288, RK3566 and RK3568. Windows configurations support Intel Celeron series, Intel Core i3 and Intel Core i5 options.
Does SNR-DPA8 support MSR and customer display?
Yes. Optional side MSR and VFD220 customer display mounted to the back cover are available.
Is OEM service available?
Yes. OEM service is available for SNR-DPA8 projects.
| Weight | 18 kg |
|---|---|
| Dimensions | 52 × 33 × 50 cm |
| Configuration | 15.6″ Single Screen: Android 11,2G RAM +16G ROM, 15.6″ Single Screen: Android 11,2G RAM +16G ROM + 80mm thermal printer, 15.6″ Single Screen: Android 11,2G RAM +16G ROM + 80mm thermal printer + QR Scanner, 15.6″ +15.6″: Android 11,2G RAM +16G ROM, 15.6″ +15.6″: Android 11,2G RAM +16G ROM + 80mm thermal printer, 15.6″ +15.6″: Android 11,2G RAM +16G ROM + 80mm thermal printer + QR Scanner |
