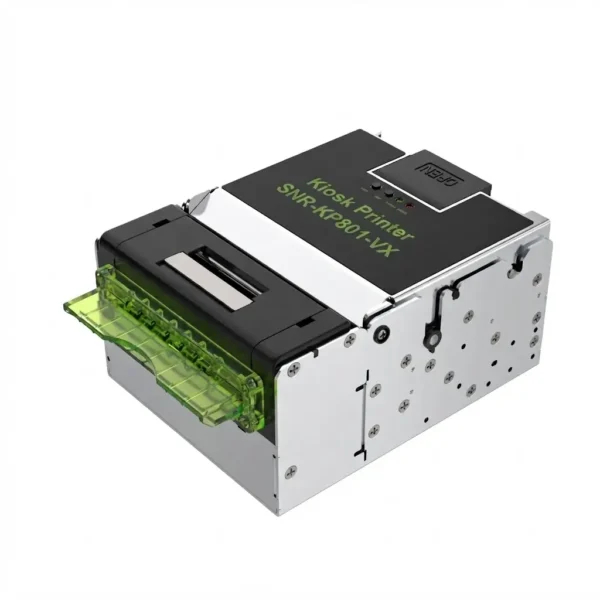

SNR-KP801-VX Thick Ticket Thermal Printer Module
- Heavy-Duty Folded Paper Kiosk Printer for Parking, Transportation & Self-Service Ticketing Systems.
- Optimized for feeding and cutting of thick ticket media, folded paper tickets, supporting paper thickness up to 0.25mm.
- RS232+USB+Ethernet multiple communication interface
- SDK/API & OEM/ODM support
"*" indicates required fields
Product Overview
Heavy-Duty Thick Ticket Thermal Printer Module for Global Kiosk & Ticketing System Integrators
The SNR-KP801-VX Thick Ticket Thermal Printer Module is a professional kiosk printer designed specifically for thick ticket media, fanfold paper tickets, and demanding self-service printing applications.
Unlike standard kiosk thermal printers mainly designed for thin receipt paper, the SNR-KP801-VX is optimized for applications requiring reliable feeding and cutting of thicker media, supporting paper thickness up to 0.25mm.
With excellent media handling capability, durable cutter performance, and high-quality 203dpi thermal printing, the SNR-KP801 provides a reliable printing solution for:
- Parking tickets
- Metro and bus tickets
- Theme park tickets
- Self-service ticketing
- Coupons and vouchers
- Retail and vending terminals
Designed for OEM kiosk manufacturers and system integrators, the SNR-KP801-VX combines industrial reliability, flexible integration options, and competitive cost performance.
The printer delivers performance comparable to similar ticket printer solutions from Star Micronics, Epson, and Custom, while providing a more cost-effective choice for large-scale kiosk deployment.
Why SNR-KP801-VX Thick Ticket Printer?
Designed for Thick Folded Ticket Printing
Many kiosk printers are optimized for standard receipt paper but cannot handle thick ticket materials reliably.
The SNR-KP801-VX is specifically developed for professional ticket printing applications requiring:
- Thick paper feeding
- Fanfold ticket printing
- Continuous ticket media handling
- Reliable cutting performance
Maximum supported paper thickness:
0.25mm
Cost-Effective Alternative to Premium Ticket Printers
The SNR-KP801-VX delivers comparable performance to leading ticket printer brands while offering:
- Competitive hardware cost
- Flexible OEM customization
- Easy system integration
- Stable supply capability
Ideal for kiosk manufacturers looking to optimize project cost without compromising reliability.
Key Features
High-Quality Thermal Printing
The SNR-KP801-VX provides professional printing performance:
- Direct thermal printing technology
- 203dpi resolution
- Maximum printing speed up to 250mm/s
- Clear text, graphics, and barcode printing
Suitable for high-frequency unattended environments.
Wide Media Compatibility
The SNR-KP801-VX supports various ticket and paper materials:
- Thermal receipt paper
- Fan-fold ticket paper
- Black mark paper
- Continuous paper
- Label paper
Paper specifications:
| Item | Specification |
|---|---|
| Paper Width | 20mm – 82.5mm |
| Paper Thickness | 0.05mm – 0.25mm |
| Maximum Roll Diameter | 150mm |
| Core Diameter | 13mm / 25mm |
Heavy-Duty Auto Cutter
The integrated full cutter is designed for long-term ticketing applications.
Cutter lifetime:
| Paper Thickness | Cutter Life |
|---|---|
| 0.10mm | 1,000,000 cuts |
| 0.15mm | 500,000 cuts |
| 0.25mm | 300,000 cuts |
Reliable cutting performance for:
- Parking tickets
- Transportation tickets
- Admission tickets
- Voucher tickets
Intelligent Sensor System
Multiple sensors ensure stable operation and reduce maintenance requirements.
Supported sensors:
- Paper end detection
- Paper near-end detection
- Paper taken detection
- Gap detection
- Black mark detection
- Paper presence detection
Barcode & QR Code Printing
The SNR-KP801-VX supports various barcode formats for ticket identification and verification.
| Barcode Type | Supported Formats |
| 1D Barcode | UPC-A |
| UPC-E | |
| EAN13 | |
| EAN8 | |
| CODE39 | |
| ITF | |
| CODABAR | |
| CODE93 | |
| CODE128 | |
| CODE32 | |
| 2D Barcode | QR Code |
| PDF417 | |
| DataMatrix | |
| Application Category | Supported Applications |
| Ticketing | Digital Tickets |
| Boarding Tickets | |
| Parking Tickets | |
| Promotion & Access | Coupons |
| Vouchers |
Graphic & Multi-Language Printing
The printer supports:
- Logo printing
- Graphic printing
- True font printing
- Multi-language characters
Suitable for international projects requiring localized ticket content.
Typical Applications
Parking Ticket Printer
The SNR-KP801-VX is designed for smart parking systems requiring durable ticket printing.
Applications:
- Parking entry terminals
- Parking exit machines
- Parking payment kiosks
- Automated parking systems
Advantages:
- Supports thick parking tickets
- Reliable cutting
- Long operational lifetime
Metro and Bus Ticket Printer
The SNR-KP801 is suitable for public transportation ticketing equipment.
Applications:
- Metro ticket vending machines
- Bus ticket terminals
- Automatic fare collection (AFC) systems
- Transportation self-service kiosks
Self-Service Ticketing Kiosk Printer
Designed for unattended ticket issuing systems.
Applications:
- Event ticket kiosks
- Automated ticket machines
- Public service terminals
- Ticket issuing equipment
Theme Park Ticket Printer
Reliable ticket printing for entertainment venues.
Applications:
- Theme park ticket kiosks
- Attraction ticket machines
- Visitor ticket terminals
- Admission systems
Coupon & Voucher Printer
Suitable for retail and promotional printing.
Applications:
- Coupon printing
- Voucher printing
- Discount ticket printing
- Promotional terminals
Vending & Retail Equipment
Applications:
- Vending machines
- Self-service payment terminals
- Retail automation equipment
- Receipt and ticket terminals
Technical Specifications
| Category | Specification |
|---|---|
| Model | SNR-KP801-VX |
| Product Type | Thick Ticket Thermal Printer Module |
| Printing Method | Direct Thermal |
| Resolution | 203dpi |
| Maximum Printing Speed | 250mm/s |
| Paper Width | 20mm – 82.5mm Adjustable |
| Paper Thickness | 0.05mm – 0.25mm |
| Paper Type | Thermal paper / Folded ticket paper / Black mark paper / Label paper |
| Maximum Paper Roll Diameter | 150mm |
| Roll Core Diameter | 13mm / 25mm |
| Cutter Type | Full Cut |
| Cutter Life | 1,000,000 cuts (0.10mm paper) |
| Print Head Life | 100km |
| Barcode | UPC, EAN, CODE39, CODE128, PDF417, QR Code, DataMatrix |
| Interface | RS232 / USB / Ethernet |
| Command | ESC/POS |
| Driver | Windows Driver / Linux Driver / OPOS Driver |
| SDK | Windows SDK / Linux SDK / Android SDK |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 70°C |
| Operating Humidity | 20% ~ 85% RH |
| Storage Humidity | 10% ~ 90% RH |
Software & Integration Support
The SNR-KP801-VX is designed for easy integration into OEM equipment.
Supported Platforms
- Windows
- Linux
- Android
Integration Support
Available:
- ESC/POS command
- Printer drivers
- SDK
- Customized firmware support
- OEM integration assistance
OEM Customization Support
SNRO provides professional support for kiosk manufacturers and system integrators.
Available customization:
Mechanical Customization
- Mounting structure adjustment
- Kiosk installation adaptation
- Paper path optimization
Interface Customization
- Communication interface options
- Cable customization
- System integration support
Project Support
- Prototype evaluation
- Engineering testing
- Mass production support
Why Choose SNRO SNR-KP801-VX?
Professional Thick Ticket Printing Solution
Designed specifically for applications where ordinary receipt printers cannot meet paper thickness and durability requirements.
Reliable Performance for Unattended Systems
Durable cutter, long-life print head, and intelligent sensors provide stable operation.
Competitive Cost Performance
Provides a cost-effective alternative to premium ticket printers from Star Micronics, Epson, and Custom.
Built for Global OEM Projects
SNRO supports kiosk manufacturers worldwide with:
- Hardware supply
- Custom engineering
- Production support
- Integration assistance
Related Products
SNR-KP800-VX 80mm High-Speed Kiosk Printer
High-speed kiosk thermal printer for vending machines and self-service terminals.
SNR-KP802-VX Kiosk Printer with Presenter
Printer with ticket presenting function for advanced self-service kiosks.
SNR-EP8303 Panel Mount Kiosk Printer
Front-panel embedded printer for compact kiosk designs.
Self-Service Kiosk Hardware Solution
Complete hardware platform for kiosk manufacturers and solution providers.
FAQ
What makes SNR-KP801-VX different from standard kiosk printers?
The SNR-KP801-VX is specially designed for thick ticket media and folded paper applications, supporting paper thickness up to 0.25mm.
Can SNR-KP801-VX print folded tickets?
Yes. The printer is optimized for fan-fold ticket paper and thick ticket applications.
Is KP801-VX suitable for parking ticket systems?
Yes. It is designed for parking tickets, transportation tickets, and other unattended ticketing applications.
Can KP801-VX replace Star, Epson, or Custom ticket printers?
The SNR-KP801-VX provides comparable ticket printing performance with a more competitive cost structure, making it an attractive alternative for OEM projects.
What paper thickness does KP801-VX support?
The printer supports paper thickness from 0.05mm up to 0.25mm.
What interfaces are available?
The SNR-KP801-VX supports:
- RS232
- USB
- Ethernet
