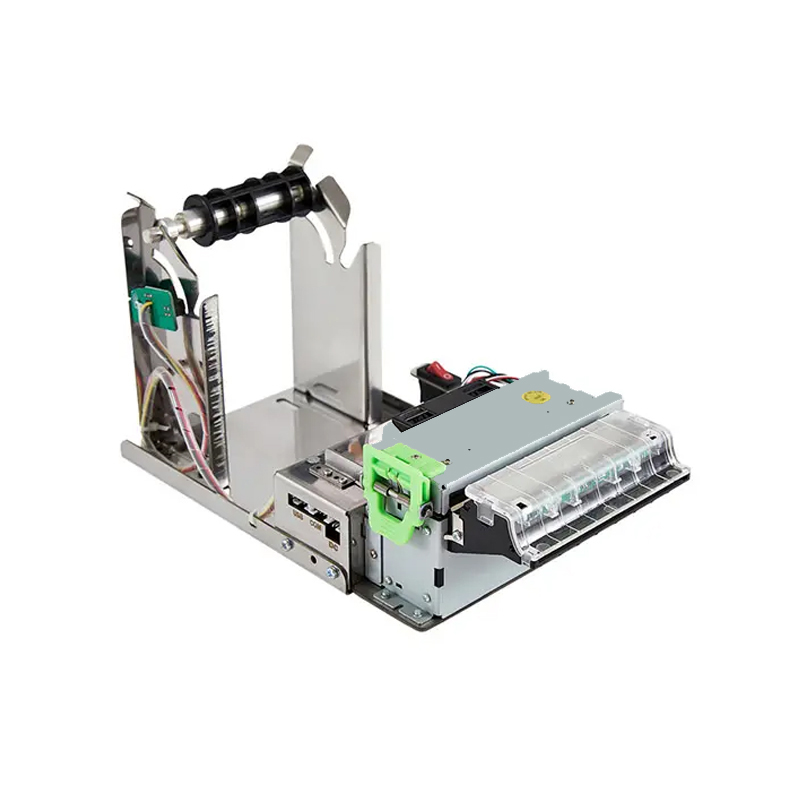

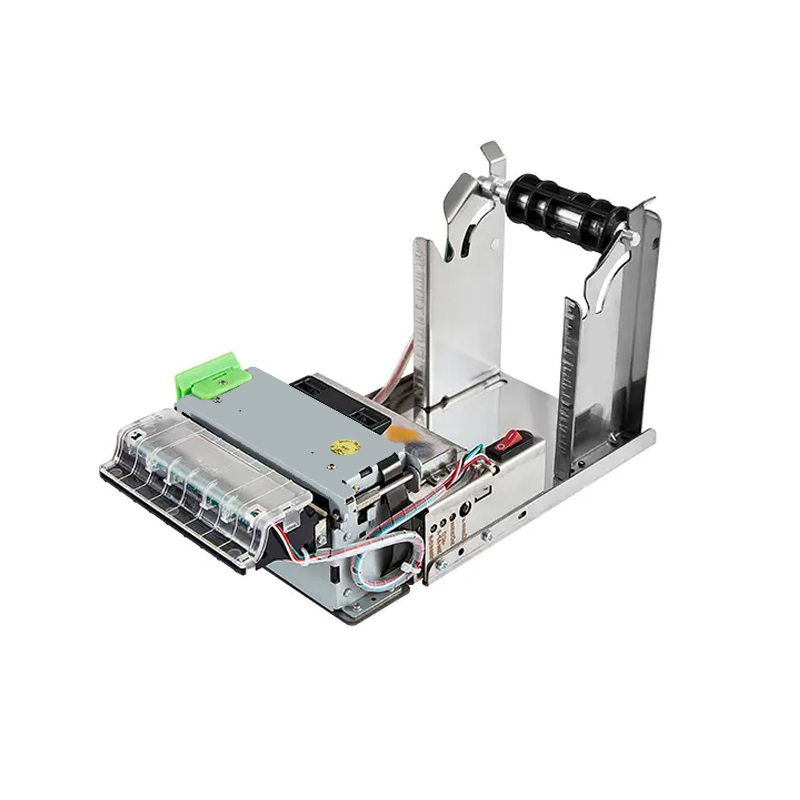

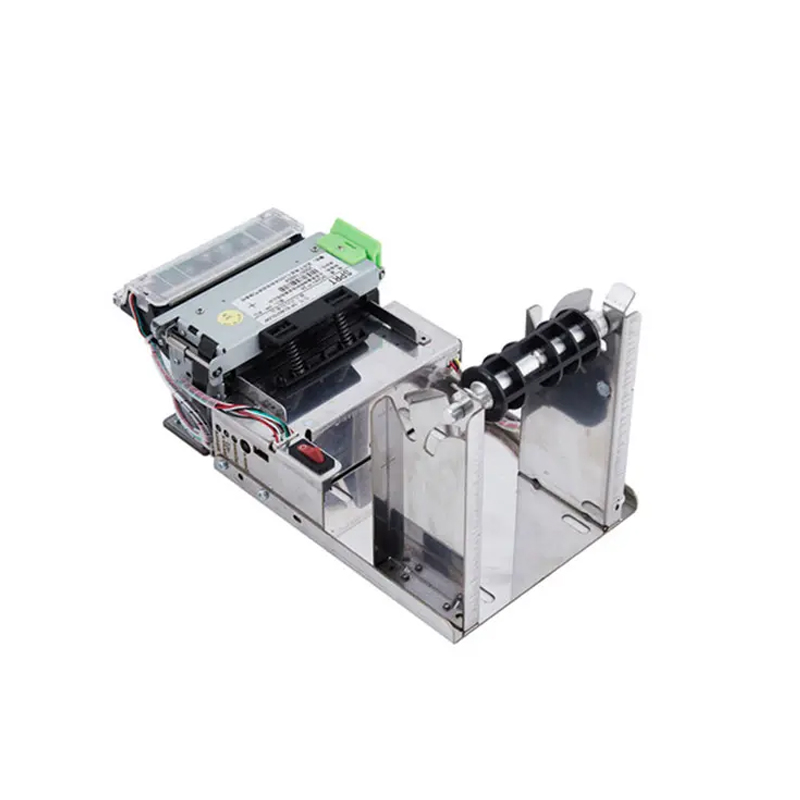

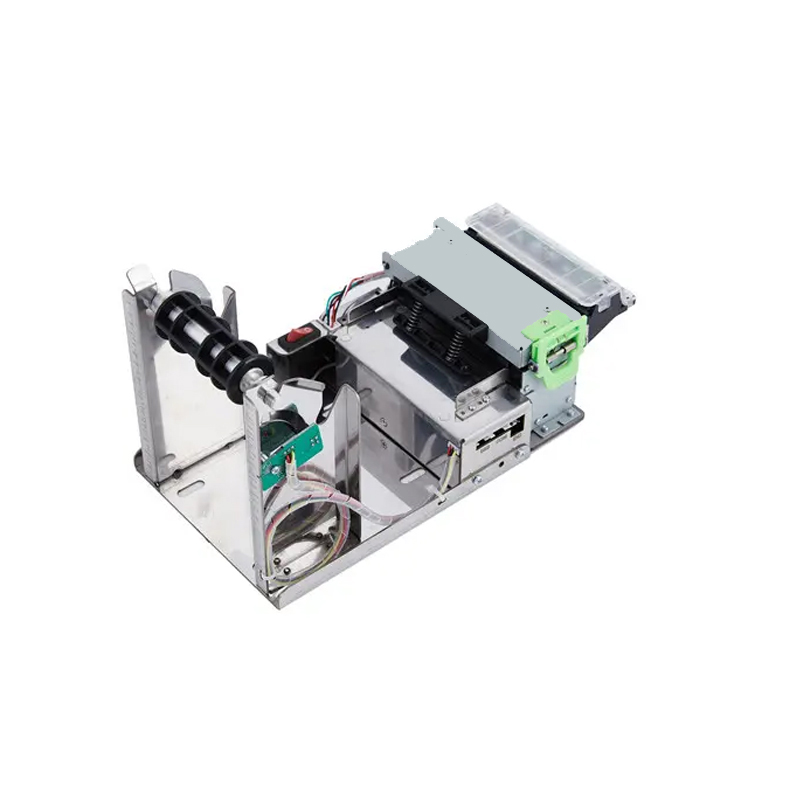

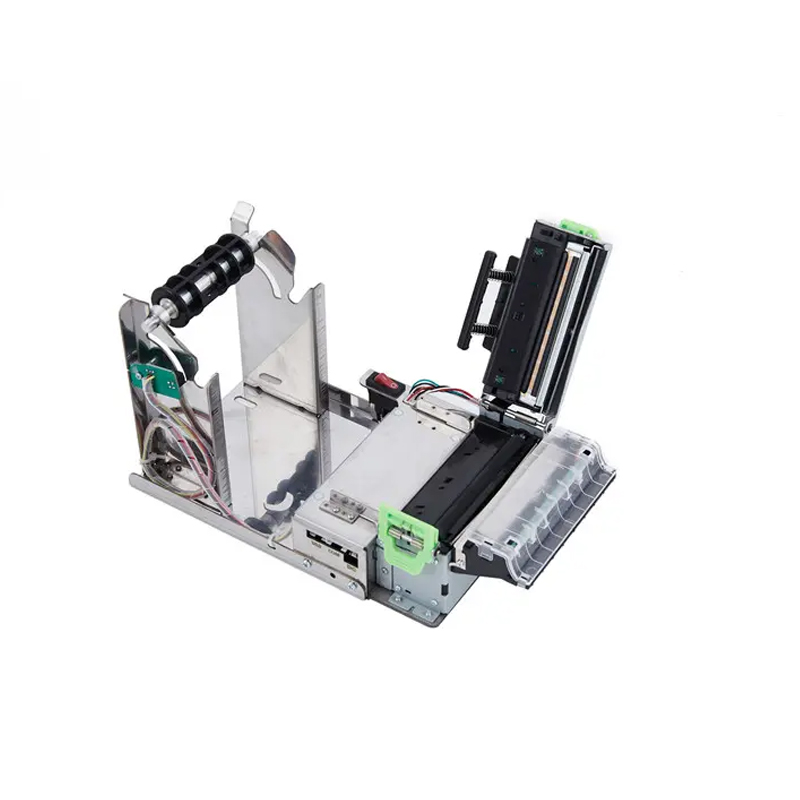

SNR-KP807 Kiosk Thermal Printer Module

80mm High-Speed Kiosk Thermal Printer for ATM, Vending and Parking Systems

The SNR-KP807 is an 80mm kiosk thermal printer module designed for ATMs, vending machines, parking payment systems, betting terminals, lottery machines, public service kiosks and other unattended self-service terminals.

With high-speed printing up to 250mm/s, support for 58mm / 80mm / 82.5mm paper widths, large paper roll capacity up to 200mm, dual USB + RS232 interfaces and long-life auto cutter, SNR-KP807 provides reliable receipt and ticket printing for high-traffic kiosk environments.

Its anti-drag and anti-blocking systems help reduce user-induced failures such as ticket pulling, paper exit obstruction and paper jams. This makes it suitable for public-facing terminals where long-term unattended operation and maintenance efficiency are critical.

Key Features

• 80mm kiosk thermal printer module
• Printing speed up to 250mm/s
• 203 dpi resolution, 8 dots/mm
• Effective printing width up to 72mm
• Supports 58mm, 80mm and 82.5mm paper widths
• Supports paper roll diameter up to 200mm
• Supports thermal receipt paper and black mark paper
• Paper thickness support: 0.06–0.1mm
• Long-life auto cutter rated for 1,500,000 cuts
• Heavy-duty thermal print head with ≥100km life
• Unique anti-drag ticket system
• Emergency cut protection when ticket pulling is detected
• Anti-blocking technology for paper exit obstruction
• Printing suspension and automatic resume after obstruction is cleared
• Dual USB + RS232 serial interfaces
• Adjustable baud rate from 1200bps to 115200bps
• LED transparent bezel option for user guidance
• Dark bezel option for high-light environments
• Drop-in paper loading and automatic paper feeding
• Supports 1D / 2D barcode printing
• Modular or bracket-integrated structure options

Applications

• ATM receipt printing
• Banking self-service terminals
• Bank queue management systems
• Self-service vending machines
• Unattended retail kiosks
• Parking entry / exit terminals
• Parking payment machines
• Transit ticketing kiosks
• Boarding pass and transit ticket systems
• Lottery machines
• Sports betting terminals
• Gaming voucher terminals
• Government office queuing systems
• Hospital registration kiosks
• Public service terminals

Technical Specifications

Printing Specifications

Reliability

Interface and Communication

Electrical Specifications

Environmental Specifications

Available Configurations

Why Choose SNR-KP807?

SNR-KP807 is suitable for self-service systems that require high-speed printing, large paper roll capacity and strong protection against user-induced failures.

Compared with standard kiosk thermal printers, KP807 offers larger paper roll capacity up to 200mm, anti-drag ticket protection, anti-blocking paper exit detection, emergency cut function, dual USB + RS232 interfaces and smart bezel options. These features make it practical for ATMs, vending machines, parking terminals, betting machines, public service kiosks and hospital registration systems.

For projects requiring stable unattended printing and reduced maintenance frequency, SNR-KP807 provides a robust 80mm kiosk printer module solution.

Related Models

SNR-KP805 – 80mm kiosk thermal printer module for banking, parking and queuing systems
SNR-KP803 – 80mm embedded self-service terminal thermal printer with 300mm/s speed
SNR-KP800-TU – 80mm high-speed kiosk thermal printer with anti-paper blocked and anti-drag ticket systems
SNR-KP800-TH – 80mm auto cutter thermal receipt printer for POS, kiosk and retail applications
SNR-KP347-TL – 80mm self-service kiosk printer for lottery machines and payment kiosks

Related Resources

• Kiosk Printer Hub
• How to Choose a Kiosk Printer in 2026
• Kiosk Printer Buying Guide
• Presenter Printer vs Auto Cutter Printer
• 58mm vs 80mm Kiosk Printer
• Presenter kiosk printer for parking systems
• Why Kiosk Printers Jam in Real Self-Service Deployments
• Why Maintenance Accessibility Matters in Self-Service Kiosk Design
• Parking Ticketing Solutions
• Queue Management System Hardware
• Self-Checkout Hardware Solutions
• Visitor Management Kiosk Solutions
• How to Choose a Kiosk Printer for Ticket Vending Machines
• How to Choose a Kiosk Printer for Banking Self-Service Terminals
• Linux Kiosk Printer Integration Guide
• Kiosk Printer SDK Guide
• Why Paper Roll Capacity Matters More Than Many Teams Expect

FAQ

What is SNR-KP807 used for?

SNR-KP807 is used as an 80mm kiosk thermal printer module for ATMs, vending machines, parking payment terminals, lottery machines, betting terminals, hospital registration kiosks and public service terminals.

What is the maximum printing speed?

The maximum printing speed is 250mm/s.

What paper widths does SNR-KP807 support?

It supports standard 79.5 ± 0.5mm paper, with optional 57.5mm and 82.5mm paper configurations.

What is the maximum paper roll diameter?

The printer supports paper rolls up to 200mm in diameter.

Does SNR-KP807 support black mark paper?

Yes. It supports thermal receipt paper and black mark paper.

What is the effective printing width?

The effective printing width is 72mm.

What interfaces are available?

SNR-KP807 supports dual USB + RS232 interfaces.

What is the cutter lifetime?

The cutter life is rated for 1,500,000 cuts.

What is the print head lifetime?

The thermal print head life is ≥100km.

What is the anti-drag function?

The anti-drag function detects abnormal ticket pulling and can trigger an emergency cut to help prevent mechanism damage, paper displacement or jams.

What does the anti-blocking function do?

The anti-blocking function detects paper exit obstruction, suspends printing and resumes printing after the obstruction is cleared.

Is SNR-KP807 suitable for parking systems?

Yes. Its high-speed printing, large paper roll support, black mark paper compatibility and anti-drag / anti-blocking protection make it suitable for parking entry, exit and payment terminals.
