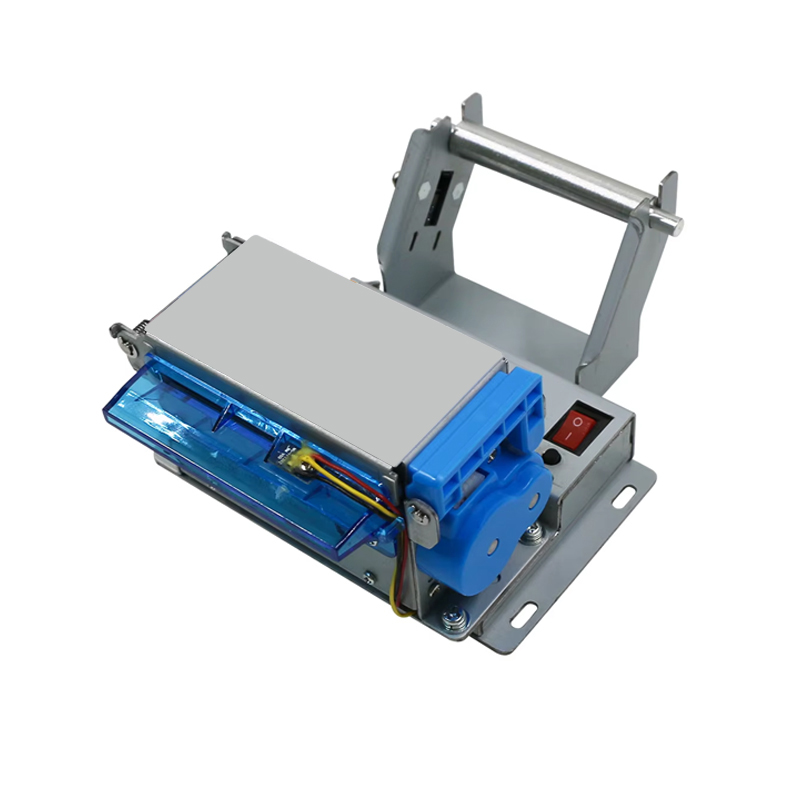

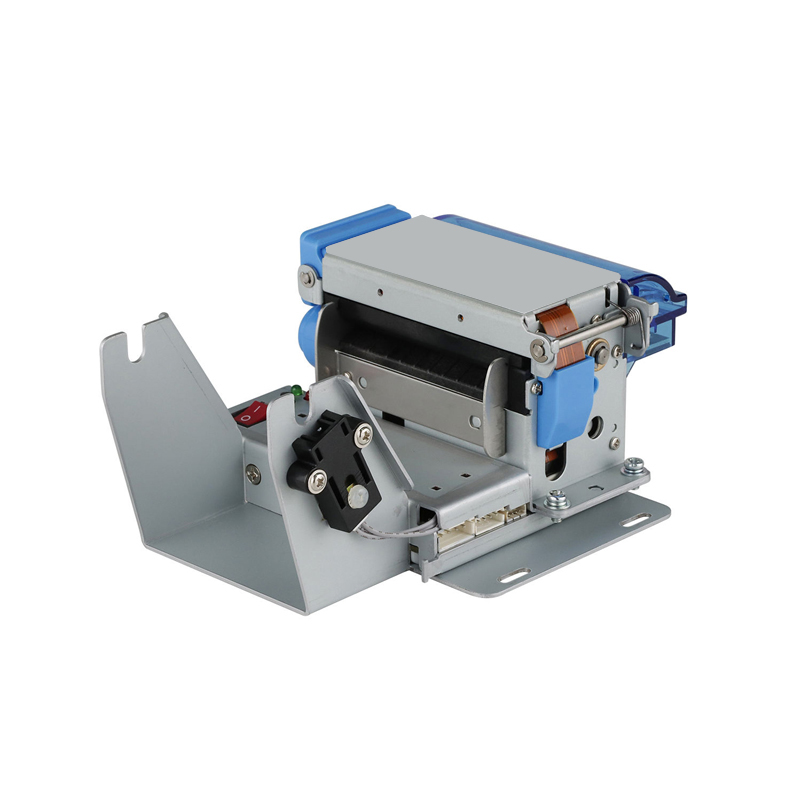

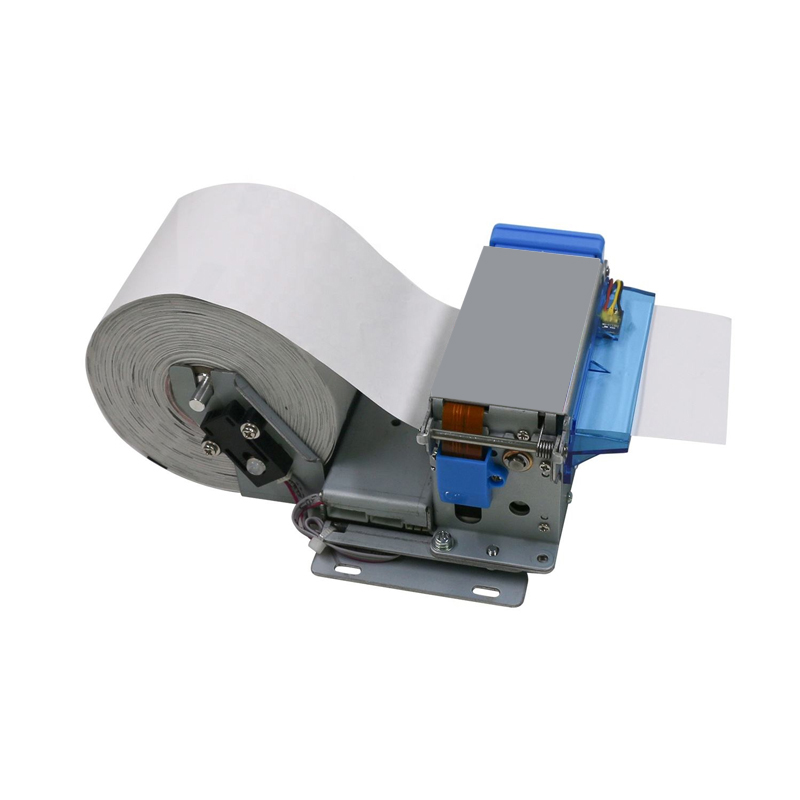

The KP602-H is a professional-grade, 58mm/60mm kiosk thermal printer module designed for high-performance self-service terminals.Featuring a compact “All-in-One” integrated design where the control board and mechanism are unified, it significantly reduces space requirements for easier equipment development and installation.With a side-flip cover for easy maintenance and an ultra-fast printing speed of up to 250mm/s, it provides a reliable and efficient solution for commercial service hardware.
Features
- High Performance: Equipped with a premium ROHM thermal head and OYANE auto-cutter for superior reliability and long life (up to 200KM and 1 million cuts).
- Ultra-Fast Printing: Supports speeds up to 250mm/s (max) with low noise.
- Smart Design: Integrated “All-in-One” structure with a side-flip cover for rapid paper loading and easy jam clearance.
- Advanced Detection: Includes sensors for paper presence, black mark (for tickets), and gap detection (for labels), ensuring compatibility with various media types.
- Anti-Jam Technology: Features patented anti-paper blocked and anti-drag ticket systems to prevent service interruptions.
- Flexible Mounting: Multiple bracket options available (hanging, adjustable, or small cabinet brackets) to fit diverse kiosk designs.
- Versatile Connectivity: Dual RS232 and USB interfaces with support for Windows, Linux, and Android.
Applications
This printer is ideal for a wide range of unattended self-service systems, including:
- Retail & Vending: Self-service vending machines and cash registers
- Public Services: Queuing machines and ticket kiosks
- Entertainment: Gaming and advertisement machines
- Healthcare & Industry: Medical equipment and industrial instruments/meters
Specifications
| Control board | KP602-H | ||
| Thermal printer head | Brand name: ROHM | ||
| Auto cutter | Brand name: OYANE | ||
|
Printing
|
Printing method | Thermal dot line | |
| Dots | 432dots | ||
| Speed | 250mm/s (max) | ||
| Printing width | 54mm (max) | ||
| Paper width | 60mm (max) | ||
| Paper roll diameter | 80mm(Max) | ||
| Paper thickness | 0.054~0.12 mm | ||
| Paper loading | Auto paper loading ( horizontal 180°) | ||
| Cutting method | Full/partial by commands | ||
| Print head life | Over 200KM | ||
| Printing format | inverse、underline、italic、bold | ||
| Cutter life
|
1,000,000 cuts | ||
| Baud rate | 9600、19200、38400、115200 | ||
| Font | ASCII | 9*17、12*24 | |
| Chinese | 24*24 dots | ||
| Detection | TPH temperature | Temperature sensor | |
| Mechanism open detection | Micro switch | ||
| Paper presence detection
|
Mechanical sensor | ||
| Paper end detection | Photo-interrupter | ||
| Paper near end detection | |||
| Black mark detection | |||
| Condition | Power supply | DC24±10% V/2A | |
| Load current | 2A continuous
61mA Standby 5 A Peak |
||
| Interfaces | RS232+USB | ||
| Paper | Paper type | Thermal paper roll | |
| Blackmark thermal roll | |||
| Thermal label roll | |||
| Recommended paper type | KANZAN KF50
KP460 MITSUBISHIPG5075 TL4000 |
||
| Environment | operating temperature | -15~60℃（no condensation） | |
| operating humidity | 20%~85%RH（40℃,85%RH） | ||
| Storage temperature | -20~70℃（no condensation） | ||
| Storage humidity | 10%~90%RH（50℃,90%RH） | ||
| physics | Dimension | L*W*H= 140.95*95.3**60.4mm (Paper holder horizontal (without paper roll) | |
| Net Weight | Approx 0.45kg(product itself) | ||
