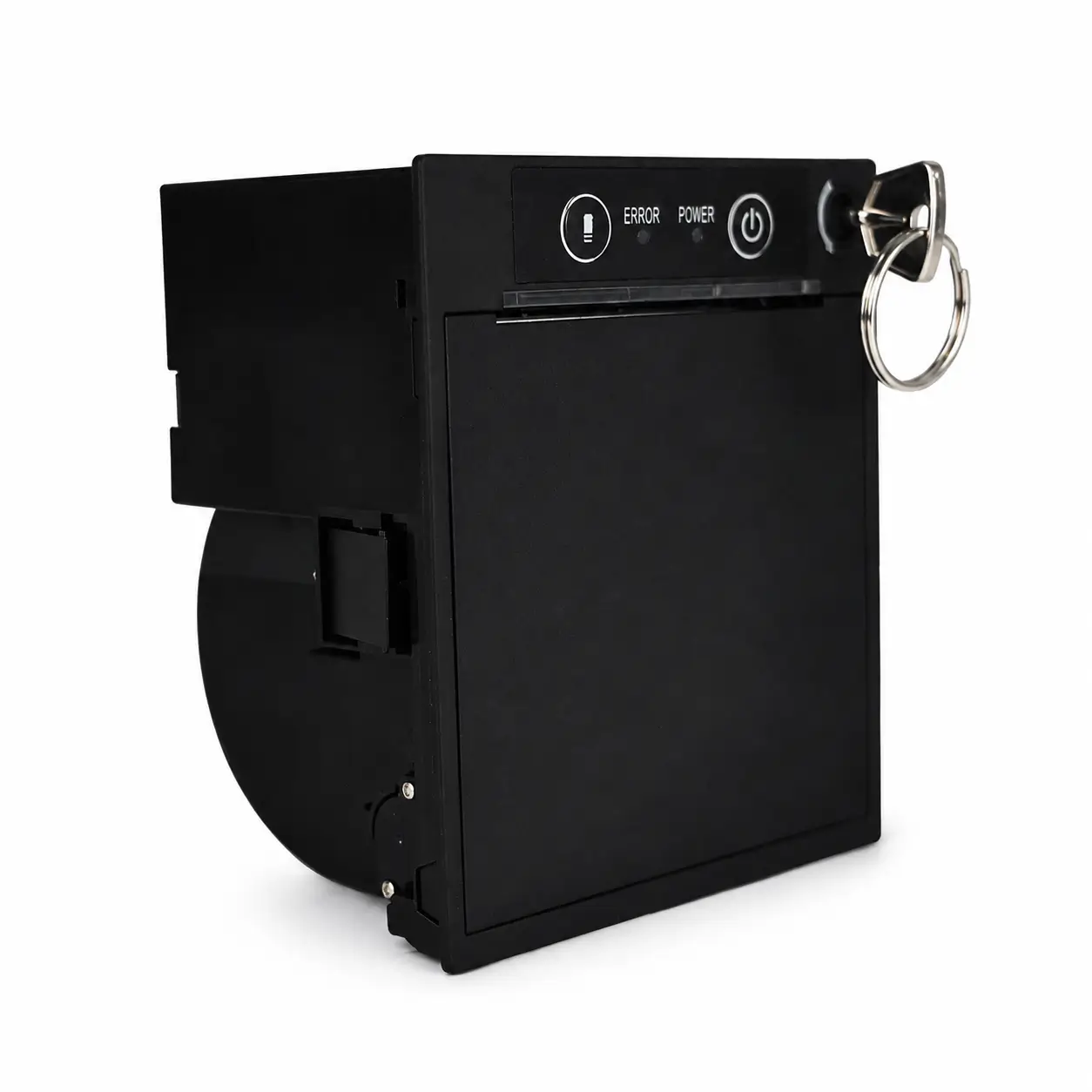

SNR-EP8303 80mm Panel Mount Thermal Printer
SNR-EP8303 is an 80mm panel mount thermal printer designed for kiosks and self-service terminals. It supports 80mm / 58mm paper, 220mm/s printing speed, half cut and full cut auto cutter, 80mm paper roll, USB and serial ports, cash drawer connector, easy paper loading and multiple roll bucket opening methods.
"*" indicates required fields
Reliable Embedded Receipt Printer for Self-Checkout Kiosks and Self-Service Terminals
The SNR-EP8303 80mm panel mount thermal printer is designed for self-checkout kiosks, self-ordering terminals, queue management systems, ticket vending machines, visitor terminals and other self-service equipment.
It supports 80mm and 58mm paper widths, 220mm/s printing speed, automatic cutter, easy paper loading and multiple printer roll bucket opening methods. With USB, serial and cash drawer connector options, SNR-EP8303 provides a reliable embedded printing solution for kiosk manufacturers and system integrators.
Key Features
- 80mm panel mount thermal printer for kiosk integration
- Supports 80mm and 58mm thermal paper
- High-speed printing up to 220mm/s
- 576 dots/line, 72mm maximum print width
- Easy loading paper structure
- Auto cutter with half cut and full cut
- Cutter life up to 1,000,000 cuts
- Maximum paper roll diameter up to 80mm
- Multiple roll bucket opening methods
- Print head open, paper end and paper shortage sensors
- Optional black mark detection
- Serial port, USB port and cash drawer connector
- Compatible with Windows 7 / 8 / 10 / 11 and Linux
- SDK / driver support available
Applications
- Self-checkout kiosk
- Self-ordering terminal
- Queue management system
- Ticket vending machine
- Visitor attendance terminal
- Hotel check-in kiosk
- Airport check-in terminal
- Retail kiosk
- Information kiosk
- Payment terminal
- Customer service machine
Integration Options
SNR-EP8303 is designed for kiosk and embedded equipment projects that require stable 80mm receipt printing, easy maintenance and flexible paper access.
Available connectors:
Serial port
USB port
Cash drawer box connector
Supported systems:
Windows 7
Windows 8
Windows 10
Windows 11
Linux
Roll bucket opening methods:
Key plug-in opening
Mechanical wrench opening
Electronic switch button opening
Command code opening
These opening options allow equipment manufacturers to choose the most suitable maintenance method based on kiosk structure, security requirements and service workflow.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-EP8303 |
| Product Type | 80mm Panel Mount Thermal Printer |
| Printing Method | Line thermal printing |
| Paper Width | 80mm / 58mm |
| Paper Speed | 220mm/s max |
| Point Density | 8 dots/mm |
| Print Points | 576 dots/line |
| Effective Print Width | 72mm max |
| Feeding Mode | Easy loading paper |
| Print Length | 100KM |
| Paper Cutting Method | Half cut / Full cut |
| Cut Paper Thickness | 60–120μm |
| Cutter Life | 1,000,000 cuts |
| Print Head Temperature Detection | Thermistor |
| Operating Voltage | DC12–24V ±10% |
| Mean Current | 58mm / 3A; 80mm / 4A, 25% of valid print points |
| Peak Current | DC12–24V / 10A |
| Operating Temperature | -10℃ to +50℃, no condensation |
| Operating Humidity | 20%–85%RH, 85%RH at 40℃ |
| Storage Temperature | -20℃ to +60℃, no condensation |
| Storage Humidity | 10%–90%RH, 90%RH at 50℃ |
| Weight | Approx. 0.45kg, excluding paper roll |
| Connector | Serial port / USB port / Cash drawer box |
| Sensors | Print head open, paper end, paper shortage, optional black mark |
| Maximum Paper Roll Diameter | 80mm |
| Dimensions | 115(W) × 85(D) × 132(H)mm |
Why Choose SNR-EP8303?
SNR-EP8303 is suitable for kiosk projects that require stable 80mm receipt printing, large paper roll capacity and flexible paper compartment access.
Compared with basic embedded printer modules, EP8303 provides a more kiosk-ready panel mount structure, 220mm/s printing speed, auto cutter, 80mm paper roll support and multiple roll bucket opening methods. It is a practical choice for self-checkout, self-ordering, queue management, ticket vending, visitor registration and check-in kiosk applications.
Related Models
EP8305 – High-speed 250mm/s all-in-one embedded printer module for high-volume kiosk applications
EP8304 – 80mm high-speed panel printer for lottery, vending and ticketing applications
EP8301 – 80mm kiosk thermal receipt printer with front maintenance and large paper roll support
EP8003 – Standard 80mm embedded panel printer for general receipt printing applications
FAQ
What is SNR-EP8303 used for?
SNR-EP8303 is used for receipt and ticket printing in self-checkout kiosks, self-ordering terminals, queue management systems, ticket vending machines, visitor terminals and check-in kiosks.
Is SNR-EP8303 an 80mm kiosk printer?
Yes. SNR-EP8303 supports 80mm thermal paper and is designed for embedded kiosk and self-service terminal installation.
Does SNR-EP8303 support 58mm paper?
Yes. It supports both 80mm and 58mm paper widths.
What is the maximum printing speed?
The maximum printing speed is 220mm/s.
Does SNR-EP8303 have an auto cutter?
Yes. It supports half cut and full cut paper cutting.
What interfaces are available?
SNR-EP8303 supports serial port, USB port and cash drawer box connector.
What is the maximum paper roll diameter?
The maximum paper roll diameter is 80mm.
What operating systems are supported?
SNR-EP8303 supports Windows 7 / 8 / 10 / 11 and Linux driver or SDK integration.
