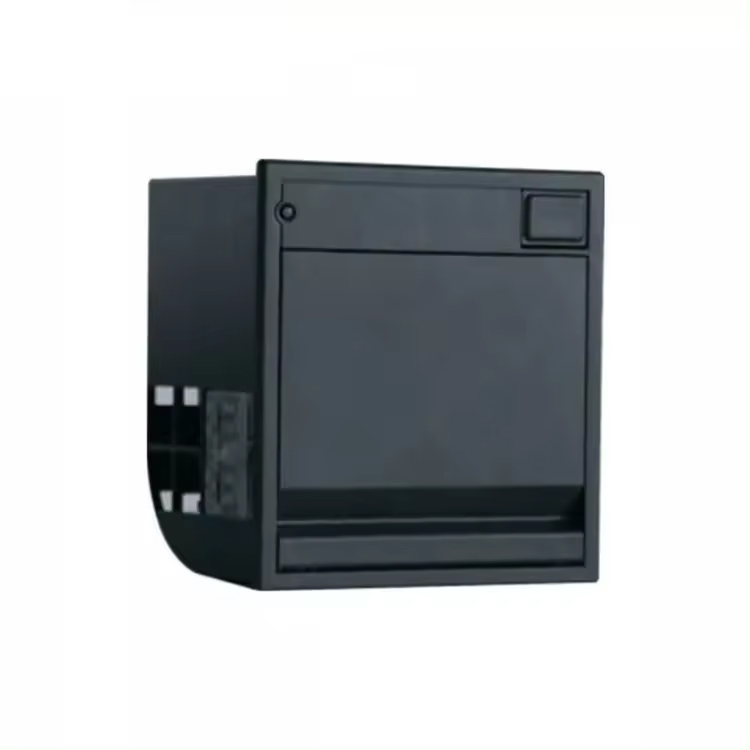

SNR-EP5802 58mm Kiosk Thermal Panel Mount Printer
SNR-EP5802 is a compact 58mm kiosk thermal panel mount printer with SEIKO mechanism, 100mm/s printing speed, guillotine auto cutter, ESC/POS command support, drop-in easy paper loading, 60mm paper roll capacity and RS-232 / Parallel / USB / RS-485 interface options.
"*" indicates required fields
Compact 58mm Thermal Receipt Printer with Auto Cutter for Kiosks and Embedded Terminals
The SNR-EP5802 58mm kiosk thermal panel mount printer is a compact embedded receipt printer designed for queue management kiosks, parking entry terminals, vending machines, small retail systems, simple ticketing machines and pharmacy pickup notice printing.
It supports 57.5mm thermal paper, 100mm/s printing speed, SEIKO brand printer mechanism, ESC/POS command, RS-232 / Parallel / USB / RS-485 interfaces, drop-in easy paper loading and a guillotine auto cutter with full / partial cut support.
Key Features
- 58mm kiosk mounted thermal panel printer
- Compact structure for embedded terminal integration
- SEIKO brand printer mechanism
- 100mm/s thermal line printing
- Low-noise direct thermal printing method
- Guillotine auto cutter with full / partial cut
- Cutter life up to 1,000,000 cuts

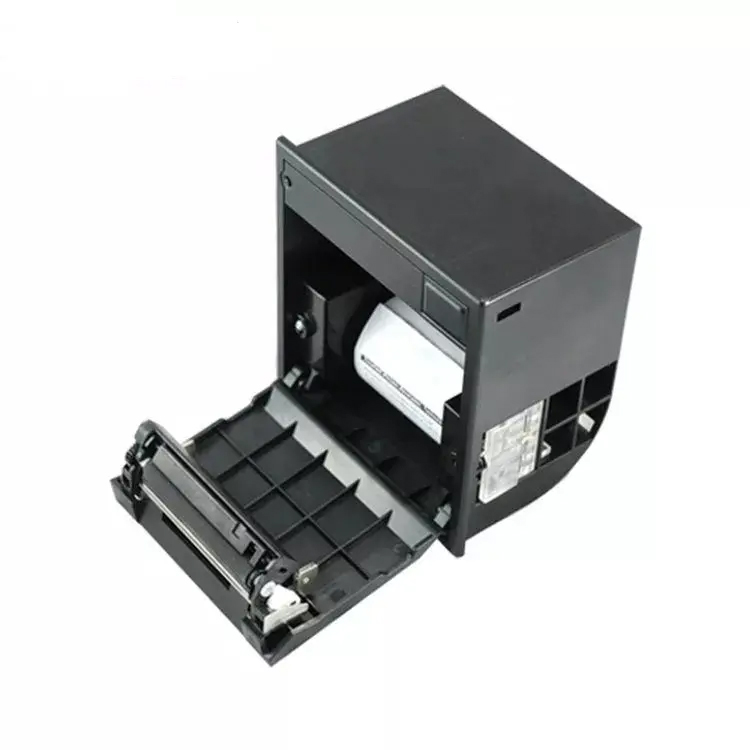

- Drop-in easy paper loading
- Paper out detection
- Automatic memory printing function
- Supports image, curve, character and barcode printing
- RS-232 / Parallel / USB / RS-485 interface options
- ESC/POS command compatibility
- DC9–24V wide voltage power supply
- Windows driver and SDK support available
Applications
- Queue management kiosk
- Bank, clinic and deli counter ticket systems
- Parking entry ticket terminal
- Small retail receipt printing
- Convenience store and newsstand POS systems
- Vending machine receipt printing
- Simple ticketing machine
- Bus ticket or car wash token printer
- Pharmacy prescription pickup notice printer
- Compact self-service terminals
Integration Options
SNR-EP5802 is designed for compact kiosk and embedded terminal projects that require 58mm thermal printing with an auto cutter.
Available interfaces:
RS-232
Parallel
USB
RS-485
Supported command:
ESC/POS
Driver support:
Windows 98
Windows 2000
Windows NT
Windows XP
Windows Vista
Windows 7
Windows 8/10/11
Power supply:
DC9–24V ±10%, 2A
The printer can be integrated into queue terminals, parking systems, vending machines, small POS equipment and other self-service devices requiring compact receipt or ticket output.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-EP5802 |
| Product Type | 58mm Kiosk Thermal Panel Mount Printer |
| Printing Method | Thermal Line |
| Printing Speed | 100mm/s |
| Resolution | 8 dots/mm, 384 dots/line |
| Effective Printing Width | 48mm |
| Character Set | ASCII, GB18030 Chinese, BIG5 24×24 |
| Print Font | Codepage, ASCII 9×24, 12×24 |
| Characters Per Line | 32 |
| Paper Type | Thermal paper |
| Paper Width | 57.5 ± 0.5mm |
| Paper Thickness | 0.06–0.08mm |
| Paper Roll Diameter | Max. 60mm |
| Roll Core Inner Diameter | 13mm min. |
| Paper Supply Method | Drop-in easy paper loading |
| Emulation | ESC/POS |
| Interface | RS-232 / Parallel / USB / RS-485 |
| Power Supply | DC9–24V ±10%, 2A |
| Printer Mechanism | SEIKO brand |
| Auto Cutter Type | Guillotine |
| Cutting Method | Full cut / Partial cut |
| Cutter Life | 1,000,000 cuts |
| Reliability | MCBF 5 million lines |
| Driver | Windows 98 / 2000 / NT / XP / Vista / Win7 / Win8 |
| Outline Dimension | 110 × 101 × 70.5mm |
| Installation Port Size | 103.5 × 95.5 × 67.5mm |
| Color | Black |
| Weight | 334g |
Supported Barcodes
UPC-A
UPC-E
EAN-13
EAN-8
CODE39
ITF25
CODEBAR
CODE93
CODE128
Why Choose SNR-EP5802?
SNR-EP5802 is suitable for compact kiosk projects that require a 58mm embedded thermal printer with auto cutter, stable paper loading and flexible interface support.
Compared with basic manual-tear printer modules, EP5802 provides a guillotine cutter, larger paper roll support and a more complete kiosk-ready structure. It is a practical choice for queue ticket systems, parking entry terminals, vending machines, small retail terminals and simple ticketing equipment.
Related Models
EP5803 – Upgrade option with enhanced paper feeding and higher 130mm/s printing speed
EP5804 – Lockable version for unattended kiosks and outdoor-related applications
EP5808 – Budget 58mm version without auto cutter
EP8301 – 80mm upgrade for larger receipts and more content space
FAQ
What is SNR-EP5802 used for?
SNR-EP5802 is used for 58mm receipt and ticket printing in queue management kiosks, parking entry terminals, vending machines, small retail systems, simple ticketing machines and pharmacy pickup notice systems.
Does SNR-EP5802 have an auto cutter?
Yes. SNR-EP5802 uses a guillotine auto cutter and supports full cut and partial cut.
What paper width does it support?
It supports 57.5 ± 0.5mm thermal paper.
What is the maximum paper roll diameter?
The maximum paper roll diameter is 60mm.
What interfaces are available?
SNR-EP5802 supports RS-232, Parallel, USB and RS-485 interfaces.
Is SNR-EP5802 suitable for kiosk integration?
Yes. It is designed as a panel mount printer for kiosks and embedded self-service terminals.
