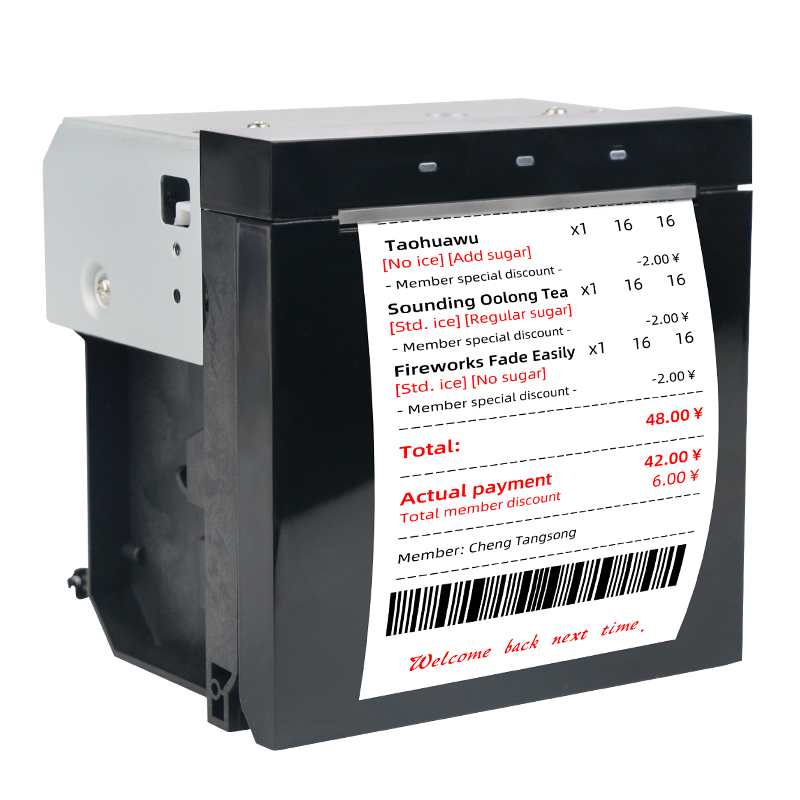

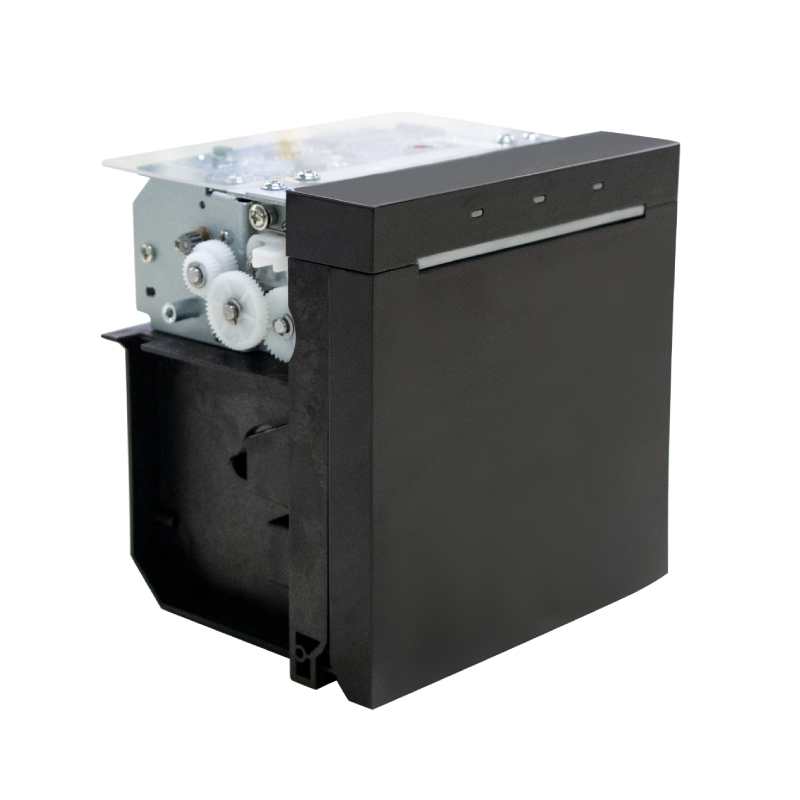

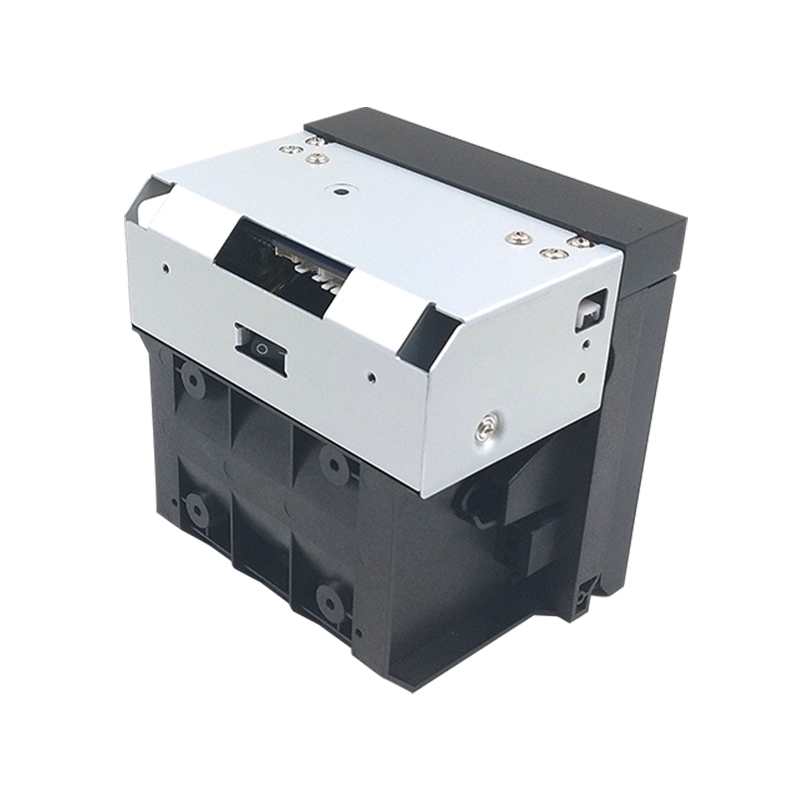

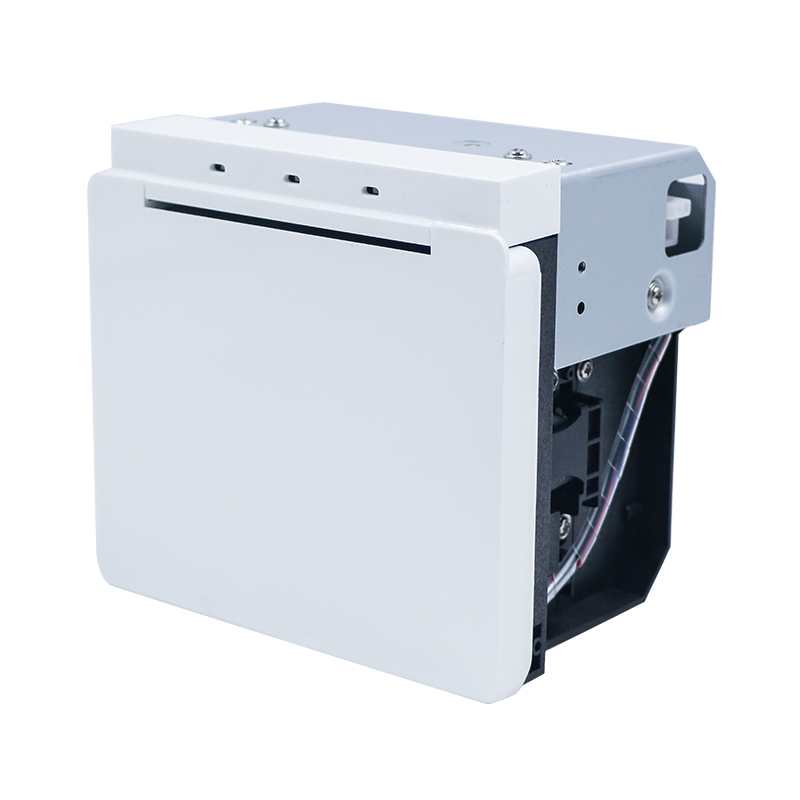

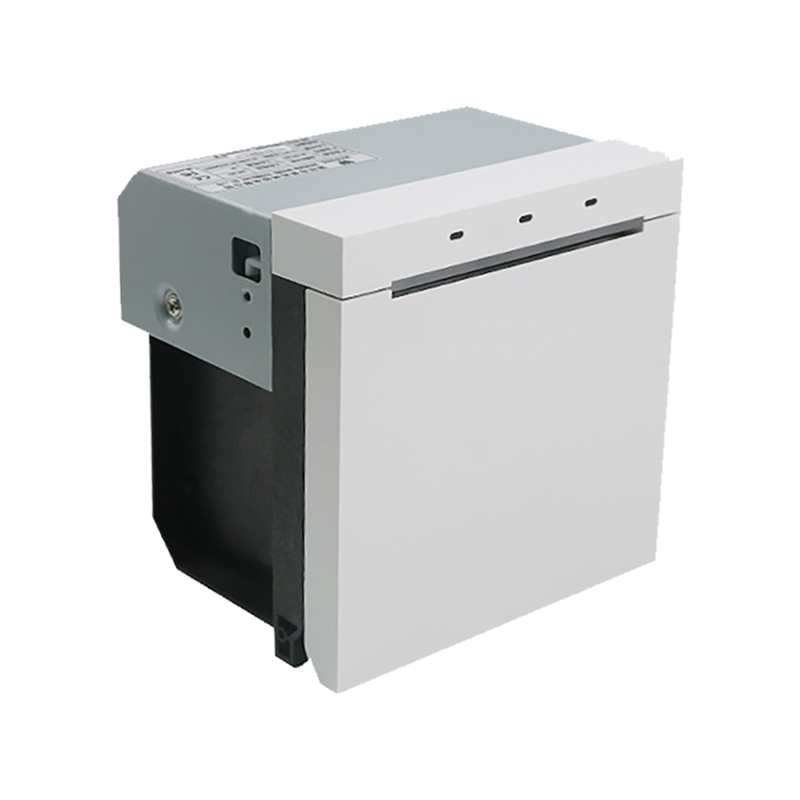

SNR-EP8305 High-Speed Embedded Thermal Printer Module
SNR-EP8305 is a high-speed embedded thermal printer module designed for kiosks and self-service terminals. It supports 80mm and 58mm paper widths, 250mm/s printing speed, USB and serial ports, sliding auto cutter, easy-to-fill paper loading, multiple sensors and Windows, Linux and Android software integration.
"*" indicates required fields
80mm All-In-One Kiosk Printer with Cutter for Self-Service Terminals
The SNR-EP8305 high-speed embedded thermal printer module is an 80mm all-in-one printing solution designed for self-service kiosks, ticketing machines, parking terminals, self-checkout systems, airport check-in kiosks and other embedded equipment.
It integrates the control board and printer mechanism into one compact module, helping kiosk manufacturers reduce internal space, simplify wiring and improve installation efficiency. With 250mm/s printing speed, 80mm / 58mm paper support, automatic sliding cutter, easy paper loading and multiple sensors, SNR-EP8305 is suitable for high-volume self-service printing applications.
Key Features
- 80mm all-in-one embedded thermal printer module
- Integrated control board and printer mechanism
- High-speed printing up to 250mm/s
- Supports 80mm and 58mm paper widths
- 576 dots/line, 72mm maximum print width
- Automatic sliding cutter with full cut and partial cut
- Cutter life up to 1,000,000 cuts
- Easy-to-fill paper loading structure
- Maximum paper roll diameter up to 80mm
- Multiple sensors for paper detection and printer status monitoring
- Multi-position black mark sensor for accurate positioning
- Flexible side, front and rear mounting options
- Serial port and USB port support
- Compatible with Windows, Linux and Android integration
Applications
- Self-checkout kiosk
- Supermarket and hypermarket self-service terminal
- Fast-food self-ordering kiosk
- Airport check-in kiosk
- Cinema ticketing machine
- Event ticketing terminal
- Parking payment terminal
- Parking toll station
- Warehouse self-service kiosk
- High-volume receipt, ticket and voucher printing
Integration Options
SNR-EP8305 is designed for kiosk and embedded equipment projects that require compact structure, high-speed printing and reliable paper handling.
Available interfaces:
Serial port
USB port
Serial configuration:
RS232 / TTL available depending on project configuration
Supported system environments:
Windows
Linux
Android
Installation design:
Side mounting
Front mounting
Rear mounting
The integrated all-in-one structure helps reduce integration complexity compared with separate printer mechanism and external control board solutions.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-EP8305 |
| Product Type | Embedded Thermal Printer Module |
| Printing Method | Linear Thermal Printing |
| Paper Width | 80mm / 58mm |
| Print Speed | 250mm/s max |
| Dot Density | 8 dots/mm |
| Print Dots | 576 dots/line |
| Effective Print Width | 72mm max |
| Paper Feed Method | Easy-to-fill paper loading |
| Print Length | 100KM |
| Cutter Type | Sliding cutter |
| Cutting Mode | Partial cut / Full cut |
| Cutting Thickness | 60–120μm |
| Cutter Life | 1,000,000 cuts |
| End-of-Paper / Last-Paper Detection | Reflective photoelectric sensors |
| Print Head Temperature Detection | Thermistor |
| Operating Voltage | DC24V ±10% |
| Average Current | 24V / 2A, 25% of effective print points |
| Peak Current | 6.5A |
| Operating Temperature | -10℃ to +50℃, no condensation |
| Operating Humidity | 20%–85%RH, 85%RH at 40℃ |
| Storage Temperature | -20℃ to +60℃, no condensation |
| Storage Humidity | 10%–90%RH, 90%RH at 50℃ |
| Weight | Approx. 0.90kg, excluding paper roll |
| Port | Serial port / USB port |
| Mechanical Life | 100KM |
| Maximum Paper Roll Diameter | 80mm |
| Dimensions | 127(W) × 127(D) × 100(H)mm |
Supported Printing Content
1D barcodes:
EAN8, EAN13, CODE39, CODE128
2D code:
QR Code
Character support:
Supports multiple international character sets, including Simplified Chinese, Traditional Chinese, Korean, Japanese, Vietnamese and Slavic languages.
Why Choose SNR-EP8305?
SNR-EP8305 is suitable for high-volume kiosk projects that require fast printing, compact installation and reliable paper handling.
Compared with standard 80mm embedded printers, EP8305 provides a more integrated all-in-one structure, 250mm/s high-speed printing, flexible mounting options, sliding auto cutter and multiple sensors for paper detection and positioning. It is a strong option for self-checkout, ticketing, parking, airport check-in and other self-service terminals that require long-term stable operation.
Related Models
EP8304 – 80mm high-speed panel mount printer for lottery, vending and ticketing applications
EP8301 – 80mm kiosk thermal receipt printer with front maintenance and large paper roll support
EP8303 – 80mm panel mount printer for self-checkout, queue management and general kiosk applications
EP8003 – Standard-speed 80mm embedded panel printer for receipt printing applications
FAQ
What is SNR-EP8305 used for?
SNR-EP8305 is used as an embedded thermal printer module for self-service kiosks, self-checkout terminals, ticketing machines, parking payment terminals, airport check-in kiosks and other automated equipment.
Is SNR-EP8305 an 80mm kiosk printer?
Yes. SNR-EP8305 supports 80mm thermal paper and is designed for embedded kiosk and self-service terminal integration.
Does SNR-EP8305 support 58mm paper?
Yes. It supports both 80mm and 58mm paper widths.
What is the maximum printing speed?
The maximum printing speed is 250mm/s.
Does SNR-EP8305 have an auto cutter?
Yes. It uses a sliding cutter and supports both partial cut and full cut.
What interfaces are available?
SNR-EP8305 supports serial port and USB port. RS232 / TTL serial configuration can be provided depending on project requirements.
What is the maximum paper roll diameter?
The maximum paper roll diameter is 80mm.
What systems are supported?
SNR-EP8305 supports Windows, Linux and Android integration.
Is it suitable for POS systems?
Yes. It is designed for POS cash register systems, including retail, restaurant and self-service checkout environments.
Can it be used in self-ordering kiosks?
Yes. It is commonly used in self-ordering kiosks for printing order receipts and kitchen tickets.
Is it suitable for unattended environments?
Yes. It is designed for 24/7 unattended operation in kiosks, POS systems and industrial terminals.
Can SNRO provide SDK or driver support?
Yes. SNRO provides:
- Windows driver
- Linux driver (selected models)
- Android SDK
- ESC/POS command protocol
- Integration documentation
