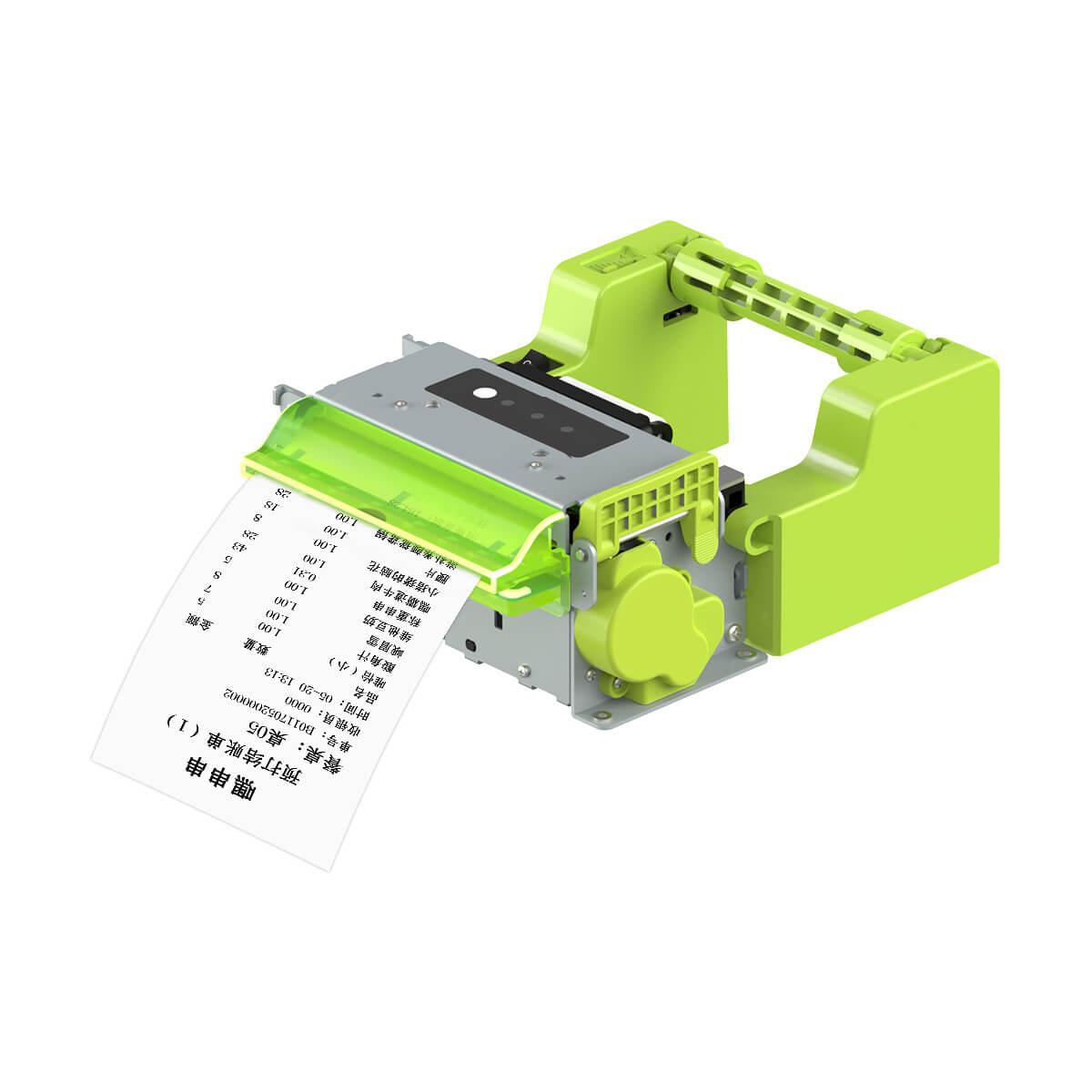

SNR-KP803 Embedded Thermal Printer
SNR-KP803 is an 80mm embedded thermal printer designed for self-service terminals, retail kiosks, banking systems, healthcare kiosks, parking payment machines and public service terminals. It features 300mm/s high-speed printing, 203 dpi resolution, Ø100mm paper roll support, thermal paper and black mark paper compatibility, side-flip cover maintenance, full / partial auto cutting, RS232 + USB interfaces, optional anti-jamming sensors, multi-color status indicators and 100km print head life.
"*" indicates required fields
80mm High-Speed Self-Service Terminal Thermal Printer with Auto Cutter
The SNR-KP803 is a next-generation 80mm embedded thermal printer designed for self-service terminals, retail kiosks, banking systems, healthcare kiosks, parking payment terminals and public service equipment.
With a maximum printing speed of 300mm/s, support for large paper rolls up to Ø100mm, full / partial auto cutting, RS232 + USB interfaces and side-flip cover maintenance, SNR-KP803 provides a reliable receipt and ticket printing solution for high-volume unattended environments.
Its distinctive fresh green industrial design, optional anti-jamming sensors, multi-color status indicators and optional high-brightness LED bezel make it suitable for modern kiosk systems that require both stable operation and clear user interaction.
Key Features
- 80mm embedded thermal printer for self-service terminals
- High-speed printing up to 300mm/s
- Direct thermal line printing
- 203 dpi resolution
- Maximum printing width up to 80mm
- Supports thermal paper and black mark paper
- Supports paper roll diameter up to Ø100mm

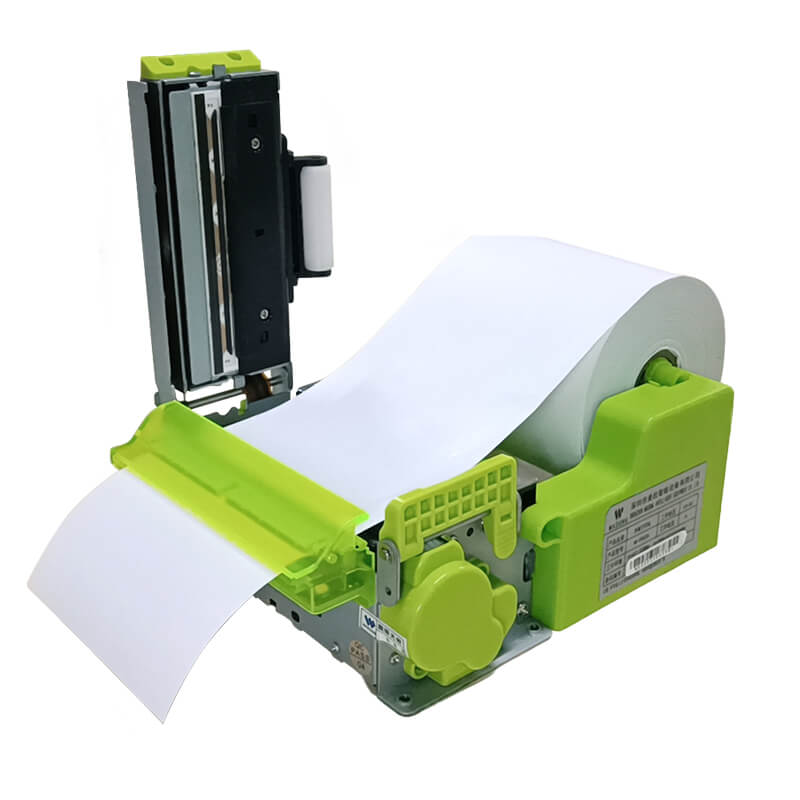

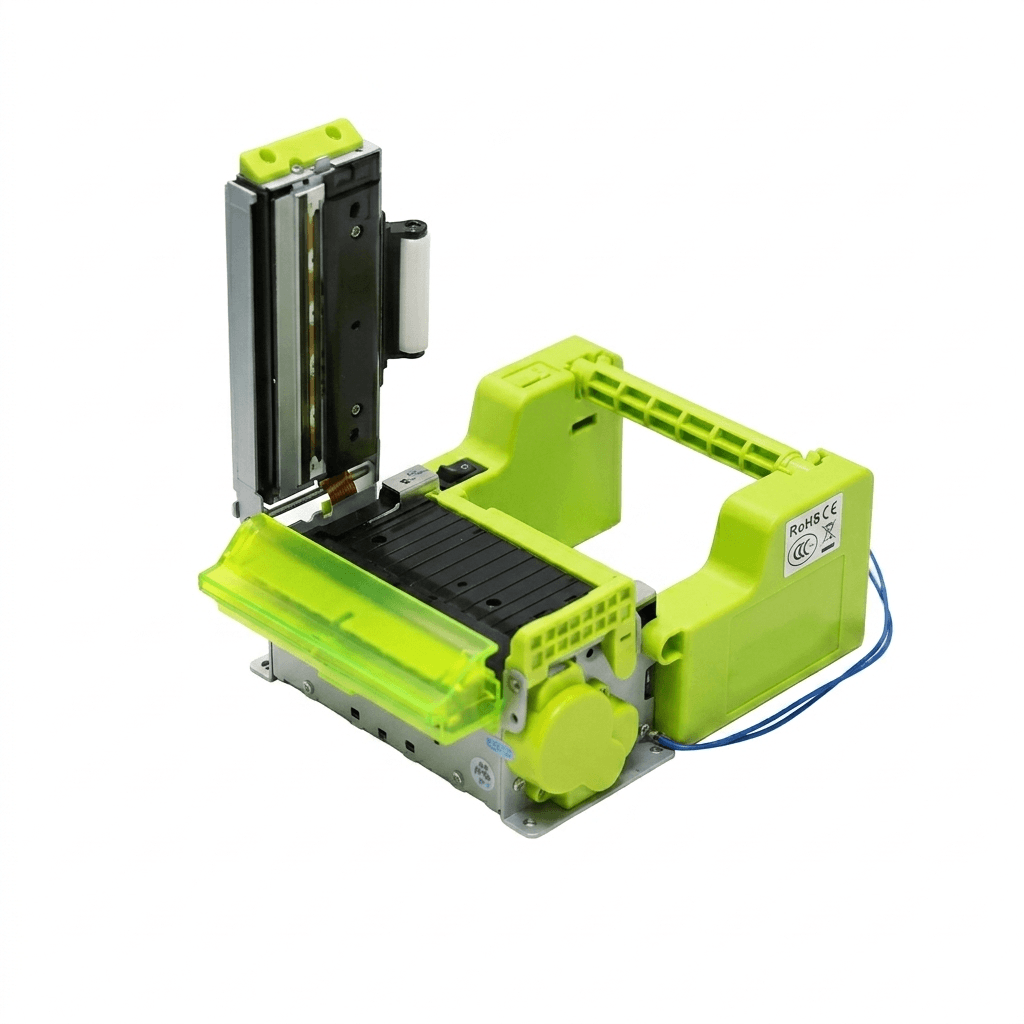

- Side-flip cover for easy paper loading and maintenance
- Full cut and partial cut supported
- Auto cutter life up to 1,000,000 cuts
- Print head life up to 100km
- RS232 serial + USB interfaces
- DC24V power input
- Optional anti-jamming sensors
- Multi-color status indicators
- Optional high-brightness LED bezel
- Fresh green round-edged plastic shell design
- Suitable for unattended high-volume terminal applications
Applications
- Self-checkout kiosks
- Supermarket self-service terminals
- Unattended retail lockers
- E-commerce pickup terminals
- ATM receipt printing
- Banking self-service terminals
- Hospital registration kiosks
- Medical payment kiosks
- Prescription printing terminals
- Government certification terminals
- Public service hall queue systems
- Parking payment machines
- Transit ticketing kiosks
- Queue management terminals
- Information kiosks
Technical Specifications
Printing Specifications
| Category | Item | Specification |
|---|---|---|
| Printing | Printing Method | Direct thermal line printing |
| Printing | Resolution | 203 dpi |
| Printing | Printing Speed | High-speed version: 300mm/s |
| Printing | Printing Width | 80mm max |
| Paper | Paper Type | Thermal paper / black mark paper |
| Paper | Paper Width | 80mm max |
| Paper | Roll Diameter | Ø100mm max |
| Paper | Loading Method | Easy-load side flip cover |
Mechanical and Reliability
| Category | Item | Specification |
|---|---|---|
| Mechanics | Auto Cutter | Full cut / partial cut |
| Mechanics | Cutter Life | 1,000,000 cuts |
| Reliability | TPH Life | 100km |
| Physical | Dimensions | 168 × 121.4 × 62.8mm |
Interface and Power
| Category | Item | Specification |
|---|---|---|
| Interface | Standard Interface | RS232 serial + USB |
| Power | Power Input | DC24V |
Environmental Specifications
| Category | Item | Specification |
|---|---|---|
| Environment | Operating Temperature | 0℃ to 50℃ |
Why Choose SNR-KP803?
SNR-KP803 is suitable for self-service systems that require high-speed output, compact embedded installation, easy maintenance and reliable unattended operation.
Compared with standard embedded receipt printers, KP803 provides faster printing up to 300mm/s, side-access maintenance, Ø100mm paper roll support, optional anti-jamming sensors, visual status indication and a modern terminal-oriented shell design.
For retail kiosks, banking terminals, healthcare systems, parking payment machines, public service terminals and transportation ticketing systems, SNR-KP803 provides a practical 80mm embedded thermal printer solution for high-frequency operation.
Related Models
SNR-KP800-TU – 80mm high-speed kiosk thermal printer with anti-paper blocked and anti-drag ticket systems
SNR-KP800-TH – 80mm auto cutter thermal receipt printer for POS, kiosk and retail applications
SNR-KP805 – 80mm kiosk thermal printer module for banking, parking and queuing systems
SNR-KP802-VX – Heavy-duty 80mm kiosk printer for unattended self-service systems
SNR-EP602-TM – 58mm / 60mm embedded thermal printer module for kiosk integration
FAQ
What is SNR-KP803 used for?
SNR-KP803 is used as an embedded 80mm thermal printer for self-service terminals, retail kiosks, banking systems, healthcare kiosks, parking payment machines, public service terminals and transportation ticketing kiosks.
What is the maximum printing speed?
The high-speed version supports printing up to 300mm/s.
What paper width does SNR-KP803 support?
It supports paper width up to 80mm.
What is the maximum paper roll diameter?
The printer supports paper rolls up to Ø100mm.
Does SNR-KP803 support black mark paper?
Yes. It supports thermal paper and black mark paper.
Does it support auto cutting?
Yes. It supports full cut and partial cut.
What is the cutter lifetime?
The auto cutter lifetime is up to 1,000,000 cuts.
What interfaces are available?
SNR-KP803 supports RS232 serial and USB interfaces.
Is it suitable for unattended terminals?
Yes. It is designed for high-volume unattended self-service environments and supports optional anti-jamming sensors and visual status indication.
Is it easy to maintain inside kiosk cabinets?
Yes. The side-flip cover design allows easier paper loading and maintenance in compact kiosk enclosures.
