Overview

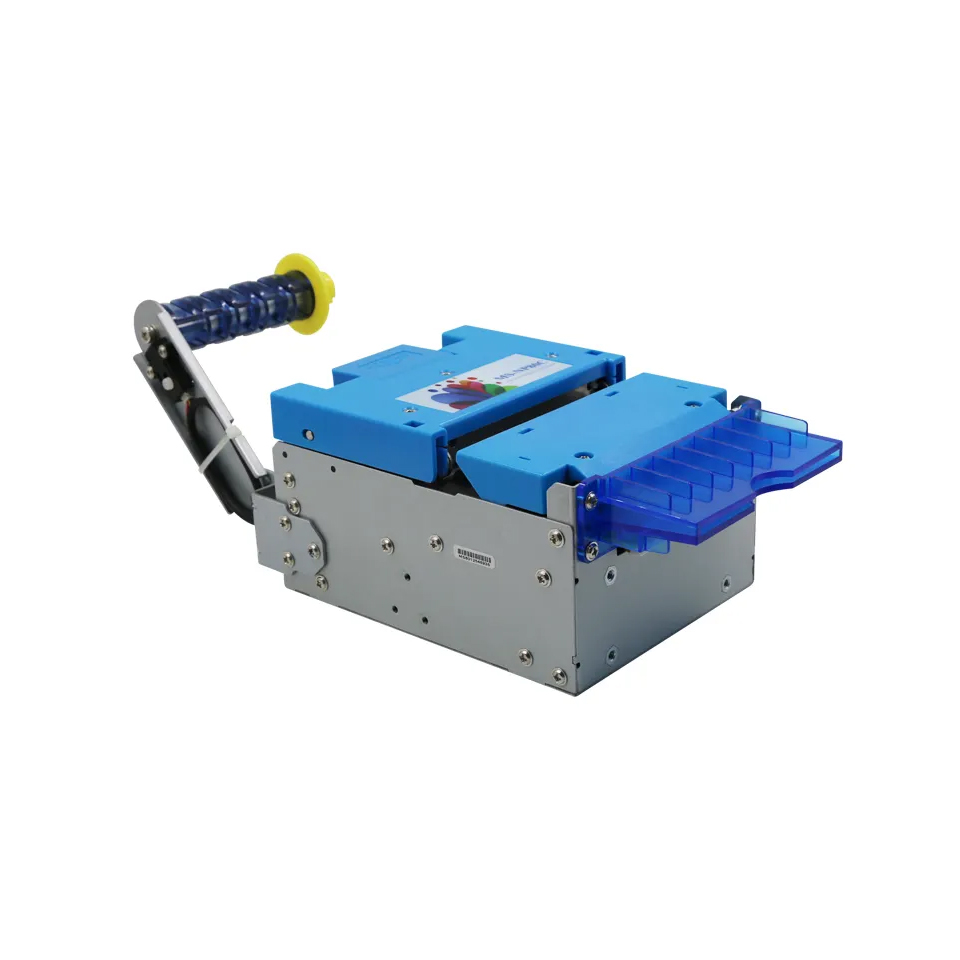

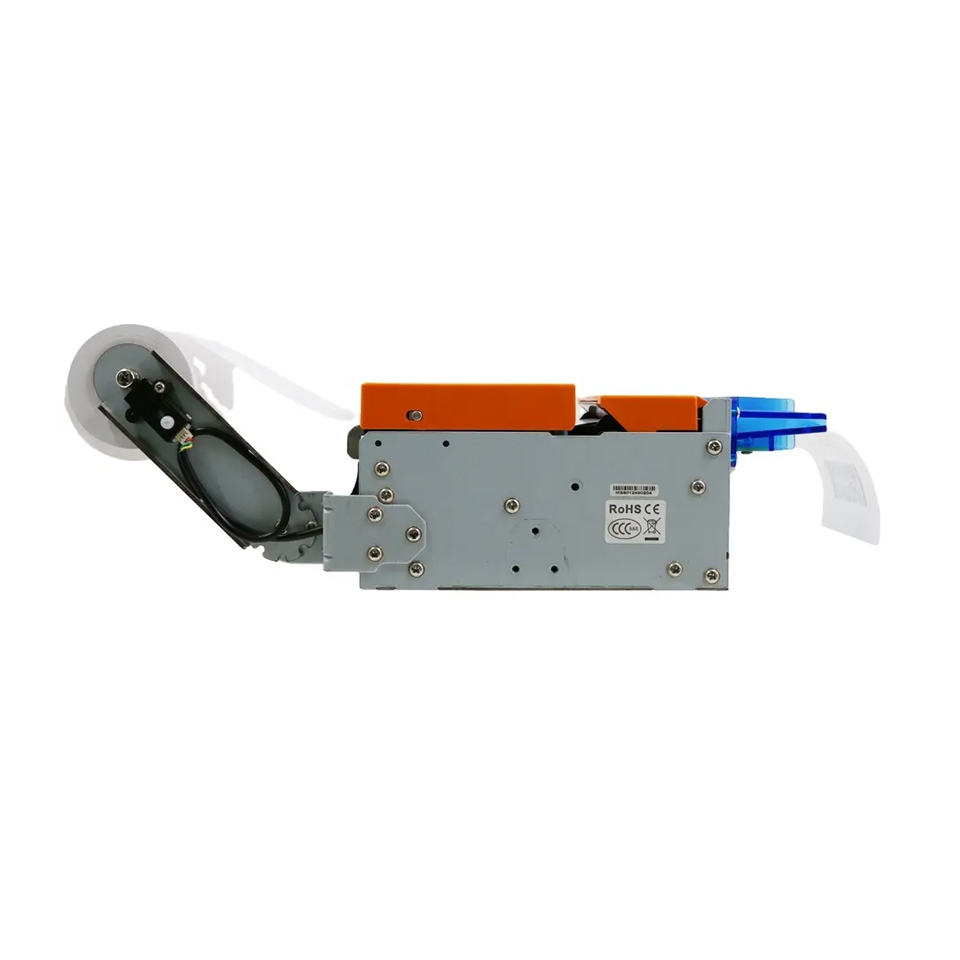

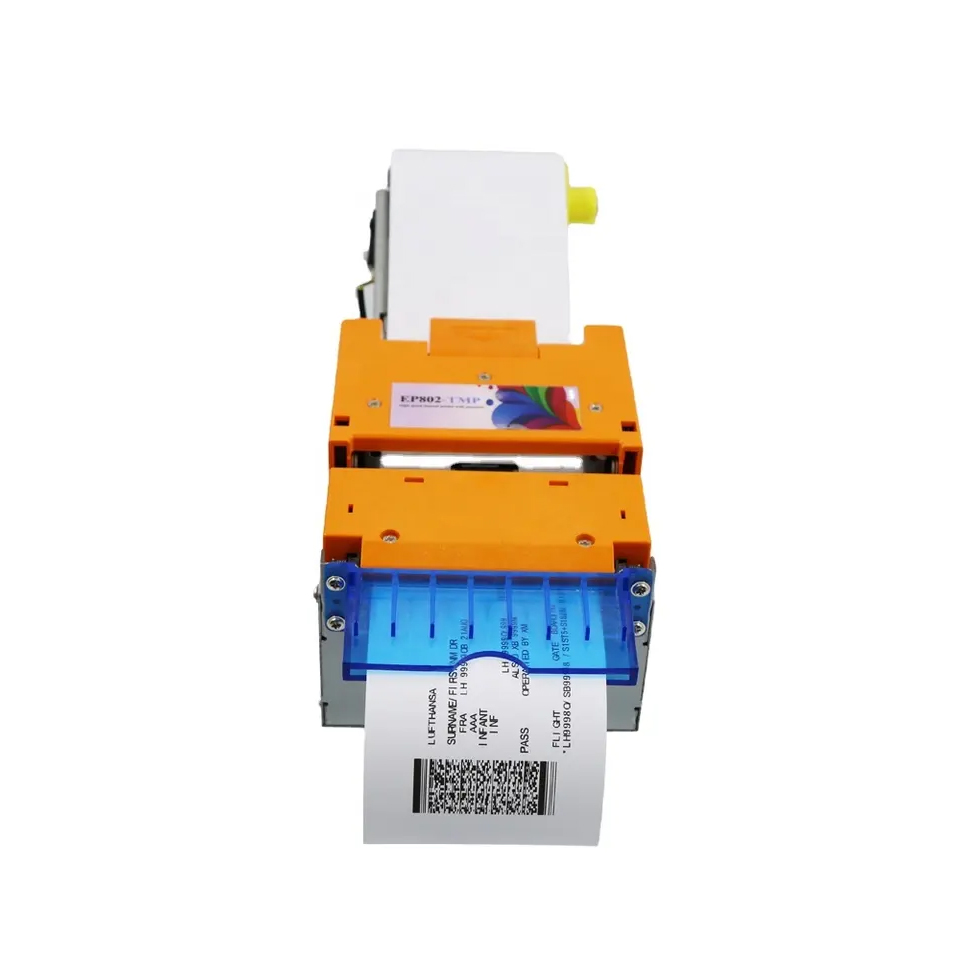

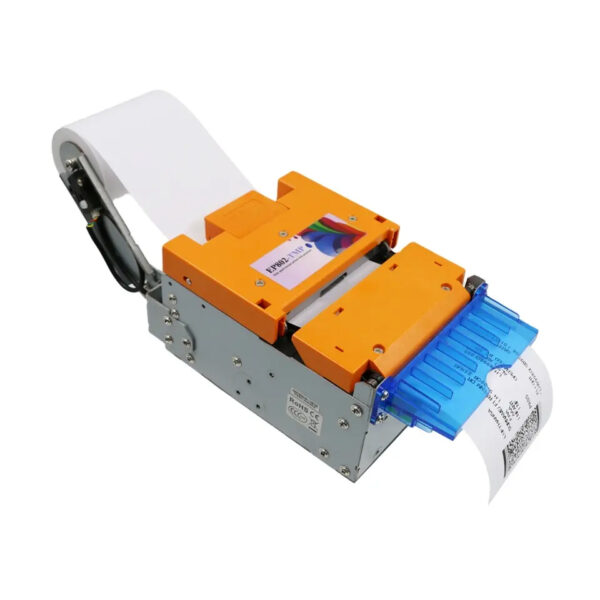

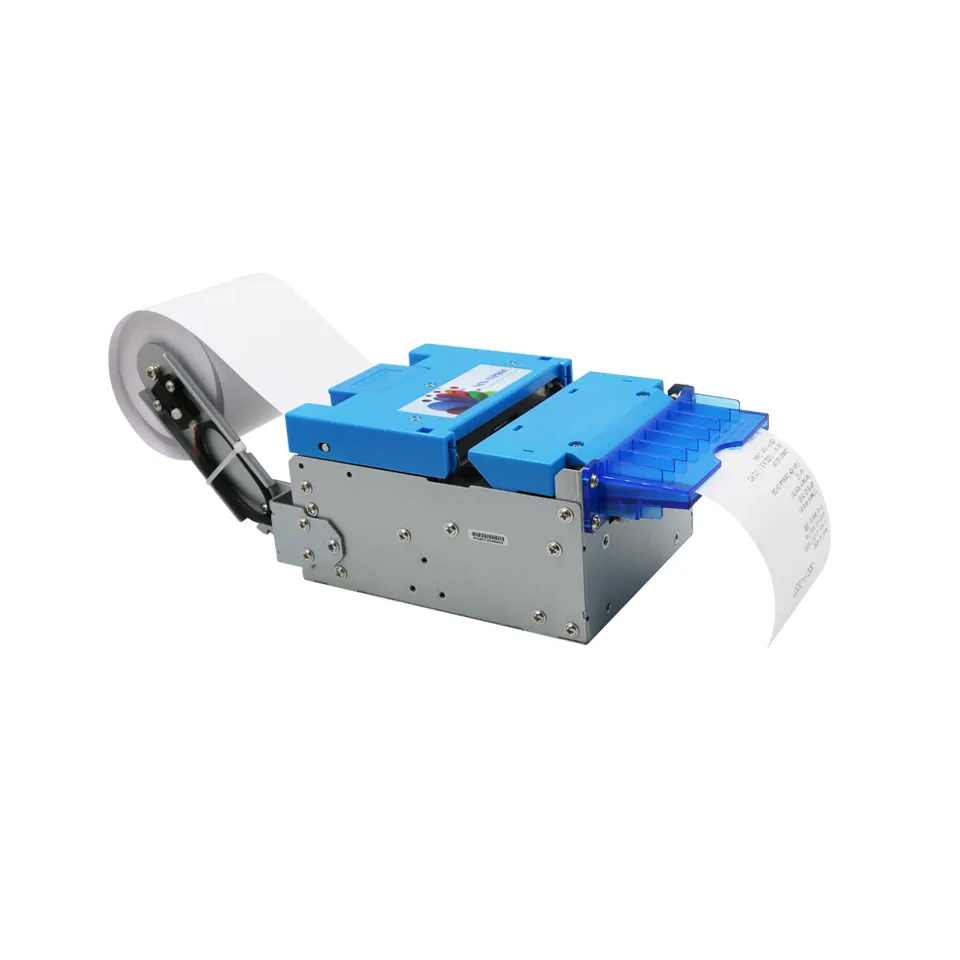

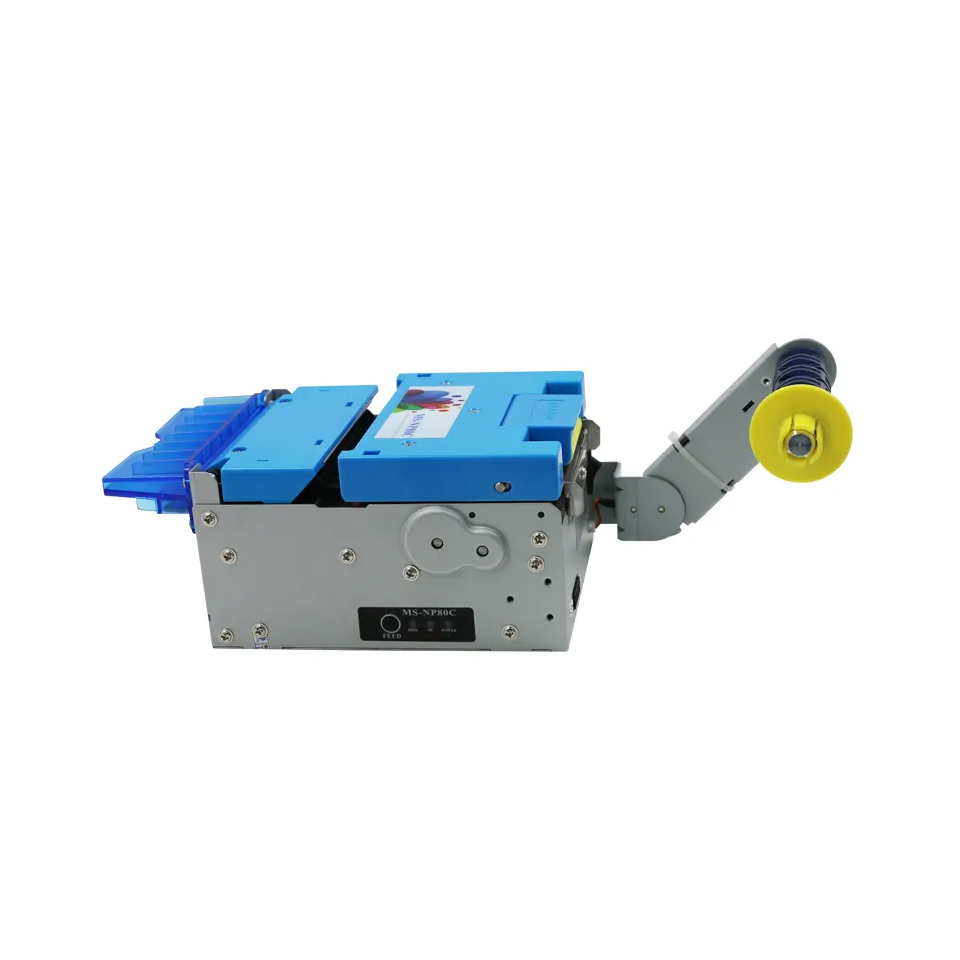

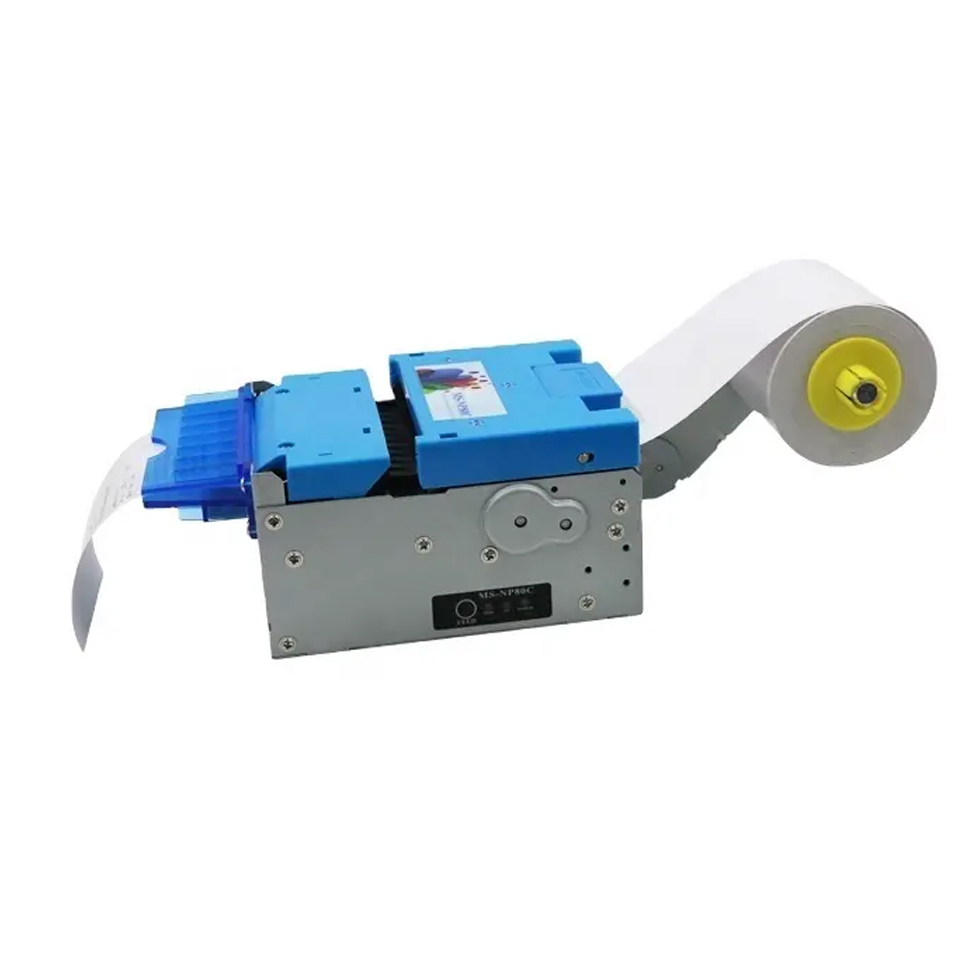

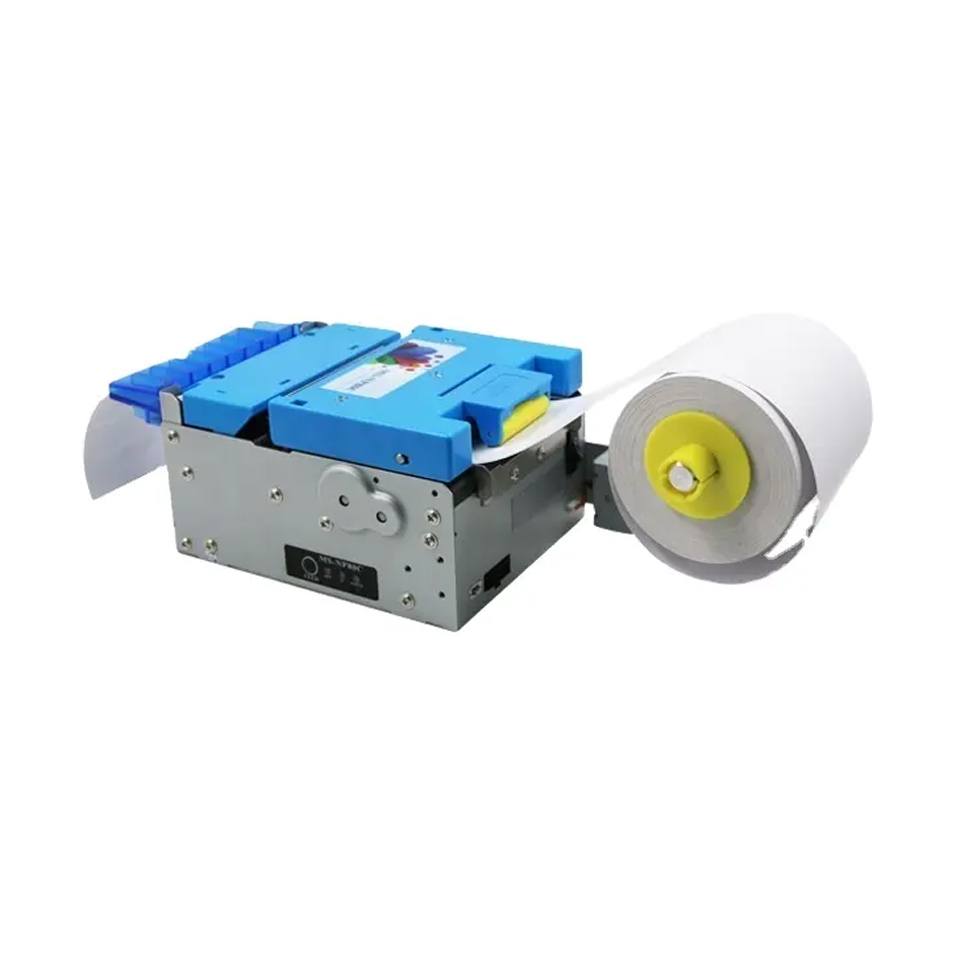

The TMP is a fully integrated kiosk thermal printer designed for demanding self-service environments including kiosks, gaming machines, sports betting terminals, and parking systems. With a maximum print speed of 250 mm per second, it combines a printer mechanism, presenter, and control PCB in a compact architecture. The unit features rear paper loading, auto-loading, an independent full-cut auto-cutter, and an optional ticket retract function for secure ticket handling. Standard communication includes RS-232C and USB, with an isolator power switch for safe maintenance.
Key Features
-
Fully Integrated Design: Combines mechanism, presenter, and main PCB.
-
High-Speed Printing: 250 mm/s maximum.
-
High Resolution: 203 DPI (8 dots/mm).
-
Auto Cutter: Independent full-cut module.
-
Auto Paper Loading: Rear paper feed with horizontal 180° auto-loading.
-
Ticket Retract Option: Command-activated retract function for secure disposal of untaken tickets.
-
Multi-Sensor Suite: Includes paper out, cover open, paper low, jam detection, ticket taken, head temperature, and retract sensors.
-
Barcode Support: UPC-A/E, EAN13/8, Code39, ITF, CODABAR, Code93/128, Code31, PDF417, QR Code.
-
Variable Ticket Length: Supports sports betting and other long-ticket applications.
-
Minimum Ticket Length: 82 mm (with integrated presenter).
-
Emulation: EPSON compatible.
-
Interfaces: RS-232C and USB 2.0.
-
Memory: 4 MB Flash, 64 KB RAM (extensible to 256 KB).
-
Driver Support: Windows & Linux.
-
Paper Width Options: 80 mm and 82.5 mm.
-
RoHS Compliant.
-
Optional Accessories: LED bezel (color options), paper roll holder, front/top paper loading kit, various cable sets.
Applications
-
-
Self-service inquiry terminals
-
Queuing / ticketing machines
-
ATMs
-
Lottery printing terminals
-
Log printing systems
-
Self-service bill and invoice printing
-
Sports betting terminals
-
Parking payment terminals
-
Gaming machines
-
Specifications:
|
Module |
SNR-KP802-VX |
||||
|
Control board |
W80-3 |
||||
|
Printing
|
Printing method |
Thermal dot line |
|||
|
|
Dots |
640dots |
|||
|
|
Speed |
250mm/s |
|||
|
|
Printing width
|
80mm (max)
|
|||
|
|
Paper loading |
Easy loading ( horizontal 180°) |
|||
|
|
Cutting method |
Full |
|||
|
|
Print head life |
100KM |
|||
|
|
Printing format |
inverse,underline,italic,bold |
|||
|
|
Cutter life
|
60μm paper |
1,000,000 cuts | ||
|
|
|
200μm paper |
750,000 cuts |
||
|
|
Baud rate |
9600,19200,38400,115200 |
|||
|
Font |
ASCII |
9*17,12*24 |
|||
|
|
Chinese |
24*24dots |
|||
| Detection |
TPH temperature |
Temperature sensor |
|||
|
|
Mechanism open detection |
Micro switch |
|||
|
|
Paper presence detection |
Mechanical sensor |
|||
|
|
Ticket out detection |
|
|||
|
|
Paper low detection |
Photo-interrupter |
|||
|
|
Black mark detection |
|
|||
|
|
Paper cutting detection |
|
|||
|
|
Paper retracting detection |
|
|||
|
Conditions |
Power supply |
DC24±10% V | |||
|
|
Load current |
1.5A continuous
61mA Standby 3.2 A Peak |
|||
|
|
Interfaces |
RS232,USB 2.0 |
|||
|
|
Paper roll |
Paper type
|
Thermal paper roll | ||
| Paper width | 79.5±0.5 mm(3.13±0.02 inches)
Or 82.0±0.5 mm(3.23±0.02 inches) |
||||
| Roll diameter | 160 mm (6.2 “) | ||||
| Paper thickness | 0.06~0.2 mm (0.002 ~0.007 inches) | ||||
|
|
|
Recommended paper type |
KANZAN KF50
KP460 MITSUBISHIPG5075 TL4000 |
||
|
Environment |
operating temperature |
-10~60℃(no condensation) |
|||
|
|
operating humidity |
20%~80%RH(40℃,85%RH) |
|||
|
|
Storage temperature |
-20~70℃(no condensation) |
|||
|
|
Storage humidity |
10%~90%RH(50℃,90%RH) |
|||
|
Dimension |
Paper holder 45° upward ( 150mm paper roll) |
L*W*H=328*122.3*163 mm |
|||
|
|

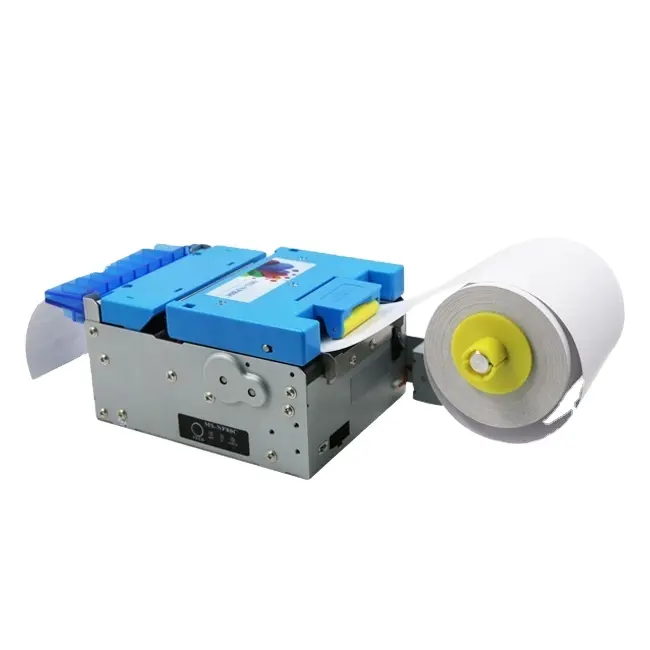

Paper holder horizontal (150 mm paper roll) |
L*W*H=355*122.3*288 mm |
|||
|
|

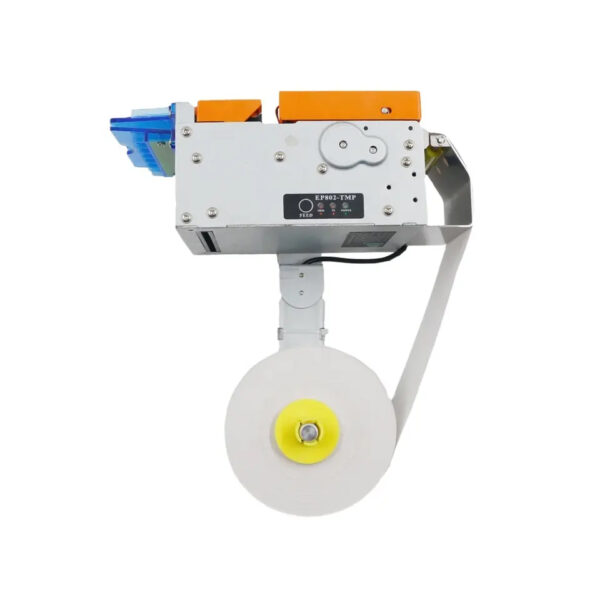

Paper roll vertical (150 mm paper roll) |
L*W*H=196*122.3*288 mm |
|||
|
|
Weight |
Approx 1.49kg(without paper roll ) |
|||
Applications
- Self-service kiosks
- Banking machines and cash dispensers
- Gaming machines
- Parking payment terminals
- Vending machines
- Queue management systems
- E-ticketing
There are 2 types paper rod for your option.
