SNR-EP602-TM Embedded Thermal Printer Module
SNR-EP602-TM is a compact 58mm / 60mm embedded thermal printer module designed for kiosk integration, queue management systems, visitor registration terminals, ticket vending machines and parking payment kiosks. It features 250mm/s high-speed printing, 120mm paper roll support, ROHM thermal print head, OYANE auto cutter, full / partial cutting, anti-paper-blocked design, anti-drag ticket handling, LED bezel status indication, RS232 + USB interfaces and SDK support for Windows, Linux and Android.
"*" indicates required fields
58mm / 60mm High-Speed Embedded Thermal Printer for Kiosk Integration
The SNR-EP602-TM is a compact 58mm / 60mm embedded thermal printer module designed for kiosk integration, queue management systems, visitor registration terminals, ticketing machines, parking payment kiosks and compact self-service devices.
With high-speed thermal printing up to 250mm/s, a large paper roll capacity up to 120mm, automatic paper loading, full / partial cutting and RS232 + USB interfaces, SNR-EP602-TM provides a reliable printing solution for unattended terminals that require fast receipt or ticket output.
The printer is equipped with a ROHM thermal print head, OYANE auto cutter, patented anti-paper-blocked system, anti-drag ticket design, LED bezel status indication and flexible paper roll bracket mounting, helping kiosk integrators improve uptime, maintenance efficiency and installation flexibility.
Key Features
- Compact 58mm / 60mm embedded thermal printer module
- Designed for kiosk integration and space-limited cabinets
- High-speed printing up to 250mm/s
- ROHM thermal print head
- OYANE auto cutter
- Large paper roll support up to 120mm
- Supports 120mm–130mm paper roll structure by project configuration
- Auto paper loading, horizontal 180°
- Full cut and partial cut by command
- Print head life over 200km
- Cutter life up to 1,000,000 cuts
- Patented anti-paper-blocked system
- Patented anti-drag ticket system
- LED bezel status indication
- Flexible paper roll bracket mounting
- Supports thermal paper roll
- Supports thermal fanfold ticket
- Supports thermal label roll
- RS232 + USB communication interfaces
- Windows, Linux and Android integration support
- SDK, demo and technical documentation available
Applications
- Queue management systems
- Visitor management kiosks
- Ticket vending machines
- Parking payment terminals
- Parking entry terminals
- Self-service information kiosks
- Retail service kiosks
- Healthcare self-service terminals
- Government service terminals
- Customer service terminals
- Ticketing systems
- Registration kiosks
- Public service terminals
- Compact self-service devices
- Embedded receipt and ticket printing systems
Technical Specifications
Basic Configuration
| Item | Specification |
|---|---|
| Model | SNR-EP602-TM |
| Control Board | KP602 |
| Product Type | 58mm / 60mm Embedded Thermal Printer Module |
| Thermal Printer Head | ROHM |
| Auto Cutter | OYANE |
| Interfaces | RS232 + USB |
Printing Specifications
| Item | Specification |
|---|---|
| Printing Method | Thermal dot line printing |
| Dots | 432 dots |
| Printing Speed | 250mm/s max |
| Printing Width | 54mm max |
| Paper Width | 60mm max |
| Paper Roll Diameter | 120mm max |
| Paper Thickness | 0.06–0.08mm |
| Paper Loading | Auto paper loading, horizontal 180° |
| Cutting Method | Full cut / partial cut by command |
| Print Head Life | Over 200km |
| Print Format | Inverse, underline, italic, bold |
| Cutter Life | 1,000,000 cuts |
Fonts and Communication
| Item | Specification |
|---|---|
| Baud Rate | 9600 / 19200 / 38400 / 115200 |
| ASCII Font | 9 × 17, 12 × 24 |
| Chinese Font | 24 × 24 dots |
| Communication Interface | RS232 + USB |
Detection Functions
| Detection Item | Specification |
|---|---|
| TPH Temperature Detection | Temperature sensor |
| Mechanism Open Detection | Micro switch |
| Paper Presence Detection | Mechanical sensor |
| Paper End Detection | Photo-interrupter |
| Paper Near-End Detection | Supported |
| Black Mark Detection | Supported |
Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | DC24V ±10%, 2A |
| Continuous Load Current | 2A |
| Standby Current | 61mA |
| Peak Current | 5A |
Paper Specifications
| Item | Specification |
|---|---|
| Paper Type | Thermal paper roll |
| Additional Media | Thermal fanfold ticket / thermal label roll |
| Recommended Paper | KANZAN KF50 / KP460 / MITSUBISHI PG5075 / TL4000 |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -15℃ to 60℃, no condensation |
| Operating Humidity | 20%–85%RH, 40℃ / 85%RH |
| Storage Temperature | -20℃ to 70℃, no condensation |
| Storage Humidity | 10%–90%RH, 50℃ / 90%RH |

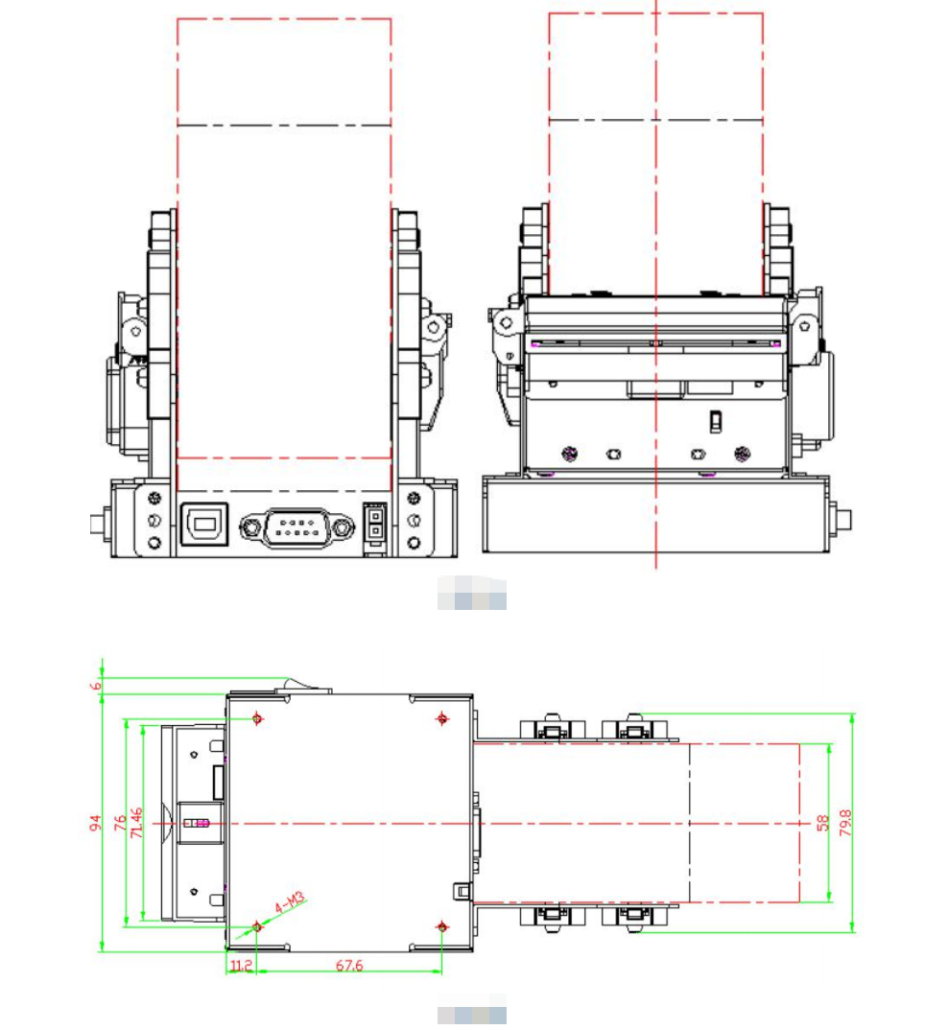

Mechanical Specifications
| Item | Specification |
|---|---|
| Dimensions | 100 × 188.7 × 95mm |
| Dimension Note | Paper holder horizontal, without paper roll |
| Net Weight | Approx. 0.6kg, product itself |
Functional Design
Compact Embedded Structure
SNR-EP602-TM is designed for compact kiosk cabinets and embedded self-service equipment. Its 58mm / 60mm printing architecture makes it suitable for terminals where internal installation space is limited.
Large Paper Roll Capacity
The printer supports paper roll diameter up to 120mm, helping reduce refill frequency in unattended terminals. This is especially useful for queue management systems, ticket vending machines and parking payment terminals with frequent daily use.
High-Speed Ticket and Receipt Output
With printing speed up to 250mm/s, SNR-EP602-TM supports fast receipt and ticket output for high-traffic self-service environments.
Anti-Jam and Anti-Drag Ticket Handling
The patented anti-paper-blocked system and anti-drag ticket structure help reduce paper jams, output instability and user-related pulling issues during unattended operation.
LED Bezel Status Indication
The LED bezel provides status indication for user interaction and maintenance checks, helping operators identify printer status more quickly.
Flexible Bracket Mounting
Flexible paper roll bracket mounting allows system integrators to adapt the printer to different kiosk cabinet structures and internal layouts.
Why Choose SNR-EP602-TM?
SNR-EP602-TM is suitable for self-service projects where compact installation, high-speed printing, large paper roll capacity and reliable unattended operation are required.
Compared with standard compact thermal printer modules, SNR-EP602-TM provides 250mm/s printing speed, ROHM print head, OYANE cutter, 120mm paper roll support, anti-paper-blocked design, anti-drag ticket handling, LED bezel indication and RS232 + USB integration.
For queue management systems, visitor management kiosks, ticket vending machines, parking payment terminals and compact information kiosks, SNR-EP602-TM provides a practical embedded thermal printer module solution.
What Experienced Integrators Usually Evaluate
When selecting a compact embedded thermal printer for self-service equipment, system integrators commonly evaluate:
- Installation space limitations
- Paper roll capacity
- Maintenance accessibility
- Linux compatibility
- SDK availability
- Communication interfaces
- Auto cutter reliability
- Expected print volume
- Ticket and receipt format requirements
For compact kiosk deployments, these factors often have a greater impact on long-term operational success than print speed alone.
Related Resources
- Kiosk Printer Hub
- How to Choose a Kiosk Printer in 2026
- Kiosk Printer Buying Guide
- Presenter Printer vs Auto Cutter Printer
- 58mm vs 80mm Kiosk Printer
- Presenter kiosk printer for parking systems
- Why Kiosk Printers Jam in Real Self-Service Deployments
- Why Maintenance Accessibility Matters in Self-Service Kiosk Design
- Parking Ticketing Solutions
- Queue Management System Hardware
- Self-Checkout Hardware Solutions
- Visitor Management Kiosk Solutions
- How to Choose a Kiosk Printer for Ticket Vending Machines
- How to Choose a Kiosk Printer for Banking Self-Service Terminals
- Linux Kiosk Printer Integration Guide
- Kiosk Printer SDK Guide
- Why Paper Roll Capacity Matters More Than Many Teams Expect
Related Models
SNR-KP602-H – 58mm / 60mm high-speed kiosk thermal printer with 250mm/s printing speed
SNR-KP602-V – 58mm / 60mm vertical embedded thermal kiosk printer for compact terminals
SNR-KP602-B – 60mm embedded thermal label printer module with gap detection
SNR-KP800-VX – 80mm kiosk thermal printer for ticket and receipt applications
SNR-KP802-VX – Heavy-duty 80mm kiosk printer for unattended self-service systems
Related Technical Downloads
- Kiosk Printer Linux Driver & SDK
- Kiosk Printer Windows Driver
- SDK Resources
- User Manuals
- Communication Protocol Documents
- CAD Drawings
Frequently Asked Questions
What is SNR-EP602-TM used for?
SNR-EP602-TM is used as an embedded thermal printer module for queue management systems, visitor management kiosks, ticket vending machines, parking payment terminals, information kiosks and compact self-service devices.
What paper width does SNR-EP602-TM support?
It supports paper width up to 60mm, with a maximum printing width of 54mm.
What is the maximum printing speed?
The maximum printing speed is 250mm/s.
What is the maximum paper roll diameter?
The printer supports paper roll diameter up to 120mm. Some project configurations may support 120mm–130mm paper roll structures.
Does SNR-EP602-TM support auto cutting?
Yes. It supports full cut and partial cut by command.
What is the cutter lifetime?
The cutter life is up to 1,000,000 cuts.
Does it support black mark detection?
Yes. Black mark detection is supported.
What paper types are supported?
It supports thermal paper roll, thermal fanfold ticket and thermal label roll.
What interfaces are available?
SNR-EP602-TM supports RS232 + USB communication interfaces.
Does it support Linux?
Yes. Linux driver support is available. SDK resources and technical documentation are also available for integration projects.Read Linux Kiosk Printer Integration Guide.
Is it suitable for queue management systems?
Yes. Queue ticket printing is one of the most common applications for this printer model.Learn more about Queue Management System Hardware.
Can it be integrated into compact kiosk cabinets?
Yes. It is designed for space-constrained self-service terminals and compact kiosk cabinet structures.See Self-Checkout Hardware Solutions.
Is SNR-EP602-TM suitable for ticket vending machines?
Yes. EP602-TM is suitable for compact ticket vending systems requiring high-speed ticket output, large paper roll capacity and reliable unattended operation.Learn more about Ticket Vending Machine Hardware Solutions.
Is SNR-EP602-TM suitable for ticket vending machines?
Yes. EP602-TM is suitable for compact ticket vending systems requiring high-speed ticket output, large paper roll capacity and reliable unattended operation.Learn more about Ticket Vending Machine Hardware Solutions.
Is SNR-EP602-TM suitable for parking payment terminals?
Yes. The printer is commonly integrated into parking payment kiosks and access control systems that require reliable receipt or ticket printing.Learn more about Parking Ticketing Solutions.
Do you provide SDK resources?
Yes. SDK resources, technical documentation and integration support are available.Visit our SDK & Drivers Center for development resources.
