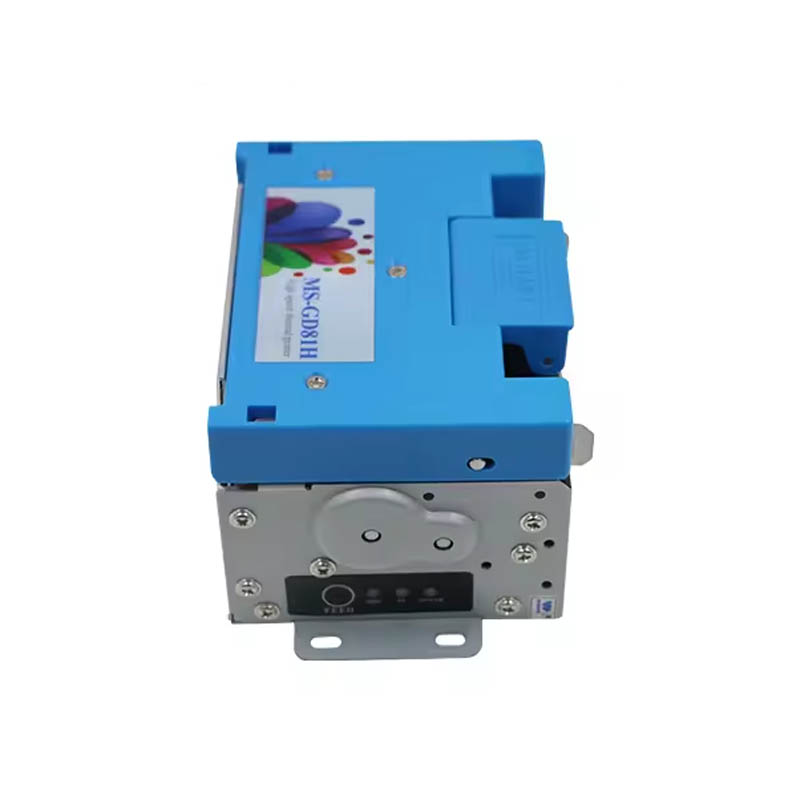

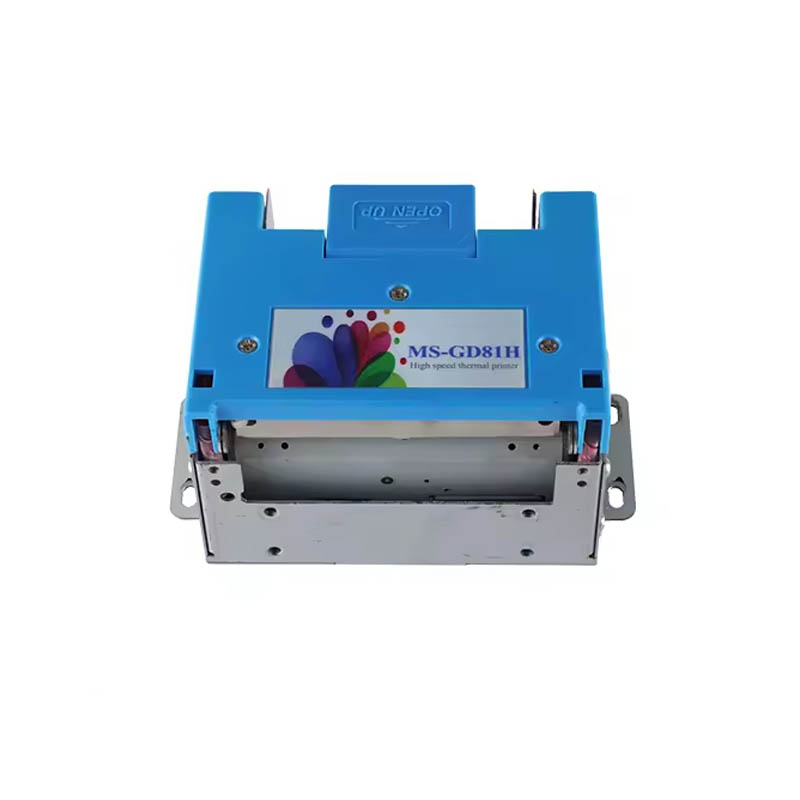

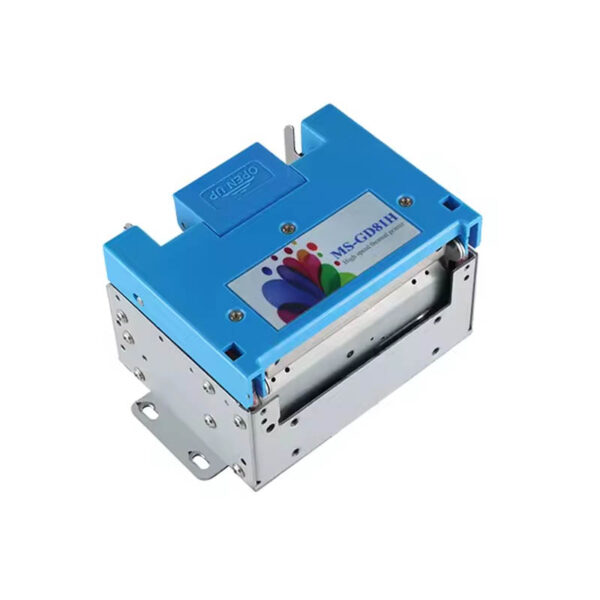

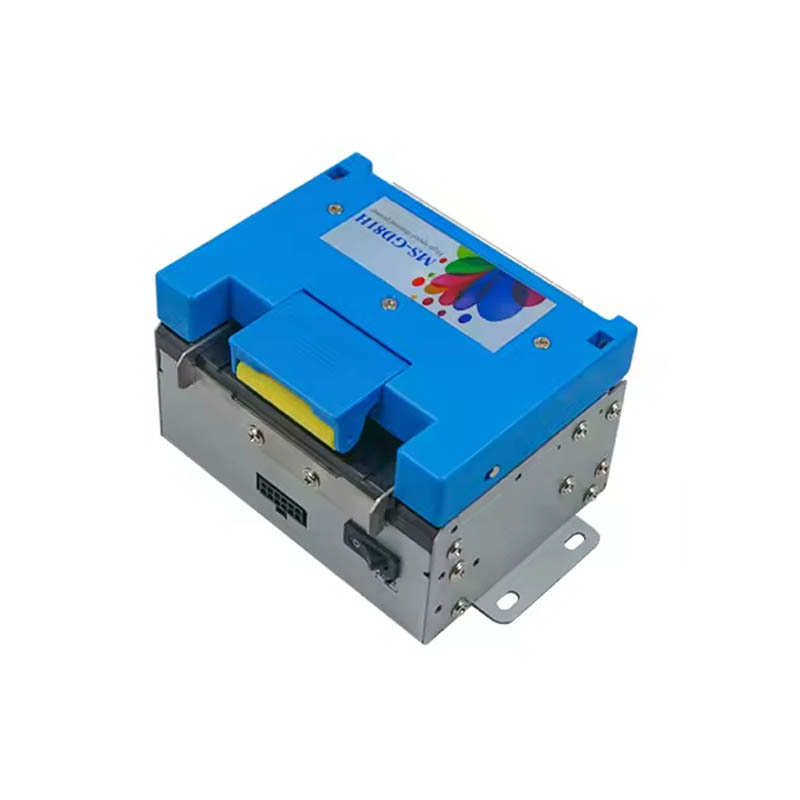

SNR-GD81H 80mm Fanfold Paper Kiosk Printer(Latest Model: SNR-KP83H)
SNR-GD81H is an 80mm fanfold paper kiosk printer designed for folded ticket systems such as scenic spot tickets and self-service terminals. It supports ROHM thermal print head, auto cutting, RS232/USB communication, and high-thickness paper printing up to 250μm for reliable unattended operation
"*" indicates required fields
High-Speed Folded Ticket Printing Module for Scenic Spot & Self-Service Systems
The SNR-GD81H fanfold paper kiosk printer is designed for folded ticket and continuous paper applications, especially in environments such as tourist attractions, transportation tickets, and high-volume self-service kiosks.
Unlike standard roll printers, it supports fanfold (folded) paper feeding, which improves paper storage efficiency and reduces roll replacement frequency in ticketing systems.
Built with a ROHM thermal print head and full auto-cutting mechanism, it ensures stable, high-speed performance in unattended environments.
Key Features
- Supports fanfold (folded) paper printing system
- ROHM industrial thermal print head
- High-speed printing up to 150mm/s
- Supports 60 / 80 / 82.5mm paper widths
- Supports high paper thickness up to 150–250μm
- Full automatic cutting system
- RS232 + USB communication interface
- Black mark / paper end / near-end detection
- Anti-jam detection system with multi-sensor design
- SDK / Driver / 3D files available for integration
- Designed for high-frequency ticketing environments
Typical Applications
Scenic Spot Ticketing Systems
Widely used for tourist attraction ticket vending machines and entry systems.
Transportation Ticket Terminals
Suitable for bus stations, metro ticket kiosks, and boarding systems.
Self-Service Ticket Machines
Used in unmanned kiosks for event tickets, queue tickets, and access passes.
Parking & Access Control Systems
Supports folded ticket issuance in parking entry systems.
Industrial & Embedded Systems
Used in automation terminals requiring continuous folded paper output.
Why Integrators Choose SNR-GD81H
SNR-GD81H is designed for specialized fanfold paper environments, where traditional roll printers are not optimal.
Key advantages include:
- Fanfold paper reduces maintenance frequency
- Stable performance for high-volume ticketing
- ROHM industrial print head reliability
- Strong compatibility with kiosk control systems
- Supports thick paper up to 250μm for durable tickets
- Ideal for scenic spot and transport ticketing systems
It is widely adopted in tourism and public transportation ticketing infrastructure projects.
Technical Specifications
Printing System
| Item | Specification |
|---|---|
| Printing Method | Thermal dot line printing |
| Resolution | 640 dots/line |
| Print Speed | 150mm/s (Max) |
| Print Width | 80mm (Max) |
| Paper Width | 60 / 80 / 82.5mm |
Paper Handling
| Item | Specification |
|---|---|
| Paper Type | Thermal fanfold paper |
| Paper Thickness | 150 – 250μm |
| Feed Method | Automatic (180° horizontal feed) |
| Cutting Method | Full auto cutting |
| Cutter Life | 1,000,000 cuts |
Reliability
| Item | Specification |
|---|---|
| Print Head Life | 100km |
| Printing Format | Bold / Italic / Underline / Inverse |
Sensors & Detection
- Paper presence detection (mechanical sensor)
- Black mark detection (photoelectric reflective sensor)
- Paper end / near-end detection
- Mechanism open detection (micro switch)
- Print head temperature detection
- Paper cutting detection
Interfaces
- RS232
- USB
Electrical
| Item | Specification |
|---|---|
| Working Voltage | 24V ±10% |
| Average Current | 2A @ 24V |
| Peak Current | 6A |
Environment
| Item | Specification |
|---|---|
| Operating Temperature | -10°C ~ 60°C |
| Operating Humidity | 20% ~ 85% RH |
| Storage Temperature | -20°C ~ 70°C |
| Storage Humidity | 10% ~ 90% RH |
Mechanical
| Item | Specification |
|---|---|
| Length | 145.3mm |
| Depth | 96.6mm |
| Height | 73.1mm |
| Weight | ~0.7kg (without paper roll) |
Integration Support
- SDK available
- Windows / Linux driver support
- 3D mechanical drawings provided
- Serial command protocol support (RS232)
- Engineering integration documentation
