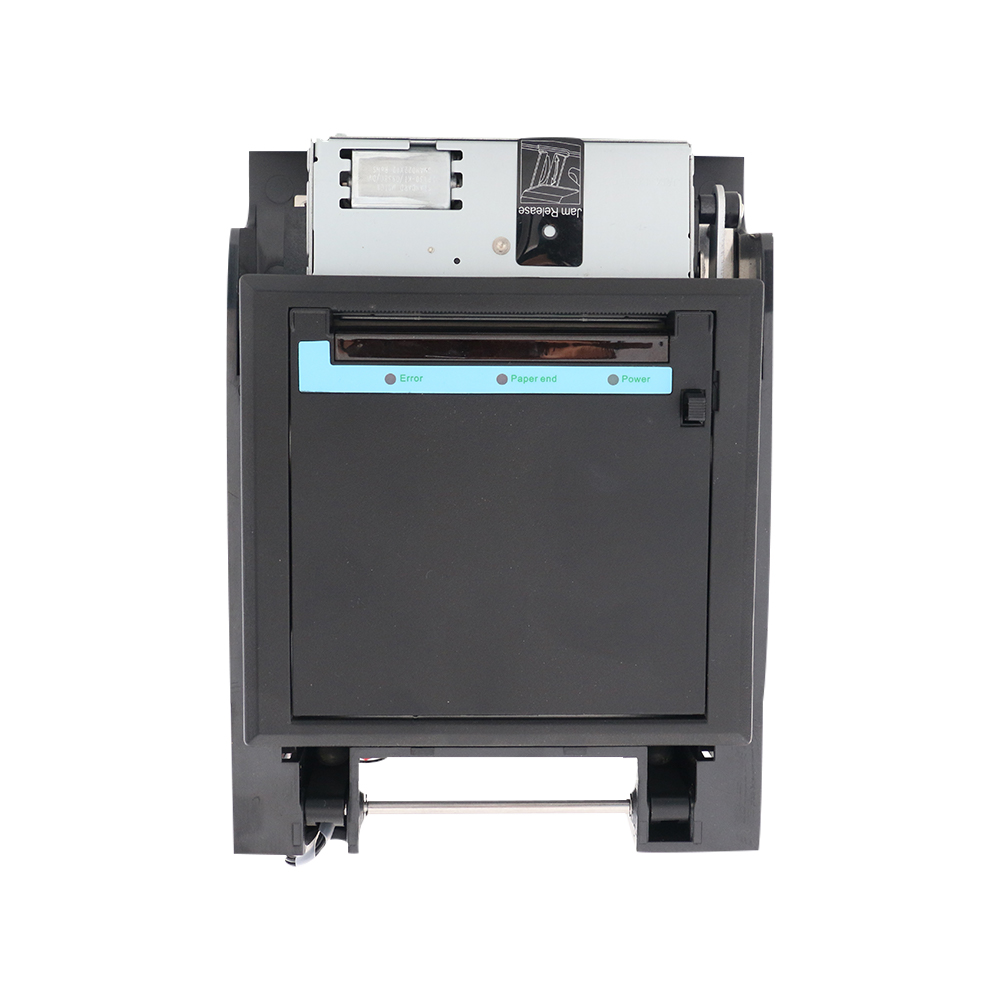

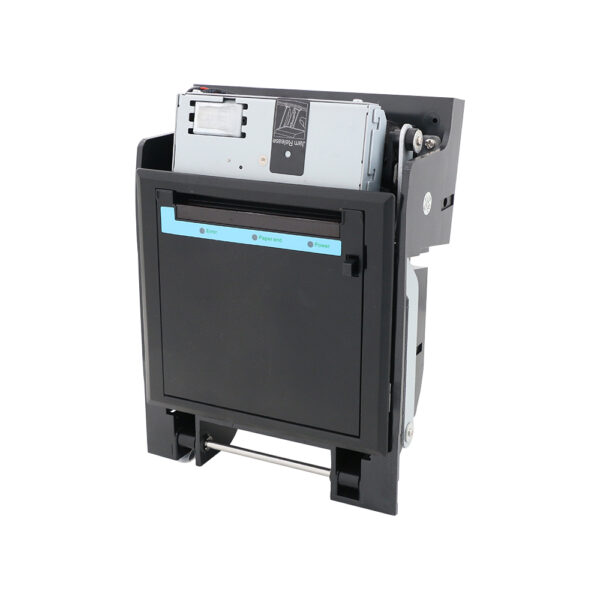

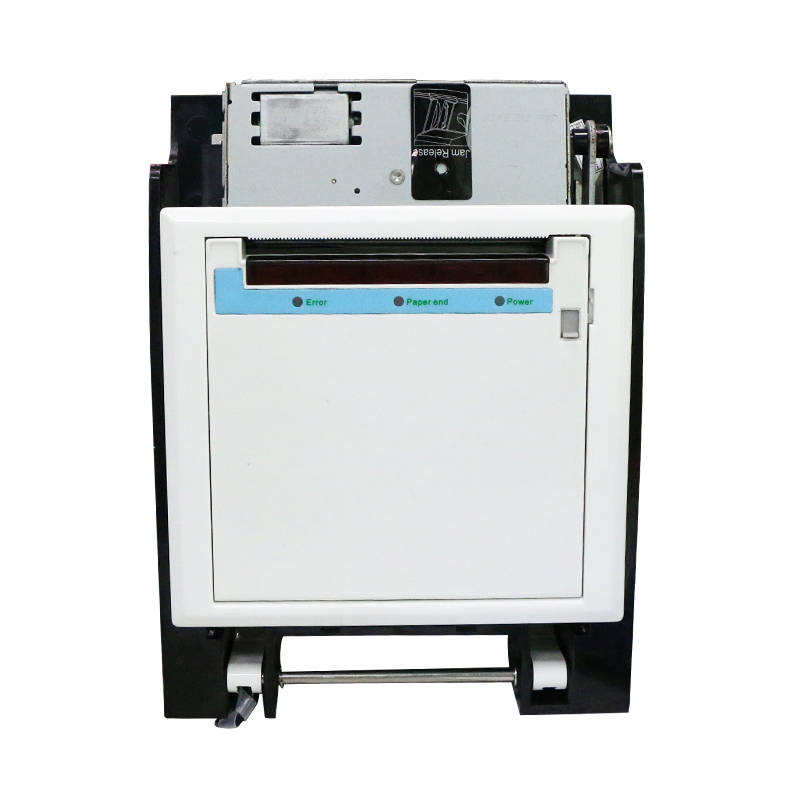

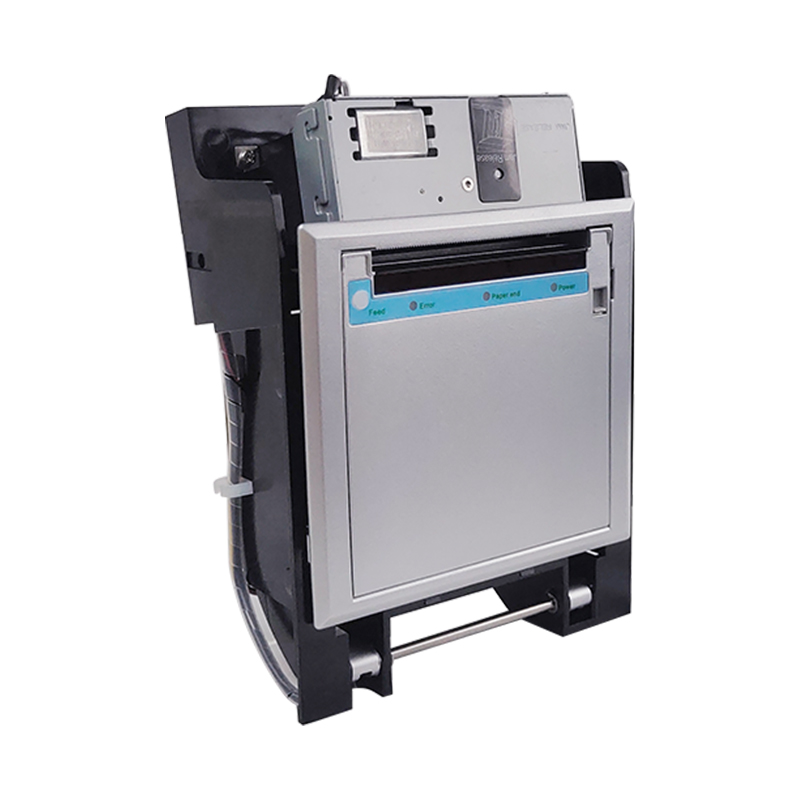

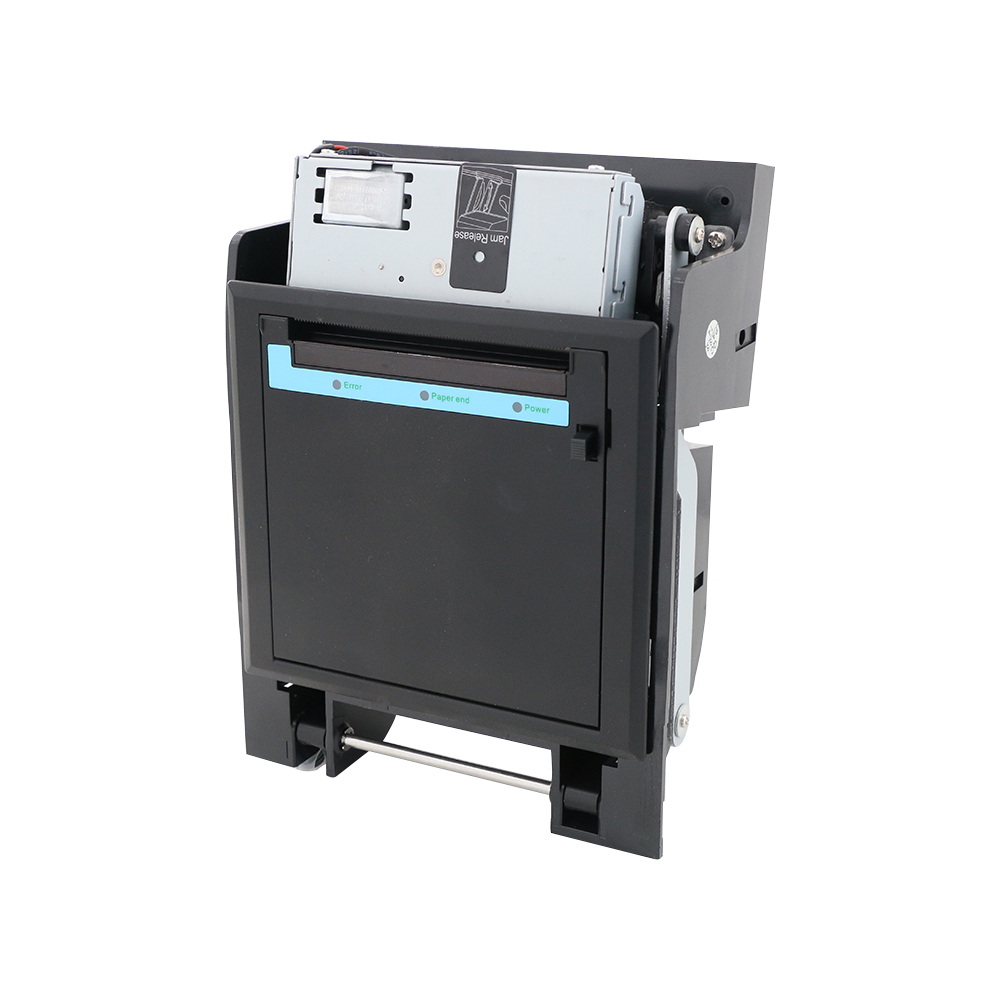

SNR-EP8301 80mm Kiosk Thermal Receipt Printer
SNR-EP8301 is an 80mm kiosk thermal receipt printer designed for self-checkout, self-ordering, ticketing, parking and check-in terminals. It supports 80mm / 58mm paper, 170mm/s printing speed, front maintenance, 80mm × Ø80mm paper roll, RS232 / USB interfaces, blackmark sensor, paper end / near-end sensors and full / partial cutting.
"*" indicates required fields
Front-Maintenance Embedded Printer for Self-Checkout, Ticketing and Check-In Kiosks
The SNR-EP8301 80mm kiosk thermal receipt printer is designed for highly integrated self-service terminals, including self-checkout kiosks, self-ordering kiosks, ticketing machines, patient check-in terminals, parking kiosks and hotel self check-in systems.
With an ultra-thin body design, 80mm / 58mm paper support, 170mm/s printing speed, front maintenance structure, large paper roll capacity and full / partial cutting, SNR-EP8301 provides a practical embedded receipt printing solution for kiosk manufacturers and system integrators.
Key Features
- 80mm kiosk thermal receipt printer for embedded terminal integration
- Ultra-thin body design for highly integrated kiosk equipment
- Supports 80mm and 58mm paper widths
- Printing speed up to 170mm/s
- 576 dots/line, 72mm effective print width
- Large paper roll support up to 80mm × Ø80mm
- Front maintenance for easy paper replacement
- Framed and frameless versions available
- Multiple cover opening methods: button, key and electronic lock
- Full cut and partial cut support
- Cutter life up to 1,000,000 cuts
- Supports normal thermal paper and blackmark paper
- Blackmark sensor, paper end and paper near-end sensors
- Serial RS232 and USB interface options
- Supports 1D barcodes, QR Code, PDF417 and Data Matrix
- Compatible with Windows 7 / 8 / 10 and Linux integration
Applications
- Self-checkout kiosk
- Supermarket and retail self-service terminal
- Self-ordering kiosk
- Restaurant and fast-food ordering terminal
- Ticketing kiosk
- Cinema, train and event ticket machine
- Patient check-in kiosk
- Parking payment kiosk
- Hotel self check-in terminal
- Visitor registration terminal
- Receipt, ticket and voucher printing
Integration Options
SNR-EP8301 is designed for embedded kiosk projects that require compact installation, front maintenance and flexible paper support.
Available interfaces:
Serial RS232
USB
Supported systems:
Windows 7
Windows 8
Windows 10/11
Linux
Maintenance design:
Front paper replacement
Button opening
Key opening
Electronic lock opening
Structural options:
Framed version
Frameless version
The front-maintenance design allows operators to replace paper rolls without opening the kiosk cabinet, helping reduce service time and improve maintenance efficiency for deployed terminals.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SNR-EP8301 |
| Product Type | 80mm Kiosk Thermal Receipt Printer |
| Printing Method | Thermal Line |
| Resolution | 8 dots/mm, 203dpi; 576 dots/line |
| Printing Speed | 170mm/s max |
| Effective Printing Width | 72mm |
| TPH Life | 100km |
| Paper Width | 80mm / 58mm |
| Paper Type | Normal thermal paper / Blackmark paper |
| Paper Size | Max. 80mm × Ø80mm |
| Paper Thickness | 0.06–0.12mm |
| Paper Supply Method | Drop-in easy paper loading |
| Print Font | ASCII 12 × 24; Chinese 24 × 24 |
| Interface | Serial RS232 / USB |
| Power Supply | DC24V ±10%, 2A |
| Cutter | Full cut / Partial cut |
| Cutter Life | 1,000,000 cuts |
| Weight | 780g, excluding paper roll |
| Operating Temperature / Humidity | -10℃ to +50℃ / 20%–85% |
| Storage Temperature / Humidity | -20℃ to +60℃ / 10%–90% |
| Outer Dimension | 92.03 × 140 × 186.32mm |
| Sensors | Blackmark sensor, paper end, paper near end |
Supported Barcodes
1D barcodes:
UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128
2D codes:
PDF417, QR Code, Data Matrix
Why Choose SNR-EP8301?
SNR-EP8301 is suitable for self-service kiosk projects that require compact embedded installation, large paper roll capacity and convenient front maintenance.
Compared with standard embedded receipt printers, EP8301 provides a more kiosk-friendly structure with front paper replacement, framed / frameless options, multiple cover opening methods, blackmark paper support and 80mm / 58mm paper compatibility. It is a practical choice for self-checkout, self-ordering, ticketing, parking, healthcare and hotel self-service terminals.
Related Models
EP8303 – 80mm panel mount printer for self-checkout, self-ordering and queue management applications
EP8304 – 80mm high-speed panel printer for lottery, vending and ticketing applications
EP8305 – High-speed 250mm/s all-in-one embedded printer module for high-volume kiosk projects
EP8002 – Budget 80mm alternative for simpler receipt printing projects
FAQ
What is SNR-EP8301 used for?
SNR-EP8301 is used for receipt and ticket printing in self-checkout kiosks, self-ordering kiosks, ticketing machines, parking kiosks, patient check-in terminals and hotel self check-in systems.
Does SNR-EP8301 support front maintenance?
Yes. SNR-EP8301 supports front maintenance, allowing paper replacement without opening the kiosk cabinet.
What paper widths does SNR-EP8301 support?
It supports both 80mm and 58mm paper widths.
What is the maximum printing speed?
The maximum printing speed is 170mm/s.
Does SNR-EP8301 have an auto cutter?
Yes. It supports full cut and partial cut, with a cutter life of 1,000,000 cuts.
Does SNR-EP8301 support blackmark paper?
Yes. It supports normal thermal paper and blackmark paper.
What interfaces are available?
SNR-EP8301 supports Serial RS232 and USB interfaces.
What is the maximum paper roll size?
The maximum paper roll size is 80mm × Ø80mm.
Is it suitable for POS systems?
Yes. It is designed for POS cash register systems, including retail, restaurant and self-service checkout environments.
Can it be used in self-ordering kiosks?
Yes. It is commonly used in self-ordering kiosks for printing order receipts and kitchen tickets.
Is it suitable for unattended environments?
Yes. It is designed for 24/7 unattended operation in kiosks, POS systems and industrial terminals.
Can SNRO provide SDK or driver support?
Yes. SNRO provides:
- Windows driver
- Linux driver (selected models)
- Android SDK
- ESC/POS command protocol
- Integration documentation
