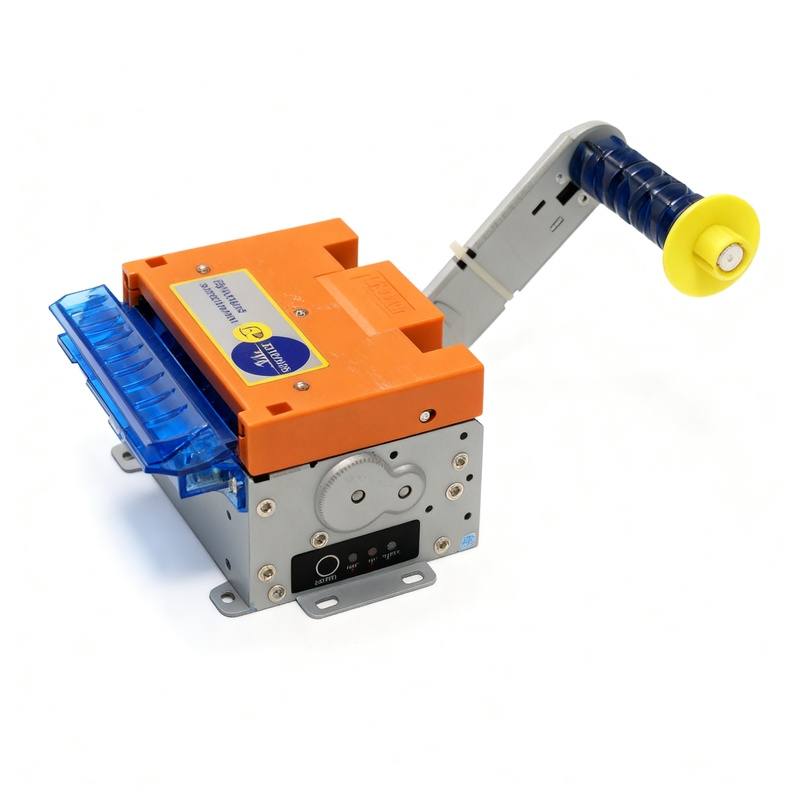

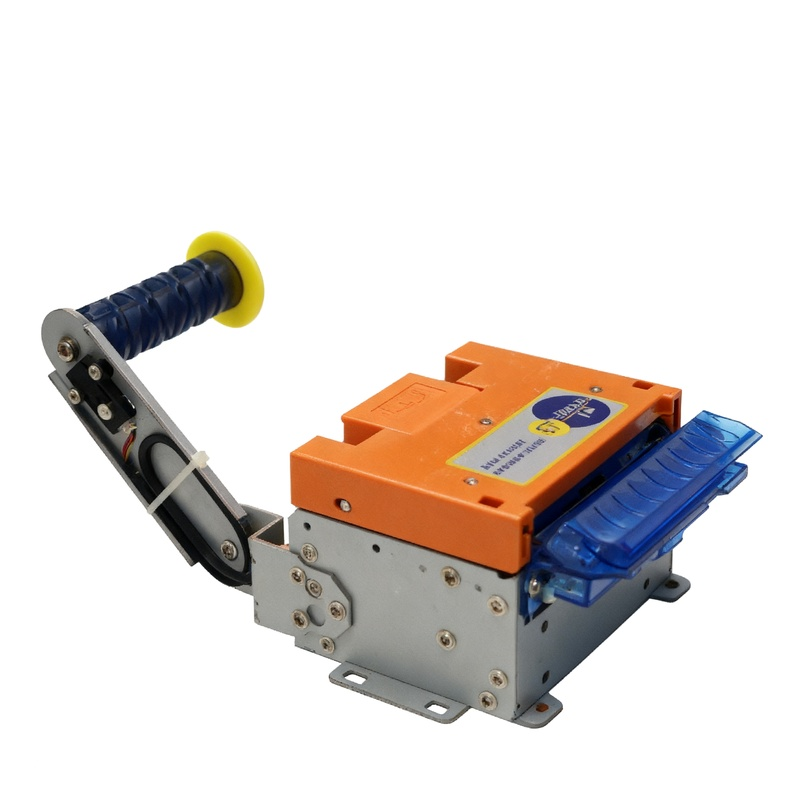

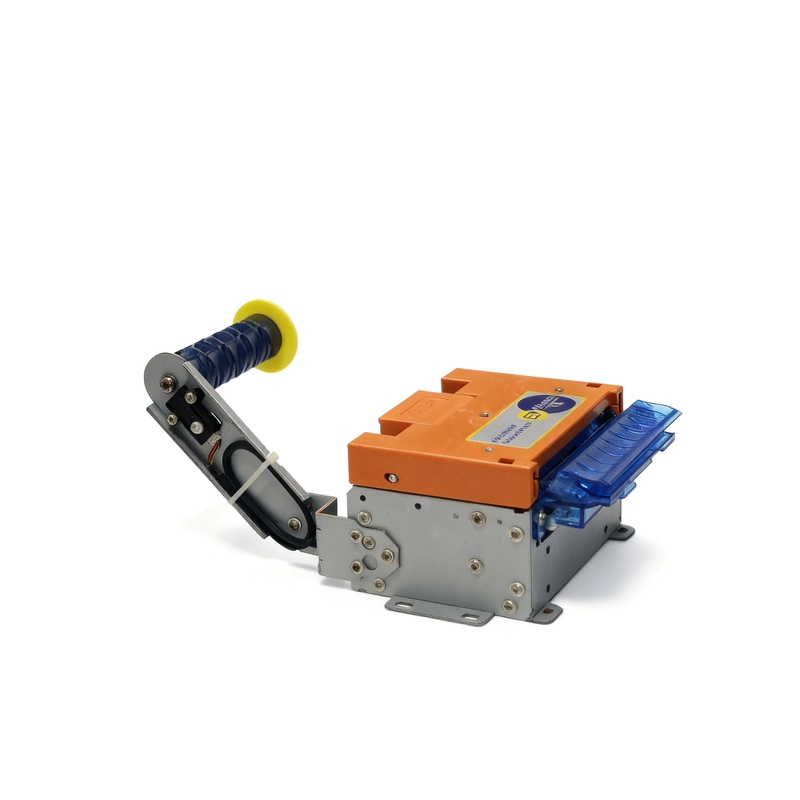

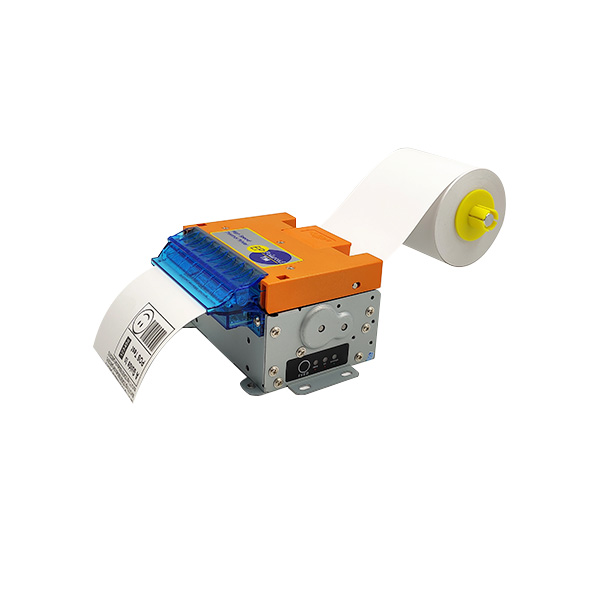

SNR-KP800-TU Kiosk Thermal Printer
SNR-KP800-TU is an 80mm high-speed kiosk thermal printer designed for self-service vending machines, cash registers, queue terminals, information kiosks, gaming machines and medical equipment. It features 250mm/s printing speed, 203 dpi resolution, 80mm / 82.5mm paper support, 0.06–0.2mm paper thickness, ROHM thermal print head, OYANE auto cutter, anti-paper blocked system, anti-drag ticket detection, LED bezel status indication, ESC/POS compatibility and RS232 + USB / LAN interfaces.
"*" indicates required fields
80mm High-Speed Kiosk Thermal Printer for Self-Service Vending Machines, Cash Registers and Service Terminals
The SNR-KP800-TU is an 80mm high-speed kiosk thermal printer designed for self-service vending machines, cash registers, queue management systems, information kiosks, gaming terminals, medical equipment and industrial service terminals.
Built with a ROHM thermal print head, OYANE auto cutter, patented anti-paper blocked system, anti-drag ticket system and multicolor LED bezel, SNR-KP800-TU provides reliable receipt and ticket output for unattended self-service applications.
With printing speed up to 250mm/s, support for 80mm / 82.5mm paper, paper thickness up to 0.2mm, ESC/POS compatibility and RS232 + USB / LAN interfaces, it is suitable for kiosk manufacturers and system integrators that require stable high-speed printing and easy software integration.
Key Features
- 80mm high-speed kiosk thermal printer
- Printing speed up to 250mm/s
- 203 dpi resolution
- 640 dots per line
- Printing width up to 80mm
- Supports 80mm / 82.5mm paper width
- Supports paper thickness from 0.06mm to 0.2mm
- ROHM thermal print head
- Print head life over 100km
- OYANE auto cutter
- Cutter life up to 1,000,000 cuts with 60μm paper
- Cutter life up to 500,000 cuts with 200μm paper
- Full cut and partial cut support
- Patented anti-paper blocked system
- Anti-drag ticket detection and protection
- Multicolor LED bezel status indication
- Paper near-end detection
- Black mark detection
- Paper cutting detection
- Paper presence detection
- RS232 + USB / LAN interfaces
- Compatible with EPSON ESC/POS commands
- SDK and drivers for Windows, Linux and Android
- Suitable for self-service vending machines, cash registers, kiosks and public terminals
Applications
- Self-service vending machines
- Cash registers
- Retail service terminals
- Self-checkout kiosks
- Queue management systems
- Information kiosks
- Gaming machines
- Lottery terminals
- Medical diagnostic equipment
- Medical record printing equipment
- Data logging instruments
- Smart meters
- Banking self-service terminals
- Ticketing machines
- Public service terminals
Technical Specifications
Basic Configuration
| Item | Specification |
|---|---|
| Model | SNR-KP800-TU |
| Control Board | TU VER04 |
| Product Type | 80mm High-Speed Kiosk Thermal Printer |
| Thermal Printer Head | ROHM |
| Auto Cutter | OYANE |
| Command Compatibility | EPSON ESC/POS compatible |
Printing Specifications
| Item | Specification |
|---|---|
| Printing Method | Thermal dot line printing |
| Dots | 640 dots |
| Resolution | 203 dpi |
| Printing Speed | 250mm/s max |
| Printing Width | 80mm max |
| Paper Width | 80mm / 82.5mm |
| Paper Thickness | 0.06–0.2mm |
| Paper Loading | Easy loading, horizontal 180° |
| Cutting Method | Full cut / partial cut |
| Print Head Life | Over 100km |
| Print Format | Inverse, underline, italic, bold |
Cutter Life
| Paper Thickness | Cutter Life |
|---|---|
| 60μm paper | 1,000,000 cuts |
| 200μm paper | 500,000 cuts |
Fonts and Communication
| Item | Specification |
|---|---|
| Baud Rate | 9600 / 19200 / 38400 / 115200 |
| ASCII Font | 9 × 17, 12 × 24 |
| Chinese Font | 24 × 24 dots |
| Interfaces | RS232 + USB / LAN |
Detection Functions
| Detection Item | Specification |
|---|---|
| TPH Temperature Detection | Temperature sensor |
| Mechanism Open Detection | Micro switch |
| Anti-Drag Ticket Detection | Mechanical sensor |
| Paper Blocked Detection | Supported |
| Paper Near-End Detection | Photo-interrupter |
| Black Mark Detection | Supported |
| Paper Cutting Detection | Supported |
| Paper Presence Detection | Supported |
Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | DC24V ±10% |
| Continuous Load Current | 1.5A |
| Standby Current | 61mA |
| Peak Current | 3.2A |
Paper Specifications
| Item | Specification |
|---|---|
| Paper Type | Thermal paper roll |
| Recommended Paper | KANZAN KF50 / KP460 / MITSUBISHI PG5075 / TL4000 |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -15℃ to 60℃, no condensation |
| Operating Humidity | 20%–80%RH, 40℃ / 85%RH |
| Storage Temperature | -20℃ to 70℃, no condensation |
| Storage Humidity | 10%–90%RH, 50℃ / 90%RH |
Mechanical Specifications
| Item | Specification |
|---|---|
| Dimensions | 127.2 × 145.3 × 73.2mm |
| Dimension Note | Without roll bracket |
| Weight | Approx. 1.15kg, without paper roll |
Why Choose SNR-KP800-TU?
SNR-KP800-TU is suitable for projects that require high-speed 80mm receipt or ticket printing, strong media compatibility and reliable unattended operation.
Compared with standard receipt printers, KP800-TU provides kiosk-oriented features such as anti-paper blocked protection, anti-drag ticket handling, LED bezel status indication, black mark detection, paper cutting detection and flexible RS232 + USB / LAN connectivity.
For vending machines, cash registers, queue management systems, information kiosks, gaming terminals and medical equipment, SNR-KP800-TU provides a professional 80mm kiosk thermal printer solution with fast output and stable integration.
Related Models
SNR-KP800-TH – 80mm auto cutter thermal receipt printer for POS, kiosk and retail applications
SNR-KP805 – 80mm kiosk thermal printer module for banking, parking and queuing systems
SNR-KP800-VX – 80mm kiosk thermal printer for ticket and receipt applications
SNR-KP802-VX – Heavy-duty 80mm kiosk printer for unattended self-service systems
SNR-EP602-TM – 58mm / 60mm embedded thermal printer module for kiosk integration
FAQ
What is SNR-KP800-TU used for?
SNR-KP800-TU is used as an 80mm kiosk thermal printer for self-service vending machines, cash registers, queue management systems, information kiosks, gaming terminals, medical equipment and industrial instruments.
What is the maximum printing speed?
The maximum printing speed is 250mm/s.
What paper width does SNR-KP800-TU support?
It supports 80mm and 82.5mm thermal paper.
What is the maximum printing width?
The maximum printing width is 80mm.
Does SNR-KP800-TU support thick paper?
Yes. It supports paper thickness from 0.06mm to 0.2mm.
Does it support auto cutting?
Yes. It supports full cut and partial cut.
What is the cutter lifetime?
The cutter life is up to 1,000,000 cuts when using 60μm paper, and up to 500,000 cuts when using 200μm paper.
What interfaces are available?
SNR-KP800-TU supports RS232 + USB / LAN interfaces.
Is it compatible with ESC/POS commands?
Yes. It is compatible with EPSON ESC/POS commands.
Does it support Linux and Android?
Yes. Drivers, SDKs and technical documentation are available for Windows, Linux and Android integration.
Does it support anti-jam protection?
Yes. It includes a patented anti-paper blocked system and anti-drag ticket system to help reduce kiosk printing failures.
Is SNR-KP800-TU suitable for vending machines?
Yes. Its compact structure, high-speed printing, anti-jam design, LED bezel indication and multiple interfaces make it suitable for self-service vending machines and unattended retail terminals.
