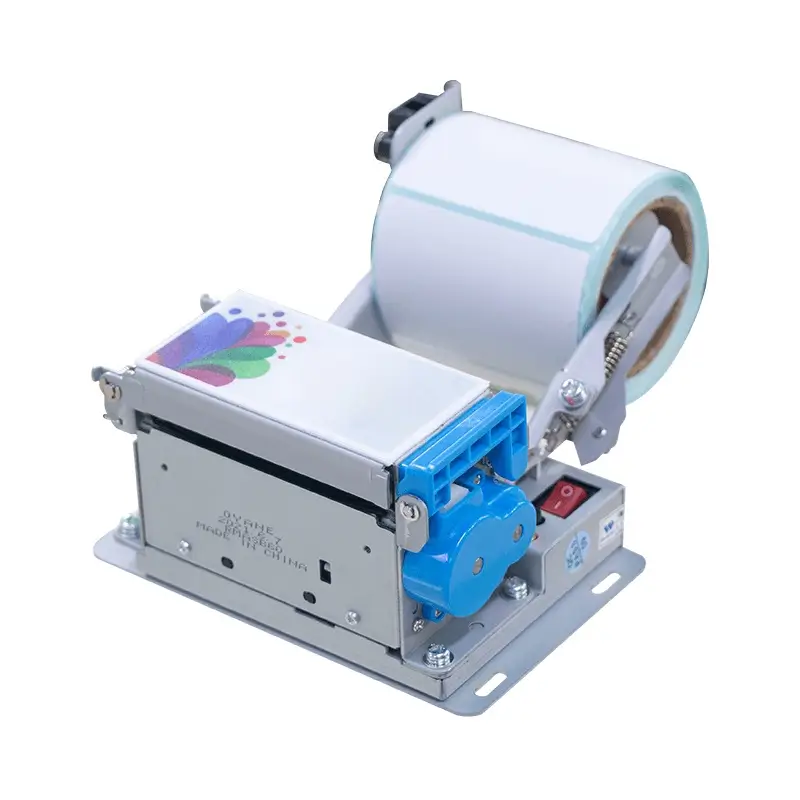

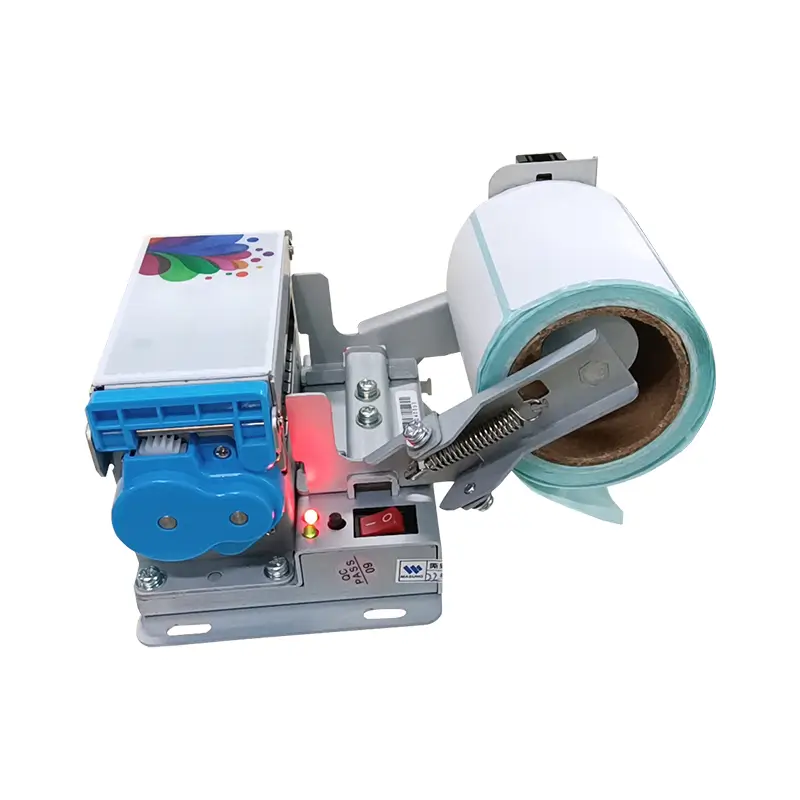

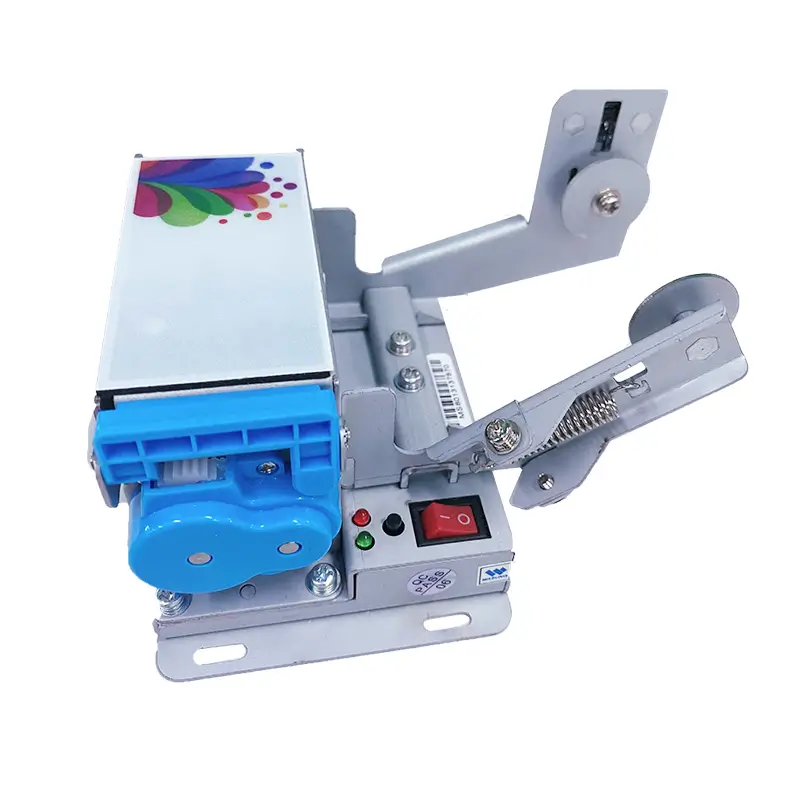

SNR-KP602-B Embedded Thermal Label Printer Module
SNR-EP5801 is a compact 58mm / 60mm embedded thermal label printer module designed for self-service kiosks, medical terminals, medicine vending machines, retail labeling systems and visitor registration kiosks. It supports 200mm/s thermal printing, gap detection for adhesive labels, Ø80mm paper roll, full cut / partial cut, side flip cover maintenance, USB + RS232 interfaces, ESC/POS commands, SDK and technical documentation for embedded system integration.
"*" indicates required fields

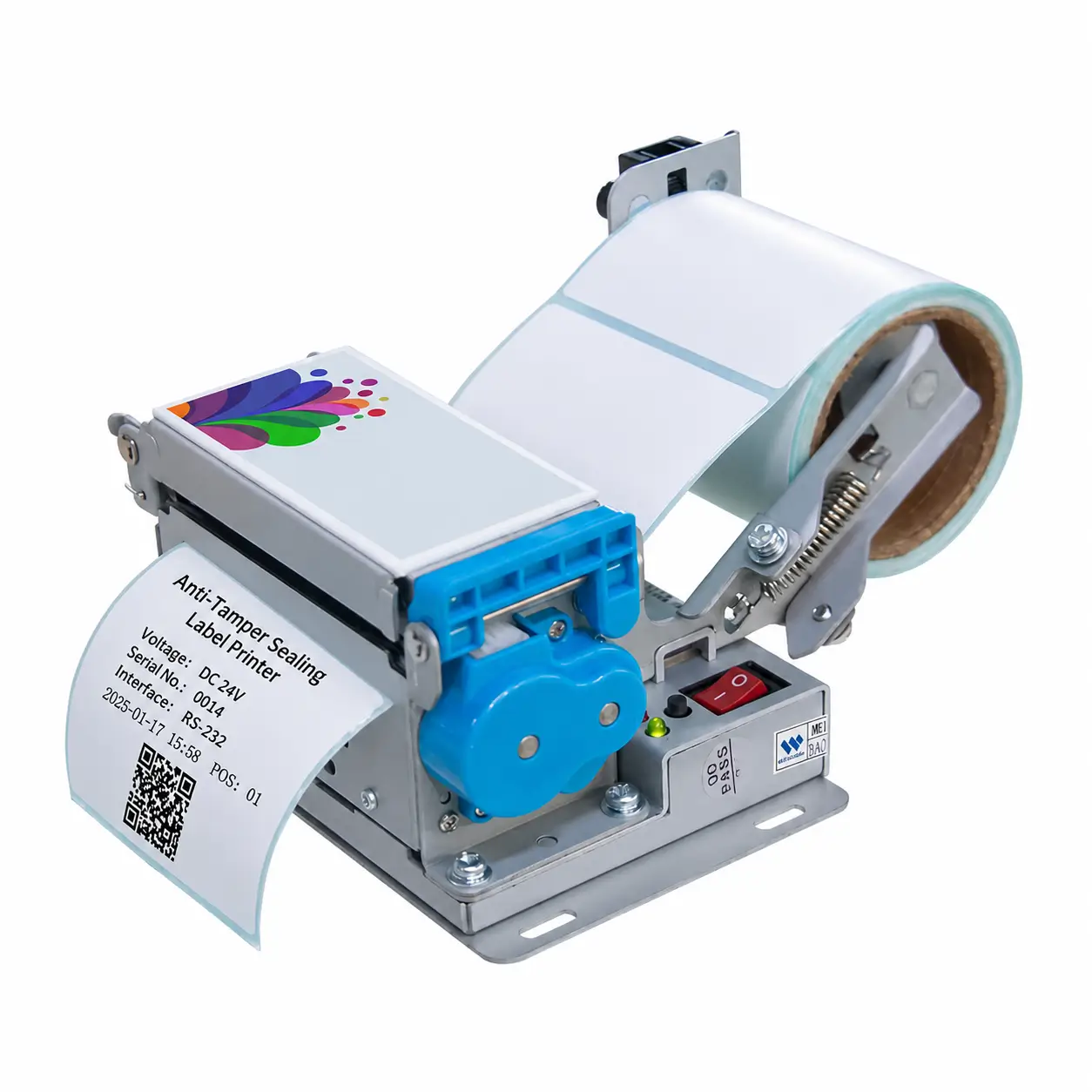

60mm Embedded Thermal Label Printer for Self-Service Kiosks, Medical Devices and Retail Automation
The SNR-EP5801 is a compact 58mm / 60mm embedded thermal printer module designed for self-service kiosks, medical terminals, medicine vending machines, retail labeling systems, visitor registration kiosks and embedded equipment.
With gap sensor detection, SNR-EP5801 supports adhesive thermal label printing as well as standard thermal receipt printing. It is suitable for barcode labels, medical labels, product labels, pickup labels, queue labels and self-service receipt applications.
The printer features a side flip cover design, automatic paper loading, full cut / partial cut, USB + RS232 interfaces, Ø80mm paper roll support and SDK resources for secondary development, making it practical for system integrators and equipment manufacturers.
Key Features
- Compact 58mm / 60mm embedded thermal printer module
- Designed for self-service kiosks and embedded equipment
- Supports thermal label paper and thermal receipt paper
- Gap sensor for adhesive thermal label printing
- Printing speed up to 200mm/s
- Printing width up to 56mm
- Paper width up to 60mm
- Supports Ø80mm paper roll
- Side flip cover for easy paper loading and maintenance
- Auto paper loading, horizontal 180°
- Full cut and partial cut supported
- Cutter life up to 1,000,000 cuts
- Print head life up to 100km
- Strong gear-driven paper feeding structure
- Adjustable paper roll holder
- USB + RS232 communication interfaces
- ESC/POS command support
- SDK and technical documentation available
- Suitable for secondary development and embedded system integration
Applications
- Medical self-service kiosks
- Hospital registration terminals
- Medical check-up kiosks
- Pharmacy self-service machines
- Self-service medicine vending machines
- Healthcare label printing systems
- Retail labeling terminals
- Product label printing systems
- Barcode label printing terminals
- Vending machines
- Visitor registration kiosks
- Food and beverage service terminals
- Self-service ordering terminals
- Pickup label printing systems
- Queue label and ticket printing terminals
Technical Specifications
Printing Specifications
| Item | Specification |
| Printing Method | Thermal dot line printing |
| Dots | 448 dots |
| Printing Speed | 200mm/s max |
| Printing Width | 56mm max |
| Paper Width | 60mm max |
| Paper Thickness | 60–120μm |
| Paper Roll Diameter | Ø80mm max |
| Paper Loading | Auto paper loading, horizontal 180° |
| Cutting Method | Full cut / partial cut |
| Print Head Life | 100km |
| Print Format | Inverse, underline, italic, bold, etc. |
| Cutter Life | 1,000,000 cuts |
Fonts and Communication
| Category | Item | Specification |
|---|---|---|
| Baud Rate | Baud Rate | 9600 / 19200 / 38400 / 57600 / 115200 |
| Font | ASCII | 9 × 17, 12 × 24 |
| Font | Chinese | 24 × 24 dots |
| Interface | Communication Interface | RS232, USB |
| Command | Command Support | ESC/POS |
Detection Functions
| Item | Specification |
| Print Head Temperature | Temperature sensor |
| Lever Open Detection | Mechanical switch |
| Paper Out Detection | Photoelectric sensor |
| Gap Detection | Supported |
Power and Electrical Specifications
| Item | Specification |
| Power Supply | 24V ±5%, 2A |
| Average Current | 2A @ 24V |
| Peak Current | 5.5A |
Paper Specifications
| Item | Specification |
| Paper Type | Thermal paper roll, thermal layer outside |
| Label Paper | Adhesive thermal label paper supported |
| Recommended Paper | TF50KS-E 65渭m / PD160R 75渭m / P350 62渭m / Hansol Thermo 65 65渭m |
Environmental and Physical Specifications
| Item | Specification |
| Operating Temperature | -10℃ to 50℃, no condensation |
| Operating Humidity | 20%–85%RH, 80%RH at 40℃ |
| Dimensions | 147.5 × 124.42 × 75mm |
| Weight | Approx. 0.45kg, excluding paper roll, paper outlet and bracket |
Functional Design
Gap Sensor for Label Printing
SNR-EP5801 supports gap detection for adhesive thermal label paper. This allows the printer to detect label intervals and output labels accurately, making it suitable for barcode labels, medicine labels, product labels and visitor labels.
Side Flip Cover for Easy Maintenance
The side-opening print head structure makes paper loading, paper path inspection and jam clearance easier inside compact devices. This helps reduce maintenance time in self-service and embedded equipment.
Compact Embedded Structure
The printer module is designed for space-limited terminals such as medical kiosks, vending machines, visitor registration systems and retail automation equipment.
Full Cut and Partial Cut Support
The auto cutter supports both full-cut and partial-cut output modes, allowing the printer to adapt to different receipt, ticket and label output requirements.
USB and RS232 Integration
Standard USB and RS232 interfaces make SNR-EP5801 easier to integrate with kiosk controllers, embedded computers and industrial control systems.
Why Choose SNR-EP5801?
SNR-EP5801 is suitable for projects where compact installation, adhesive label printing, gap detection and easy maintenance are required.
Compared with standard receipt printer modules, SNR-EP5801 supports both receipt and label media, includes gap sensor detection, provides full cut / partial cut output, and offers USB + RS232 interfaces for embedded system integration. Its side flip cover and adjustable paper holder make it easier for operators to replace paper and maintain the paper path inside compact equipment.
For medical kiosks, medicine vending machines, retail labeling terminals and visitor registration systems, SNR-EP5801 provides a compact and practical embedded thermal label printer solution.
Related Models
SNR-KP602-VX – Compact 58mm / 60mm kiosk printer for self-service terminals
SNR-KP602-H – 58mm / 60mm high-speed kiosk thermal printer with 250mm/s speed
SNR-EP602-TM – 58mm / 60mm embedded thermal printer with cutter
SNR-KP800-VX – 80mm kiosk thermal printer for receipt and ticket printing
SNR-KP802-VX – Heavy-duty 80mm kiosk printer for unattended self-service systems
FAQ
Is SNR-EP5801 suitable for thermal label printing?
Yes. SNR-EP5801 supports adhesive thermal label paper and includes gap sensor detection for label printing applications.
Does it support both receipt and label printing?
Yes. It can print on standard thermal receipt paper and adhesive thermal label paper, depending on the project requirement.
What is the maximum paper width?
The maximum paper width is 60mm.
What is the maximum printing width?
The maximum printing width is 56mm.
What is the maximum printing speed?
The maximum printing speed is 200mm/s.
What is the maximum paper roll diameter?
The printer supports paper rolls up to Ø80mm.
Does it support auto cutting?
Yes. It supports full cut and partial cut output modes.
What interfaces are available?
SNR-EP5801 supports USB and RS232 communication interfaces.
Is it suitable for medical self-service kiosks?
Yes. It is suitable for medical check-up kiosks, hospital registration terminals, pharmacy self-service machines and healthcare label printing systems.
Do you provide SDK or development materials?
Yes. SDK resources, ESC/POS command support and technical documentation are available for integration projects.
