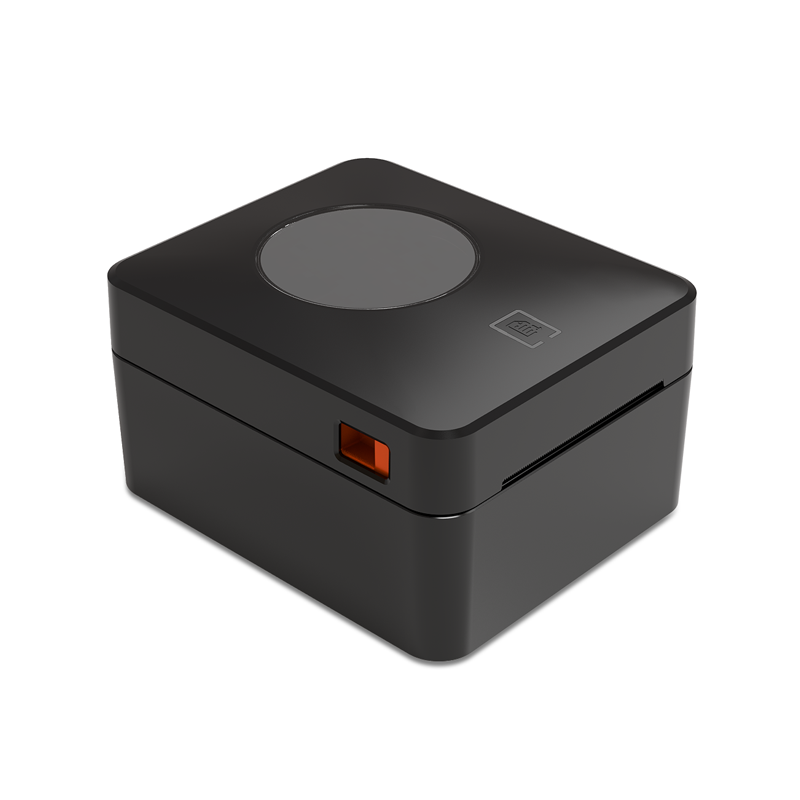

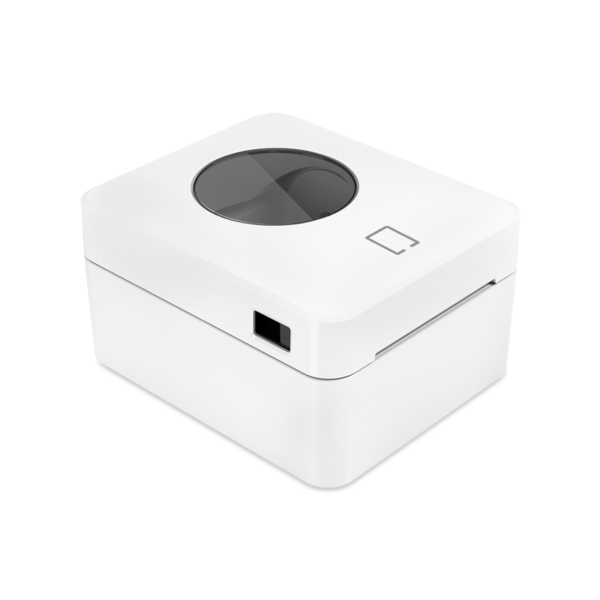

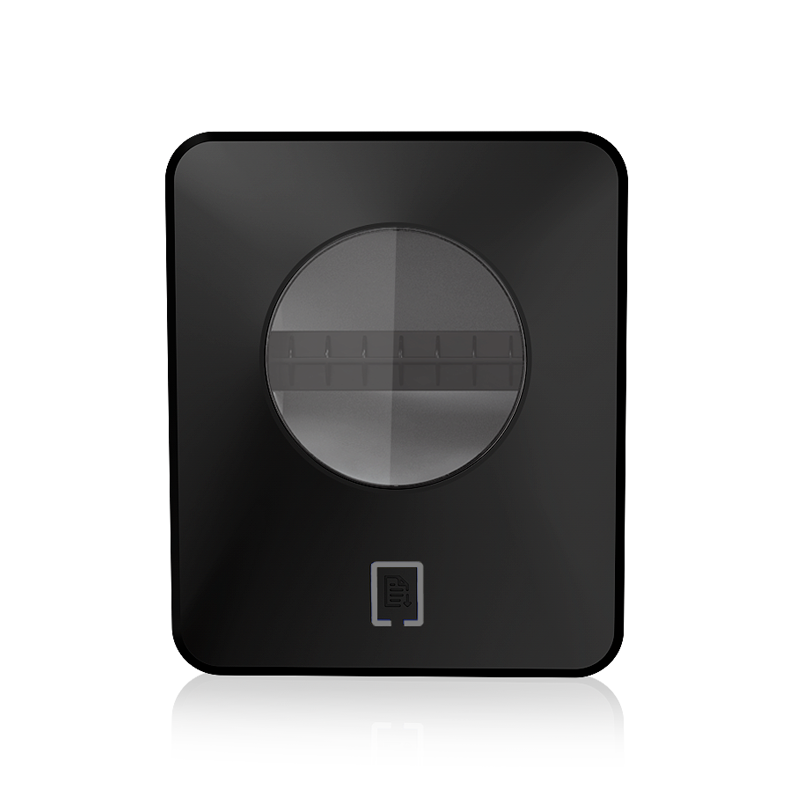

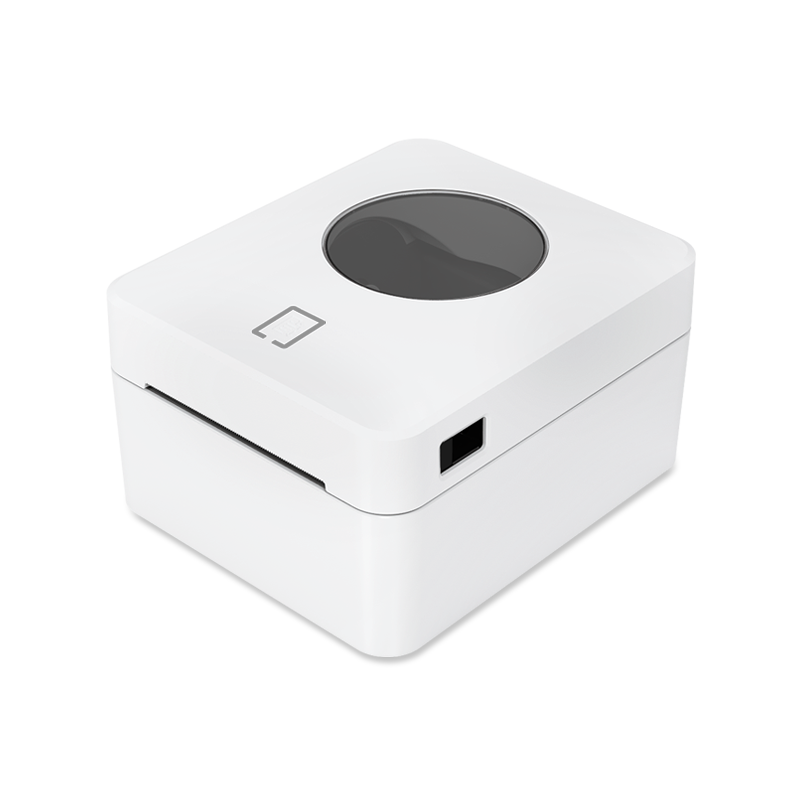

DP-90L 4 Inch Thermal Label Printer
DP-90L is a 4 inch desktop thermal label printer designed for shipping labels, logistics labels, e-commerce order labels and warehouse labels. It supports 160mm/s printing speed, 104mm max paper width, TSPL / CPCL / ESC / POS commands, USB, LAN, Bluetooth and optional WiFi interfaces.
"*" indicates required fields
USB Ethernet Bluetooth Thermal Shipping Label Printer for Logistics, Retail and E-commerce
The DP-90L 4 inch thermal label printer is a desktop direct thermal printer designed for shipping labels, logistics labels, e-commerce order labels, warehouse labels, retail labels and business sticker printing.
With 160mm/s high-speed printing, USB, LAN, Bluetooth and optional WiFi interfaces, multiple paper sensors and support for continuous, gap, black mark, fan-fold and punched hole paper, DP-90L provides a reliable label printing solution for businesses with daily high-volume label printing requirements.
Key Features
- 4 inch desktop thermal label printer
- Printing speed up to 160mm/s
- Supports up to 104mm paper width
- Effective print width: 25–100mm
- 203DPI print resolution
- USB, LAN, Bluetooth and optional WiFi interfaces
- TSPL / CPCL / ESC / POS command support
- Supports continuous, gap, black mark, fan-fold and punched hole paper
- Gap sensor, cover opening sensor, black mark sensor and paper exit sensor
- Automatic feed and reverse paper function
- Label-off intelligent function
- Easy paper loading structure
- Suitable for shipping, logistics, warehouse and retail label printing
Applications
- Shipping label printing
- E-commerce order labels
- Parcel and courier labels
- Logistics sorting labels
- Warehouse inventory labels
- Picking and storage labels
- Product barcode labels
- Retail price labels
- Promotional labels
- Business sticker printing
- Delivery and return labels
Integration Options
DP-90L is designed for businesses that need stable desktop label printing with flexible connectivity.

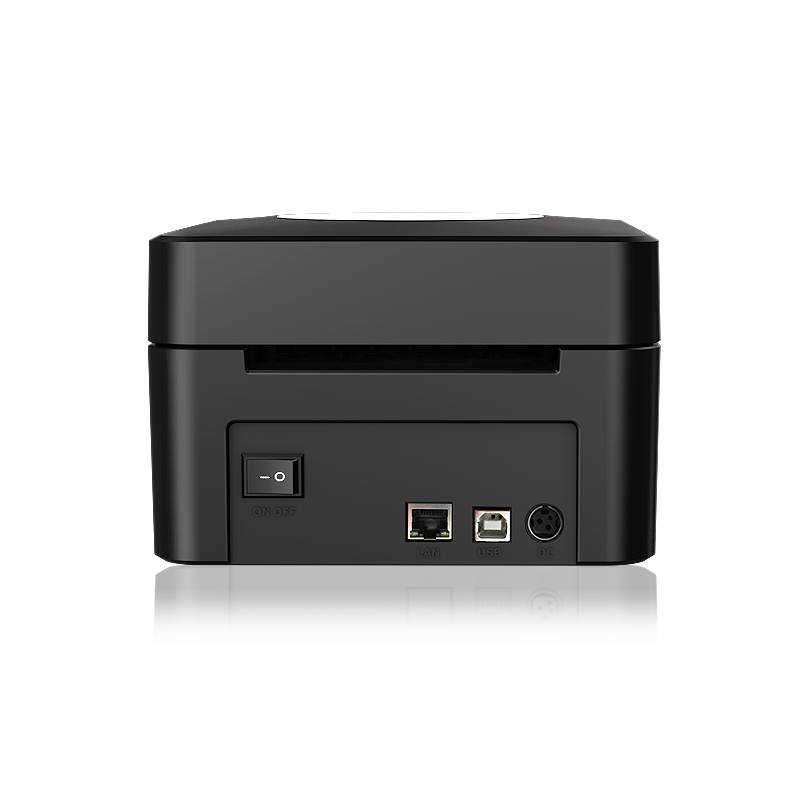

Available interfaces:
USB
LAN
Bluetooth
WiFi optional
Supported print commands:
TSPL
CPCL
ESC/POS
Supported systems:
Windows
Mac OS
iOS
Android
The printer can be integrated with shipping platforms, e-commerce systems, label printing software, warehouse management systems, retail platforms and customized business applications.
Technical Specifications
| Item | Specification |
|---|---|
| Model | DP-90L |
| Product Type | 4 Inch Thermal Label Printer |
| Print Method | Direct Line Thermal |
| Print Command | TSPL / CPCL / ESC / POS |
| Interfaces | USB / LAN / Bluetooth / WiFi optional |
| Print Speed | 160mm/s |
| Resolution | 203DPI |
| TPH Life | 50KM |
| Sensors | Gap sensor / Cover opening sensor / Black mark sensor / Paper exit sensor |
| Printer Driver | Windows / Mac OS; supports iOS / Android |
| Thermal Paper Types | Continuous, gap, black mark, fan-fold and punched hole |
| Effective Print Width | 25–100mm |
| Available Paper Width | 104mm max |
| Paper Thickness | 0.06–0.30mm |
| Power Input | AC 100–240V, 50–60Hz |
| Power Output | DC 24V / 2.5A |
| Printer Dimension | 215 × 180 × 115mm |
| Pieces Per Carton | 8 pieces |
| Carton Dimension | 510 × 480 × 295mm |
| Gross Weight | 15kg |
Supported Paper Types
Continuous paper
Gap label paper
Black mark paper
Fan-fold paper
Punched hole paper
Shipping label paper
Retail label paper
Barcode label paper
Why Choose DP-90L?
DP-90L is suitable for businesses that need fast, stable and flexible 4 inch label printing.
Compared with smaller desktop label printers, DP-90L supports wider 104mm paper, faster 160mm/s printing, more interface options and multiple sensors for reliable paper detection. With TSPL / CPCL / ESC / POS command compatibility, it is a practical choice for e-commerce, logistics, warehouse, retail and shipping label printing applications.
Related Models
DP-58L – 2 inch desktop thermal label printer for retail, catering and order management
DP-80L – 3 inch thermal label printer for shipping labels, retail labels and warehouse labels
MLP112 – 4 inch portable Bluetooth thermal printer for mobile receipt and label printing
SNR-MLP8000 – Portable 80mm Bluetooth thermal label printer for mobile label and receipt printing
FAQ
What is DP-90L used for?
DP-90L is used for shipping labels, logistics labels, e-commerce order labels, warehouse labels, barcode labels, retail labels and business sticker printing.
Is DP-90L a 4 inch thermal label printer?
Yes. DP-90L supports up to 104mm paper width, making it suitable for 4 inch thermal shipping label printing.
What interfaces does DP-90L support?
DP-90L supports USB, LAN, Bluetooth and optional WiFi interfaces.
What print commands does DP-90L support?
DP-90L supports TSPL / CPCL / ESC / POS print commands.
What paper types can DP-90L print?
DP-90L supports continuous paper, gap label paper, black mark paper, fan-fold paper and punched hole paper.
What is the printing speed?
The printing speed is up to 160mm/s.
What is the maximum paper width?
The maximum paper width is 104mm.
What operating systems are supported?
DP-90L provides driver support for Windows and Mac OS, and also supports iOS and Android applications.
| Weight | 3 kg |
|---|---|
| Dimensions | N/A |
| Interface | USB, USB+Ethernet, USB+Bluetooth |
