MPC-N2 Fanless Mini PC
MPC-N2 is a compact fanless mini PC designed for POS systems, kiosks, digital signage and embedded equipment. It supports Intel Celeron J4125 processor, DDR3 / DDR4 memory, mSATA and HDD / SSD storage, 2 × GbE LAN, 2 × RS232 COM ports, HDMI, VGA, USB, VESA / panel mounting and Windows / Linux operating systems.
"*" indicates required fields
MPC-N2 Fanless Mini PC with Dual LAN and Intel J4125 Processor for POS, Kiosks and Network Applications
The MPC-N2 fanless mini PC is a compact industrial computer designed for POS systems, self-service kiosks, digital signage, automation control, retail terminals and embedded commercial equipment.
Powered by an onboard Intel Celeron J4125 processor, MPC-N2 features a quiet fanless aluminium chassis, VESA / panel mount support, dual LAN ports, RS232 COM ports, HDMI / VGA display output and flexible storage options. It is suitable for commercial and industrial projects that require a stable mini PC in limited installation space.
Key Features
- Compact fanless mini PC for commercial and industrial use
- Small, quiet and space-saving aluminium design
- Intel Celeron J4125 processor
- Optional J1900 processor platform
- Default configuration: 4GB RAM + 64GB SSD
- Optional upgrades: 8GB RAM, 128GB / 256GB SSD

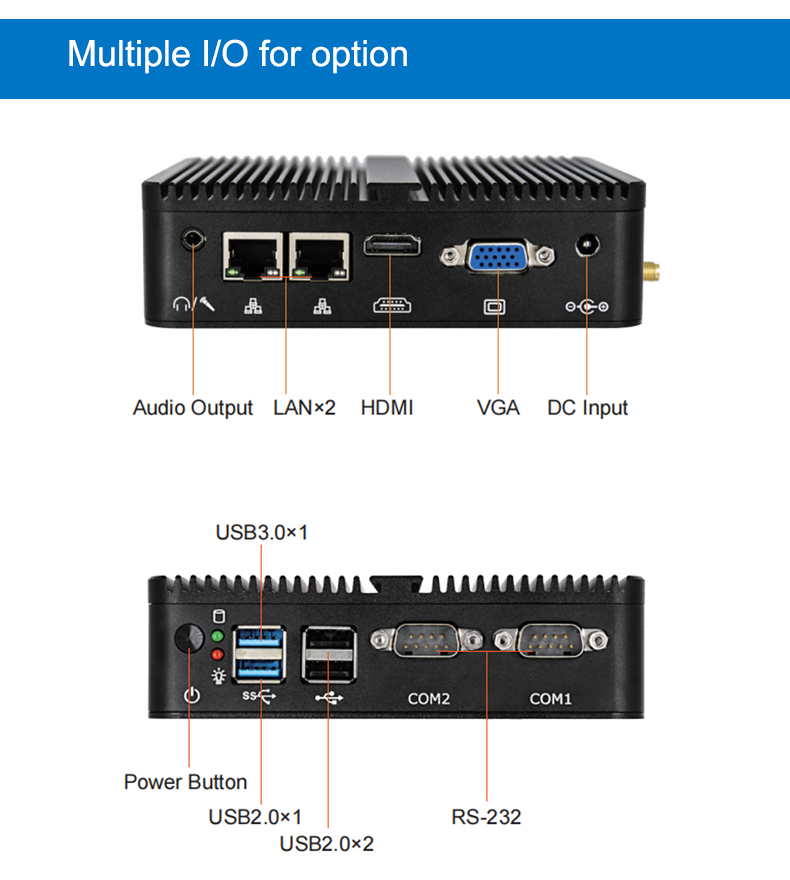

- 3 × USB 2.0 and 1 × USB 3.0 ports
- 2 × DB9 COM ports with RS232 support
- 1 × HDMI and 1 × VGA display output
- 2 × GbE RJ45 Ethernet ports
- Audio line-out and microphone input
- mSATA and HDD / SSD storage support
- Mini-PCIe half-size slot for WiFi / Bluetooth
- VESA 75 / panel mount support
- Watchdog timer: 1–255 levels
- Wide operating temperature: -20℃ to 70℃
- Supports Windows 7 / 8 / 10, WES 7 and Linux
Applications
- POS terminal computing
- Self-service kiosk controller
- Digital signage player
- Retail checkout system
- Restaurant ordering terminal
- Industrial control computer
- Automation equipment controller
- Access control system host
- Smart locker controller
- Information display terminal
- Embedded Linux / Windows system
- Factory data collection terminal
- Network gateway applications
- Panel-mounted computer applications
Typical POS, Kiosk and Network Applications
The MPC-N2 is designed for compact commercial and embedded applications that require stable computing, serial communication and dual network connectivity.
Typical deployments include:
POS Systems
Supporting retail checkout terminals, restaurant ordering systems and commercial workstations.
Self-Service Kiosks
Connecting touchscreens, printers, scanners and peripheral devices.
Network Gateway Systems
Providing dual Ethernet connectivity for communication, routing and network management applications.
Access Control Systems
Supporting authentication devices, card readers and access management equipment.
Embedded Commercial Equipment
Providing a compact Windows or Linux computing platform for integrated systems.
Technical Specifications
| Item | Specification |
|---|---|
| Model | MPC-N2 |
| Product Type | Fanless Mini PC Computer |
| Processor | Onboard Intel Celeron J1900 / J4125 CPU |
| Main Processor Option | Intel Celeron J4125 |
| System Memory | DDR3 / DDR4 SODIMM × 1, up to 8GB |
| Default Memory / Storage | 4GB RAM + 64GB SSD |
| Optional Memory / Storage | 8GB RAM + 128GB / 256GB SSD |
| Display Output | HDMI / VGA |
| Ethernet | 2 × GbE RJ45, Realtek 8111H |
| USB Ports | 3 × USB 2.0, 1 × USB 3.0 |
| Serial Ports | 2 × DB9 COM1 & COM2, RS232 |
| Audio | 1 × audio line-out, 1 × audio mic-in |
| Power Button | 1 × power button |
| Power LED | 1 × power LED |
| HDD LED | 1 × HDD LED |
| Power Input | 1 × power input |
| WiFi Antenna Interface | 1 × antenna interface for WiFi |
| Storage | 1 × mSATA, 1 × HDD / SSD |
| Expansion Slot | Mini-PCIe × 1 half-size for WiFi / Bluetooth |
| Watchdog Timer | 1–255 levels |
| OS Support | Windows 7 / 8 / 10, WES 7, Linux |
| Construction | Aluminium |
| Mounting | VESA 75 / Panel mount |
| Dimension | 135 × 127 × 38.7mm |
| Net Weight | TBD |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -30℃ to 70℃ |
| Storage Humidity | 95% @ 40℃, non-condensing |
| DC Input | DC12V |
Why Dual LAN Matters in Embedded Applications
Many commercial and industrial applications require communication with multiple networks at the same time.
Dual Ethernet ports allow one network interface to connect to internal equipment while the second interface connects to an external network.
This architecture is commonly used in:
- Network gateway systems
- Access control platforms
- Retail systems
- Industrial communication devices
- Embedded control applications
Why Choose MPC-N2?
MPC-N2 is suitable for commercial and industrial projects that require a compact fanless mini PC with serial communication and dual Ethernet support.
Compared with basic consumer mini PCs, MPC-N2 provides an aluminium fanless chassis, RS232 COM ports, dual GbE LAN ports, HDMI / VGA display output, watchdog timer and industrial mounting options. These features make it practical for POS terminals, self-service kiosks, digital signage, automation control, access control systems and embedded commercial equipment.
Compact Size with Dual Network Connectivity
Despite its compact dimensions, MPC-N2 provides:
- Dual Ethernet ports
- RS232 communication
- Multiple USB interfaces
- HDMI and VGA display output
- Fanless operation
This combination makes it suitable for commercial and industrial projects that require reliable connectivity in limited installation space.
Related Models
- MPC-N1:Best for POS systems and kiosk applications requiring newer Intel J6412/J6413 platforms
- MPC-N2:Best for Cost-effective dual LAN and network-connected embedded applications
- MPC-N3:Best for USB-intensive embedded and automation projects
- SNR-IBC-N8:Best for Industrial self-service kiosk controller applications
- SNR-N8P:Best for Compact industrial and digital signage deployments
Related Resources
- How to Choose an Industrial PC for Self-Service Kiosks
- Industrial PC for Self-Service Kiosks
- POS Terminals
- Thermal Receipt Printers
- Fixed Mount Barcode Scanners
- Fanless Industrial PCs
FAQ
What is MPC-N2 used for?
MPC-N2 is used as a fanless mini PC for POS systems, self-service kiosks, digital signage, industrial control, automation equipment, access control and embedded commercial applications.
Is MPC-N2 fanless?
Yes. MPC-N2 uses a fanless aluminium design for quiet operation and reduced maintenance.
What processor does MPC-N2 use?
MPC-N2 supports onboard Intel Celeron J4125 processor. The specification also lists Intel Celeron J1900 as an optional processor platform.
Does MPC-N2 have COM ports?
Yes. MPC-N2 includes 2 × DB9 COM ports with RS232 support.
Does MPC-N2 support dual LAN?
Yes. MPC-N2 includes 2 × GbE RJ45 Ethernet ports with Realtek 8111H.
What operating systems are supported?
MPC-N2 supports Windows 7, Windows 8, Windows 10, WES 7 and Linux.
Does MPC-N2 support VESA mounting?
Yes. MPC-N2 supports VESA 75 mounting and panel mount installation.
What storage options are available?
MPC-N2 supports mSATA storage and HDD / SSD storage.
What is the operating temperature range?
The operating temperature range is -20℃ to 70℃.
Is MPC-N2 suitable for network gateway applications?
Yes. MPC-N2 includes dual Ethernet ports, making it suitable for network gateway, communication and embedded networking applications.
What is the difference between MPC-N2 and MPC-N1?
MPC-N2 focuses on cost-effective dual LAN connectivity and network applications, while MPC-N1 offers newer processor platforms and expanded display capabilities.
Does MPC-N2 support dual LAN?
Yes. MPC-N2 includes two Gigabit Ethernet ports for network communication and gateway applications.
Can MPC-N2 be used as a kiosk controller?
Yes. MPC-N2 can control printers, scanners, touchscreens and other peripherals in compact self-service kiosk systems.
Is MPC-N2 suitable for POS systems?
Yes. MPC-N2 is commonly used in retail POS terminals, restaurant ordering systems and commercial checkout applications.
When should I choose MPC-N2 instead of MPC-N1?
MPC-N2 is recommended when dual LAN connectivity and cost-effective deployment are priorities. MPC-N1 is better suited for projects requiring newer Intel processor platforms and additional display capabilities.
| Weight | N/A |
|---|---|
| Configuration | J4125 + 4GB RAM + 64GB SSD storage, J4125 + 4GB RAM + 128GB SSD storage, J4125 + 8GB RAM + 128GB SSD storage, J4125 + 8GB RAM + 256GB SSD storage |
