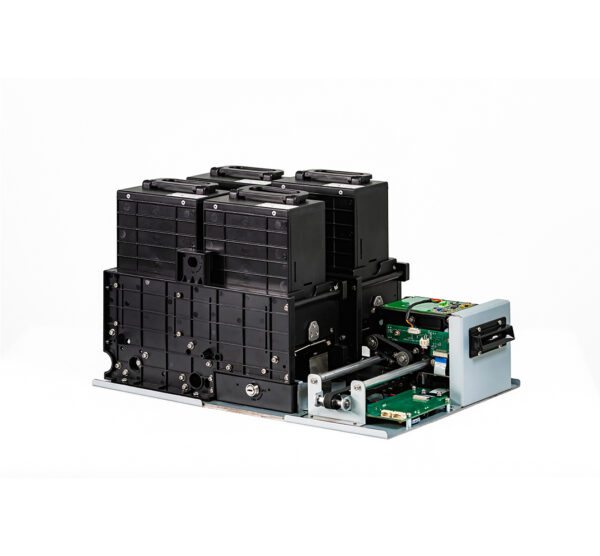

SNR-CD2604J-4 Quad-Card Box Card Dispenser Machine
SNR-CD2604J is a quad-card box single-channel IC / RFID / magnetic card dispenser machine designed for multi-card vending kiosks, gift card stations, membership card programs, parking systems, event ticketing kiosks and casino loyalty terminals. It supports four card boxes, 100 flat cards per box standard capacity, optional 150 cards per box, command-selected card issuing, card retracting, magnetic / IC / RFID read-write, electrically controlled gate, power failure protection, RS232 / USB interfaces, EMV / PBOC certification and 0.5–1.2mm card thickness.
"*" indicates required fields
Single-Channel IC / RFID / Magnetic Card Issuing Machine with Four Card Boxes
The SNR-CD2604J is a quad-card box single-channel IC / RFID / magnetic card dispenser machine designed for multi-card vending kiosks, gift card stations, membership card systems, parking terminals, event ticketing kiosks, casino loyalty systems and other high-capacity card issuing applications.
With four independent card boxes, the host system can select the target card issuance box by command. This allows one kiosk to dispense different card types, value levels, membership tiers or application-specific cards through a single dispensing channel.
The machine supports magnetic card read/write, contact IC card read/write, contactless RFID card read/write, card issuing, card retracting and card recycling. Its electrically controlled gate, power failure protection, infrared sensor detection and multiple warning functions make it suitable for unattended card issuing systems that require both capacity and operational reliability.
Key Features
- Quad-card box card dispenser machine
- Four card boxes for multi-card issuing
- Single-channel card output design
- Supports command-selected card box issuing
- Supports IC card issuing and retracting
- Supports RFID / RF card issuing and retracting
- Supports magnetic card issuing and retracting
- Supports magnetic card read/write
- Supports contact IC card read/write
- Supports contactless IC / RFID card read/write
- Electrically controlled gate design
- Gate opening supports magnetic card triggering and switch triggering
- Supports command-triggered card insertion
- Supports magnetic sensor-triggered card insertion
- Power failure protection
- Moves cards to holding position or recycle bin during power loss
- Low card warning
- Empty card warning
- Card box misalignment warning
- Recycle bin misalignment warning
- Recycle bin empty / full warning
- Infrared photoelectric sensor detection
- RS232 / USB interfaces
- EMV / PBOC certified
- Suitable for multi-card vending and high-capacity kiosk applications
Applications
- Multi-card vending kiosks
- Gift card stations
- Multiple-value gift card dispensing
- Membership card issuing systems
- Bronze / silver / gold / premium card issuing
- Parking systems
- Ticket + RFID card combination terminals
- Event ticketing kiosks
- Different ticket type / entry pass issuing
- Casino loyalty card dispensers
- Gaming membership card terminals
- Retail loyalty card issuing machines
- Access control card issuing systems
- Campus card issuing terminals
- Hotel card issuing systems
- Government service card issuing terminals
Technical Specifications
Card Type Support
| Category | Item | Specification |
|---|---|---|
| IC Card | Standard | ISO7816-1 / 2 / 3 / 4 |
| IC Card | CPU Card | Supports T=0 and T=1 CPU cards |
| IC Card | PSAM Card | Supports T=0 and T=1 PSAM cards |
| Contactless Card | Standard | ISO/IEC 14443 Type A & Type B |
| Contactless Card | Supported Types | Mifare 1 S50, S70, UL, Mifare Plus, Mifare Desfire |
| Magnetic Card | Standard | ISO7810, ISO7811-(1–6), ISO7812, ISO7813 and ISO15457 |
Card Specification
| Item | Specification |
|---|---|
| Card Material | Paper card and PC card |
| Card Width | 54 ± 0.5mm |
| Card Length | 85 ± 0.5mm |
| Card Thickness | 0.5–1.2mm |
Card Hopper Capacity
| Item | Specification |
|---|---|
| Card Box Quantity | 4 card boxes |
| Standard Capacity | 100 flat cards per box, based on 0.76mm thickness |
| Optional Capacity | 150 flat cards per box |
| Card Box Selection | Card issuance box can be selected by command |
| Output Design | Single-channel card output |
| Alert Functions | Low card warning, empty card warning, card box misalignment warning |
Gate and Card Insertion
| Item | Specification |
|---|---|
| Gate Design | Electrically controlled gate |
| Gate Triggering | Magnetic card triggering / switch triggering |
| Card Insertion Method | Command-triggered insertion |
| Sensor Insertion Method | Magnetic sensor-triggered insertion |
| Power Failure Protection | Moves cards to card slot holding position or recycle bin during power loss |
Recycle Bin and Status Detection
| Item | Specification |
|---|---|
| Recycle Bin Detection | Misalignment warning supported |
| Recycle Bin Status | Empty / full warning supported |
| Sensor Type | Infrared photoelectric detection |
| Sensor Advantage | Long service life and low failure rate |
Power and Interface
| Item | Specification |
|---|---|
| Power Supply | DC24V |
| Idle Current | <200mA |
| Peak Current | <3000mA |
| Interface | RS232 / USB |
Alert Lamp Functions
| Alert Item | Specification |
|---|---|
| Card Entry Alert | Supported |
| Few Card Alert | Supported |
| Power-On Alert | Supported |
| IC Card Power-On Alert | Supported |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0℃ to 45℃ |
| Operating Humidity | 30%–90% RH |
Lifetime and Certification
| Item | Specification |
|---|---|
| Drive Parts Lifetime | 500,000 cycles |
| Magnetic Head Lifetime | 800,000 cycles |
| IC Card Contact Lifetime | 300,000 cycles |
| Certification | EMV / PBOC |
| Weight | Approx. 10kg |
Why Choose SNR-CD2604J?
SNR-CD2604J is suitable for self-service systems that require four card boxes, command-selected card issuing and magnetic / IC / RFID read-write capability in one machine.
Compared with single, dual or triple hopper models, the quad-card box design provides greater card selection flexibility and larger total card capacity. It is especially useful for gift card stations, membership tier programs, parking systems, event ticketing kiosks, casino loyalty terminals and multi-card vending applications.
For projects requiring multiple card types, multiple card values, card retracting, card recycling, power failure protection, RS232 / USB integration and EMV / PBOC compliance, SNR-CD2604J provides a high-capacity card issuing solution.
Related Models
SNR-CD2612-M8 – Triple card hopper magnetic / IC / RFID card issuing machine
SNR-CD2616-M8 – Dual-card hopper magnetic / IC / RFID read-write card dispenser
SNR-CD2604J-M8 – Dual hopper magnetic / IC / RFID card issuing machine with lockable card boxes
SNR-CD212-M8 – Single hopper magnetic / IC / RFID card issuing machine
SNR-CD3000 – Automatic card collector for card return and reusable card recovery
Learn more about system architecture: Card Dispenser Hub
FAQ
What is SNR-CD2604J used for?
SNR-CD2604J is used as a quad-card box IC / RFID / magnetic card dispenser machine for multi-card vending kiosks, gift card stations, membership card systems, parking systems, event ticketing kiosks, casino loyalty terminals and other high-capacity card issuing applications.
How many card boxes does it have?
It has four card boxes.
What is the card capacity?
The standard capacity is 100 flat cards per box based on 0.76mm card thickness. Optional capacity is 150 flat cards per box.
Can the host system select which card box to issue from?
Yes. The card issuance box can be selected by command.
Does SNR-CD2604J support card retracting?
Yes. It supports IC / RFID / magnetic card issuing and retracting.
Does it support RFID card writing?
Yes. It supports contactless card read/write according to ISO/IEC 14443 Type A & Type B, including Mifare 1 S50, S70, UL, Mifare Plus and Mifare Desfire.
Does it support IC card writing?
Yes. It supports ISO7816 IC cards, including T=0 and T=1 CPU cards, and T=0 / T=1 PSAM cards.
Does it support magnetic cards?
Yes. It supports magnetic cards according to ISO7810, ISO7811, ISO7812, ISO7813 and ISO15457 standards.
What card thickness does it support?
It supports card thickness from 0.5mm to 1.2mm.
What interfaces are available?
SNR-CD2604J supports RS232 and USB interfaces.
What warning functions are available?
It supports low card warning, empty card warning, card box misalignment warning, recycle bin misalignment warning and recycle bin empty / full warning.
Is it certified?
Yes. It is compliant with EMV / PBOC standards.
What is the difference between SNR-CD2604J and SNR-CD2612-M8?
SNR-CD2604J is a quad-card box card dispenser with four card boxes. SNR-CD2612-M8 is a triple card hopper model with three card boxes.
