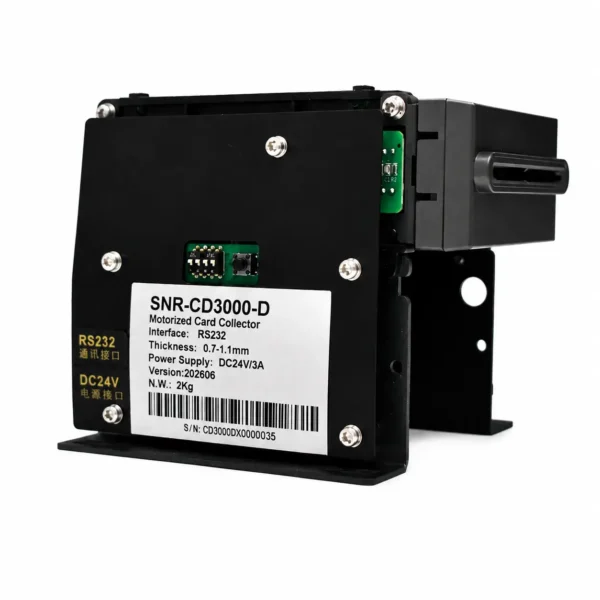

SNR-CD3000-D Motorized Card Collector OEM Card Recycling Module for Self-Service Kiosk
"*" indicates required fields
Product Overview
The SNR-CD3000-D Motorized Card Collector Module is an industrial-grade card collection and recycling solution designed for self-service kiosks, hotel check-out terminals, ticketing machines, parking systems, access control terminals, and visitor management solutions.
Designed for kiosk manufacturers and system integrators, the module provides reliable automatic card receiving, transporting, positioning, and internal card collection functions for unattended self-service environments.
The SNR-CD3000-D supports flexible motor configurations with DC motor drive or stepper motor drive options, allowing integrators to select the appropriate mechanism based on kiosk design, control architecture, and application requirements.
The card channel reserves integration space for optional RFID reader/writer, magnetic card encoder, and barcode/QR scanner modules, enabling customized kiosk solutions combining card return, card identification, verification, and recycling functions.
Key Features
Automatic Card Collection & Recycling
The SNR-CD3000-D automatically receives inserted cards, transports them through the internal card channel, and collects them into the built-in card storage area.
Designed for applications requiring:
- Hotel key card return
- RFID card recycling
- Ticket collection
- Visitor card return
- Parking card recovery
- Access control card collection
Flexible Motor Configuration
To meet different kiosk system requirements, the SNR-CD3000-D supports:
- DC motor drive option
- Stepper motor drive option
- Stable card transportation control
- Flexible mechanical integration
The selectable motor configuration allows system designers to optimize:
- Motion control
- Integration method
- Controller compatibility
- Application reliability
Reserved Space for RFID Reader & Scanner Integration
The SNR-CD3000-D is designed with OEM customization in mind.
The card channel provides reserved installation space for optional modules:
- RFID card reader/writer
- Magnetic card encoder
- Barcode scanner
- QR code scanner
This enables multifunctional kiosk designs integrating:
Card Return + Card Identification + Data Verification + Card Recycling
Industrial Reliability Design
Built for continuous unattended operation, the SNR-CD3000-D features:
- Durable metal and engineering plastic structure
- Infrared photoelectric card detection sensors
- Intelligent fault self-recovery mechanism
- Low maintenance mechanical design
- High cycle reliability
The module is suitable for environments requiring stable operation under frequent card insertion and collection scenarios.
Functional Description
Automatic Card Receiving
When a user inserts a card into the card entrance, the detection system identifies the card position and activates the transport mechanism.
The card is automatically moved into the internal collection box.
Intelligent Card Detection
Infrared photoelectric sensors monitor card movement throughout the transmission channel.
Benefits include:
- Accurate card detection
- Stable card positioning
- Reduced mechanical failure
- Long operating life
Fault Self-Recovery
When abnormal card movement occurs, the controller activates an automatic recovery process to clear the card path and restore normal operation.
Typical Applications
Hotel Self-Service Check-out Kiosk
Ideal for hotel automation systems:
- RFID room key card return
- Guest self check-out
- Automatic card recycling
Related solution:
Hotel Self Check-in / Check-out Kiosk Hardware Solution
Ticket Vending Machine
Suitable for:
- Transit ticket collection
- Event ticket recycling
- Automated ticket terminals
Visitor Management System
Supports:
- Visitor badge return
- Temporary access card collection
- Security management terminals
Parking Management System
Used in:
- Parking ticket collection terminals
- Automated exit systems
- Smart parking kiosks
Access Control Terminal
Integration with:
- RFID verification systems
- Smart access terminals
- Self-service security equipment
Designed for OEM Kiosk Integration
The SNR-CD3000-D is developed for companies building customized self-service terminals.
SNRO supports:
Mechanical Integration
- Customized mounting design
- Kiosk structure adaptation
- Installation optimization
Module Integration
Support integration with:
- RFID reader
- Encoder
- Scanner
- Custom control systems
Project Support
Available support:
- Prototype development
- Engineering evaluation
- OEM customization
- Mass production
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Motorized Card Collector Module |
| Model | SNR-CD3000-D |
| Card Transport Method | Rubber Roller Drive |
| Motor Configuration | DC Motor / Stepper Motor Optional |
| Communication Interface | RS232 Half-Duplex |
| Connector | PH-3PIN |
| Operating Voltage | 24VDC ±10% |
| Peak Current | <3.0A |
| Static Current | <0.5A |
| Card Movement | Card In / Card Return |
| Transfer Time | Approx. 1.5 sec |
| Card Exit Holding Length | 35mm ±2mm |
| Card Length | 85.47–85.90mm |
| Card Width | 53.92–54.18mm |
| Card Thickness | 0.7–1.1mm |
| Operating Temperature | 0°C ~ 50°C |
| Operating Humidity | 20~80% RH (Non-condensing) |
| Storage Temperature | -15°C ~ 55°C |
| Card Collection Life | >800,000 cycles |
| MTBF | >200,000 hours (Electronic components only) |
| Weight | Approx. 0.7kg |
Specifications based on SNRO product specification document.
Why Choose SNRO Motorized Card Collector Module?
Built for Self-Service Equipment Manufacturers
Unlike standard card collection devices, the SNR-CD3000-D is designed specifically for OEM kiosk integration.
Flexible Hardware Architecture
Optional motor configurations and reserved expansion space allow easy adaptation for different terminal designs.
Reliable Long-Term Operation
Industrial sensors, durable materials, and intelligent recovery functions improve system stability in unattended environments.
Factory-Backed OEM Support
SNRO provides:
- Hardware customization
- Mechanical integration support
- Engineering assistance
- Production support
Related Products
SNR-K750-L RFID Card Dispenser
Hotel RFID key card issuing and recycling solution.
SNR-K750-C Hotel Card Dispenser
Compact hotel key card issuing and collection solution.
SNR-CD212-M8 Card Issuing Machine
Multi-function magnetic / IC / RFID card issuing module.
Self-Service Kiosk Hardware Solutions
Complete kiosk hardware components for global system integrators.
Frequently Asked Questions
What is a motorized card collector module?
A motorized card collector module is a kiosk hardware component that automatically receives, transports, and collects cards for recycling or management.
Can SNR-CD3000-D be used for hotel RFID key cards?
Yes. The module can be integrated into hotel self-service kiosks for RFID room key card return and recycling applications.
Does the SNR-CD3000-D support RFID reader integration?
Yes. Reserved installation space is available for optional RFID reader/writer modules according to project requirements.
Can a scanner or encoder be installed?
Yes. The card channel supports optional integration of barcode scanners, QR scanners, and RFID card encoder modules.
What motor options are available?
The SNR-CD3000-D supports both DC motor and stepper motor configurations for different kiosk control requirements.
What communication interface does it use?
The standard communication interface is RS232 Half-Duplex.
