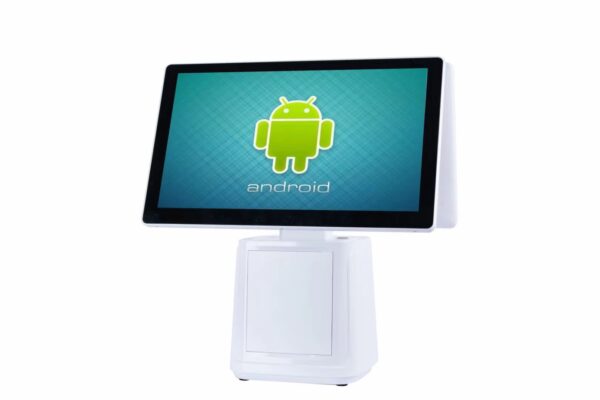

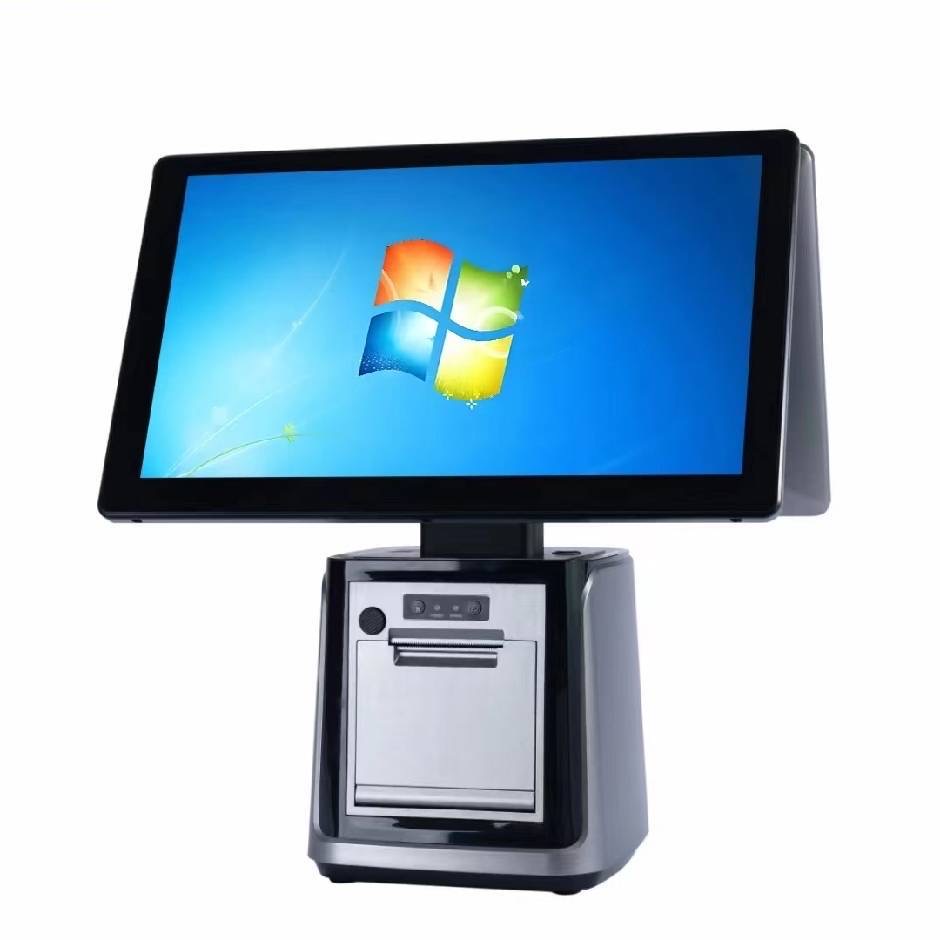

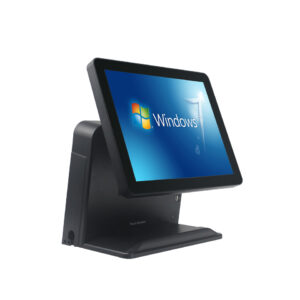

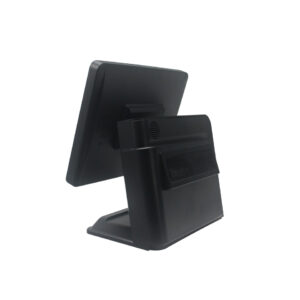

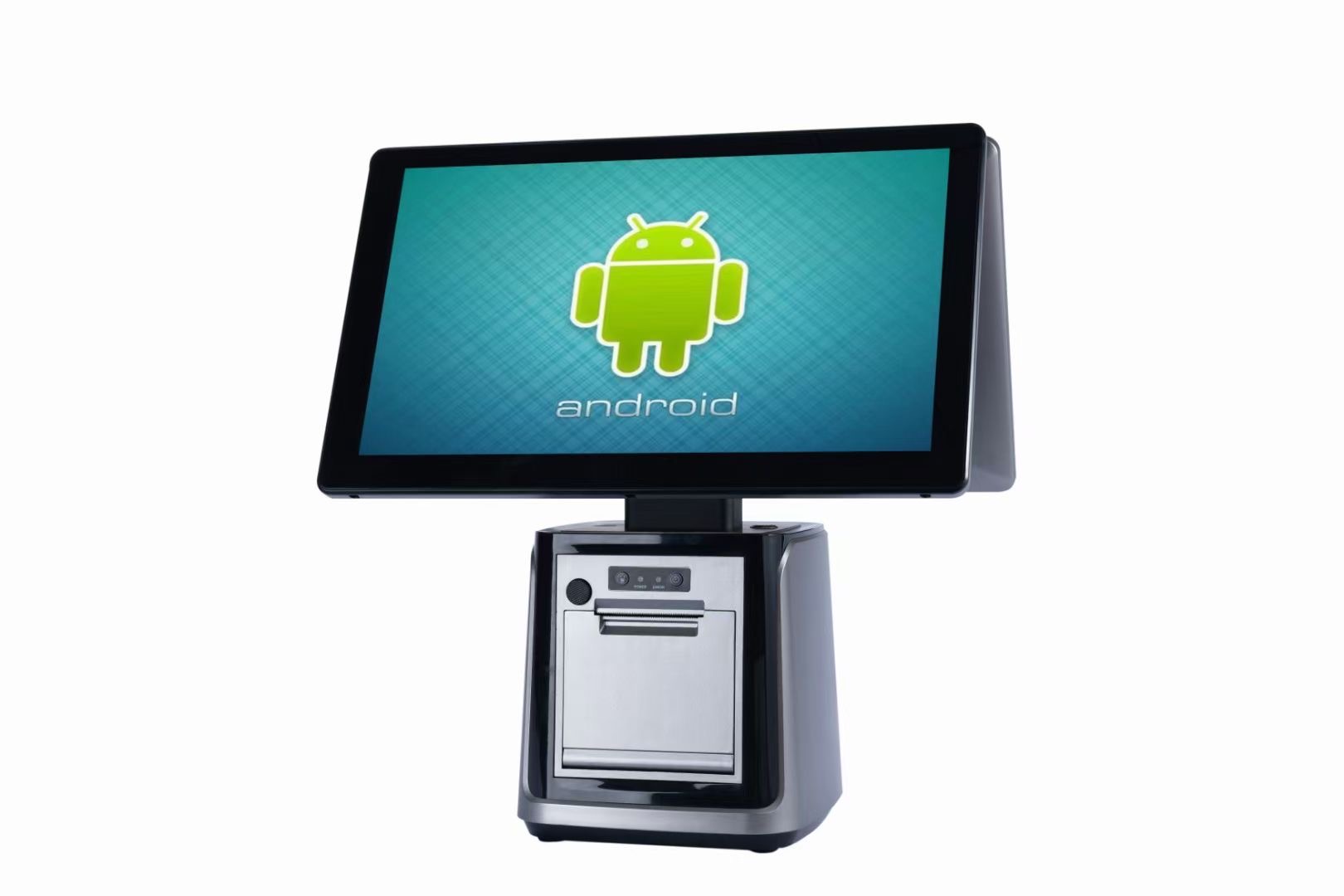

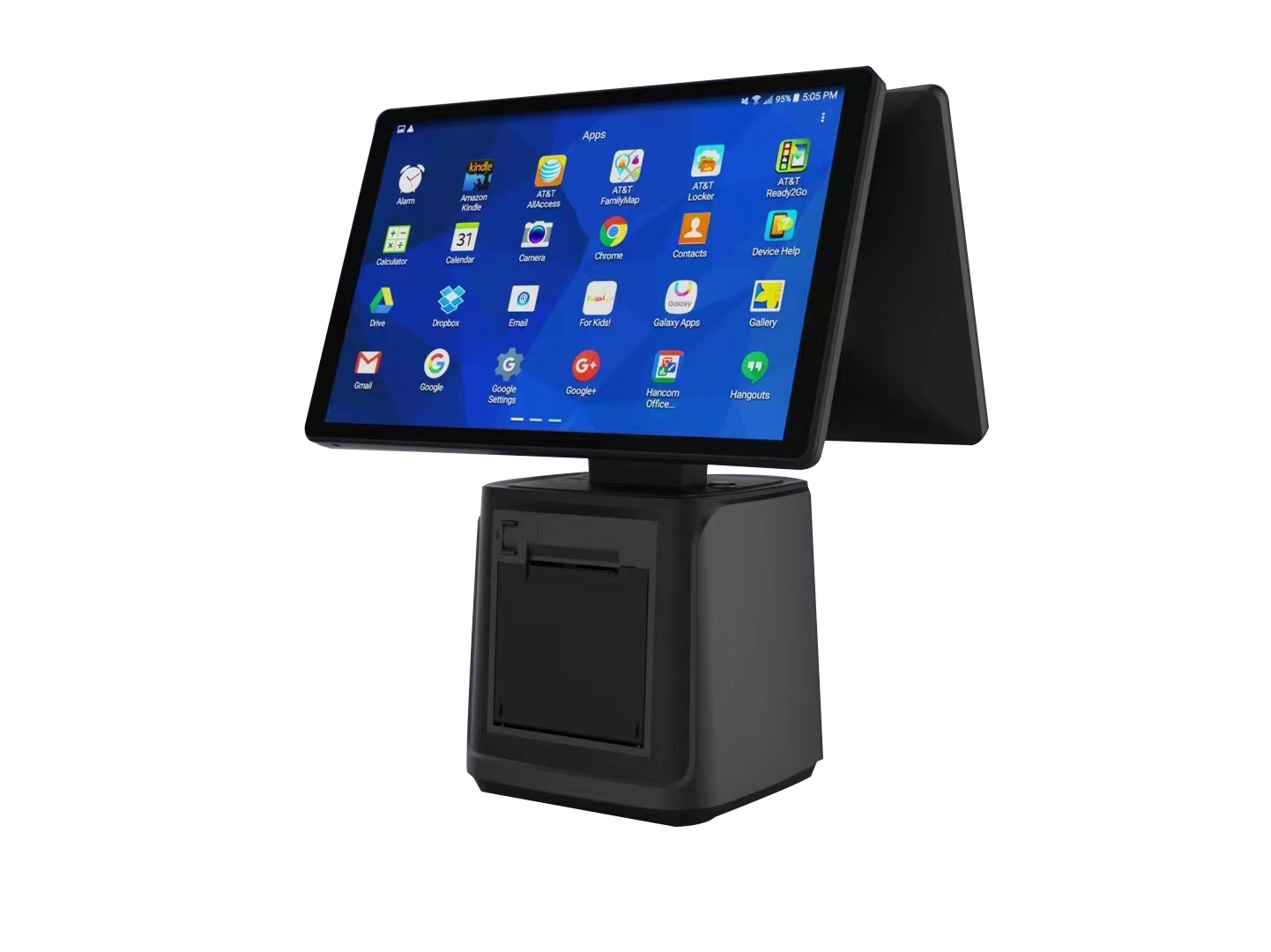

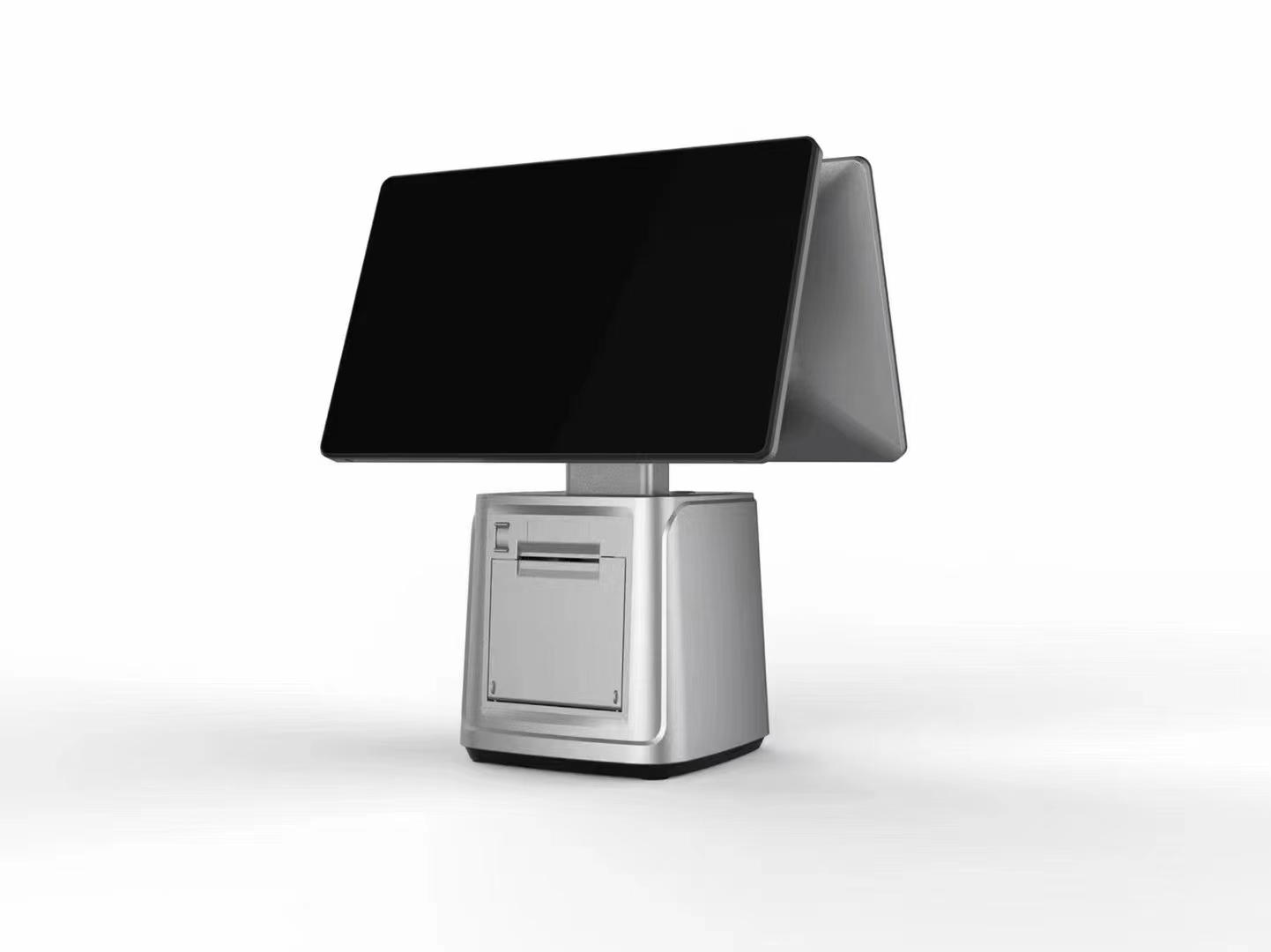

SNR-DPA9 All In One Pos System Retail Pos machine Windows Cash Register for Restaurants
SNR-DPA9 is a 15.6 inch all-in-one POS system designed for restaurants, retail stores, supermarkets, cafés, bars and convenience stores. It supports Windows or Android, optional built-in 58mm / 80mm thermal printer, optional QR code scanner, single or dual screen, side MSR, VFD customer display, WiFi, Bluetooth, 4G and OEM service.
"*" indicates required fields

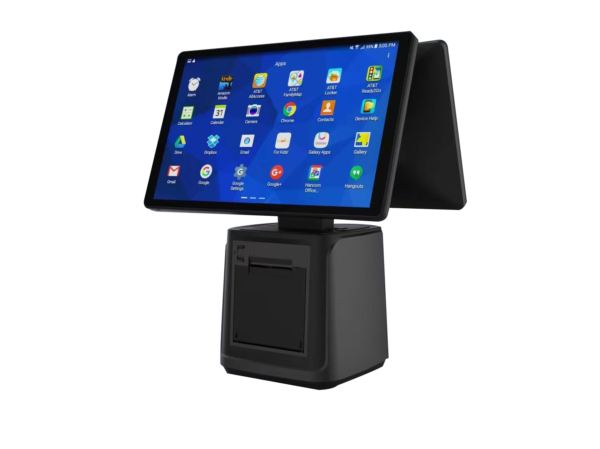

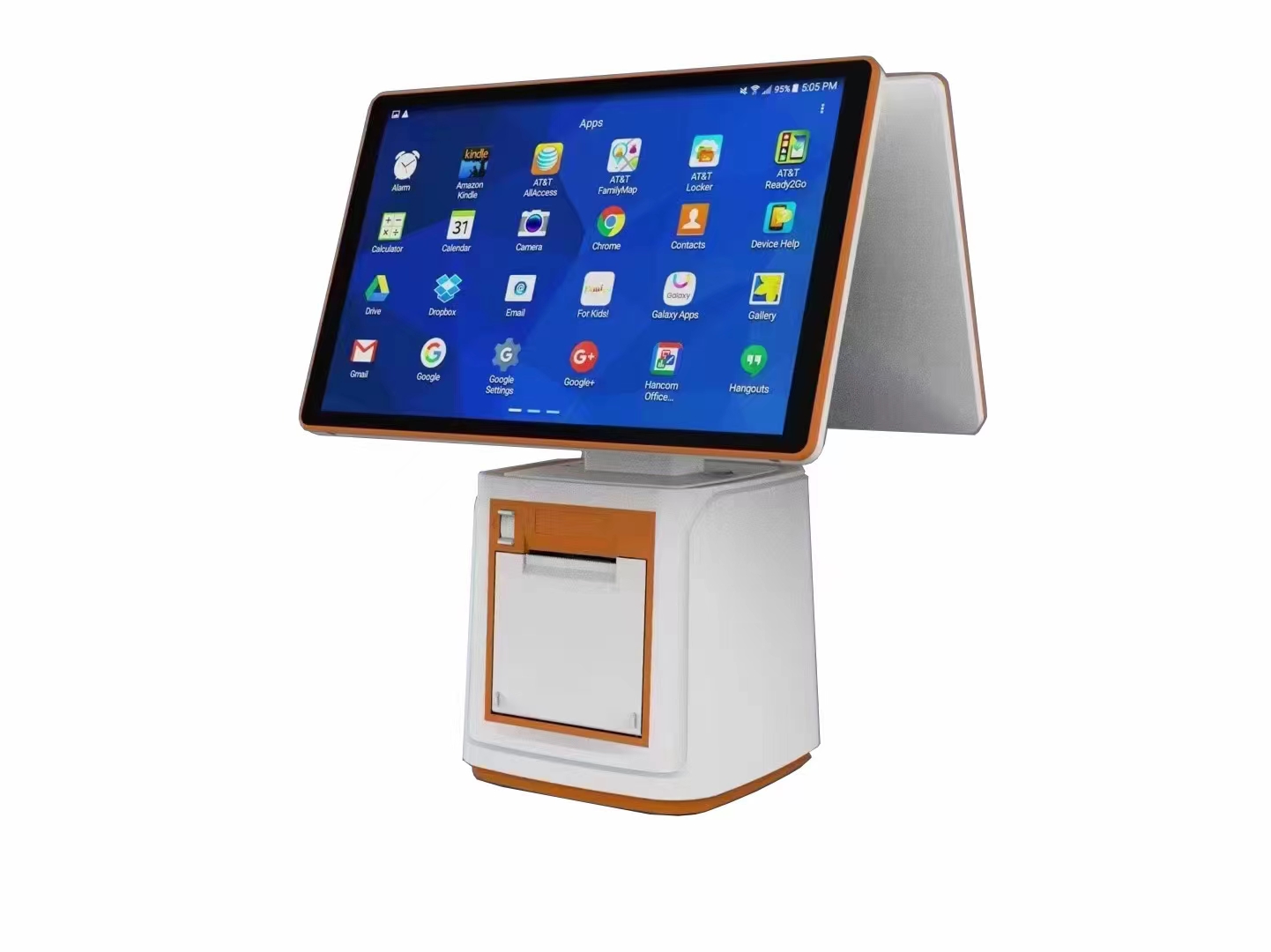

Windows / Android POS Cash Register with Optional Built-In Printer, Scanner and Dual Screen
The SNR-DPA9 all-in-one POS system is a 15.6 inch touch screen POS terminal designed for restaurants, retail stores, supermarkets, convenience stores, boutiques, cafés, bakeries and other commercial checkout environments.
With Windows or Android OS options, optional built-in 58mm or 80mm thermal printer, optional QR code scanner, single-screen or dual-screen configuration, capacitive touch panel and multiple wireless communication options, SNR-DPA9 provides a flexible POS hardware solution for modern retail and hospitality applications.
Key Features
- 15.6 inch all-in-one touch screen POS terminal
- Windows or Android operating system options
- Optional built-in 58mm or 80mm thermal printer
- Optional QR code scanner

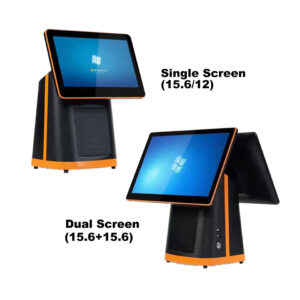

- Single-screen or dual-screen configuration
- Optional 15.6 inch secondary display with or without touch
- Multi-point projected G+G capacitive touch panel
- True-flat, waterproof and scratch-resistant display surface
- Optional side MSR card reader

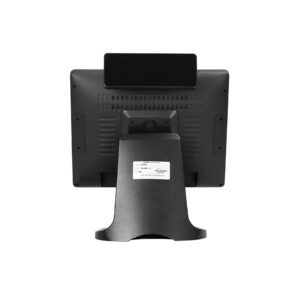

- Optional VFD220 customer display mounted on back cover
- Supports 4G, WiFi and Bluetooth options
- Windows CPU options: J1900 / J4125 / i3 / i5
- Android CPU options: RK3288 / RK3568
- Plastic and metal combined housing
- OEM service available
- Black or white color options
Applications
- Restaurant POS checkout
- Bar and coffee shop billing
- Milk tea store order management
- Bakery cashier systems
- Convenience store checkout
- Supermarket POS systems
- Shopping mall retail counters
- Boutique and clothing store POS
- Library service counters
- Retail membership systems
- Food ordering and receipt printing
- Customer-facing checkout systems
Specifications
| Name | 15.6 inch all in one touch screen pos terminal |
| Housing | Plastic with metal combined |
| Color | Black/White |
| Display | |
| Main screen | 15.6 inch touch screen monitor |
| Resolution | 1366*768 |
| Brightness | 250cd/m2 |
| View angle | Horizon: 160; Vertical :150 |
| Touch screen | Multi-point projected G+G capacitive touch |
| Sub-display | 15.6inch display W/ or W/o touch function, resolution 1366*768 for option |
| Customer display | 2*20 VFD mounted to back cover for option |
| Windows Version | |
| CPU | IJ1900 / J4125 / I3 / I5 CPU for option |
| Memory | 1*SO-DIMM DDRIII slot, support 4GB DDR3L/1333MHZ(default) ,8GB for option |
| Interface | Msata SSD 64GB or higer, up to 256GB |
| Audio | USB*6,RS 232*1,RJ-45*1,1*RJ11 for cash drawer,VGA *1,Power button*1,line out*1,MIC in*1,12V DC in Jack*1 |
| Operating System | Windows7/8/10, Embedded,WEPOS,Linux |
| Android Version | |
| CPU | RK3288, RK3568 |
| Memory | 2GB/ 4GB/ 8GB |
| Hard Disk | 16GB/ 32GB/ 64GB |
| Interface | 4*USB, 1* Com(Option), 1*lan, 1* RJ11 cash drawer port, 1*HD-MI, TF Card |
| OS | Android |
| Google Play Store | Support |
| Options | |
| 80mm thermal printer | direct thermal printing |
| 150mm/s pringting speed | |
| 79.5-/+ 0.5mm paper width and printable width 72mm | |
| with atuo cutter function and thermal head life 50km | |
| 58mm thermal printer | direct thermal printing |
| 85mm/s pringting speed | |
| 57.5-/+ 0.5mm paper width and printable width 48mm | |
| thermal head life 50km | |
| MSR | optional side MSR |
| Web camera | web camera mounted on top of the display for option |
| Scanner | support 1D&2D code-scanning for option |
| Speaker | 4ohm/5w speakers inside for option |
| Package | |
| Weight | Net：6.5Kg , Gross:8.0Kg for 15.6 with15.6 dual screen with printer built in |
| Package with foam inside | 490*310*485mm |
| Accessories | |
| Power adapter | 200-240V/50-60HZ(default),110-240V/50-60HZ AC powe rinput ,DC12/5A output adaptor for W/o printer and W/ 58mm printer machine 200-240V/50-60HZ(default),110-240V/50-60HZ DC12V/8A out put adaptor only for W/ 80mm printer machine |
| Power cable | Power cable plug compatible with USA /EU / UK etc and customized available |
Why Choose SNR-DPA9?
SNR-DPA9 is suitable for POS projects that require an all-in-one checkout terminal with flexible configuration options.
Compared with standard POS terminals, SNR-DPA9 can integrate a thermal printer, QR code scanner, customer display, MSR, secondary screen, speaker and wireless communication options into one POS system. With Windows and Android platform choices, single or dual screen options, 58mm / 80mm printer configurations and OEM service support, it is a practical choice for restaurants, retail stores, supermarkets, cafés, bars, bakeries and convenience stores.
Related Models

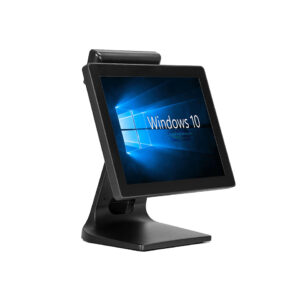

SNR-DP81 – 15 inch smart POS terminal with optional 11.6 inch secondary customer display

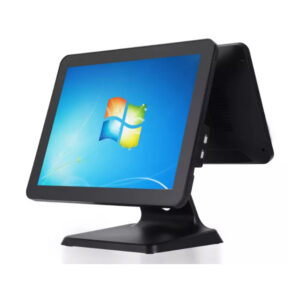

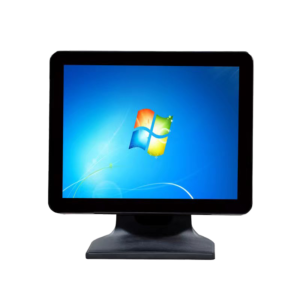

SNR-DPC200 – 15 inch POS terminal with optional 15 inch secondary customer display
SNR-DP300 – 15.6 inch aluminium alloy touch POS terminal for retail and restaurant systems

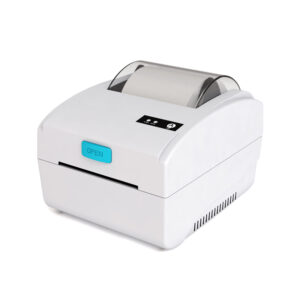

SNR-POS8370 – 80mm high-speed thermal receipt printer for POS checkout systems
FAQ
What is SNR-DPA9 used for?
SNR-DPA9 is used as an all-in-one POS cash register for restaurants, retail stores, supermarkets, convenience stores, cafés, bakeries, boutiques and other checkout environments.
Does SNR-DPA9 support both Windows and Android?
Yes. SNR-DPA9 supports Windows-based configurations and Android-based configurations.
Can SNR-DPA9 include a built-in printer?
Yes. It can be configured with either a built-in 58mm thermal printer or a built-in 80mm thermal printer.
Does SNR-DPA9 support dual screen?
Yes. Single-screen and dual-screen configurations are available. The optional secondary display is 15.6 inch and can be configured with or without touch function.
Does SNR-DPA9 support barcode or QR code scanning?
Yes. A built-in 1D / 2D code scanner is available as an optional configuration.
What CPU options are available?
Windows configurations support J1900, J4125, Intel Core i3 and Intel Core i5 options. Android configurations support RK3288 and RK3568 options.
Does SNR-DPA9 support customer display?
Yes. An optional 2 × 20 VFD customer display can be mounted to the back cover.
Does SNR-DPA9 support MSR card reader?
Yes. A side MSR card reader is available as an optional configuration.
Is OEM service available?
Yes. OEM service is available for SNR-DPA9 projects.
| Configuration | 15.6″ Single Screen: Android 11,2G RAM +16G ROM, 15.6″ Single Screen: Android 11,2G RAM +16G ROM + 80mm thermal printer, 15.6″ Single Screen: Android 11,2G RAM +16G ROM + 80mm thermal printer + QR Scanner, 15.6″ +15.6″: Android 11,2G RAM +16G ROM, 15.6″ +15.6″: Android 11,2G RAM +16G ROM + 80mm thermal printer, 15.6″ +15.6″: Android 11,2G RAM +16G ROM + 80mm thermal printer + QR Scanner |
|---|
We are direct manufacturer and exporter, with own factory and R&D team.Factory is located in shenzhen city,Welcome to visit and contact us.

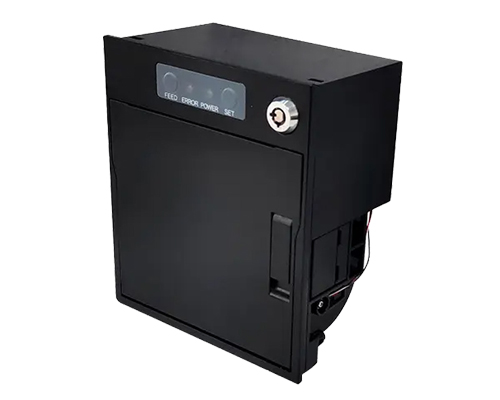

SNROTEK is a professional OEM/ODM manufacturer and hardware solution provider focused on Self-Service Kiosks Hardware and POS Systems Hardware . We specialize in card dispensers, kiosk printers, panel printers, RFID card issuing systems, industrial mini PCs, and POS terminals for global system integrators.
