Features:

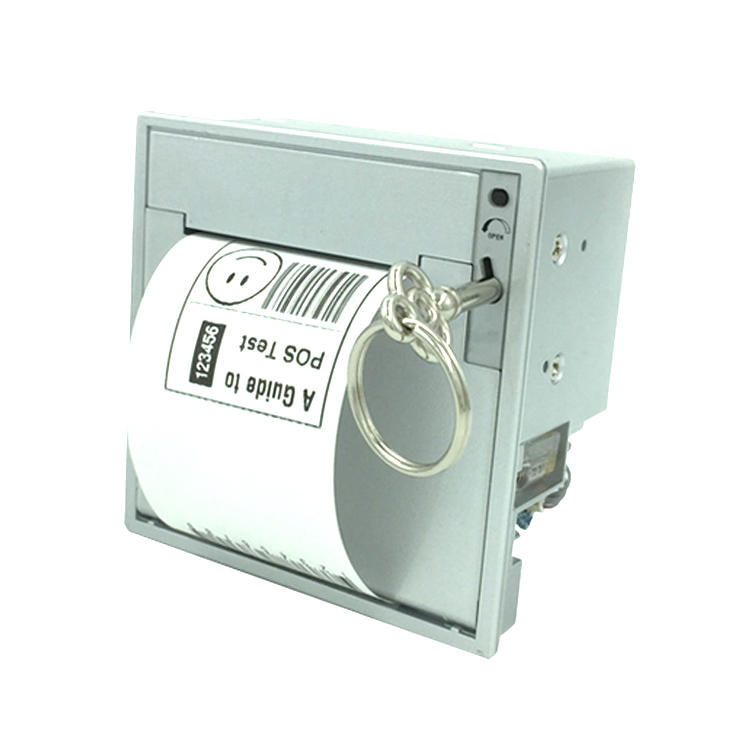

- Kiosk mounted thermal printer
- Printing speed:100mm/s(24V) fast printing
- Fashionable, delicate and elegant

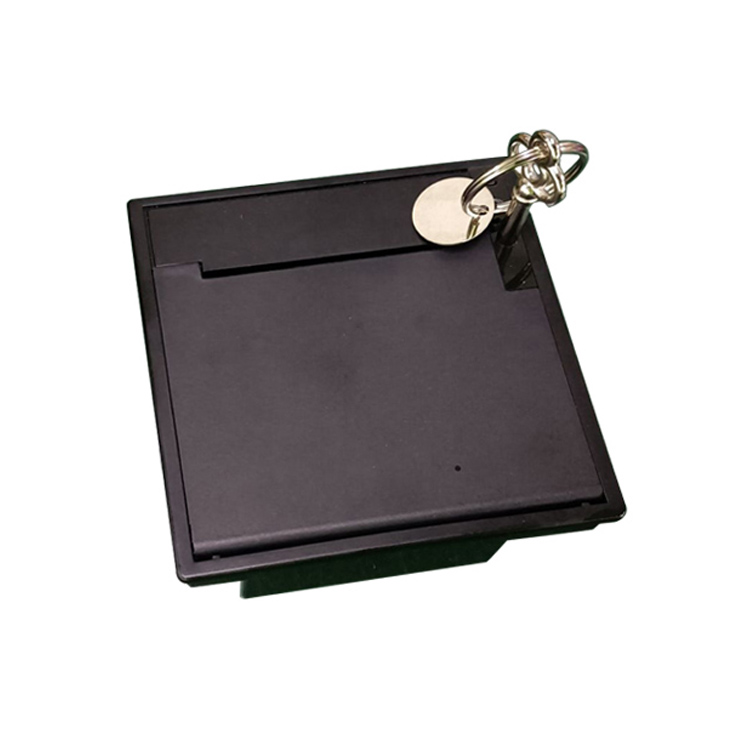

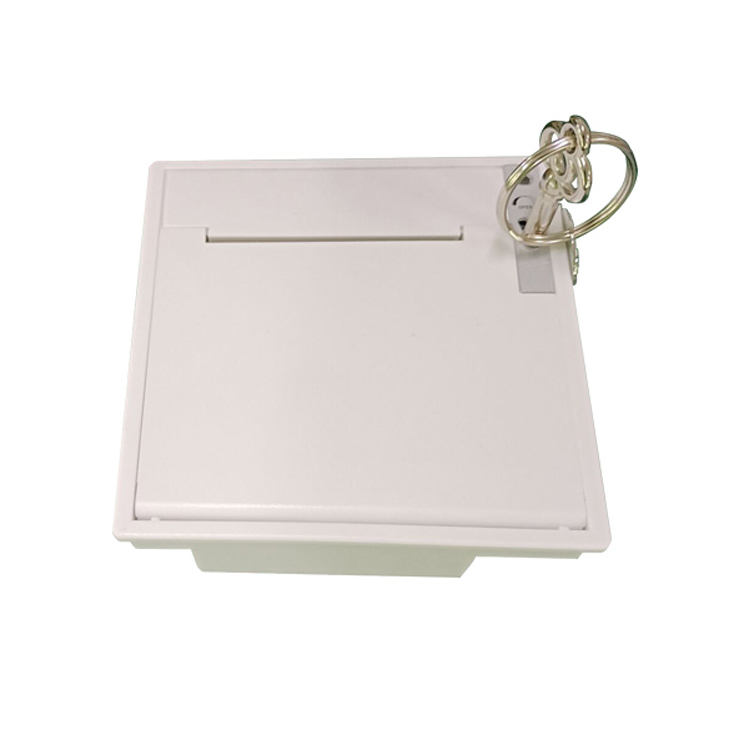

- The lock is optional
- Low noise direct thermal printing method
- Various image/curves/characters printing function
- Paper out detection, automatic memory printing function
- Serial/USB interface
- Power supply DC9-24V
- Compatible with Windows 7/8/10/Linux,freely provide SDK/Driver
Applications:
- Self-service vending machine
- Self-service cash register
- Queuing machine
- Advertisement machine
- Gaming machine
- Medical equipment
- Industrial instruments & meters
Specifications:
|
|
Printing method | Thermal dot line printing | |
| resolution | 203dots | ||
| Print speed | 100mm/s（max） | ||
| Print width | 384dots (48mm) | ||
| Paper width | 58±0.5mm | ||
| Paper thickness | 56～105um | ||
| Paper feed method | Easy loading | ||
| Paper cutting method | Full/Partial (controlled by commands) | ||
| Reliability | 100KM | ||
| Activation pulse resistance | 100,0000 pulses or more | ||
| Character | FONT A | 12*24 dots | |
| FONT B | 9*17 dots | ||
| GB18030 Chinese | 24*24 dots | ||
| GB2312 Chinese | 16*16 dots | ||
| Detection | Thermal head temperature detection | Temperature sensor | |
| Condition | Working voltage | 12～24 V | |
| Standby current | 12V | 61mA | |
| 24V | 36mA | ||
| Instantaneous
maximum current |
161mA | ||
| Environment | Working temperature | -10～50℃（no-condensation） | |
| Working humidity | 20%～85%RH（40℃/85%RH） | ||
| Storage temperature(240hours) | -20～60℃（no-condensation） | ||
| Storage humidity (240hours) | 10%～90%RH（50℃/90%RH） | ||
| Dimension | hole | D96.4mm*W95.5mm | |
| dimension | 100.1mm*55.8mm*99.8mm(L*W*H) | ||
| Mass | FP201 | 250g(without paper roll) | |
| FP201K | 270g(without paper roll & key) | ||
| Interface | Serial(RS-232C/TTL) or USB | ||
| Paper roll diameter | 50mm | ||
