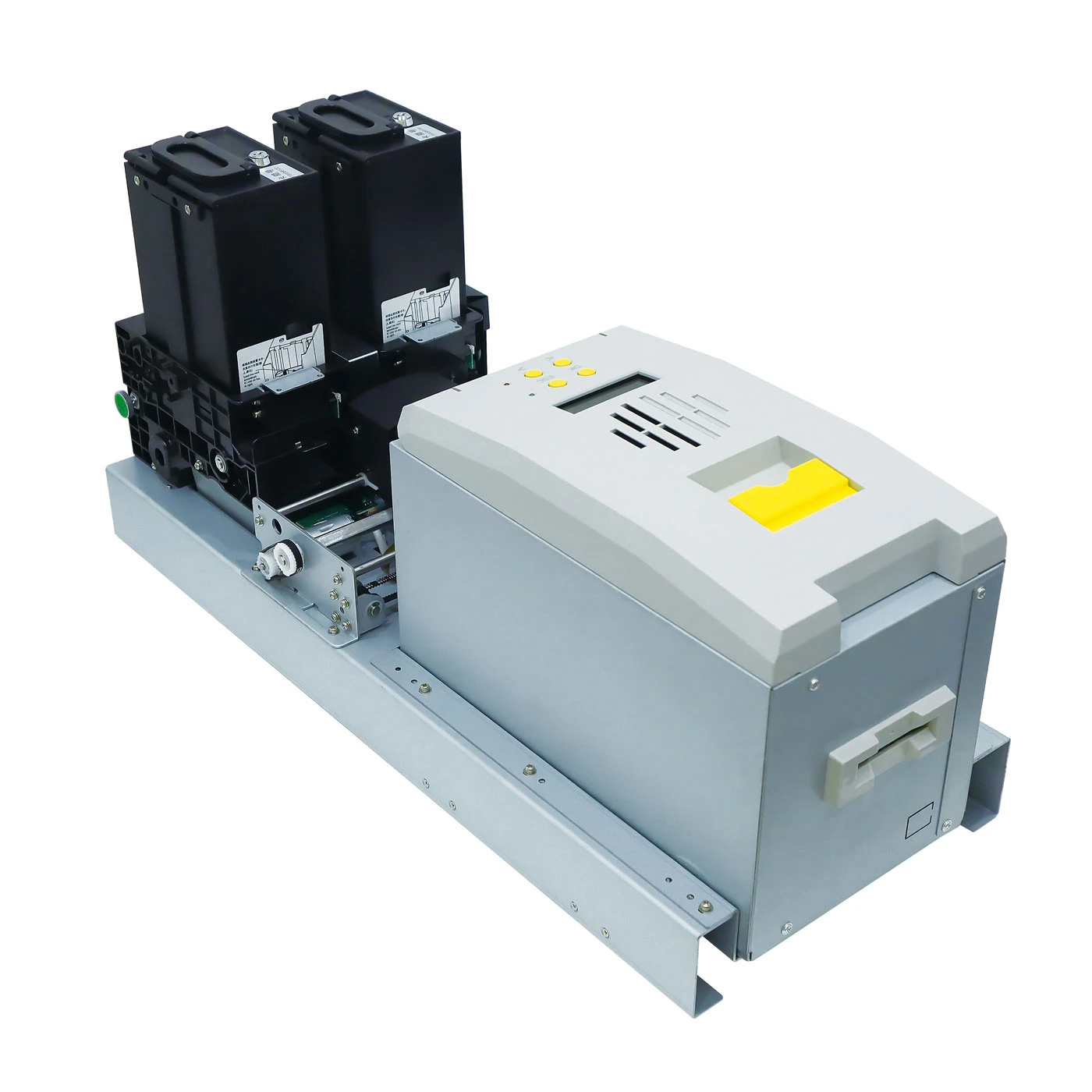

SNR-CP22K-D Dual-Hopper Kiosk Card Printer
Two detachable, lockable card cassettes built on a proven dye-sublimation CR80 print engine — one kiosk, two card types, secure and unattended.
"*" indicates required fields
Overview
The SNR-CP22K-D is a dual-hopper version of the SNR-CP22K embedded card printer, purpose-built for deployments that need to issue two card types from a single self-service terminal. It integrates the same reliable dye-sublimation direct-to-card CR80 printing engine with two independent, detachable and lockable card cassettes.
Hotel chains can print guest room cards and staff cards from one lobby kiosk; membership operators can issue standard and VIP tiers without on-site visits; campus and government kiosks can switch between card materials automatically. Each cassette is locked and removable — blank cards stay secure in public locations, and refilling takes seconds on site.
Looking for the single-hopper version? See the SNR-CP22K standard embedded card printer.
Key Features
Two Card Types in One Kiosk — Load two card materials, colors or tiers (for example, PVC and composite cards, guest cards and staff cards, standard and VIP membership cards), and every job is routed to the correct cassette automatically.
Dual Detachable Lockable Cassettes — Two independent lockable cassettes, removable for fast on-site refilling and lockable to protect blank cards in unattended public spaces.
Card Level Monitoring & Jam Protection — Stack inspection with pre-empty, low-card and out-of-card alarms; anti-overturn and anti-slanting cassette design keeps feeding reliable with minimum operator attention.
Single & Dual-Sided Dye-Sublimation Printing — 300 × 300 dpi standard (up to 300 × 1200 dpi optional), edge-to-edge CR80 cards, full-color YMCKO at 20 s single-sided / 42 s dual-sided.
Optional Built-In Encoding — Add contact IC, contactless ID, UHF or magnetic stripe encoding (tracks 1–3) so the dual-hopper system prints, encodes and dispenses in one unattended step.
Three Host Interfaces — USB, Ethernet (TCP/IP, static IP) and RS232, ready for local or networked kiosk software.
Windows / Linux / Android Ready — Drivers and SDK support for fast kiosk integration; multi-language LCM display for on-site status.
Which Version Do You Need?
| SNR-CP22K | SNR-CP22K-D | |
|---|---|---|
| Input | 1 × 100 / 400 / 200-lockable hopper | 2 × detachable lockable cassettes |
| Card types per kiosk | One | Two |
| Best for | Single-card, high-volume issuance | Two tiers / secure public locations |
| Typical use | Visitor badges, membership cards | Hotels, dual-tier membership, campus |
Typical Applications
Hotel guest & staff card issuance · Dual-tier membership kiosks · Campus & staff ID distribution · Public-service dual-card kiosks · Visitor + contractor card desks
Technical Specifications
| Item | Specification |
| Model | SNR-CP22K-D |
| Product Type | Dual-hopper embedded kiosk card printer |
| Print Method | Dye sublimation, direct-to-card |
| Resolution | 300 × 300 dpi (optional 300 × 600 / 300 × 1200 dpi) |
| Card Format | ISO CR80, 53.98 × 85.60 mm, edge-to-edge |
| Card Thickness | 0.3 – 1.05 mm (adjustable) |
| Input Cassettes | 2 × independent detachable lockable cassettes (capacity per cassette: 50 /100/150 cards) |
| Output / Reject | 50-card output · 30-card reject tray |
| Full-Color Speed | 20 s/card (single-sided) · 42 s/card (dual-sided) |
| Interfaces | USB / Ethernet / RS232 |
| Memory | 128 MB |
| Host OS | Windows XP / 7 / 8 / 10, Server 2003 / 2008 / 2012 / 2016, Linux, Android |
| Power | AC 100–240 V, 50/60 Hz · DC 24–25.5 V, 2.7 A |
Encoding & Ribbons
- Optional: contact IC · contactless ID · UHF · magnetic stripe (Low / High Co, tracks 1–3)
- Ribbons: YMCKO · YMCKOK · half-panel · monochrome K/W/R/B/Gold/Silver · KO · UV options
FAQ
Q: What does the “-D” mean?
A: Dual hopper. The SNR-CP22K-D is built on the same SNR-CP22K print engine but adds two detachable lockable card cassettes, so one kiosk can issue two different card types.
Q: Can I really load two different card materials?
A: Yes — for example, standard PVC cards in one cassette and composite cards in the other, or cards in two different colors. Each print job is sent to the matching cassette automatically.
Q: Why are the cassettes lockable?
A: In public unattended locations (lobbies, campuses, malls), blank cards are a cost and security risk. The lockable, removable cassettes let authorized staff refill cards quickly while preventing unauthorized access.
Q: How will I know when a cassette is running low?
A: The system supports stack inspection with pre-empty, low-card and out-of-card alarms, so your kiosk software can alert operators before service is interrupted.
Q: Is the print quality the same as the SNR-CP22K?
A: Yes — same dye-sublimation direct-to-card engine, 300 × 300 dpi (up to 1200 dpi optional), edge-to-edge CR80 printing at 20 s single-sided / 42 s dual-sided full color.
Q: Does it support card encoding?
A: Optional contact IC, contactless ID, UHF or magnetic stripe modules are available. Tell us your card technology when requesting a quote.
