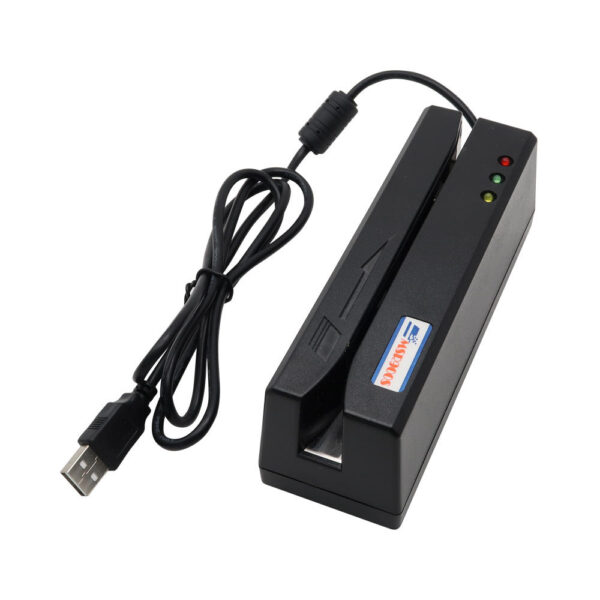

SNR-MSR900 USB Magnetic Stripe Reader Writer
SNR-MR900 is a USB magnetic stripe reader writer designed for POS systems, hotel key card encoding, loyalty card issuance, membership card management and time-attendance solutions. It supports Hi-Co / Lo-Co magnetic cards, 1 / 2 / 3 track magnetic stripe reading and writing, ISO format cards, MSR206 instruction compatibility, USB communication and power supply, 600mAh built-in battery, Windows / Android / WOSA / Linux support and approx. 10,000,000-pass magnetic head life.
"*" indicates required fields
3-Track Hi-Co / Lo-Co Magnetic Card Reader Writer for POS, Hotel Key Encoding and Loyalty Card Issuing
The SNR-MSR900 is a USB magnetic stripe reader writer designed for POS systems, hotel key card encoding, loyalty card issuance, membership card management and time-attendance solutions.
It supports Hi-Co and Lo-Co magnetic card reading and writing, 1 / 2 / 3-track magnetic stripe operation, ISO format compatibility and USB-powered communication. With compatibility with the MSR206 instruction set, SNR-MR900 provides a practical magnetic stripe card encoding solution for retail, hospitality, access control and attendance management systems.
The device supports multiple operating environments including Windows, Android and WOSA-based systems, making it suitable for desktop card issuing, service counters and system integration projects.
Key Features
- USB magnetic stripe reader writer
- Supports Hi-Co and Lo-Co magnetic cards
- Supports magnetic card reading and writing
- Supports 1 / 2 / 3 track magnetic stripe cards
- ISO format magnetic stripe card support
- USB communication interface
- USB-powered operation
- Built-in 600mAh battery
- Compatible with MSR206 instruction set
- Supports Windows, Android and WOSA systems
- Supports Windows 10 and Windows 11
- Magnetic head life up to approx. 10,000,000 passes
- Suitable for POS systems
- Suitable for hotel key card encoding
- Suitable for loyalty card issuing
- Suitable for membership card management
- Suitable for time-attendance solutions
- CE, FCC, UL and RoHS certified
Applications
- POS magnetic card systems
- Hotel key card encoding
- Loyalty card issuance
- Membership card management
- Time-attendance systems
- Access control card management
- Retail service counters
- Gift card issuing terminals
- Prepaid card encoding
- Employee card registration
- Visitor card issuing
- Banking card data testing
- Magnetic stripe card personalization
- Desktop card encoding workstations
Technical Specifications
Basic Specifications
| Item | Specification |
|---|---|
| Model | SNR-MSR900 |
| Product Type | USB Magnetic Stripe Reader Writer |
| Product Name | MSR900 Card Reader Writer |
| Communication Interface | USB |
| Power Supply | Via USB port |
| Built-in Battery Capacity | 600mAh |
| Operating Voltage | 5V |
| Instruction Set Compatibility | 100% compatible with MSR206 instruction set |
Magnetic Card Specifications
| Item | Specification |
|---|---|
| Supported Tracks | Track 1 / Track 2 / Track 3 |
| Recording Density | Track 1: 210 BPI |
| Recording Density | Track 2: 75 / 210 BPI optional |
| Recording Density | Track 3: 210 BPI |
| Magnetic Coercive Force | Read / write 300–4000 Oe magnetic card |
| Supported Magnetic Cards | Hi-Co / Lo-Co magnetic cards |
| Magnetic Format | ISO format magnetic stripe cards |
| Error Rate | Read <0.5%, Write <0.8% |
| Magnetic Head Life | Approx. 10,000,000 passes |
| Read Speed | 6.3–250cm/s |
Power Consumption
| Operation Mode | Consumption |
|---|---|
| Read | 50mA ±15% |
| Write | 2800mA ±15% |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -10℃ to 55℃ |
| Operating Humidity | 10%–85% RH |
| Storage Temperature | -30℃ to 70℃ |
| Storage Humidity | 10%–90% RH |
Why Choose SNR-MSR900?
SNR-MSR900 is suitable for projects that require USB magnetic card reading and writing with broad system compatibility and stable 3-track operation.
Compared with read-only magnetic stripe readers, SNR-MSR900 supports both reading and writing. Compared with simple desktop encoders, it offers Hi-Co / Lo-Co card support, ISO track compatibility, MSR206 instruction compatibility and a long magnetic head life of approximately 10,000,000 passes.
For POS systems, hotel key encoding, loyalty card issuance, membership management and time-attendance solutions, SNR-MR900 provides a reliable USB magnetic stripe reader writer solution.
Related Models
SNR-MR800 – Motorized magnetic, IC and RFID card reader writer for self-service sy stems
SNR-MR100 – Motorized IC / RFID / magnetic card reader writer with dual protective gate design
SNR-CD100 – Card dispenser with magnetic / IC / RF reader writer for self-service card issuing systems
SNR-CD100-M3 – Motorized magnetic / IC / RFID card reader writer and dispenser
SNR-CD212-M8 – Single hopper magnetic / IC / RFID card issuing machine
FAQ
What is SNR-MSR900 used for?
SNR-MSR900 is used as a USB magnetic stripe reader writer for POS systems, hotel key card encoding, loyalty card issuance, membership card management and time-attendance systems.
Does SNR-MSR900 support both reading and writing?
Yes. It supports magnetic stripe card reading and writing.
How many tracks does it support?
It supports Track 1, Track 2 and Track 3 magnetic stripe cards.
Does it support Hi-Co and Lo-Co magnetic cards?
Yes. It supports both Hi-Co and Lo-Co magnetic cards, with magnetic coercive force from 300 to 4000 Oe.
Is it compatible with MSR206 commands?
Yes. It is compatible with the MSR206 instruction set.
What interface does it use?
It uses a USB communication interface and can be powered through the USB port.
Does it have a built-in battery?
Yes. It includes a built-in 600mAh battery.
What operating systems are supported?
It supports Windows 10, Windows 11, Android, WOSA, Windows 7, Windows 2008, Windows Vista, Windows 2003, Windows 2000, Windows XP and Linux.
What is the magnetic head lifetime?
The magnetic head life is approximately 10,000,000 passes.
What certifications are available?
SNR-MR900 is certified with CE, FCC, UL and RoHS.
