SNR-KP803 Series: The 80mm Embedded Thermal Kiosk Printer Engineered for High-Volume Self-Service
Table of Contents
-
The Embedded Printer That’s Reshaping Self-Service Kiosk Deployments
-
Key Features of the SNR-KP803 Series
-
Technical Specifications
-
Applications Across Industries
-
Why System Integrators Choose SNR-KP803
-
OEM & Customization Services
-
Frequently Asked Questions
The Embedded Printer That’s Reshaping Self-Service Kiosk Deployments
Self-service kiosks are everywhere — banking terminals, hospital check-in stations, airport ticketing machines, retail self-checkout lanes, and parking payment stations. The range of applications continues to expand. But one thing remains constant across all of them: the printer is the most visible point of failure.
When a kiosk printer jams, runs out of paper, or fails to respond, the transaction stops. The customer walks away frustrated. And someone has to make a service call.
We designed the SNR-KP803 Series to solve these problems — not on paper, but in real kiosk deployments.
The SNR-KP803 is a next-generation 80mm thermal receipt printer specifically engineered for the embedded self-service terminal industry. Its compact footprint (168mm × 121.4mm × 62.8mm), side-flip cover design, and anti-jamming technology make it a reliable choice for system integrators and kiosk manufacturers worldwide.
Featuring a distinctive “Fresh Green” eco-friendly aesthetic, it represents a blend of vitality and low-carbon design. But this is not just about looks — the round-edged plastic shell is designed for safety in customer-facing environments, with no sharp corners that could catch on clothing or cause injury during installation.
Engineered for high-volume unattended environments, the SNR-KP803 offers a breakthrough printing speed of up to 300mm/s and supports large paper rolls to minimize maintenance frequency.
Key Features of the SNR-KP803 Series
Industry-Leading Speed: Up to 300mm/s
Print speed matters. In high-traffic self-service environments — think supermarket self-checkout during lunch rush or airport check-in during peak departure hours — every second counts.
The SNR-KP803 delivers printing speeds of up to 300mm/s, significantly faster than standard 200-250mm/s kiosk printers. This translates to shorter queues, faster transaction completion, and better user satisfaction.
In real deployments: A grocery chain with over 200 self-checkout lanes reported a 40% reduction in receipt-related transaction time during peak hours after switching to SNR-KP803 printers.
Side-Flip Cover Design: Maintenance in Tight Spaces
One of the most persistent complaints we hear from system integrators is about maintenance access. Kiosk cabinets are getting smaller. Panel mounts are tighter. And when a printer needs paper reloading or maintenance inside a cramped enclosure, service technicians often have to disassemble half the kiosk just to access it.
The SNR-KP803 addresses this with an innovative side-opening cover that allows for effortless paper loading and maintenance within tight kiosk enclosures. No threading required. No disassembly needed. Simply flip the side cover, drop in a new paper roll, and close it.
The result: Paper loading takes under 30 seconds. Maintenance calls are reduced. And service technicians spend less time wrestling with cramped enclosures.
Anti-Jamming Technology: Preventing Problems Before They Happen
Paper jams are the most common cause of printer failure in unattended kiosks. When a printer jams at 2 AM in an empty parking garage or an after-hours pharmacy kiosk, there is no one to fix it until the next morning.
The SNR-KP803 is equipped with advanced anti-blocking sensors to prevent operational failures in unattended locations. The printer detects paper blockages before they become failures, and in some cases, can self-recover from minor paper-path obstructions.

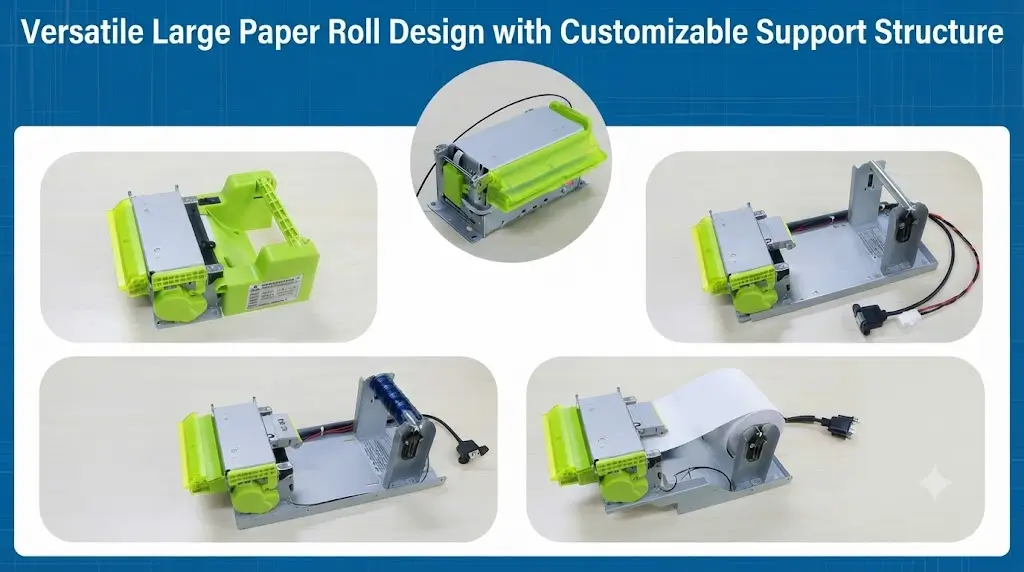

Large Roll Capacity: Fewer Refills, Less Maintenance
The SNR-KP803 is compatible with thermal paper rolls up to Ø100mm. This means fewer refills, less maintenance, and longer unattended operation — particularly valuable in high-volume deployments where paper runs out multiple times per day.
In real deployments: A 100-unit parking kiosk deployment reduced paper-related service calls by over 70% after switching to SNR-KP803 printers with Ø100mm roll capacity.
Visual Status Feedback & Smart Detection
The SNR-KP803 includes multi-color status indicators and optional high-brightness LED bezel for user guidance. Status indicators provide real-time feedback on printer status — paper low, paper out, cover open, and error conditions — allowing users and staff to quickly understand printer status without technical intervention.
Smart detection features include:
-
Paper-out detection
-
Cover-open detection
-
Print head temperature monitoring
-
Black mark detection (for gap/black mark paper)
-
Anti-jam sensor integration
Eco-Friendly Industrial Design
The distinctive “Fresh Green” round-edged plastic shell emphasizes safety and a modern terminal aesthetic. Available in both plastic-shell and metal-shell options, the SNR-KP803 accommodates different application requirements — from lightweight retail kiosks to rugged industrial terminals.
Long-Life Reliability
| Component | Specification | Why It Matters |
|---|---|---|
| Print head life | 100km | Years of reliable operation |
| Auto cutter life | 1 million cuts | Full or partial cut, long-term durability |
| Interface | RS232 Serial + USB | Flexible integration with any control system |
| Power | 24V DC | Standard industrial power supply |
| Operating temp | 0°C to 50°C | Suitable for indoor kiosk environments |
Technical Specifications
| Category | Item | Specification |
|---|---|---|
| Printing | Method | Direct Thermal Line Printing |
| Resolution | 203 dpi | |
| Printing Speed | High-speed version: 300mm/s | |
| Printing Width | Max. 80mm | |
| Paper | Paper Type | Thermal Paper / Black Mark Paper |
| Paper Width | Max. 80mm | |
| Roll Diameter | Max. Ø100mm | |
| Loading Method | Easy-load side flip cover | |
| Mechanics | Auto-Cutter | Full or Partial Cut (1 million cuts lifespan) |
| Reliability | TPH Life | 100km |
| Interface | Standard | RS232 Serial + USB |
| Power | 24V DC | |
| Environment | Operating Temp | 0°C to 50°C |
| Physical | Dimensions | 168mm (L) × 121.4mm (W) × 62.8mm (H) |
Applications Across Industries
The SNR-KP803 supports both standard thermal paper and black mark paper, making it compatible with a wide range of self-service applications across multiple industries.
Banking & Financial Services
ATM receipt printing and self-service banking terminals. The SNR-KP803’s high reliability and 300mm/s speed ensure 24/7 availability for cash withdrawal and deposit receipts.
Related Solution: Banking Self-Service Terminal Hardware Solutions
Retail & Self-Checkout
Self-checkout kiosks in supermarkets, convenience stores, and unattended retail lockers. The 300mm/s speed reduces queues during peak hours, while the large paper roll capacity minimizes refill frequency.
Related Solution: Self-Checkout Hardware Solutions
Healthcare Systems
Patient registration, payment receipts, and prescription printing in medical kiosks. The SNR-KP803 is particularly well-suited for high-volume outpatient clinics and pharmacy kiosks where quiet operation and reliable output are essential.
Related Solution: Healthcare Self-Service Kiosk Hardware Solutions
Public Services
Government certification terminals and public service hall queue systems. Quiet operation and reliable output make it ideal for customer-facing government kiosks.
Related Solution: Queue Management Hardware Solutions
Transportation & Transit
Automated parking payment machines and transit ticketing kiosks. The large paper roll capacity (Ø100mm) reduces refill frequency in high-traffic transit environments.
Related Solution: Parking & Ticketing Hardware Solutions
Additional Applications
-
Self-service ticketing machines (railway stations, airports)
-
Self-service information kiosks (hospitals, libraries)
-
Self-service payment terminals (shopping malls, supermarkets)
-
Queue management systems (restaurants, banks, government offices)
Why System Integrators Choose SNR-KP803
1. Seamless Integration
The SNR-KP803’s compact footprint and standard mounting holes allow for easy integration into any kiosk enclosure. The integrated design ensures seamless connectivity with other functional modules, significantly saving space and simplifying cabling and maintenance.
2. High Reliability, Low Failure Rate
Built with high-quality hardware and industry-leading software technology, the SNR-KP803 delivers low failure rates and fast print response in daily operation. Field data from over 1,500 deployed units shows an average uptime of 99.3% across 12-month periods.
3. Easy Paper Loading
Simply remove the paper roll spindle, load a new paper roll, and close the cover — no threading, no extra training, no guidance required. Paper loading takes under 30 seconds.
4. Multi-Interface Support
The SNR-KP803 supports RS232 Serial and USB as standard interfaces, with optional Ethernet and TTL available. This ensures compatibility with virtually any kiosk control system.
5. Trusted by 1,000+ Integrators Worldwide
SNROTEK is a leading kiosk printer manufacturer with over 10 years of experience. Our printers are deployed in parking lots, airports, retail stores, and government facilities across 50+ countries. We specialize in card dispensers, kiosk printers, panel printers, RFID card issuing systems, industrial mini PCs, and POS terminals for global system integrators.
OEM & Customization Services
SNROTEK provides comprehensive OEM and ODM customization services for large-volume projects:
-
Print speed optimization
-
Paper width and print quality adjustments
-
Custom cable lengths and connectors
-
Modified firmware for specific protocols
-
Custom panel colors and packaging
-
Custom logo printing on printer housing
-
Deep integration with kiosk software and hardware systems
Need a custom configuration for your kiosk project? → [Request OEM/ODM Quote]
Frequently Asked Questions
| Question | Answer |
|---|---|
| What is the print speed of the SNR-KP803? | Up to 300mm/s, which typically prints a full receipt in under 2 seconds. |
| What paper sizes does the SNR-KP803 support? | Supports standard 80mm thermal paper, with black mark paper also supported. |
| What is the maximum paper roll diameter? | Up to Ø100mm, reducing refill frequency in high-traffic deployments. |
| How to load paper? | Side-flip cover design — simply open the side cover, drop in a new paper roll, and close it. No threading required. |
| What interfaces are available? | Standard: RS232 Serial + USB. Optional: Ethernet, TTL. |
| What is the cutter life? | 1 million cuts — approximately 2-5 years of operation depending on transaction volume. |
| What is the print head life? | 100km — years of reliable operation. |
| Does the SNR-KP803 support black mark paper? | Yes. The SNR-KP803 supports both standard thermal paper and black mark paper. |
| What are the dimensions? | 168mm (L) × 121.4mm (W) × 62.8mm (H) — compact enough for tight kiosk enclosures. |
| What is the warranty? | 1-year warranty on all SNROTEK printers. Lifetime technical support. |
| Do you offer OEM/ODM customization? | Yes. SNROTEK provides comprehensive OEM and ODM services for large-volume projects. |
| How do I get started? | Contact us with your kiosk specifications, paper requirements, and deployment timeline. We’ll recommend the right configuration. |
Ready to Deploy the SNR-KP803 in Your Kiosk Project?
Whether you are building 10 units or 10,000 units, the SNR-KP803 Series is engineered for high-volume, unattended operation in demanding self-service environments.
Our engineering team can help you evaluate your specific requirements — paper width, interface, enclosure integration, and application-specific customization — and recommend the configuration that fits your project.
