How to Choose a Kiosk Printer for Ticket Kiosks?
In a ticket kiosk project, the printer is usually judged at the moment the user needs the printed ticket to work: at an entrance gate, a transport checkpoint, a service counter, a parking exit, or a venue validation point.
If the ticket prints clearly and scans correctly, the transaction feels complete.
If the ticket jams, cuts poorly, prints a weak barcode, or is pulled before the output is ready, the problem quickly moves beyond the printer. It can delay entry, create manual service work, interrupt a queue, or make the user question whether the transaction was successful.
That is why ticket kiosk printer selection should start from the real ticket workflow, not only from print speed or hardware cost.
For ticketing system providers, kiosk manufacturers, system integrators, venue operators, transport solution teams, and OEM hardware teams, the printer should be planned as part of the ticketing architecture. It needs to match the ticket format, scanner or validator workflow, cabinet structure, software platform, output behavior, and maintenance plan.
This guide explains how to choose a kiosk printer for ticket kiosks based on ticket layout, QR code and barcode readability, paper width, cutter or presenter output, peak ticket volume, software integration, paper replacement, and field deployment reality.
Quick Answer
For many ticket kiosks and ticket vending machines, an 80mm embedded thermal kiosk printer is a practical starting point. It gives more layout room for QR codes, barcodes, event details, route information, seat data, payment records, validation references, and service instructions.
However, the right printer depends on the ticket workflow.
Use 58mm or 60mm when the kiosk prints short queue tickets, simple service numbers, or compact claim slips.
Use 80mm when the kiosk prints full tickets, QR codes, barcodes, route details, event information, payment records, parking validation data, or longer instructions.
Evaluate a presenter printer when the kiosk is unattended, users may pull tickets early, ticket collection behavior needs control, or uncollected tickets may affect operation.
Before selecting the printer, test the real ticket layout, barcode or QR code readability, output slot alignment, paper loading method, operating system, interface, driver or SDK resources, printer status feedback, and pilot operation under realistic peak traffic.
Basic Concepts
What Is a Ticket Kiosk Printer?
A ticket kiosk printer is an embedded thermal printer installed inside a self-service ticketing terminal.
It prints the physical ticket, receipt, queue slip, validation record, or claim reference that the user may need after a transaction.
Depending on the project, it may print:
- Event tickets
- Transport tickets
- Parking tickets
- Queue tickets
- Admission slips
- Payment receipts
- Pickup or claim references
- QR codes
- Barcodes
- Route, seat, time, or zone information
- Validation records
- Operator service records
The printer must fit the enclosure, communicate with the host software, support the required operating system, and remain serviceable during real deployment.
Why Ticket Output Is Different from a Simple Receipt
A receipt may only confirm that a transaction happened.
A ticket often needs to work later in the same workflow. It may be scanned at a gate, checked by staff, used for entry, matched with a booking record, validated at a parking exit, or used as a pickup reference.
This makes ticket clarity more important. If a QR code, barcode, route line, seat number, pickup code, or validation reference is hard to read, the ticket may create a service issue downstream.
Why Thermal Printing Is Common in Ticket Kiosks
Thermal printing is commonly used in ticket kiosks because it is compact, fast, and does not require ink or ribbons.
For unattended ticketing terminals, this reduces consumable complexity. Operators mainly need to manage paper replacement, paper path cleaning, and printer status alerts.
Ticket Types and Printer Requirements
Before choosing the printer, prepare real ticket templates. A sample ticket with short test text is not enough.
| Ticket or Printout Type | Typical Content | Printer Selection Focus |
|---|---|---|
| Event ticket | Event name, time, seat, QR code, ticket ID | Layout width, QR readability, output control |
| Transport ticket | Route, fare, date, time, zone, barcode | Text clarity and validation readability |
| Parking ticket or receipt | Entry time, exit time, payment record, QR reference | Reliability and unattended output handling |
| Queue ticket | Queue number, service area, timestamp | Compact output and fast collection |
| Admission slip | Entry reference, QR code, barcode, service note | Code clarity and paper handling |
| Claim or pickup slip | Claim number, pickup code, location | Reference readability and output consistency |
| Payment receipt | Transaction record, amount, tax, service reference | 80mm layout and clear line structure |
| Validation record | Ticket ID, barcode, terminal reference | Scanner compatibility and print clarity |
This table helps project teams separate short-ticket workflows from full-ticket workflows. It also prevents choosing a narrow printer before the real ticket content is confirmed.
58mm / 60mm vs 80mm for Ticket Kiosks
Paper width should be decided by ticket content, not only by cabinet space.
| Selection Point | 58mm / 60mm Printer | 80mm Printer |
|---|---|---|
| Best fit | Queue tickets and short slips | Full tickets and detailed records |
| Ticket layout | Limited line width | More room for QR codes, barcodes, and text |
| QR code room | Must be tested carefully | More layout room for QR codes |
| Barcode room | Limited by paper width | Easier to support validation layouts |
| Cabinet size | Easier for compact kiosks | Requires more internal and outlet space |
| Paper capacity | Often smaller in compact designs | Better for busy ticketing locations if larger rolls are supported |
| Ticketing use | Simple ticket numbers and claim slips | Event, transport, parking, payment, or validation tickets |
| Project risk | Ticket may become crowded if requirements grow | Needs more enclosure and service-access planning |
For many ticket kiosks, 80mm is the safer direction when the ticket includes QR codes, barcodes, route details, event information, payment records, seat data, or validation references.
If the project may later add more ticket data, test the 80mm format before freezing the cabinet drawing.

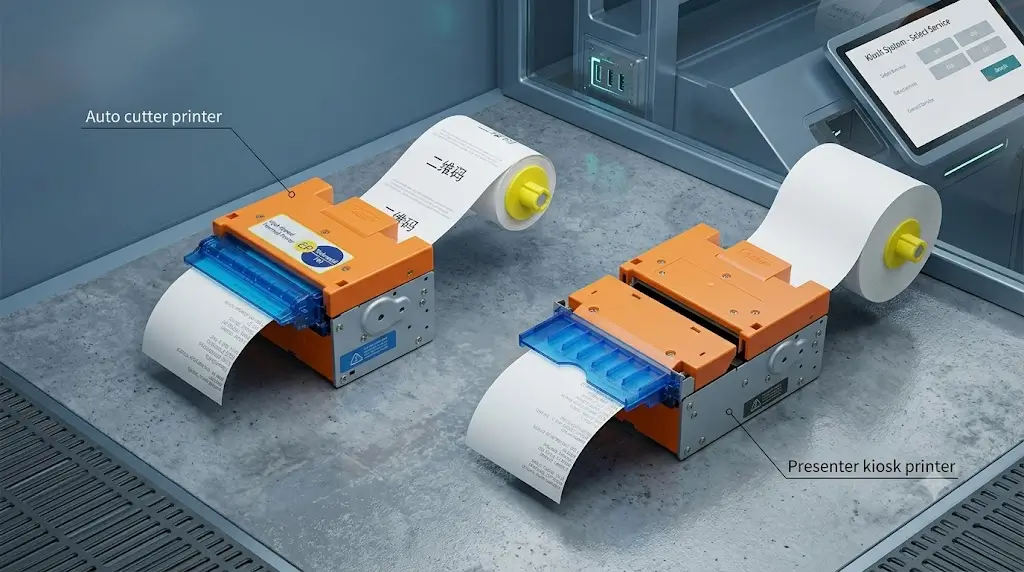

Standard Cutter vs Presenter Printer
The output method is just as important as paper width.
A standard cutter printer cuts the ticket and lets the user take it directly from the output slot. This can work in supervised or simple ticketing environments.
A presenter printer holds and controls the ticket before presenting it to the user. This can help when users pull tickets early, leave tickets behind, or when the kiosk needs more controlled output handling
| Selection Point | Standard Cutter Printer | Presenter Kiosk Printer |
|---|---|---|
| Best fit | Simple or supervised ticket output | Unattended or high-volume ticket kiosk |
| User behavior | Works when users collect normally | Better when early pulling is a concern |
| Output control | Prints and cuts at the outlet | Holds and presents the ticket in a controlled way |
| Uncollected tickets | Less control | Can be evaluated when collection behavior matters |
| Mechanical design | Usually simpler | Requires more output-slot planning |
| Ticketing use | Queue, claim, or simple ticket output | Entry, payment, validation, or high-traffic ticket workflows |
If the ticket is important for entry, validation, payment proof, or service continuity, presenter-style output may be worth evaluating during prototype planning.
Architecture / Workflow Layer
A ticket kiosk printer works inside a broader ticketing system. It should be reviewed together with the software, scanner, validator, and backend workflow.
A typical ticket kiosk workflow may include:
User interface -> Ticketing software -> Payment or booking module -> Receipt / ticket trigger -> Embedded kiosk printer -> Scanner or validator -> Ticketing platform -> Entry gate or service process
Depending on the project, the kiosk may include:
- Touchscreen
- Payment terminal
- QR code or barcode scanner
- Ticket printer
- Industrial mini PC or Android controller
- Network module
- Remote monitoring software
- Ticketing platform integration
- Access gate or validation system
- Staff service interface
The printer should be selected before the enclosure is finalized. Late printer changes can affect the ticket outlet, paper roll space, service door, cable routing, driver testing, software commands, and ticket layout.
What Experienced Integrators Usually Evaluate
Experienced ticket kiosk teams do not choose a printer only by print speed. They evaluate the complete ticketing workflow.
Important questions include:
- What type of ticket will the kiosk print?
- Will the ticket include QR codes or barcodes?
- Will it include seat, route, time, gate, parking, or claim data?
- Is 58mm, 60mm, or 80mm paper suitable for the real layout?
- Does the ticket need to be cut or presented in a controlled way?
- Will users pull the ticket before cutting is complete?
- What happens if a ticket is not collected?
- Can staff replace paper quickly during peak periods?
- Does the printer fit the cabinet, outlet, and service door?
- Does the printer support the selected operating system?
- Are Windows, Linux, or Android drivers available?
- Is SDK or command-level integration required?
- Can the software monitor paper status, cutter status, presenter status, or error events?
- Can the same printer choice support pilot testing and rollout?
These questions matter because ticket kiosks often operate during short peak periods. A printer that works in a demo may still create field issues if output handling, ticket layout, scanner validation, or maintenance access is weak.
Deployment Reality
Ticket kiosk printer projects often look simple during prototype testing. A sample ticket prints correctly. The QR code appears. The software sends commands. The cabinet looks ready.
Field operation is different.
Users may print tickets quickly. Some users pull tickets early. Some leave tickets behind. Staff may need to replace paper during busy periods. Tickets may need to stay readable for scanning, entry, payment proof, or later validation.
This creates several real deployment requirements:
- Test tickets with real layout data.
- Check QR code and barcode readability.
- Confirm paper replacement time.
- Review output slot alignment.
- Verify cutter or presenter behavior.
- Plan for uncollected tickets if needed.
- Confirm driver and SDK resources early.
- Review mechanical files before cabinet tooling.
- Run pilot tests during realistic peak traffic.
For rollout projects, the printer should be tested as part of the complete ticketing workflow. It should not be tested only as a standalone printer on a workbench.
Application Scenarios
Ticket Vending Machines
Ticket vending machines may print transport tickets, attraction tickets, event tickets, payment receipts, or access slips.
Ticket layout, QR code readability, and peak-hour output should be tested early.
Queue Ticket Kiosks
Queue kiosks may print short service numbers, service area labels, and timestamps.
A compact printer may be enough if the ticket format is simple and the cabinet has limited space.
Event and Venue Ticket Kiosks
Event kiosks may print admission tickets, seat information, pickup references, payment receipts, or QR code entry records.
High-traffic windows make printer reliability, paper roll planning, and paper replacement access important.
Parking Ticket Kiosks
Parking kiosks may print entry tickets, payment receipts, validation slips, QR references, or exit records.
User pulling behavior and unattended operation should be considered early.
Transport and Transit Ticket Kiosks
Transport kiosks may print route, fare, date, time, zone, QR code, barcode, or validation information.
Clear layout and code readability are important because the ticket may be checked by scanner, gate, or staff.
Self-Service Pickup and Claim Kiosks
Pickup kiosks may print claim numbers, collection slips, service references, or QR codes.
The printer should support clear reference output and simple maintenance.
How to Choose
1. Confirm the Ticket Format First
Start with the real ticket template. Do not choose the printer only from a hardware list.
Confirm whether the ticket includes:
- Ticket number
- QR code
- Barcode
- Event, route, seat, or service information
- Payment record
- Validation reference
- Pickup or claim code
- Date and time
- Terminal ID
- Operator or venue information
- Terms or service notes
If the ticket is information-dense, 80mm paper is usually easier to use.
2. Choose the Paper Width
Use 58mm or 60mm when the kiosk prints short queue tickets, simple numbers, or compact claim slips.
Use 80mm when the kiosk prints full tickets, QR codes, barcodes, payment records, route information, event information, or longer text.
For many ticket kiosks, 80mm gives more layout flexibility and better readability.
3. Decide Between Standard Cutter and Presenter
If the kiosk is supervised and users collect tickets normally, a standard cutter printer may be enough.
If the kiosk is unattended, high-volume, or affected by early pulling or uncollected tickets, evaluate a presenter printer.
This decision should be made before enclosure design is locked.
4. Review Cabinet Space and Service Access
The printer must fit inside the kiosk with enough room for:
- Paper roll
- Output path
- Cutter or presenter structure
- Cable routing
- Mounting structure
- Service access
- Jam clearing
- Front or side paper replacement
If staff cannot replace paper quickly, the kiosk may become unavailable during peak ticketing periods.
5. Confirm Operating System and Interface
Ticket kiosks may use Windows, Linux, Android, or embedded controller platforms.
Before selecting the printer, confirm:
- USB, serial, Ethernet, or other interface requirement
- Driver availability
- SDK availability
- Command support
- Printer status feedback
- Compatibility with ticketing software
- Backend platform workflow requirements
This step reduces integration risk during prototype testing.

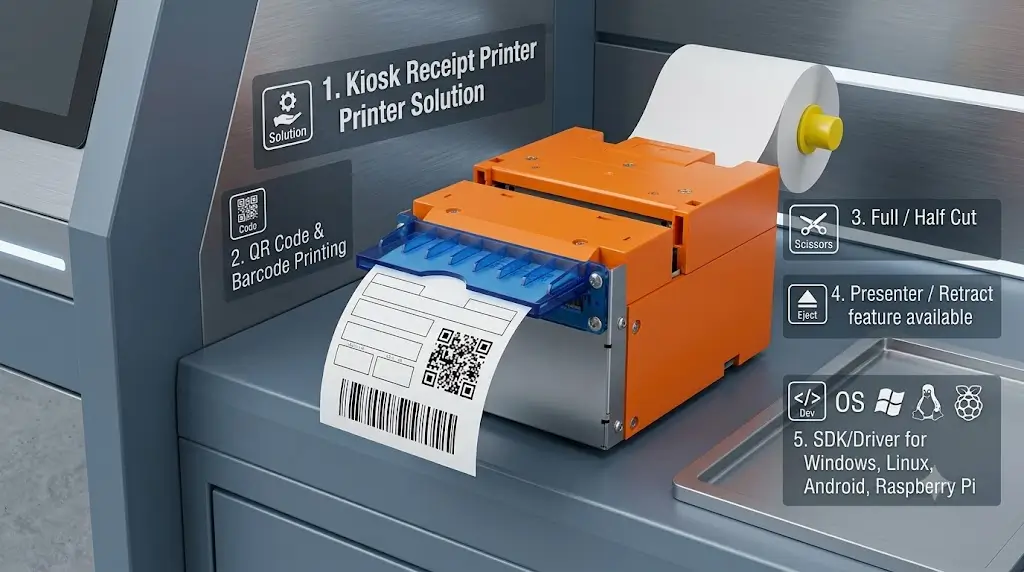

6. Test QR Code and Barcode Readability
Sample text is not enough.
Test the printer with real QR codes, barcodes, ticket numbers, validation references, and ticket layouts.
Also test the actual scanner, validator, gate, or staff workflow that will read the ticket. Printer output and validation workflow should be checked together.
7. Plan for Pilot and Rollout
The printer used in prototype testing should be realistic for future deployment.
Changing the printer later may affect the enclosure, wiring, ticket layout, software, driver testing, and service workflow.
For multi-location rollouts, use pilot testing to confirm paper consumption, maintenance frequency, user collection behavior, and printer status monitoring.
Recommended SNRO Printer Shortlist
Different ticket kiosk projects require different printer configurations. The final selection should be confirmed according to ticket width, enclosure design, operating system, interface, output method, and deployment quantity.
SNR-KP800 Series 80mm Kiosk Printer
Recommended for mainstream ticket kiosks that need 80mm ticket or receipt output.
Typical evaluation scenarios include ticket vending machines, event ticket kiosks, transport ticket terminals, payment and ticket receipt kiosks, and general self-service ticketing systems.
Use this direction when ticket clarity and 80mm layout space matter. Verify interface, operating system, mechanical requirements, paper loading access, and ticket layout before selection.
SNR-KP802-VX Presenter Kiosk Printer
Recommended for projects where controlled ticket output is important.
Typical evaluation scenarios include high-volume ticket kiosks, unattended ticket vending machines, kiosks where users may pull tickets early, and projects that require controlled ticket presentation.
Use this direction when user behavior and output control are key concerns. Verify cabinet space, output slot design, presenter workflow, and software status handling before selection.
SNR-KP805 80mm Kiosk Thermal Printer
Recommended for 80mm ticket or receipt output where the project needs to balance ticket layout, enclosure planning, and cost control.
Typical evaluation scenarios include ticket receipt kiosks, payment confirmation terminals, event or venue ticketing terminals, and multi-location rollout planning.
Verify paper capacity, service access, interface, and operating system support before final approval.
SNR-KP800-CM Parking Ticket Printer
Recommended for ticket kiosk projects that need stable ticket or receipt output in parking, payment, validation, or self-service ticketing workflows.
Typical evaluation scenarios include parking ticket kiosks, payment receipt terminals, validation ticket output, and ticket kiosks where the printed record may be used later for entry, exit, payment proof, or service verification.
Use this direction when the project needs an 80mm-class printer option with ticketing and parking receipt relevance. Verify the real ticket layout, cabinet space, interface, operating system, paper path, and service access before final approval.
SNR-KP602 Series Compact Kiosk Printer
Recommended only when the kiosk prints short tickets and the enclosure has limited space.
Typical evaluation scenarios include queue ticket kiosks, compact claim ticket terminals, short validation slips, and small-format ticket output.
Before choosing a compact printer, test whether the paper width is enough for the real ticket, QR code, barcode, and service content.
Final Selection Checklist
| Check Item | Why It Matters |
|---|---|
| Real ticket sample | Confirms paper width, layout, QR code, barcode, and validation content |
| Longest ticket format | Tests event, route, seat, payment, terms, and multi-language text |
| QR code or barcode content | Needs enough width, quiet zone, and print clarity |
| Scanner or validator workflow | Confirms whether printed codes can be read in the real system |
| Kiosk enclosure drawing | Checks printer depth, output slot, paper roll space, and service access |
| Output method | Clarifies standard cutter or presenter requirements |
| Paper roll space | Affects refill frequency during peak ticketing periods |
| Paper loading method | Determines whether staff can reload paper quickly |
| Operating system | Confirms driver or SDK support direction |
| Interface requirement | Helps match USB, serial, Ethernet, or other communication needs |
| Printer status feedback | Helps software handle paper-out, cutter, presenter, or jam events |
| Peak ticket volume | Helps evaluate output flow and maintenance frequency |
| Pilot or rollout quantity | Helps plan model consistency and supply planning |
If several items are still unclear, the project is probably not ready for final printer approval. It is better to confirm these details before cabinet tooling or batch purchasing.
What Successful Deployments Usually Have in Common
Successful ticket kiosk printer deployments usually share several patterns.
The printer is selected before enclosure design is finalized.
Ticket layouts are tested with real data.
QR codes and barcodes are verified with real scanners or validators.
Paper replacement is simple for staff.
The output slot matches user collection behavior.
Cutter or presenter behavior is tested under repeated use.
The software can handle printer errors where required.
Driver and SDK resources are confirmed early.
Pilot testing reflects real peak traffic.
These details may look small during planning. In the field, they often decide whether the ticket kiosk stays available during high-demand periods.
Conclusion
Choosing a kiosk printer for a ticket kiosk is not only about print speed or price.
The printer must match the ticket format, kiosk enclosure, QR code or barcode workflow, user behavior, software platform, maintenance process, and rollout plan.
For many ticket kiosks, an 80mm embedded thermal printer is a practical starting point. For compact queue or claim ticket terminals, a smaller printer may work. For unattended or high-volume deployments, presenter-style output may also be worth evaluating.
The safest approach is to test the printer with real ticket layouts, real scanner validation, real cabinet constraints, and realistic peak traffic before mass production.
Need a Printer Shortlist for Your Ticket Kiosk Project?
Share your ticket sample, QR code or barcode content, scanner or validator workflow, cabinet drawing, operating system, interface requirement, output method, expected peak ticket volume, and rollout quantity. SNRO can help you evaluate a practical kiosk printer direction for prototype testing and deployment planning.
Request a Ticket Kiosk Printer Shortlist
Related Resources
Hub and General Guides
- Kiosk Printer Hub
- Kiosk Printer Buying Guide
- 58mm vs 80mm Kiosk Printer Guide
- Presenter Printer vs Auto Cutter Printer Guide
Related Application Guides
- Self-Payment Kiosk Printer Guide
- Self-Checkout Kiosk Printer Guide
- Parking Kiosk Printer Guide
- Gaming and Lottery Printer Solution
Product References
- SNR-KP800 Series Product Reference
- SNR-KP802-VX Product Reference
- SNR-KP805 Product Reference
- SNR-KP800-CM Product Reference
- SNR-KP602 Series Product Reference
Technical Resources
FAQ
What printer is best for a ticket kiosk?
For many ticket kiosks, an embedded thermal kiosk printer is a practical starting point. If the ticket includes QR codes, barcodes, payment records, event details, route information, or validation content, an 80mm printer is often more flexible.
Is a 58mm printer enough for ticket kiosks?
A 58mm or 60mm printer may be enough for queue tickets, short claim slips, or simple ticket numbers. For full tickets, QR codes, barcodes, or payment records, 80mm is usually easier to read.
Should a ticket kiosk use a presenter printer?
A presenter printer may be useful when the kiosk is unattended, high-volume, or affected by users pulling tickets early. It may also help when uncollected tickets need better output handling.
What should be tested before choosing a ticket kiosk printer?
Test real ticket layouts, QR code readability, barcode readability, cutter or presenter behavior, paper replacement, output slot alignment, driver support, SDK integration, scanner validation, and peak-hour operation.
What operating systems should a ticket kiosk printer support?
Ticket kiosks may use Windows, Linux, Android, or embedded platforms. Driver, SDK, and command support should be confirmed before selecting the printer.
Why is QR code readability important for ticket kiosks?
Many tickets are scanned for entry, validation, payment proof, parking exit, or pickup. If the QR code or barcode is unclear, the ticket may cause delays or manual service work.
Can a ticket kiosk printer report paper-out or cutter errors?
Some kiosk printer configurations can provide status feedback such as paper-out, cutter, presenter, or error events. The project team should confirm status feedback requirements during integration.
Can SNRO recommend a printer for a ticket kiosk project?
Yes. SNRO can help evaluate a suitable printer direction based on ticket format, paper width, operating system, interface, enclosure space, output method, validator workflow, and expected deployment quantity.
