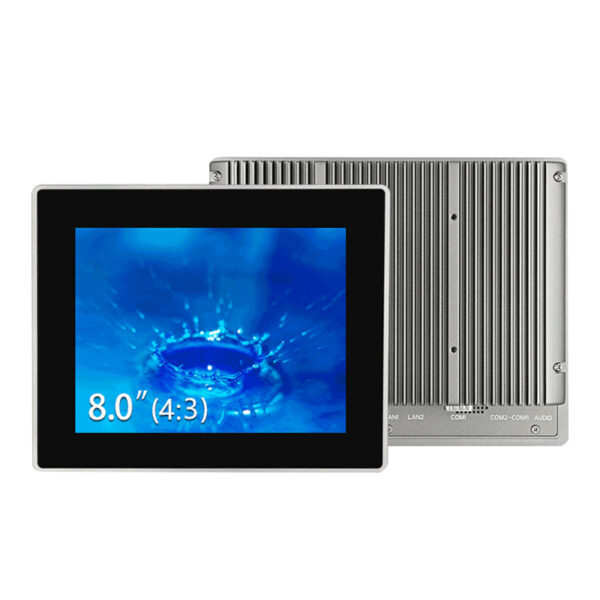

TPC-8001 Industrial Touch Screen Panel PC
TPC-8001 is a compact 8 inch fanless industrial touch screen panel PC designed for HMI systems, machine control, factory automation and embedded applications. It features Intel Celeron J1900 CPU, 800 × 600 TFT-LCD, optional 1024 × 768 resolution, front IP65 protection, resistive or capacitive touch options, dual LAN, RS232 / RS485 COM ports, HDMI, optional GPIO, mSATA / SATA storage and Windows / Linux support.
"*" indicates required fields
8 Inch Fanless Industrial Panel PC with Intel Celeron J1900 Processor
The TPC-8001 industrial touch screen panel PC is a compact 8 inch fanless industrial computer designed for HMI control, factory automation, equipment operation, embedded terminals, warehouse systems and self-service applications.
Powered by an onboard Intel Celeron J1900 CPU, TPC-8001 combines a compact TFT-LCD touch screen, aluminium alloy structure, front IP65 protection, dual LAN, multiple COM ports, mSATA / SATA storage and Windows / Linux support. It is suitable for space-limited industrial and embedded control environments that require stable 24/7 operation.
Key Features
- 8 inch industrial touch screen panel PC
- Onboard Intel Celeron J1900 processor
- Fanless aluminium alloy design
- One DDR3L memory slot, up to 8GB
- 800 × 600 TFT-LCD display
- 1024 × 768 resolution optional
- Front panel with IP65 protection
- 5-wire analog resistive touch screen
- Capacitive touch optional
- LCD + HDMI dual display support
- Synchronous / asynchronous display mode
- Dual Intel i211-AT Gigabit LAN ports
- Multiple COM ports with RS232 and RS485 support
- mSATA + 2.5 inch SATA storage support
- Full-height Mini PCIe with onboard SIM slot
- Supports 3G / 4G / WiFi module
- Optional 8-bit GPIO
- Watchdog timer: 1–255 seconds programmable
- VESA 75 / panel mount installation
- Operating temperature: -20℃ to 60℃
Applications
- Industrial automation
- HMI control systems
- Compact machine control panels
- Equipment operation terminals
- Factory data collection
- Warehouse control terminals
- Logistics automation
- Industrial monitoring terminals
- Medical equipment terminals
- Self-service kiosks
- Access control terminals
- Parking system control panels
- Energy management systems
- Embedded industrial display computers
- Compact touch operation terminals
Technical Specifications
System
| Item | Specification |
|---|---|
| Model | TPC-8001 |
| Product Type | Industrial Touch Screen Panel PC |
| Processor | Onboard Intel Celeron J1900 CPU |
| Memory | 1 × DDR3L memory slot |
| Maximum Memory | Up to 8GB |
| LAN | 2 × GbE RJ45 Intel i211-AT |
| Operating System | Windows 7 / 8 / 10, Linux |
| Watchdog Timer | 1–255 seconds programmable |
Display
| Item | Specification |
|---|---|
| Panel Size | 8.0 inch TFT-LCD |
| Resolution | 800 × 600 |
| Optional Resolution | 1024 × 768 |
| Max Colors | 16.7M |
| Brightness | 250 cd/m² |
| Viewing Angle | -85° to 85° horizontal, -85° to 85° vertical |
| Backlight | LED |
| Backlight MTBF | 50,000 hours |
| Display Output | LCD + HDMI |
| Display Mode | Synchronous / asynchronous dual display |

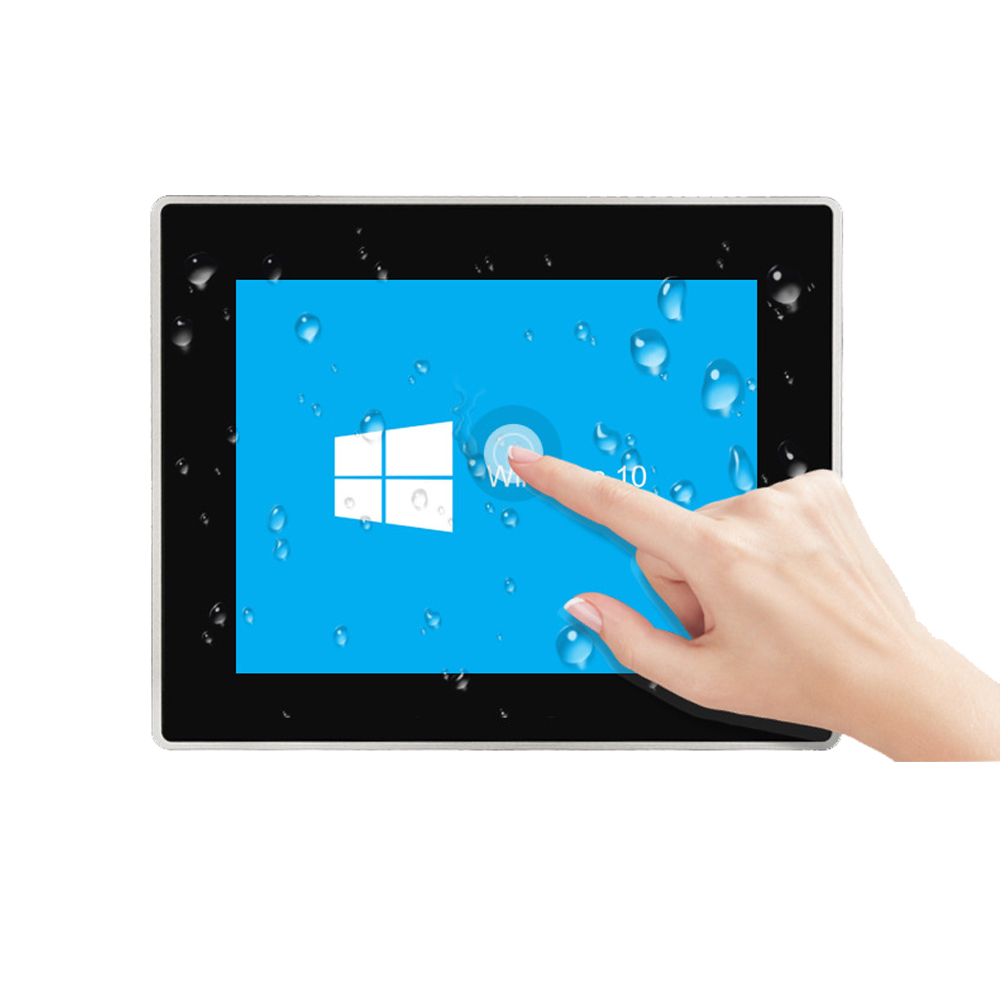

Touch Screen
| Item | Specification |
|---|---|
| Touch Type | 5-wire analog resistive |
| Optional Touch | Capacitive touch |
| Light Transmission | >85% |
| Lifetime | >50 million activations |
| Front Panel Protection | IP65 |

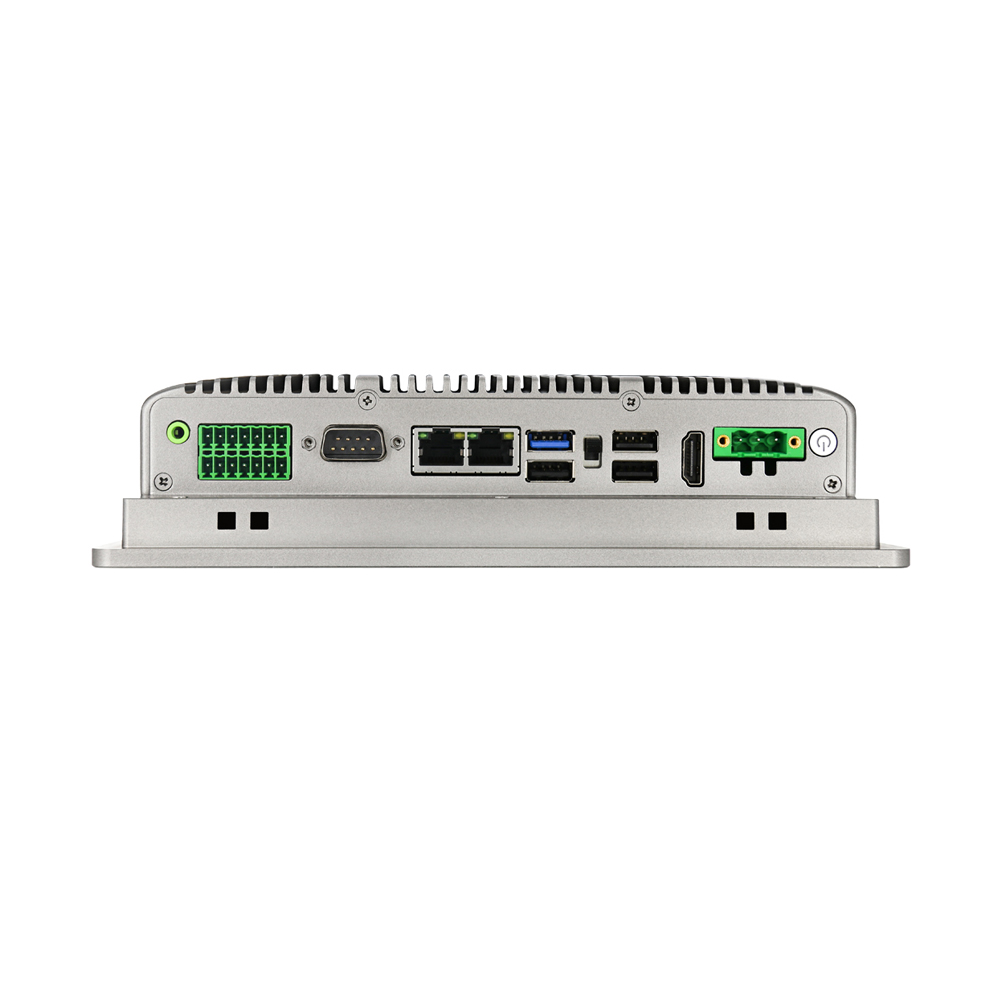

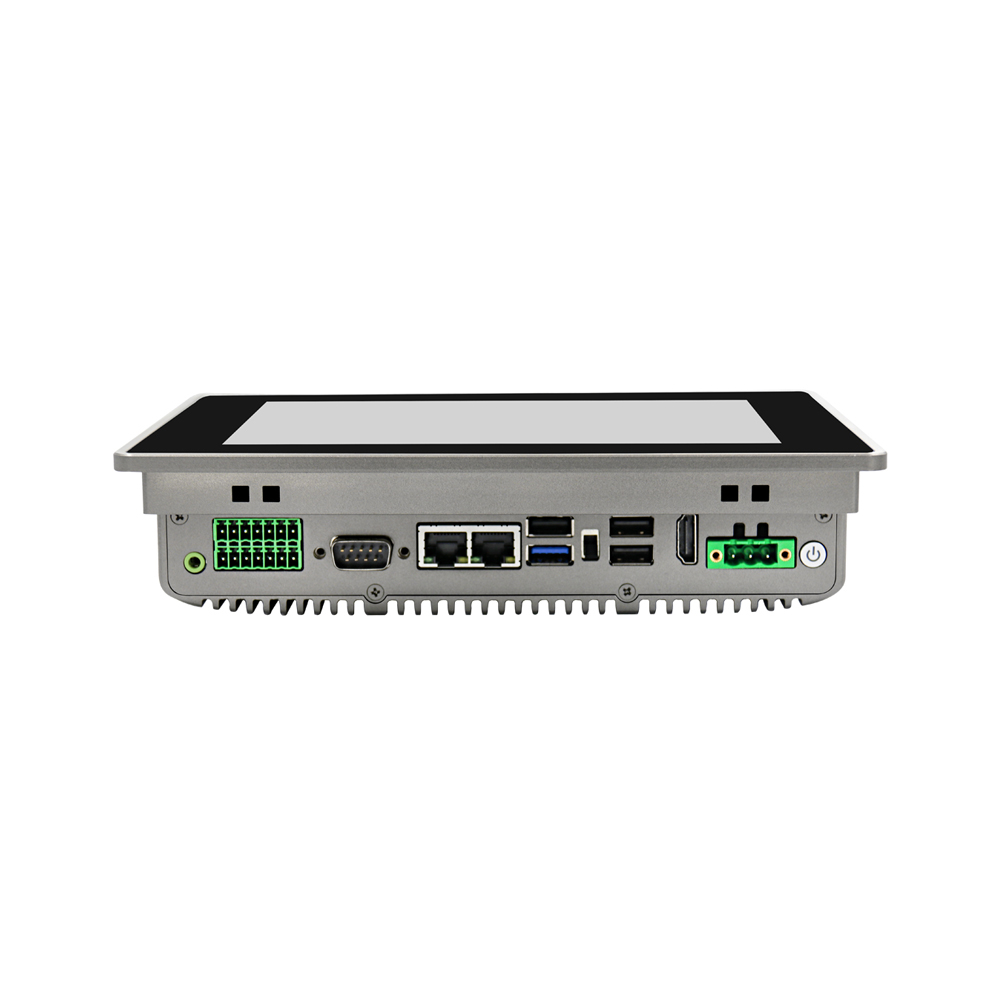

I/O Interfaces
| Interface | Specification |
|---|---|
| USB | 3 × USB 2.0, 1 × USB 3.0 |
| COM1 | 1 × DB9 COM, RS232 |
| COM2 / COM3 / COM4 | 3 × 3-wire COM, RS232 Phoenix terminal |
| COM5 / COM6 | 2 × 3-wire COM, RS485 Phoenix terminal |
| Audio | 1 × audio line-out |
| Speaker Output | 2 × 8Ω 1W power amplifier output, optional |
| AT / ATX | 1 × AT / ATX DIP switch |
| HDMI | 1 × HDMI |
| GPIO | 1 × 8-bit GPIO, optional |
Storage and Wireless
| Item | Specification |
|---|---|
| mSATA | 1 × mSATA |
| SATA | 1 × SATA for 2.5 inch HDD / SSD |

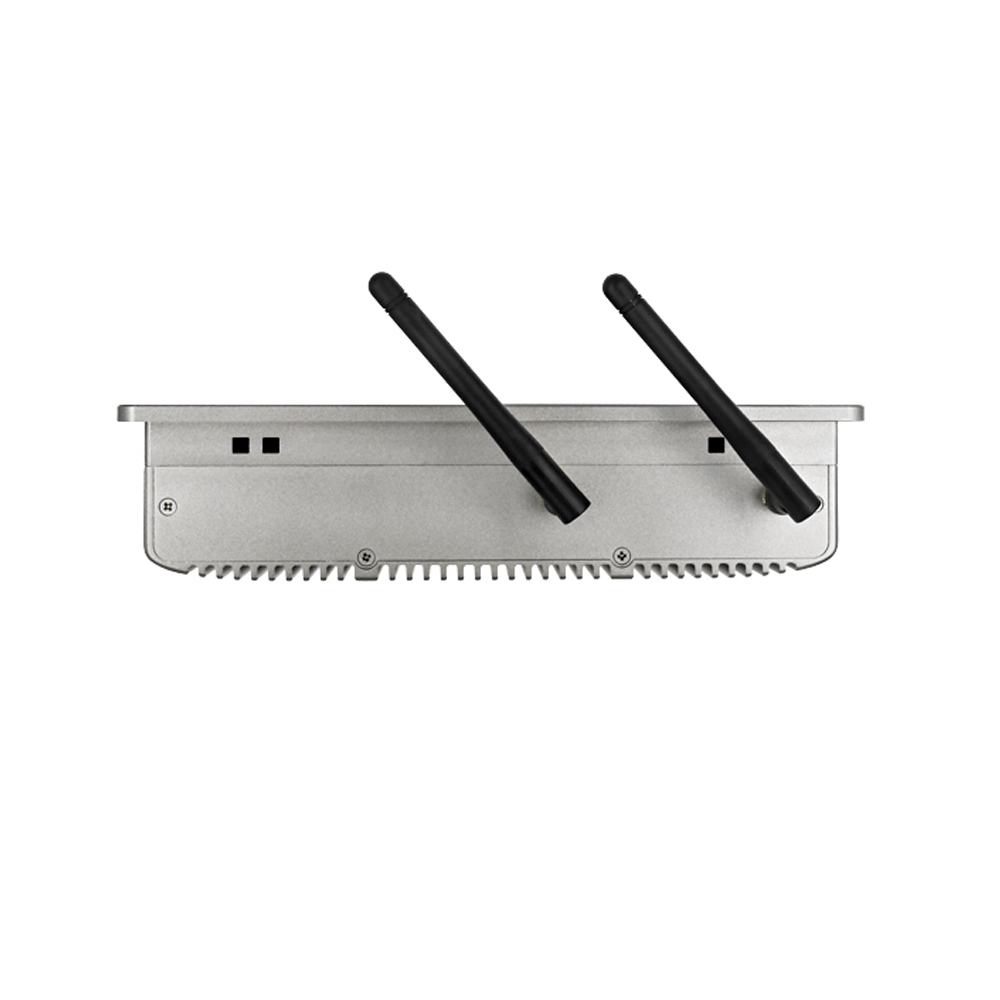

| Wireless Expansion | 1 × full-height Mini PCIe |
| SIM Slot | Onboard SIM slot |
| Wireless Module Support | 3G / 4G / WiFi |
Mechanical and Environmental Specifications
| Item | Specification |
|---|---|
| Material | Aluminium alloy |
| Installation | VESA 75 / Panel mount |

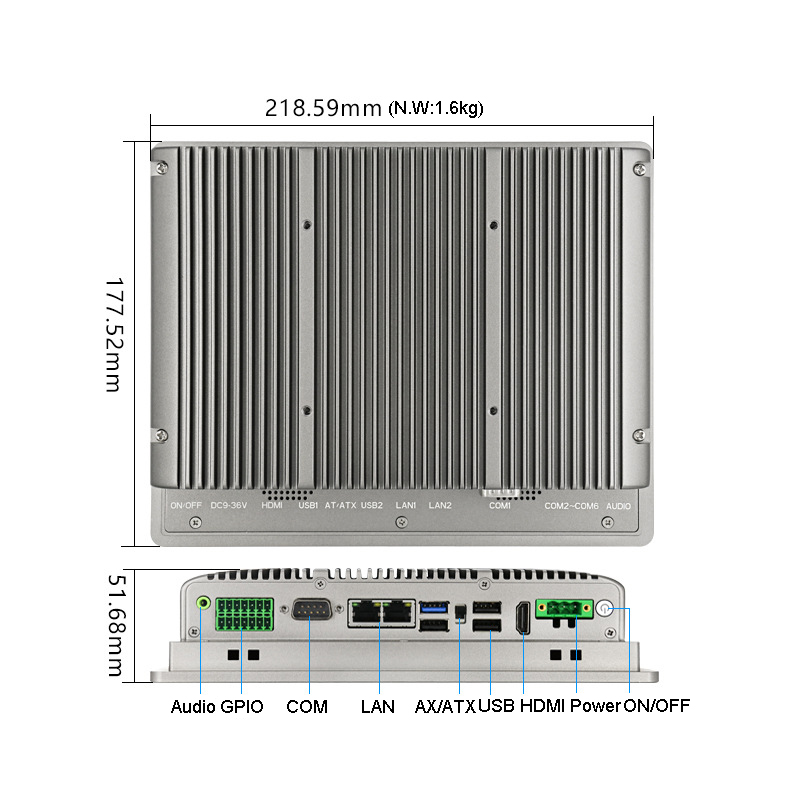

| Dimensions | 218.59 × 177.52 × 51.68mm |
| Net Weight | 1.6kg |
| Operating Temperature | -20℃ to 60℃ |
| Storage Temperature | -30℃ to 70℃ |
| Storage Humidity | 10%–90% @ 30℃, non-condensing |
| Power Supply | DC12V, 3-pin Phoenix terminal |
Why Choose TPC-8001?
TPC-8001 is suitable for industrial applications that require a compact touch display, fanless operation and reliable embedded computing.
Compared with standard commercial touch panels, TPC-8001 provides aluminium alloy construction, front IP65 protection, dual LAN, multiple COM ports, RS485 support, panel-mount installation and industrial temperature support. These features make it practical for compact HMI systems, machine control, factory automation, warehouse terminals, access control terminals and self-service equipment.
For projects that require an 8 inch integrated touch computer with industrial I/O and long-term stable operation, TPC-8001 provides a compact and cost-effective industrial panel PC solution.
Related Models
TPC-1001 – 10.1 inch industrial tablet PC with 1280 × 800 display
TPC-1201 – 12.1 inch industrial tablet PC with 1024 × 768 display
TPC-1901 – 19 inch industrial touch screen panel PC with 1280 × 1024 display
TPC-2105 – 21.5 inch industrial touch screen panel PC with 1920 × 1080 display
SNR-IBC-N8 – Fanless industrial PC for self-service kiosks and embedded systems
FAQ
What is TPC-8001 used for?
TPC-8001 is used as an industrial touch screen panel PC for compact HMI systems, machine control, factory automation, warehouse systems, access control, self-service terminals and embedded industrial applications.
What processor does TPC-8001 use?
TPC-8001 uses an onboard Intel Celeron J1900 CPU.
What screen size does TPC-8001 use?
TPC-8001 uses an 8 inch TFT-LCD display with 800 × 600 resolution. A 1024 × 768 version is optional.
Is TPC-8001 fanless?
Yes. TPC-8001 supports fanless operation, making it suitable for industrial environments where dust resistance, low noise and long-term reliability are important.
Does TPC-8001 support front IP65 protection?
Yes. The front panel supports IP65 protection.
What touch screen options are available?
TPC-8001 supports 5-wire analog resistive touch screen, with capacitive touch available as an option.
Does TPC-8001 support RS485?
Yes. COM5 and COM6 support RS485 through Phoenix terminal connections.
What operating systems are supported?
TPC-8001 supports Windows 7 / 8 / 10 and Linux.
What installation methods are supported?
TPC-8001 supports VESA 75 and panel mount installation.
| Weight | 6 kg |
|---|---|
| Configuration | J1900 + 4G RAM +128G SSD, J1900 + 4G RAM +256G SSD, J1900 + 4G RAM +512G SSD, J1900 + 8G RAM +128G SSD, J1900 + 8G RAM +256G SSD, J1900 + 8G RAM +512G SSD |
